8653481618_1
In stock 42137 Pièces
€1.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250 1000
Lot price VAT included €1.85 €3.70 €4.50 €23.65 €81.90

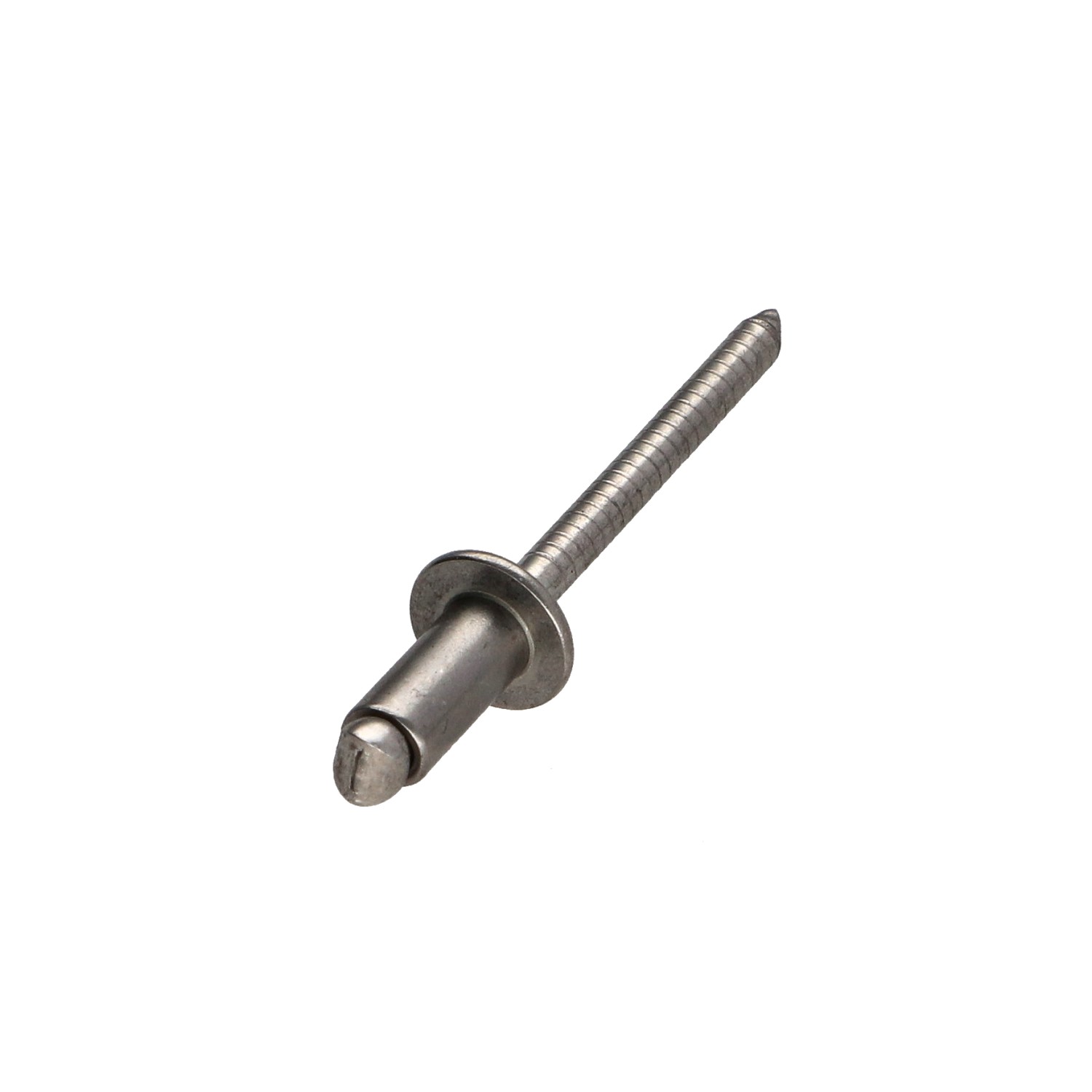

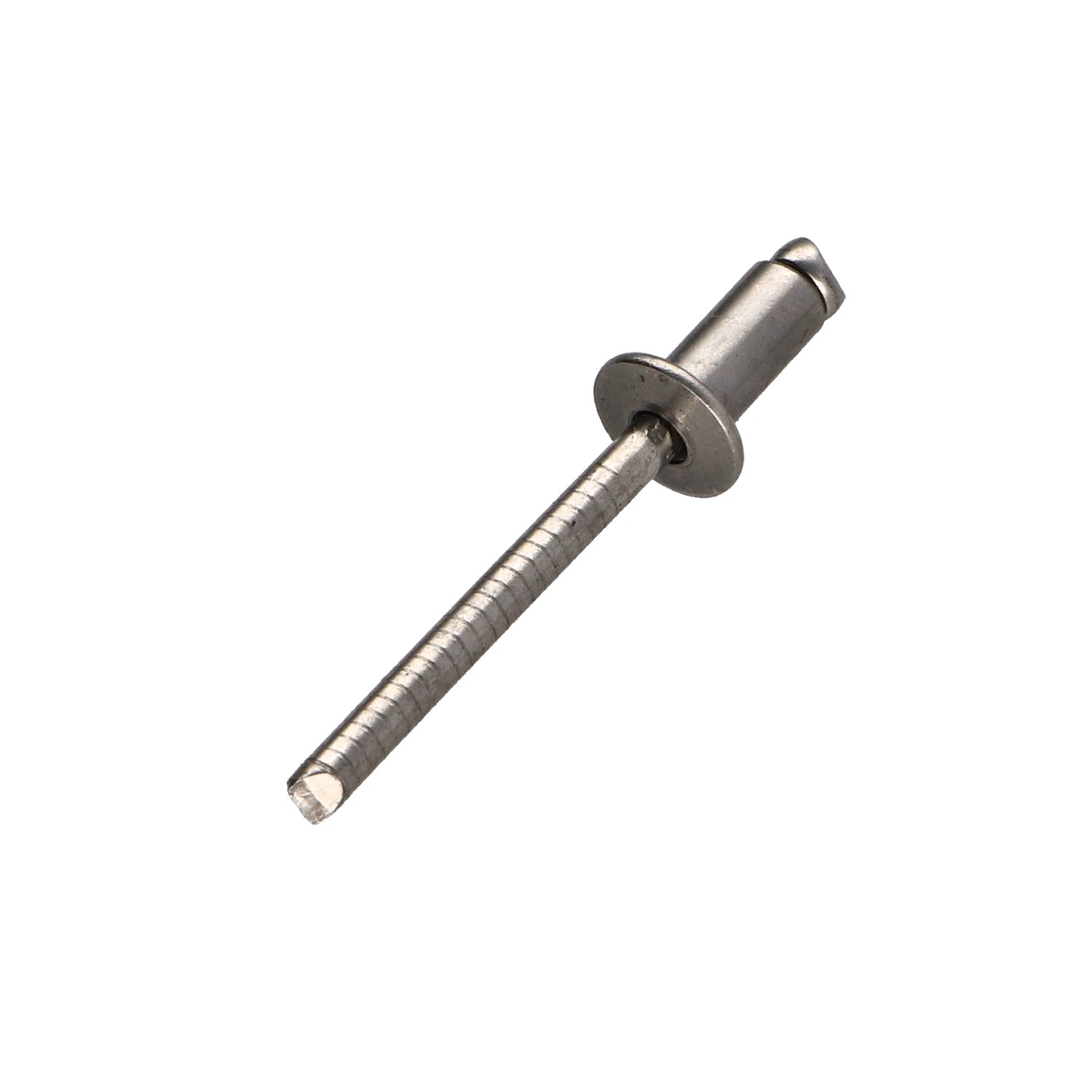

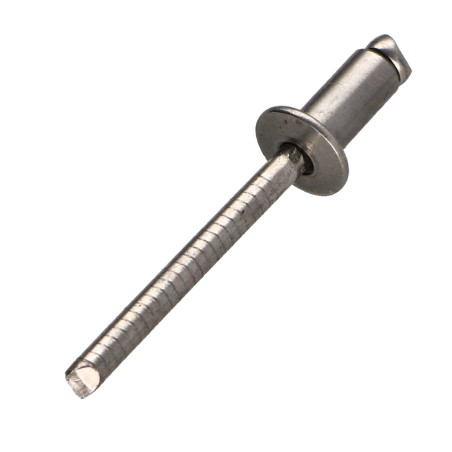

Blind Rivet All Stainless Steel TRS 4.8X16 Thickness Of Panel 9 to 11
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units
  • 1000 Units

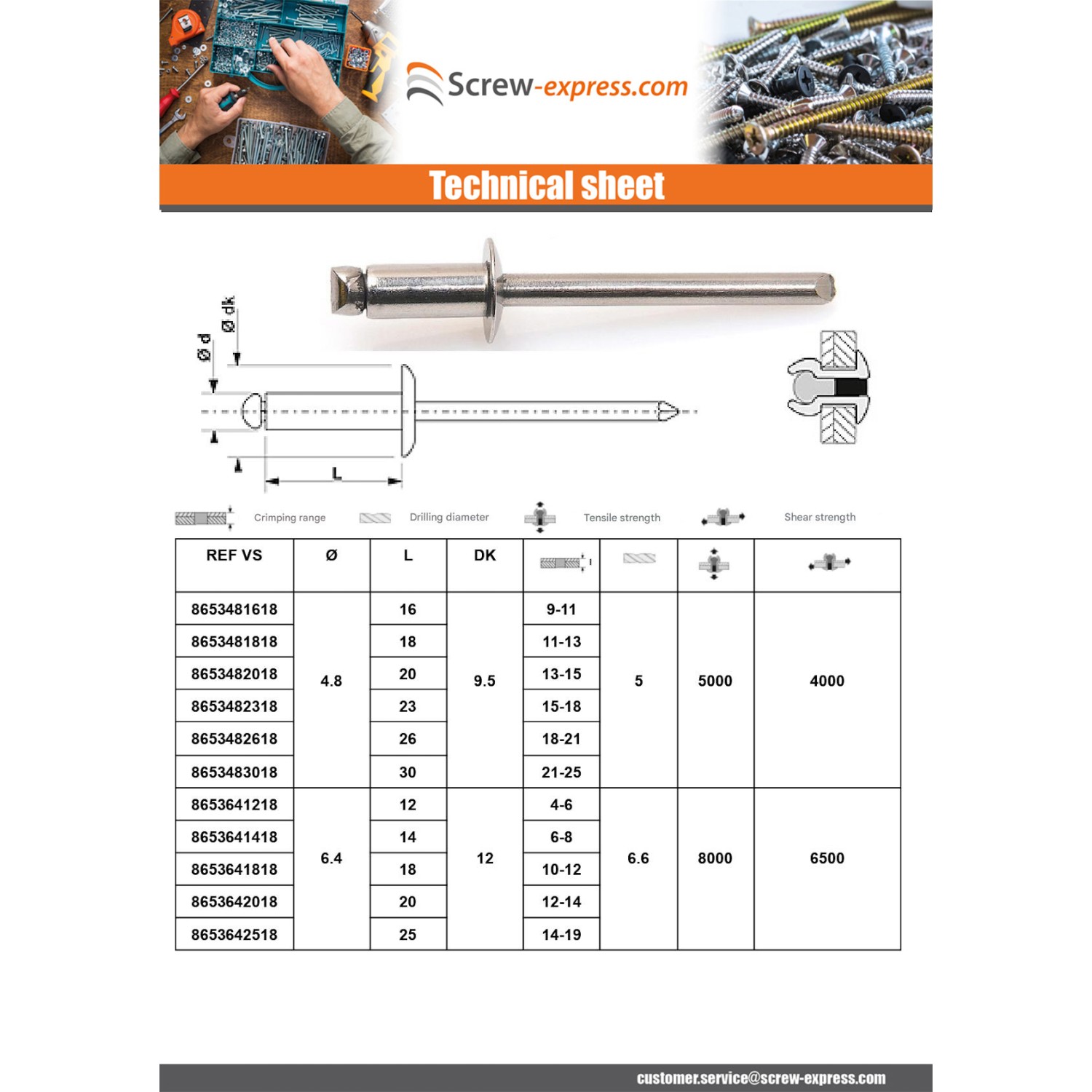

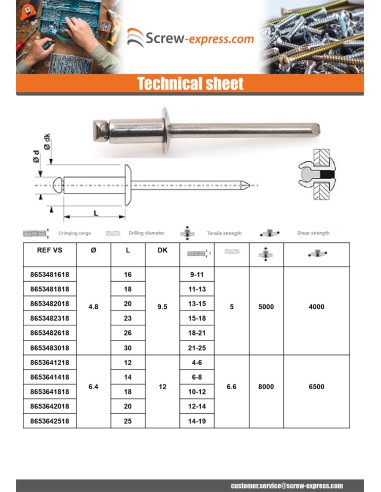

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Use
External
Shear (N)
4000
Clamping thickness
9 a 11 mm
Rivet body length
16
Unit weight
4.65 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
5000
42137 Items
3663072170629

Application

  • Heating
  • Air conditioning
  • Ventilation
  • Industrial equipment
  • Machines
  • Industrial oven
  • Bakery
  • Medical device
Blind Rivet All Stainless Steel TRS 4.8X16 Thickness Of Panel 9 to 11
Diameter = Class 4.8, Use = External
Other Reference : 105148161 AN AN 310224100 2095 ANS RIV4.8X16 39856 39856 RIVE0031 C09690006 105148161 VIPTITP4.8X1 05875 150946 9103929634 280022 280022 QVI.420 3663072170629
Johan P. (vis-express.fr)
2026-07-19

to fix a wire mesh to a frame


Rémi R. (vis-express.fr)
2025-04-27

Product assembly 2 sheets of 2mm
