1 x Washer Flat M6X12X1.2 Z Stainless Steel A2
1 x Washer Flat M6X12X1.2 Z Stainless Steel A2
1 x Washer Flat M6X12X1.2 Z Stainless Steel A2
1 x Washer Flat M6X12X1.2 Z Stainless Steel A2
1 x Washer Flat M6X12X1.2 Z Stainless Steel A2
1 x Washer Flat M6X12X1.2 Z Stainless Steel A2

1 x Washer Flat M6X12X1.2 Z Stainless Steel A2

8532000618_1
In stock 65974 Pièces
€0.45 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200 800
Lot price VAT included €0.45 €0.90 €1.05 €1.20 €4.40

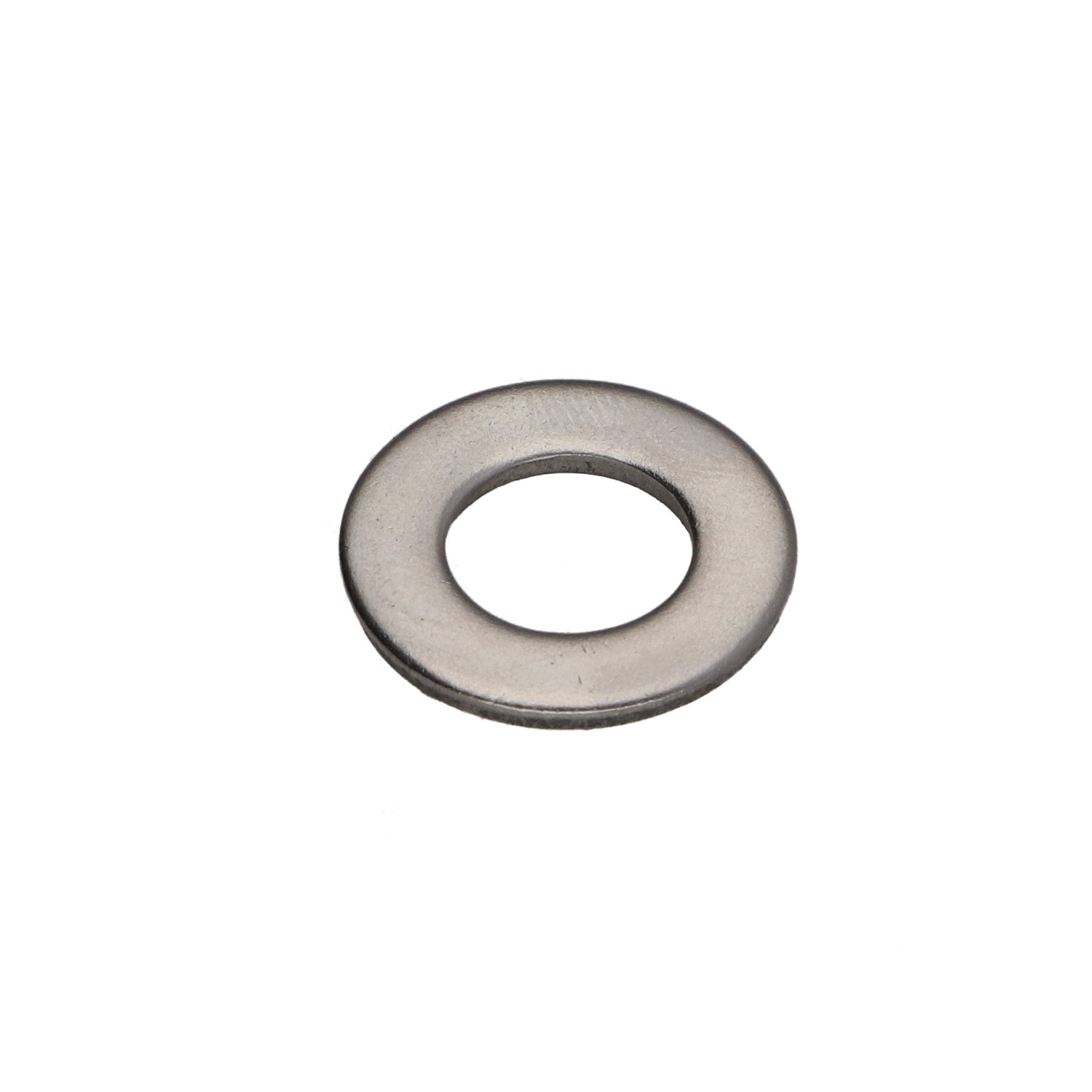

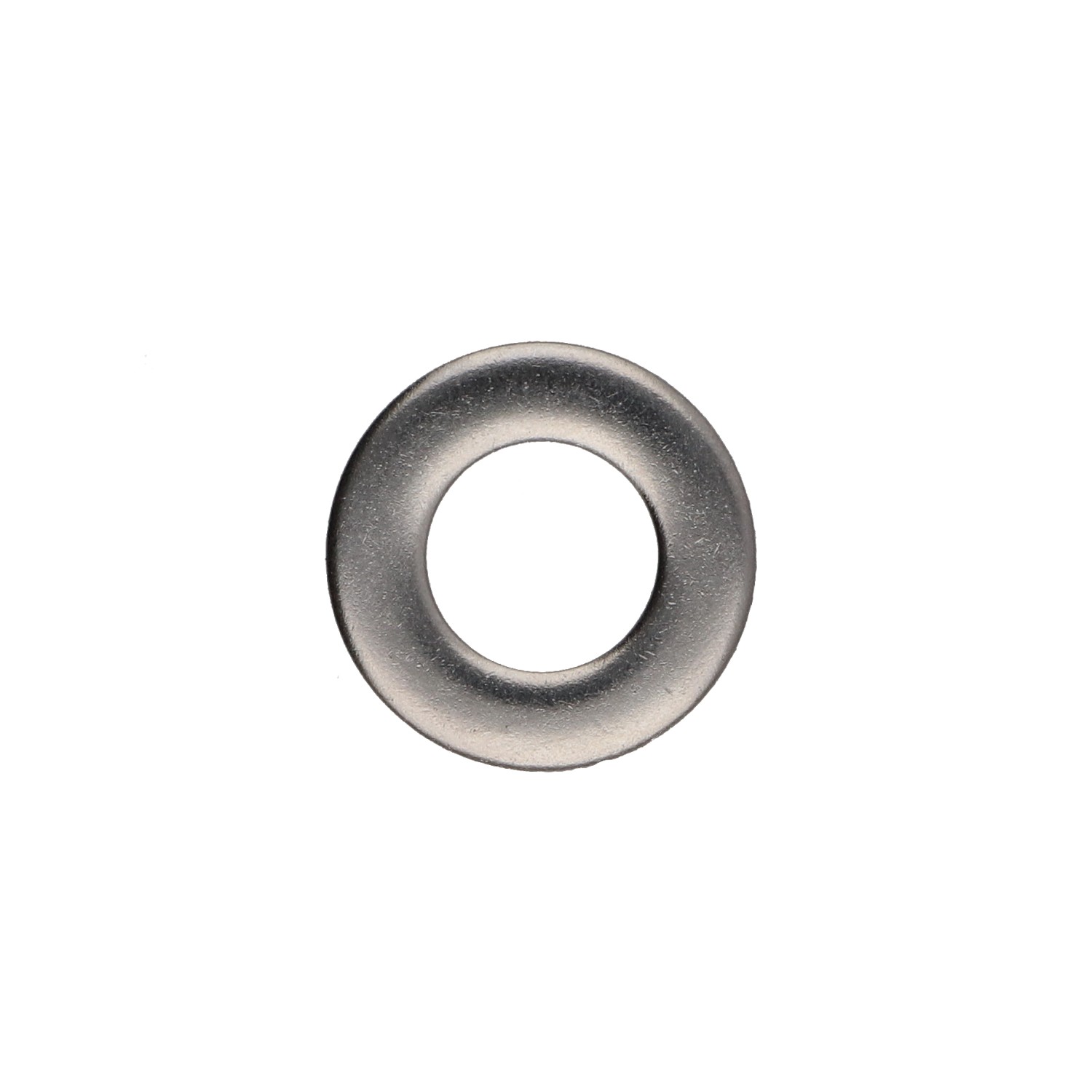

NFE 25513,VS-NFE25513 GRADE C - Washer Flat M6X12X1.2 Z Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units
  • 800 Units

Dimensions shown in millimeters (mm)

Diameter Internal
M6 (6.4 6.62 MM)
Diameter External
12 MM
Thickness
1.2 MM
Series (Washer)
Narrow Type
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 25513,VS-NFE25513 GRADE C
Unit weight
0.24 GR
65974 Items
3663072168091
Washer Flat M6X12X1.2 Z Stainless Steel A2
Thickness = 1.2 MM, Material = Stainless Steel A2, Norm = NFE 25513,VS-NFE25513 GRADE C

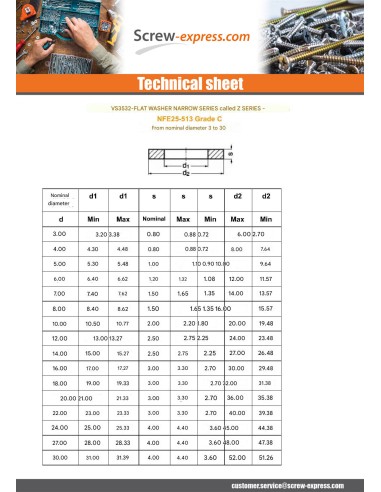

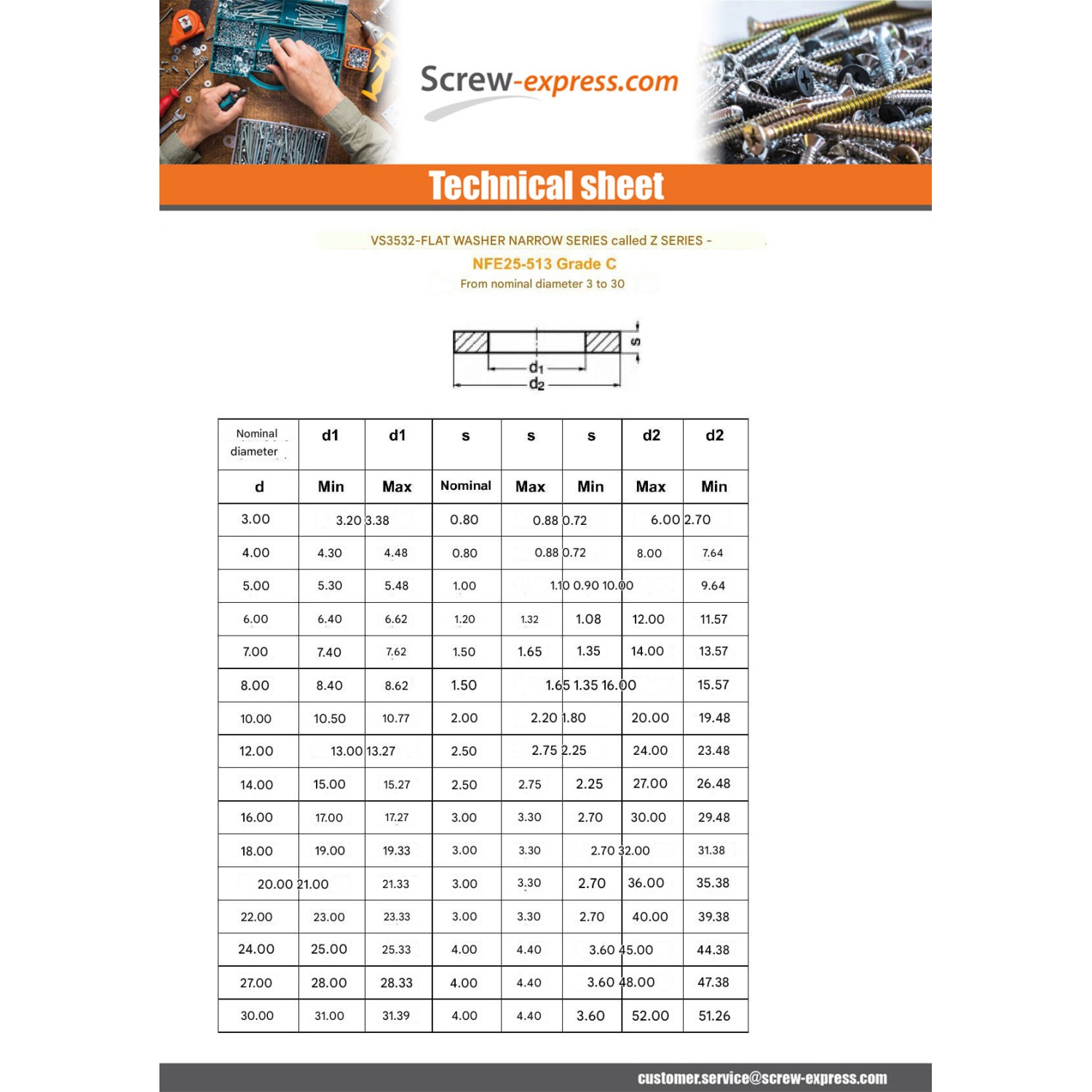

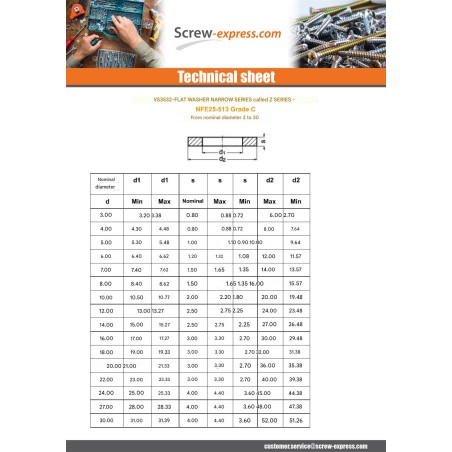

dimensional guide (mm)
Diameter M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M28
Interior diameter 3.2 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25 28 31
Exterior diameter 6 8 10 12 14 16 20 24 27 30 32 36 40 45 48 52
Tickness 0.8 0.8 1 1.2 1.5 1.5 2 2.5 2.5 3 3 3 3 4 4 4

Other Reference : 625036 4005590 131888 A002830 C171148 MBH3086 401089 AR001351 1AD000870174 1408000107 304071 VI1027 MVIS003-Z6-A VI057 V010061400 2069780000 FROI016 08050612 LC35328 16802 2001954 515707 AQU3020 OUT001934 V010021 50005675 RO IZ06 167570 B460002 CO600031 1717 DMRONI005 280076s 3663072168091
Yasin G. (vis-express.fr)
2026-05-17

je m'en sers avec des vis BHC M6L8 car elles n'ont pas d'embase, contrairement aux BHC-E


Thomas L. (vis-express.fr)
2025-11-23

I use it to align adjustable slats in a louvered shutter. There's no brand name because I make the shutter myself. It's 2280mm high by 1795mm wide.
