8535000518_1
In stock 23768 Pièces
€0.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200 800
Lot price VAT included €0.50 €1.00 €1.20 €3.50 €13.20
NFE 25513,VS-NFE25513 GRADE C - Washer Flat M5X20X1 LL Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units
  • 800 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter Internal
M5 (5.3 5.48 MM)
Diameter External
20 MM
Thickness
1 MM
Series (Washer)
Extra Large Serie
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 25513,VS-NFE25513 GRADE C
Unit weight
2.18 GR
23768 Items
3663072168480

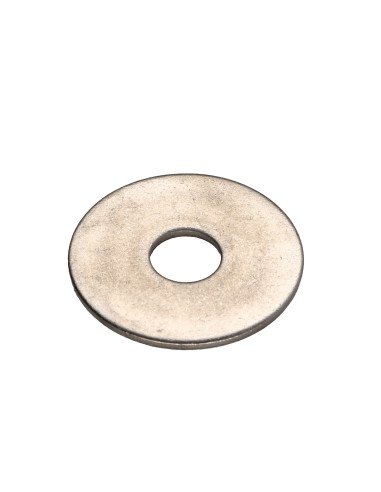

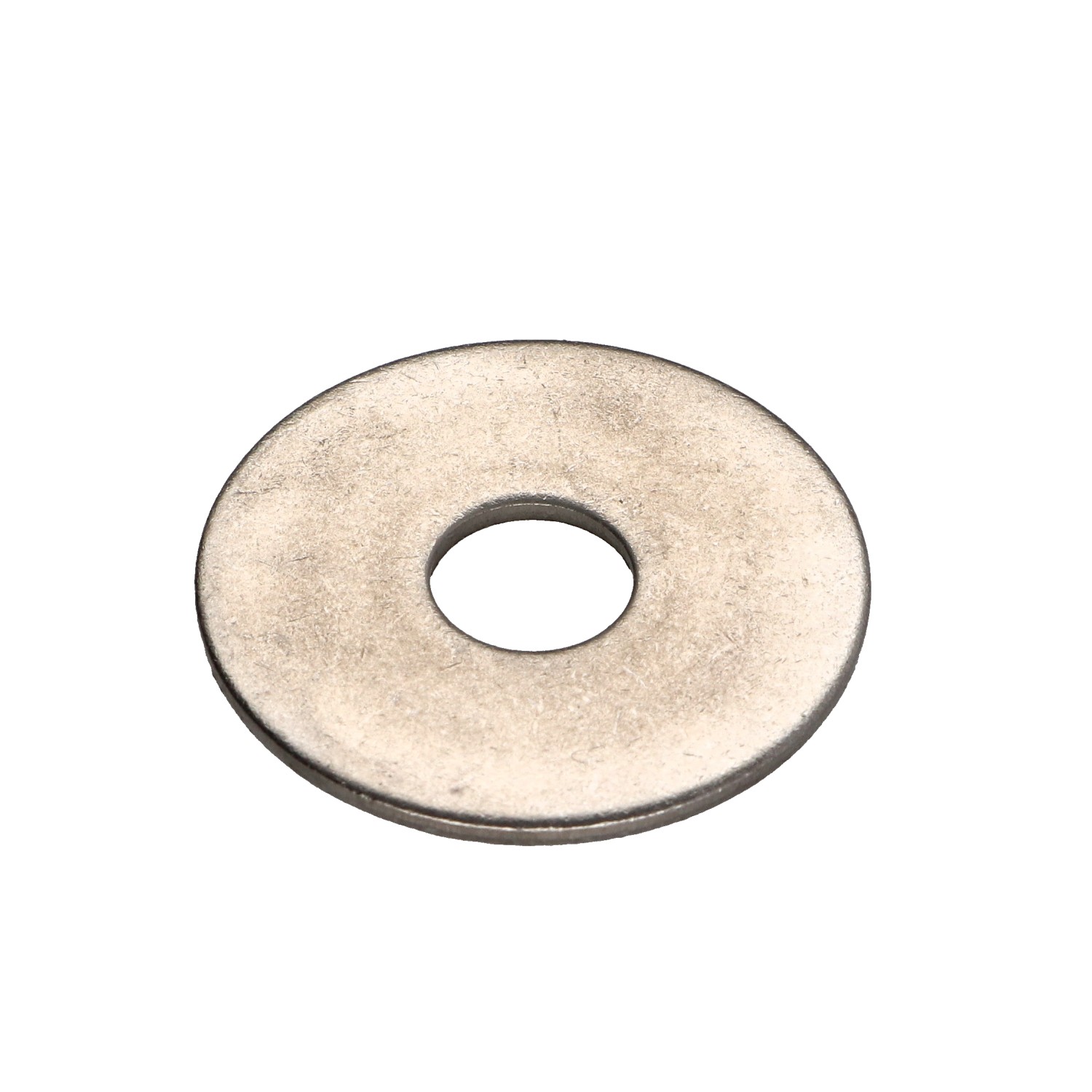

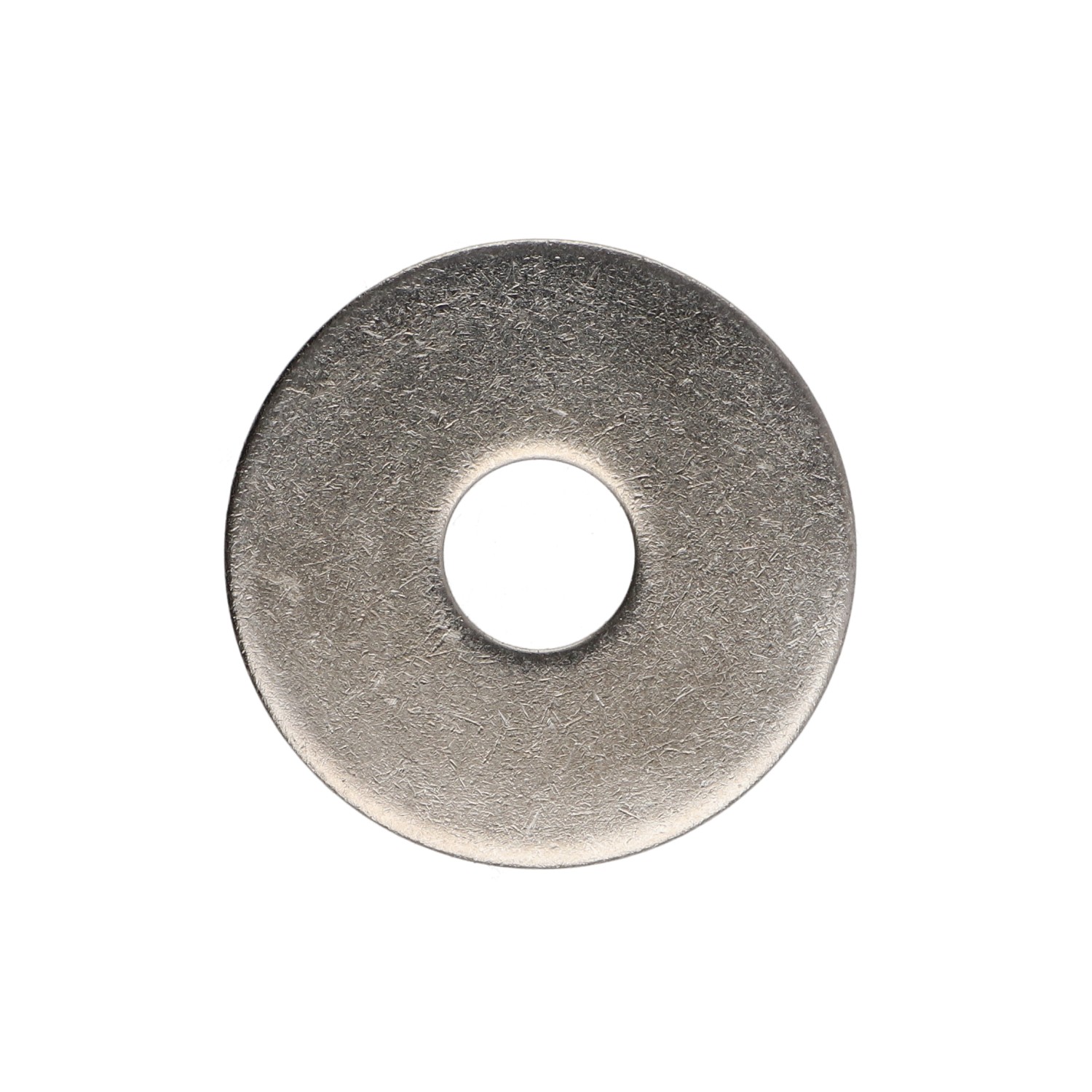

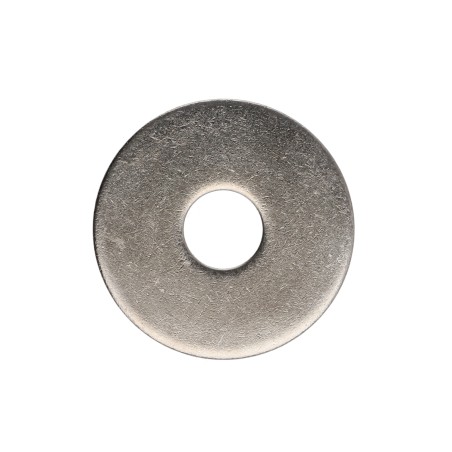

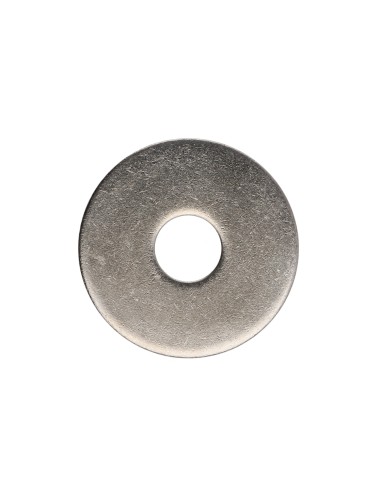

Washer Flat M5X20X1 LL Stainless Steel A2
Thickness = 1 MM, Material = Stainless Steel A2, Norm = NFE 25513,VS-NFE25513 GRADE C

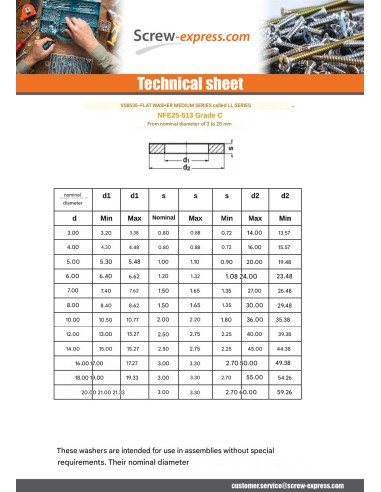

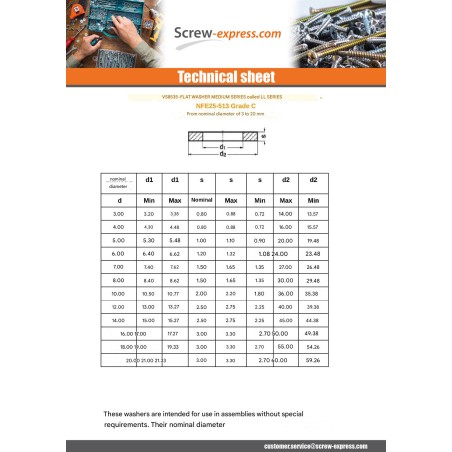

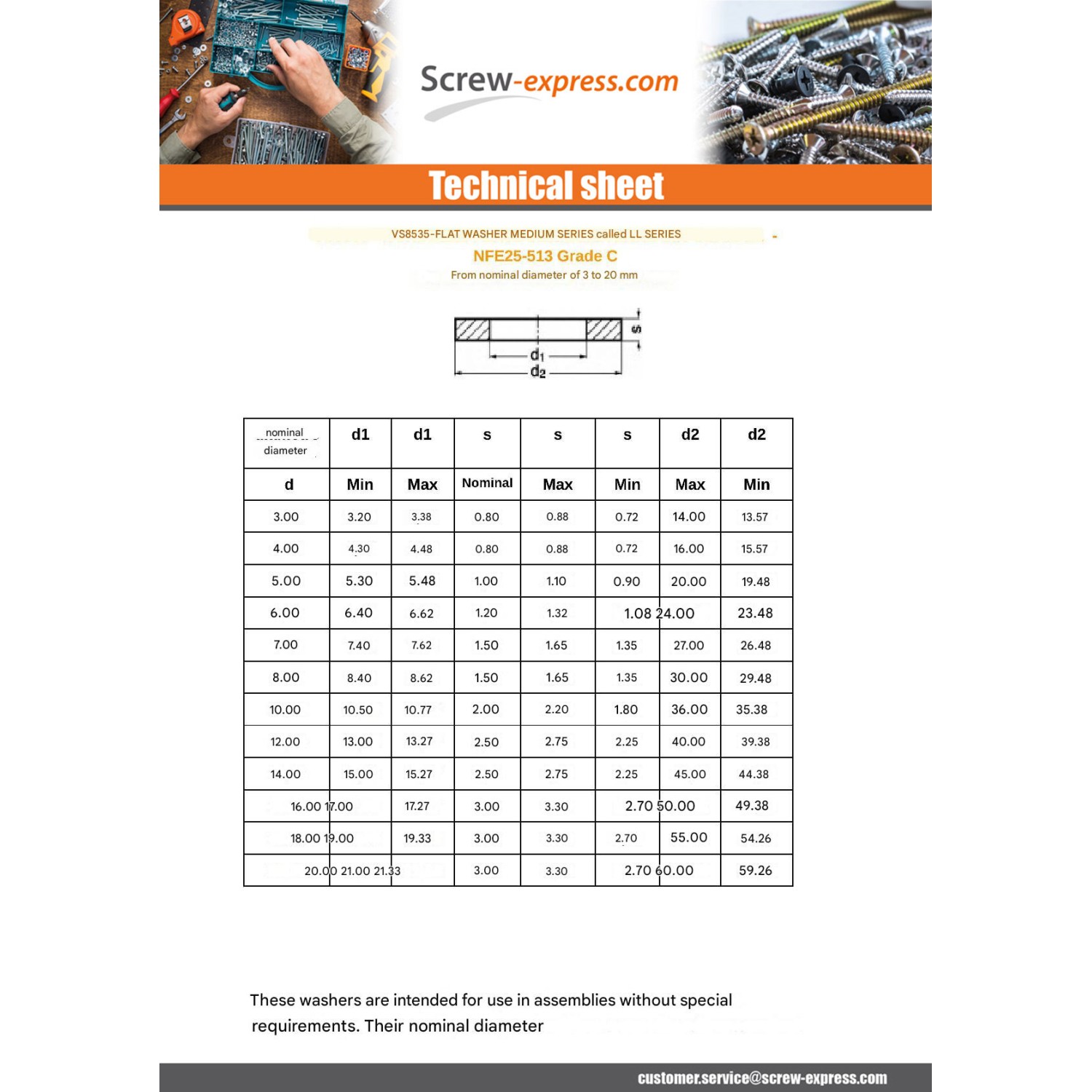

dimensional guide (mm)
Diameter M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20
Interior diameter 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21
Exterior diameter 16 20 24 27 30 36 40 45 50 55 60
Tickness 08 1 1.2 1.5 1.5 2 2.5 2.5 3 3 3

Other Reference : 255132LL5 VIS838 QUI0342 61051 157378 17098 V010052000 9908005 3248 05007 17098 218008 24730 ZRONPL520 A04907 RONDI_5X20 3663072168480
Francois V. (vis-express.fr)
2026-05-17

Pour la réparation d'un bouclier Av de voiture.<br /> Plus création d'un stock de fournitures. Bouclier Avant de RENAULT Twingo.<br /> Tout en plastique, cassé aux fixations.


François M. (vis-express.fr)
2026-04-26

Rondelles d'appui pour Roulette Roulette Mesa 75mm


Jacques B. (vis-express.fr)
2024-10-13

fixing 250 ml wooden rafter on metal corner purlin
