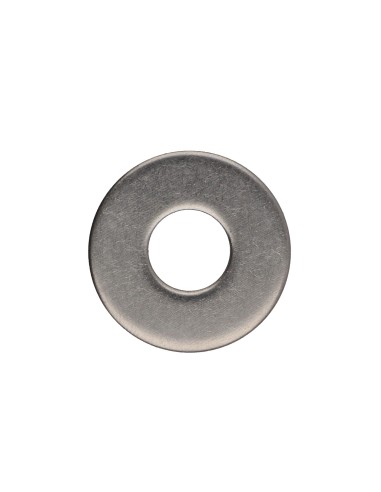

1 x Washer Flat M4X14X0.8 L Stainless Steel A2
1 x Washer Flat M4X14X0.8 L Stainless Steel A2
1 x Washer Flat M4X14X0.8 L Stainless Steel A2
1 x Washer Flat M4X14X0.8 L Stainless Steel A2
1 x Washer Flat M4X14X0.8 L Stainless Steel A2
1 x Washer Flat M4X14X0.8 L Stainless Steel A2
1 x Washer Flat M4X14X0.8 L Stainless Steel A2
1 x Washer Flat M4X14X0.8 L Stainless Steel A2

1 x Washer Flat M4X14X0.8 L Stainless Steel A2

8534000418_1
In stock 63395 Pièces
€0.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200 800
Lot price VAT included €0.50 €1.00 €1.20 €1.70 €6.40
NFE 25513,VS-NFE25513 GRADE C - Washer Flat M4X14X0.8 L Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units
  • 800 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter Internal
M4 (4.3 4.48 MM)
Diameter External
14 MM
Thickness
0.8 MM
Series (Washer)
Large Serie
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
NFE 25513,VS-NFE25513 GRADE C
Unit weight
0.6 GR
63395 Items
3663072168374

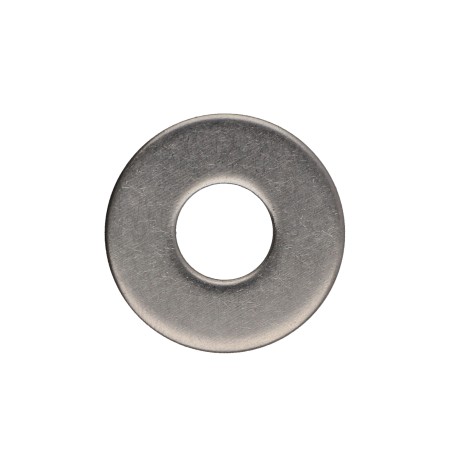

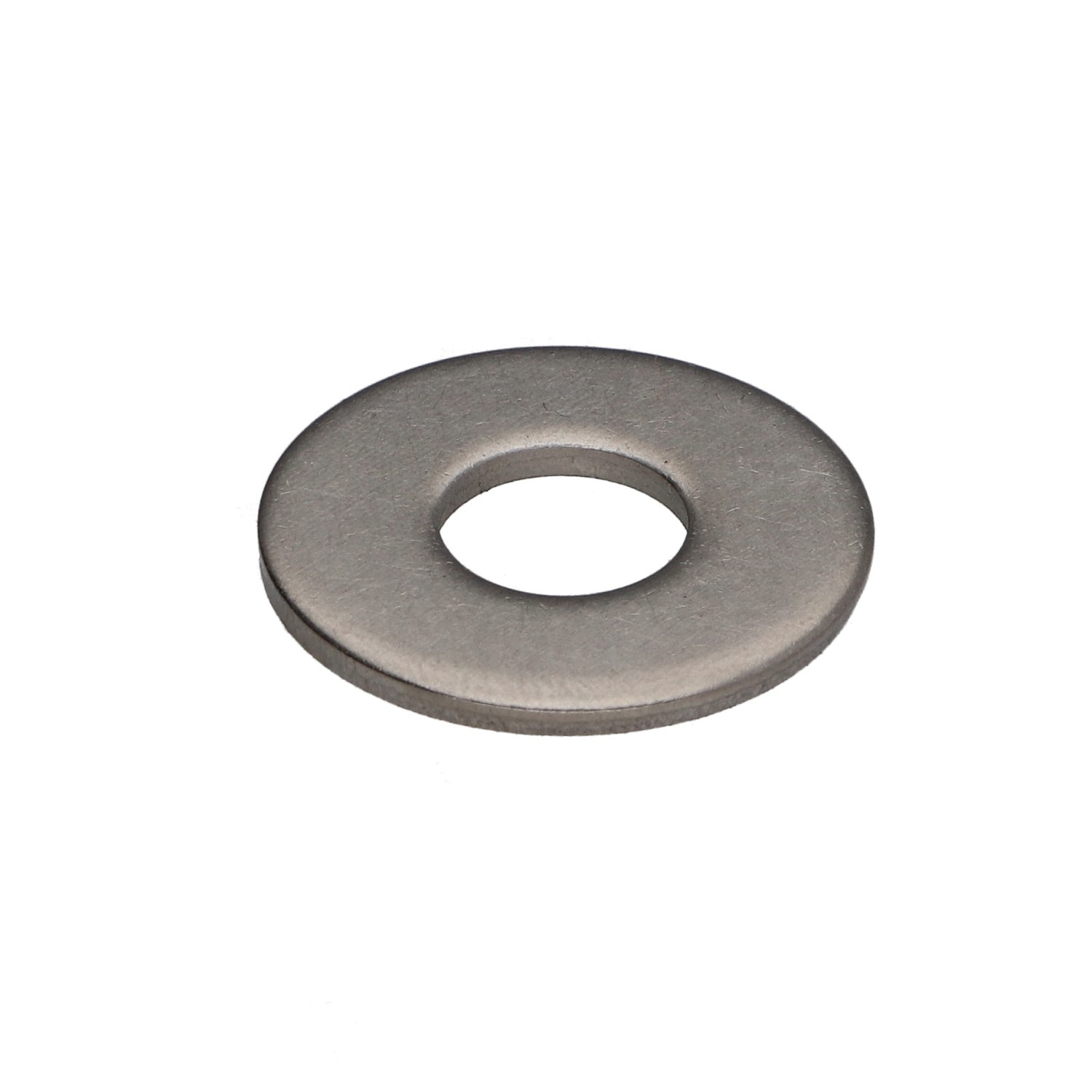

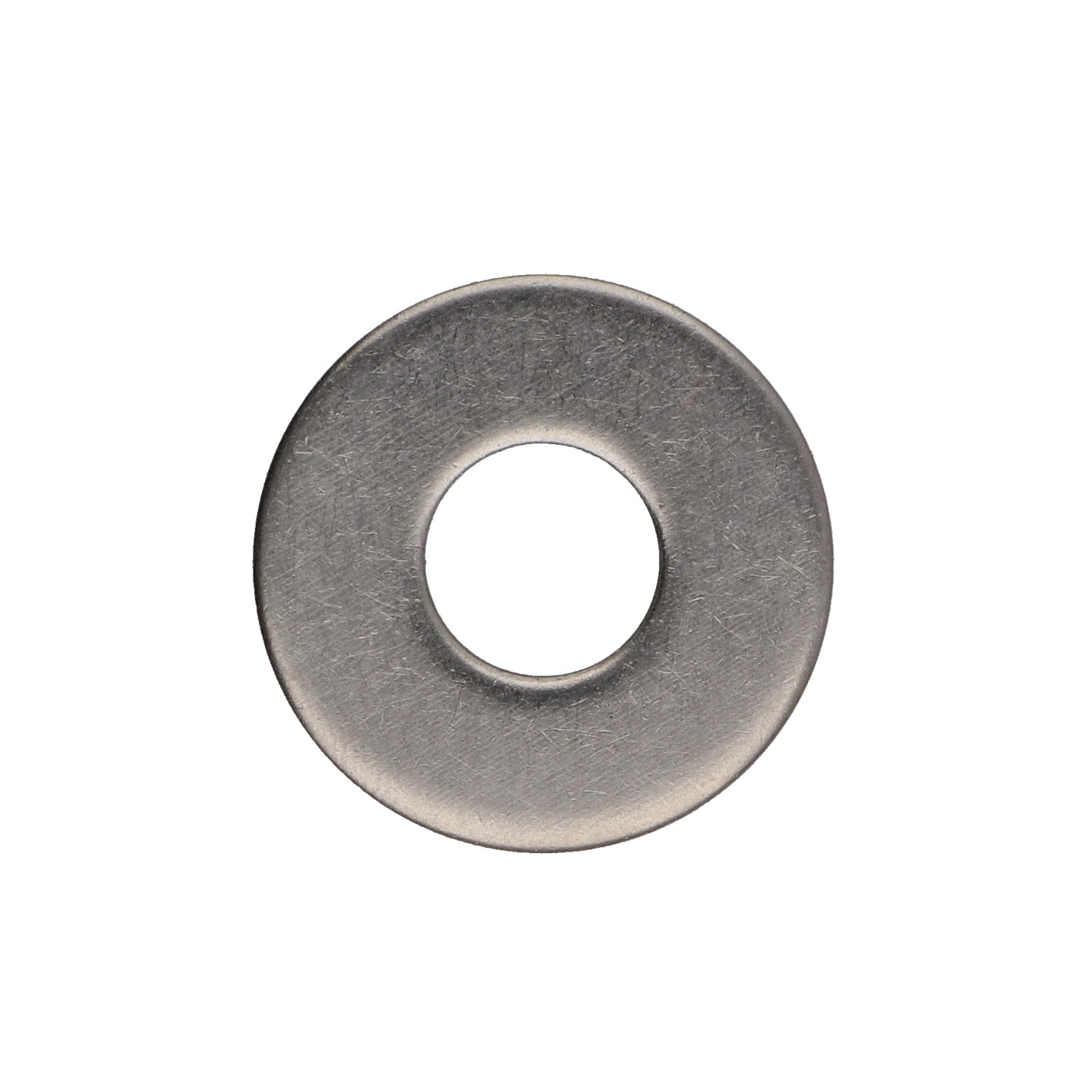

Washer Flat M4X14X0.8 L Stainless Steel A2
Thickness = 0.8 MM, Material = Stainless Steel A2, Norm = NFE 25513,VS-NFE25513 GRADE C

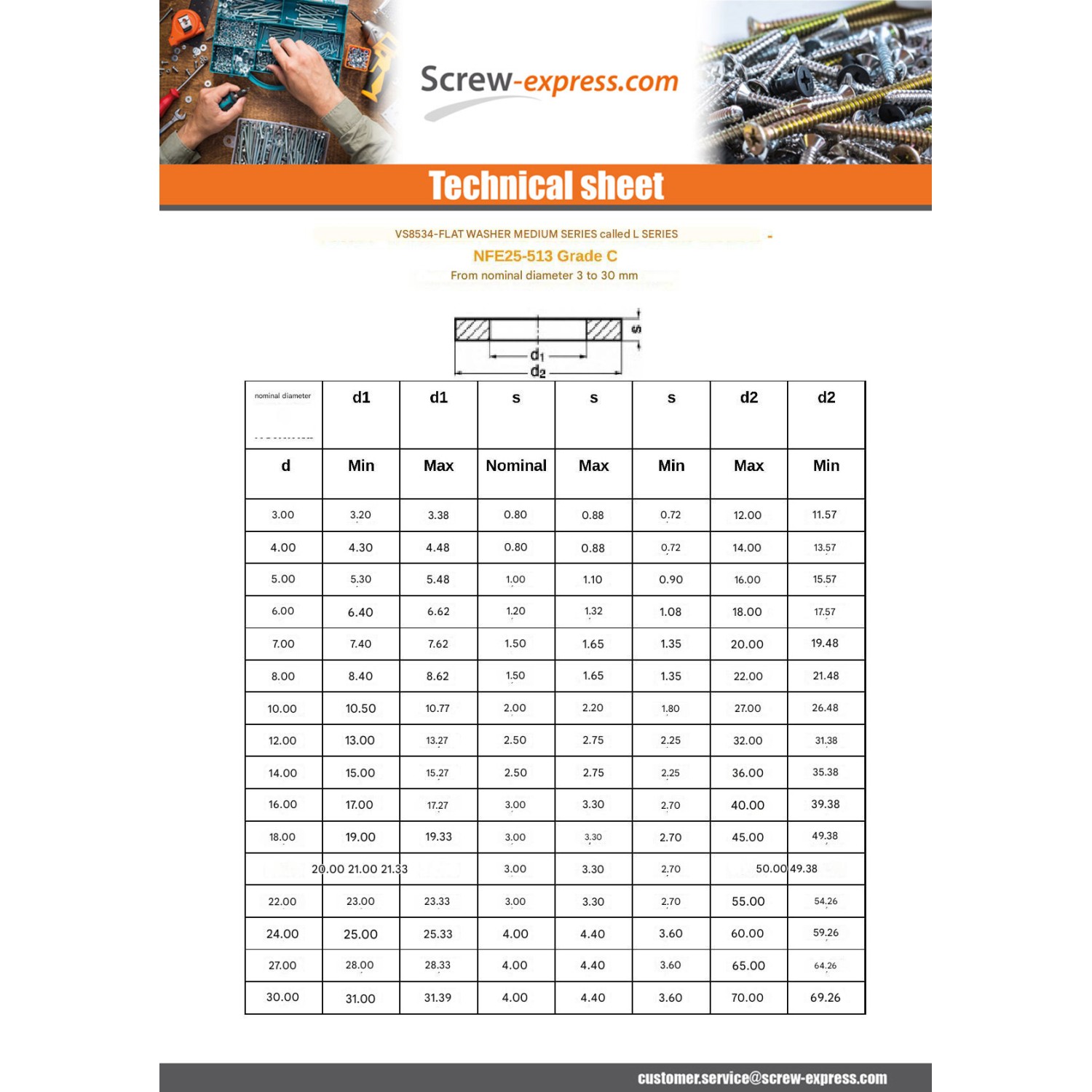

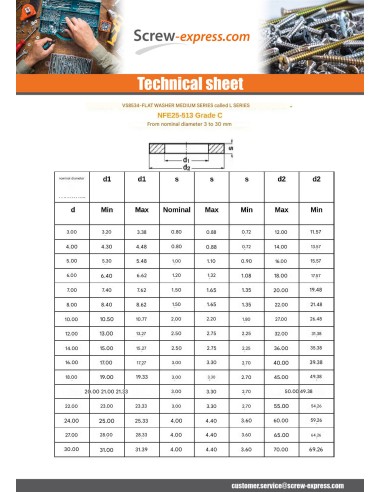

dimensional guide (mm)
Diameter M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30
Interior diameter 3.2 4.3 5.3 6.4 7.4 8.4 10.5 13 15 17 19 21 23 25 28 31
Exterior diameter 12 14 16 18 20 22 27 32 36 40 45 50 55 60 65 70
Tickness 0.8 0.8 1 1.2 1.5 1.5 2 2.5 2.5 3 3 3 3 4 4 4

Other Reference : 3617500526366 A-00142 155250 0U108046A CMROM4000508 814407 A003366 VI-IROPED04. VIS015 QC1648 L4I 313-0004 RONDINPLM4X1 VIS0068 ACC18080 04613 344003 A004687 2204-745 PRRONDEPAIS0 RAMRONDI04L 022033 CV-06-0004 aqu3011 32100X00522 10810749 167506 VIS008 CO600211 RON8018F 814407 3663072168374
Christel R. (vis-express.fr)
2026-08-23

Fixing but e shutter Torbel, hole and light 0.4. Width but e 1.7.


KERVIL M. (vis-express.fr)
2025-08-31

handle lock on 4 mm diameter threaded rod
