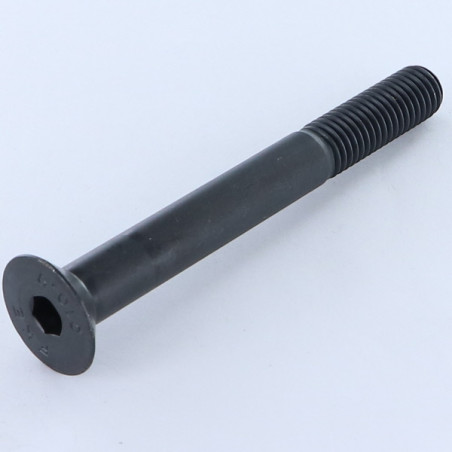

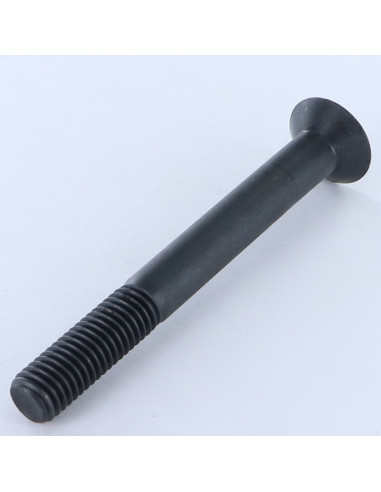

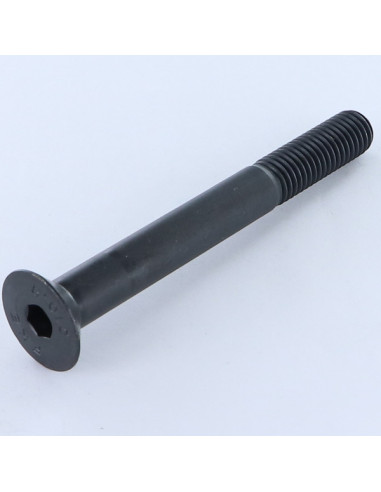

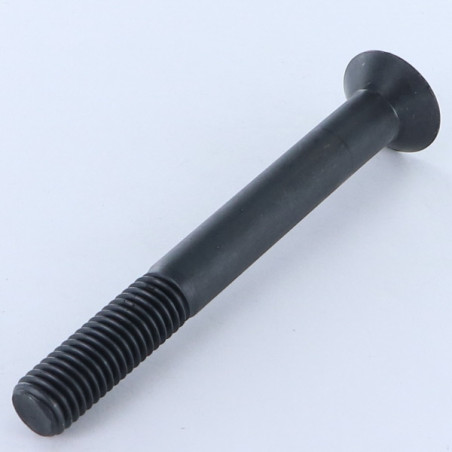

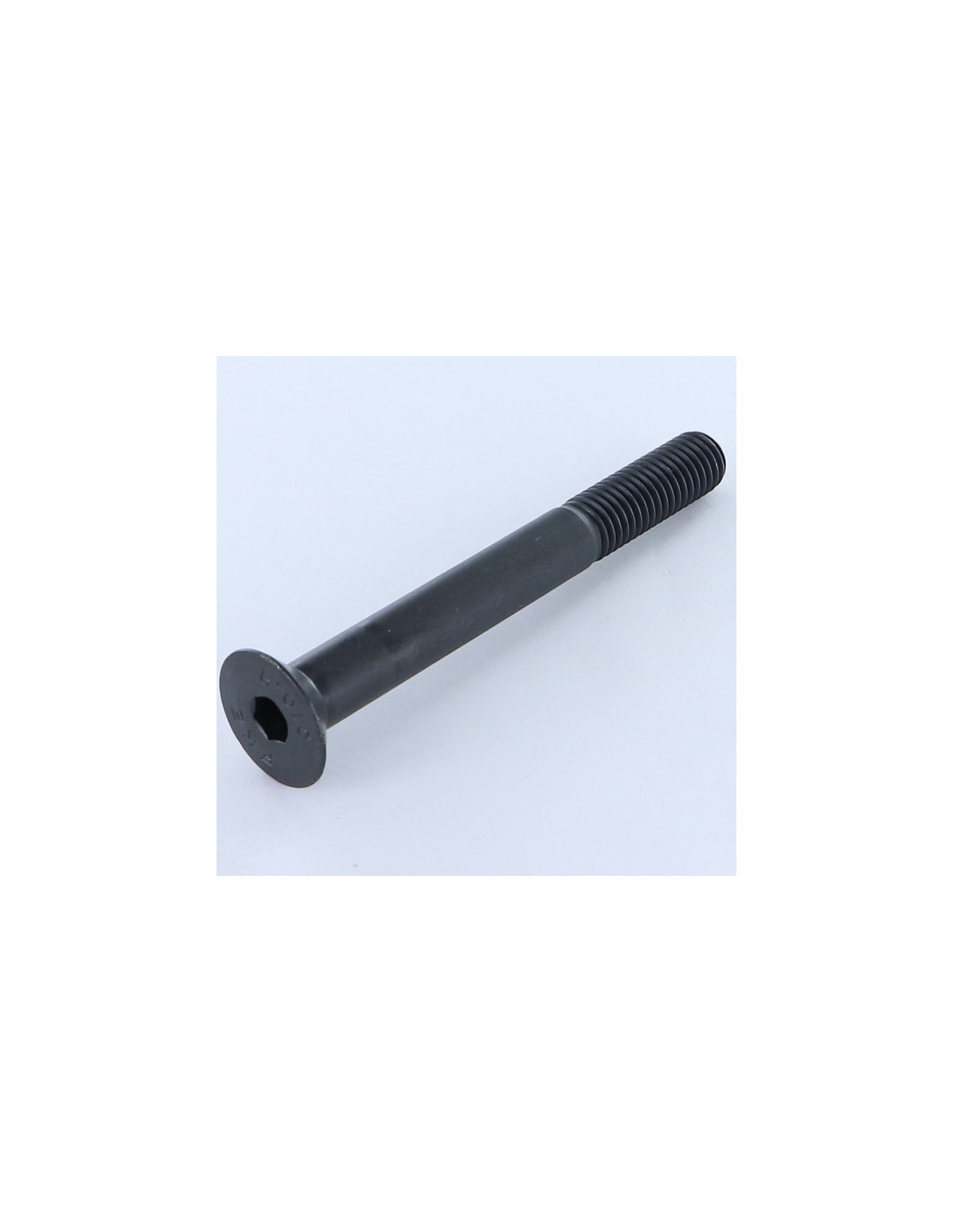

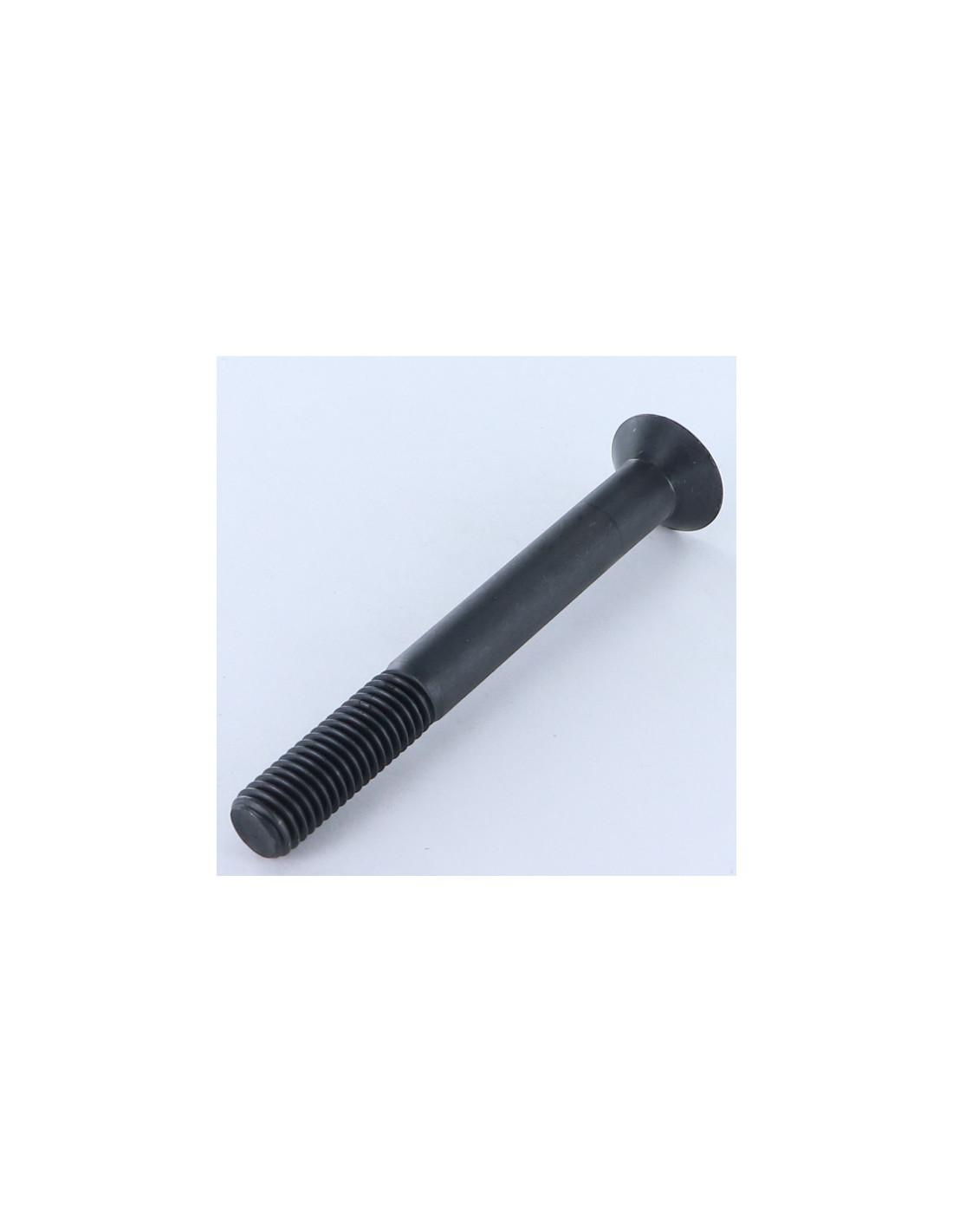

1 x Machine Screw Flat Head Hexagon Recess M16X60 Thread Length: 38 Class 10.9 Hexagon Socket 10 Steel
1 x Machine Screw Flat Head Hexagon Recess M16X60 Thread Length: 38 Class 10.9 Hexagon Socket 10 Steel
  • New
1 x Machine Screw Flat Head Hexagon Recess...
1 x Machine Screw Flat Head Hexagon Recess...

1 x Machine Screw Flat Head Hexagon Recess M16X60 Thread Length: 38 Class 10.9 Hexagon Socket 10 Steel

4621166001_1
In stock 48 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included £3.04 £6.12 £18.14 £45.38
DIN 7991,VS4721 - Machine Screw Flat Head Hexagon Recess M16X60 Thread Length: 38 Class 10.9 Hexagon Socket 10 Steel
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

Dimensions shown in millimeters (mm)

48 Items
3663072105003
Machine Screw Flat Head Hexagon Recess M16X60 Thread Length: 38 Class 10.9 Hexagon Socket 10 Steel
Diameter = M16, Length = 60, Sub Product Family = Head Flat Head Hexagon Recess, Class = Class 10.9, Material = Steel, Pitch = Standard pitch 200, Drive Type = Socket Cap, Norm = DIN 7991,VS4721, Product Family = Machine Screw, Size Drive Type = Hexagon Socket 10


dimensional guide (mm)
Diameter M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24
Across flats 2 2.5 3 4 5 6 8 10 10 12 12 14 14
Head diameter 6 8 10 12 16 20 24 27 30 33 36 36 39
Thread length for screw L<125 12 14 16 18 22 26 30 34 38 42 46 50 54
Thread length for screw 125 - - - 24 28 32 36 40 44 48 52 56 60
Thread length for screw L>200 - - - - - 45 49 53 57 61 65 69 73
L=LONGUEUR

Other Reference : 3473576746844 VFHC16X55 00891660 TFHC16X60.10 71VIS16X60FH MP07061660N 6401 01127082 R140305 0000818 71VIS16X60FH VFHC16X55 2204-796 862096 F90HC16X60 1150 11601660 3663072105003
