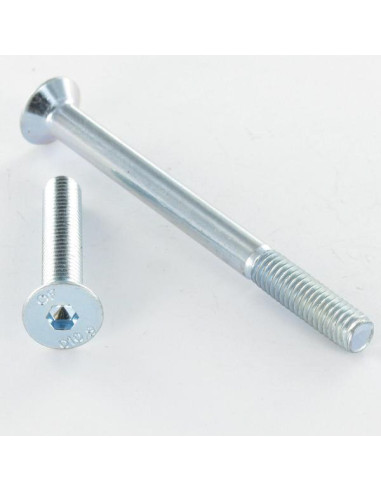

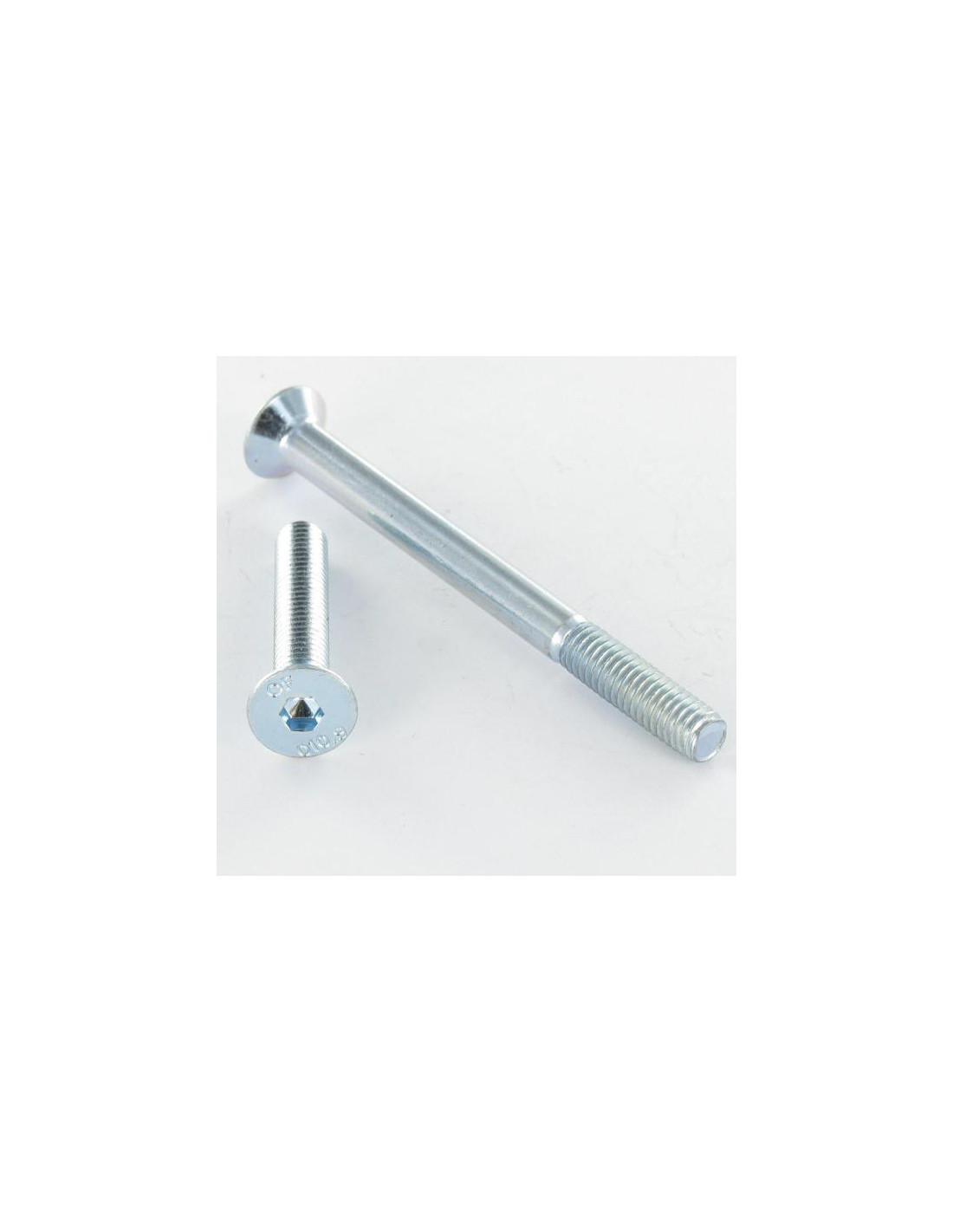

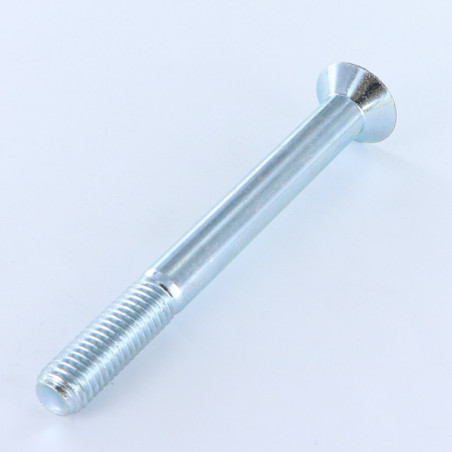

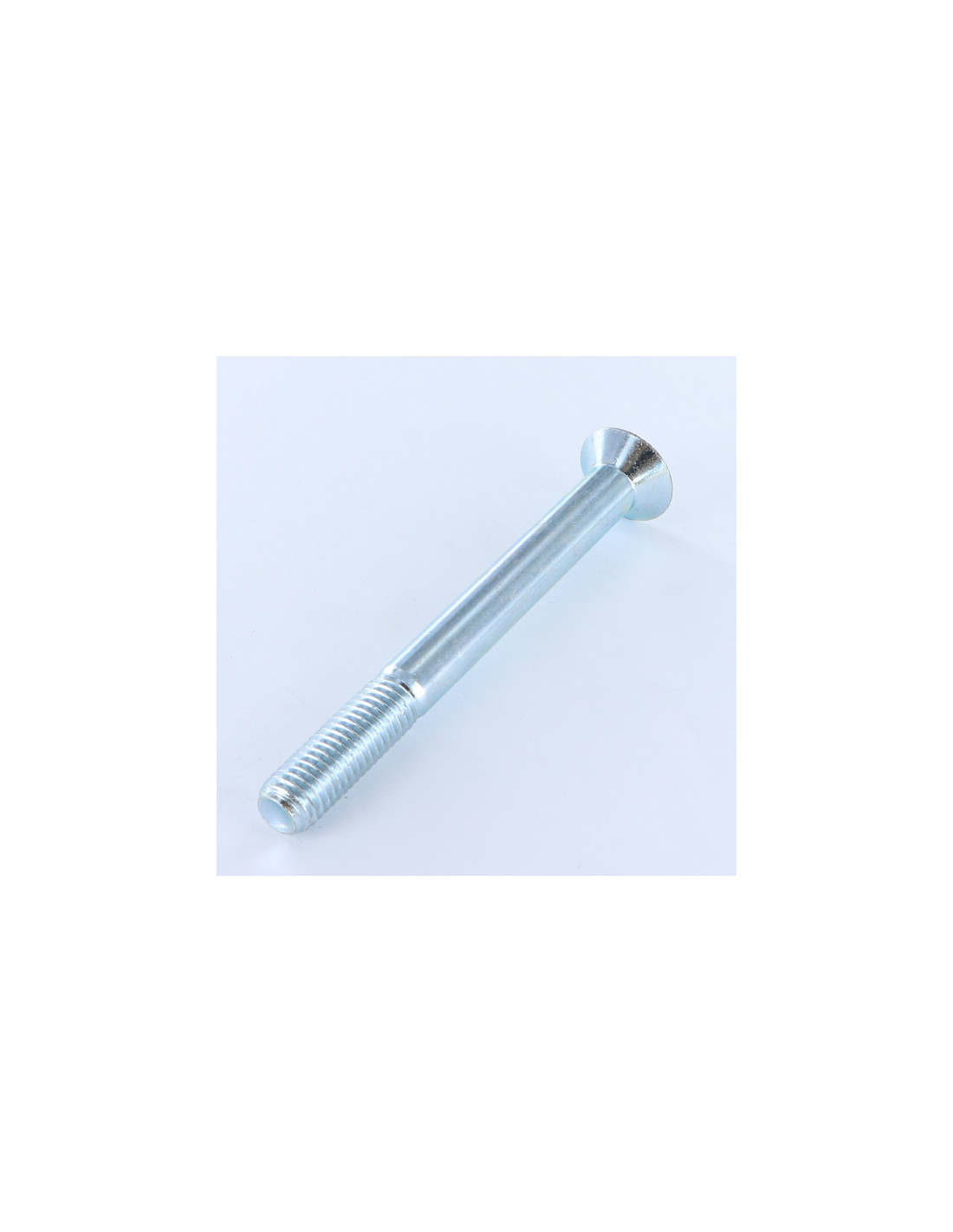

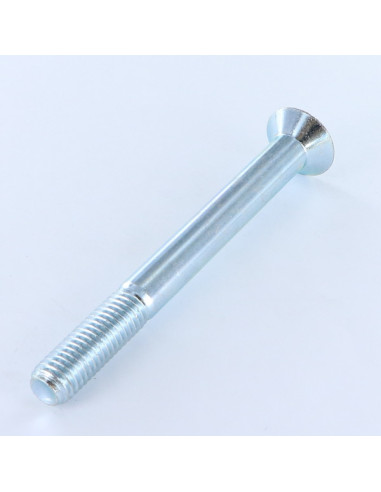

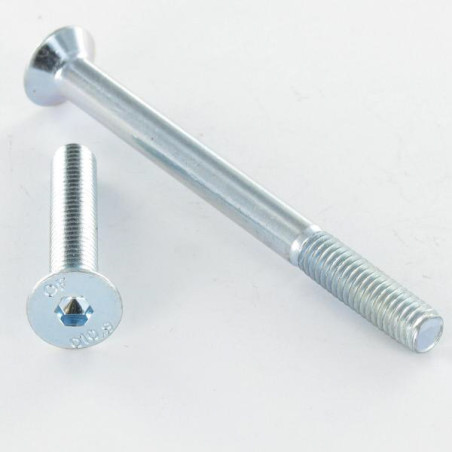

1 x Machine Screw Flat Head Hexagon Recess M3X12 Full Thread Class 10.9 Hexagon Socket 2 Zinc Plated micro screw
1 x Machine Screw Flat Head Hexagon Recess M3X12 Full Thread Class 10.9 Hexagon Socket 2 Zinc Plated micro screw
1 x Machine Screw Flat Head Hexagon Recess...
1 x Machine Screw Flat Head Hexagon Recess...

1 x Machine Screw Flat Head Hexagon Recess M3X12 Full Thread Class 10.9 Hexagon Socket 2 Zinc Plated micro screw

4621301202_1
In stock 1500 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included £3.04 £7.33 £7.98 £13.19
DIN 7991,VS4721 - Machine Screw Flat Head Hexagon Recess M3X12 Full Thread Class 10.9 Hexagon Socket 2 Zinc Plated micro screw
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 Units

Dimensions shown in millimeters (mm)

1500 Items
3663072191754
Machine Screw Flat Head Hexagon Recess M3X12 Full Thread Class 10.9 Hexagon Socket 2 Zinc Plated micro screw
Diameter = M3, Length = 12, Coating = ZINGUE White, Sub Product Family = Head Flat Head Hexagon Recess, Class = CLASS Class 10.9, Material = Steel, Pitch = Standard pitch 50, Drive Type = Socket Cap, Norm = DIN 7991,VS4721, Product Family = Machine Screw / MICROVIS, Size Drive Type = Hexagon Socket 2


dimensional guide (mm)
Diameter M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24
Across flats 2 2.5 3 4 5 6 8 10 10 12 12 14 14
Head diameter 6 8 10 12 16 20 24 27 30 33 36 36 39
Thread length for screw L<125 12 14 16 18 22 26 30 34 38 42 46 50 54
Thread length for screw 125 - - - 24 28 32 36 40 44 48 52 56 60
Thread length for screw L>200 - - - - - 45 49 53 57 61 65 69 73
L=LONGUEUR

Other Reference : 3617501059696 033678 033678 033678 033678 9A-1503202 97452500 FHC03X12Z FQV00013 FQV00013 01C11002 VS001317 3663072191754
