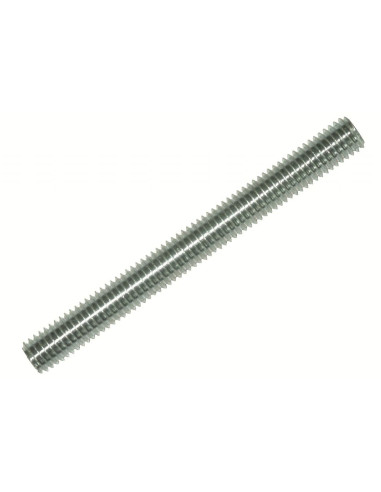

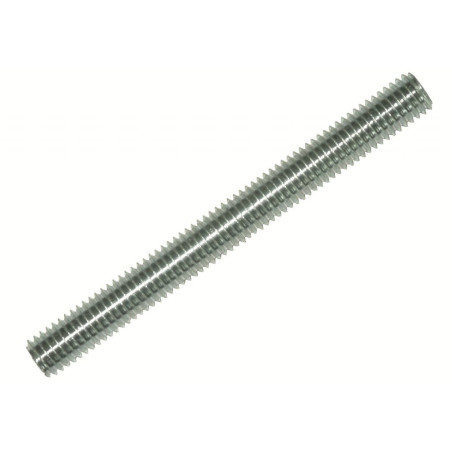

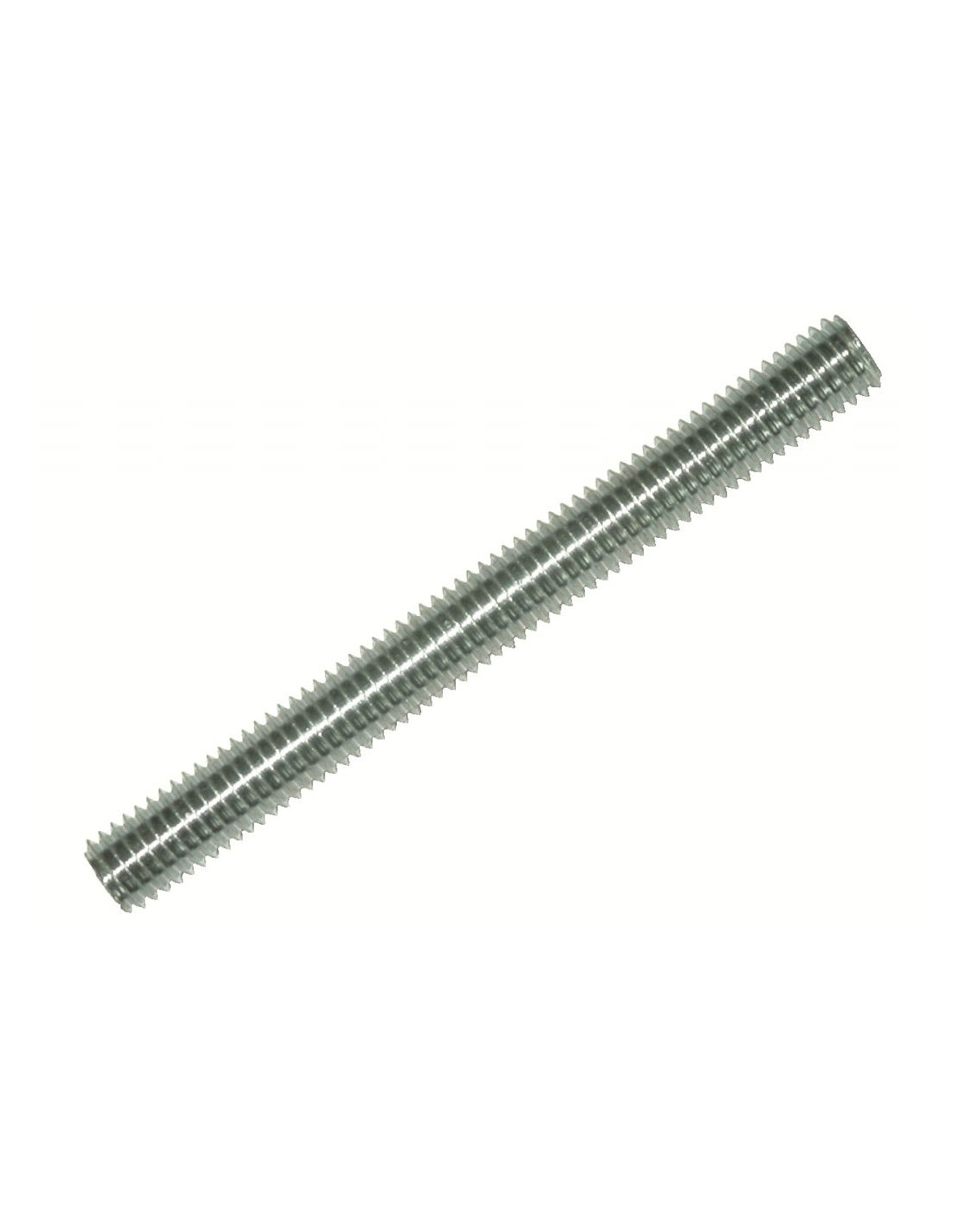

1 x Threaded Rod M16 Length 1 Meter Class 8.8 Zinc Plated

1 x Threaded Rod M16 Length 1 Meter Class 8.8...

1 x Threaded Rod M16 Length 1 Meter Class 8.8 Zinc Plated

Name: 1 x Threaded Rod M16 Length 1 Meter Class 8.8 Zinc Plated
Brand: Screw Express
SKU: 3347160002
Price: 8.7 EUR
Availability: InStock

Reference 3347160002_1

In stock 5744 Pièces

€8.70 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100
Lot price VAT included	€8.70	€75.20	€674.55

DIN 975,VS3347,VS0104 - Threaded Rod M16 Length 1 Meter Class 8.8 Zinc PlatedPremium quality threaded rod

Packaging

1 unit
10 units
100 units

Dimensions shown in millimeters (mm)

Product Details

Diameter: M16
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 1 M
Material: Steel
Class Class Current mechanical classes of screws in accordance with ISO 898-1 Meaning of class 8.8: The first number (8) indicates the ultimate tensile strength of the material, expressed in hundreds of MPa (megapascals). Here, 8 × 100 = 800 MPa ultimate tensile strength. The second number (8) indicates the ratio between yield strength and ultimate tensile strength, multiplied by 10. Here, 8 means that the yield strength is 0.8 times the ultimate tensile strength. So, yield strength = 0.8 × 800 MPa = 640 MPa. Mechanical classes of screws (common examples) Class Tensile strength (MPa) Yield strength (MPa) Typical use 4.6 400 0.6 × 400 = 240 Low-strength screw, light use 5.6 500 0.6 × 500 = 300 General light to medium duty 8.8 800 0.8 × 800 = 640 High strength, mechanical, construction 10.9 1000 0.9 × 1000 = 900 Very high strength, demanding applications 12.9 1200 0.9 × 1200 = 1080 Ultra high strength, heavy industrial use Additional explanations: Ultimate tensile strength: maximum load the screw can withstand before breaking. Yield strength: maximum load before plastic deformation (permanent and irreversible). The higher the class, the stronger the screw, but it is also often more brittle (can break suddenly without much bending). Lower classes are used for assemblies that are less subject to high stresses. Unmarked screw = class 4.6 or equivalent (generally) In general, an unmarked screw is a low-strength screw, often made of mild steel or standard steel. It may correspond to a class 4.6 (tensile strength ~400 MPa, yield strength ~240 MPa) or sometimes even lower. These screws are suitable for assemblies not subject to high mechanical stress. Why are they suitable? Screws in higher classes (8.8, 10.9, 12.9, etc.) must be marked to guarantee their quality and traceability. The absence of marking often means that the screw is not standardised or is of low quality.: 8.8
Coating: ZINC White
COLOR: Grey
Norm: DIN 975,VS3347,VS0104
WEIGHT For THERE unit: 1300 GR

In stock 5744 Items

ean13 3663072050525

Description

Threaded Rod M16 Length 1 Meter Class 8.8 Zinc Plated Other Reference : 3617500125644 TIGEFILTEEM1 154613 TF*ACIER*ZIN TGFILTZ16 1368 8QUITFZ16 TIFILM16CL4. 0059007 DIVQUINCAILL 8416 TIGE16 VI060127B 460 002225 00725 MP000409 16 AKCM16L1000 105116 6FTF1688 9A-1511006 MPYFZ160002 3347160002 TFM16Z QAS727 609999 7010-0150-A F190327 TFD16AA 1300501160 TFZ16 02047 TIGEF-16*100 TIFIZ161000 1368 1368 011320 4394116 095816 12863 TF72-016 1368 00236809 TF16 1004193 19634000 MU.TIGE.16.D 050865 103714 523100260 6005012154 060110007 02A010 SI01164 201574 12744 ASSTIG031 TIGFIL16 TFZ-88M16L1 20332 ASSTIG031 1002490 TF1116 TIG-M16-80KG OVTIGF334716 VIS1705 000089960210 S300016 MPYFZ160002 1300501160 AO4503 105116 AN 3663072050525

Use Cases

EMILE T. (vis-express.fr)
2025-11-02

Metal structure assembly UPN 200 opening creation

Guillaume O. (vis-express.fr)
2025-08-03

tightening the frame exposed frame on a large building

Ludovic W. (vis-express.fr)
2025-07-27

fixing the terrace spar to my roofing fixing the terrace spar to my roofing (UPN 180 with chemical sealing)

DOMINIQUE KARIMA D. (vis-express.fr)
2025-04-20

SABOT INKING

Florian C. (vis-express.fr)
2025-03-16

plate fixing for 90x90 post Simpson U type plate

Pascal S. (vis-express.fr)
2025-02-16

Making a dormant greenhouse DIY length 75 cm with rectangular tube frame 60*30*2

Lémuel L. (vis-express.fr)
2025-02-09

Fixing wall frames together. In 20cm section with washers and lock nuts on each side.

Julien C. (vis-express.fr)
2025-01-12

Wall mounts for floors.

Franck M. (vis-express.fr)
2025-01-12

Use for framing Crossbeam trussing on a traditional farm

rogerio j. (vis-express.fr)
2024-12-29

timber frame assembly timber frame purlin assembly

sebastien M. (vis-express.fr)
2024-11-10

barri re assembly trailer modification

enno d. (vis-express.fr)
2024-10-27

fixing the frame Fixing the parts less es. D cuts the circular

Franck M. (vis-express.fr)
2024-07-14

I planned to do some framing with it. I'm going to have to map all my breakdowns so I'm going to cut it into several sections which will help me maintain my mounts on my breakdowns.

Mattéo G. (vis-express.fr)
2024-05-12

I would like to use these threaded rods in framing in order to sandwich a 15x15 beam with two 7x22mm planks with I also take: - M16 Lock Nut Zinc Steel (Reference 4334001602_100) - Flat Washer M16X50X3 LL Zinc Steel (Reference 3535001602_50 )

Cedric C. (vis-express.fr)
2024-04-07

Rework of framework for replacement of tie beam 12 rods per truss, with washers and nuts

Gabriel F. (vis-express.fr)
2024-03-31

Bolted a frame I have it made from side to side thanks to the threaded rod

Yannick T. (vis-express.fr)
2024-03-03

Anchoring a bastaing for floor load recovery under the attic Fixing a 220x80 bastaing on a stone wall. Anchoring between each joist (60cm) alternating 1/3 top and 1/3 bottom of the bastaing for the position of the anchor along the bastaing.

Nicolas N. (vis-express.fr)
2023-12-17
