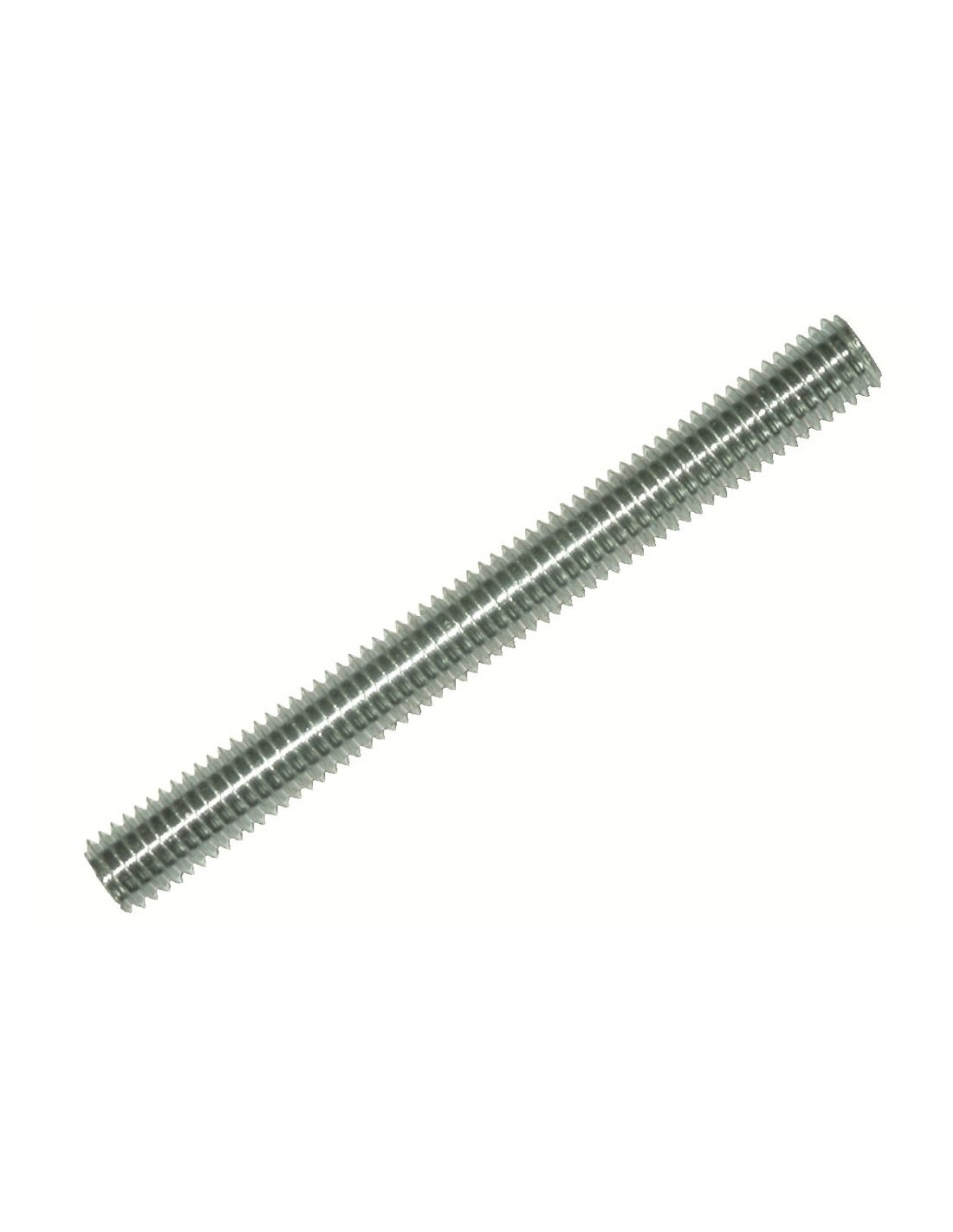

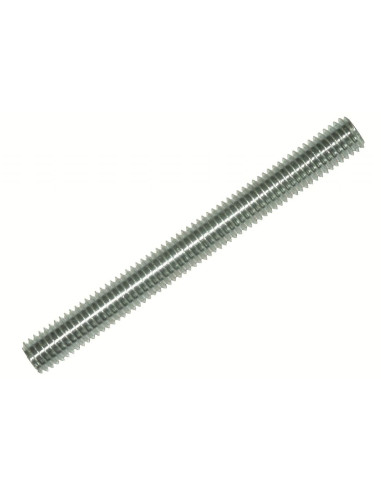

1 x Threaded Rod M20 Length 1 Meter Class 8.8 Zinc Plated

1 x Threaded Rod M20 Length 1 Meter Class 8.8...

1 x Threaded Rod M20 Length 1 Meter Class 8.8 Zinc Plated

Name: 1 x Threaded Rod M20 Length 1 Meter Class 8.8 Zinc Plated
Brand: Screw Express
SKU: 3347200002
Price: 4.85 EUR
Availability: InStock

Reference 3347200002_1

In stock 1306 Pièces

€4.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100
Lot price VAT included	€4.85	€48.60	€485.95

DIN 975,VS3347,VS0104 - Threaded Rod M20 Length 1 Meter Class 8.8 Zinc PlatedPremium quality threaded rod

Packaging

1 unit
10 units
100 units

Dimensions shown in millimeters (mm)

Product Details

Diameter: M20
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 1 M
Material: Steel
Class Class Current mechanical classes of screws in accordance with ISO 898-1 Meaning of class 8.8: The first number (8) indicates the ultimate tensile strength of the material, expressed in hundreds of MPa (megapascals). Here, 8 × 100 = 800 MPa ultimate tensile strength. The second number (8) indicates the ratio between yield strength and ultimate tensile strength, multiplied by 10. Here, 8 means that the yield strength is 0.8 times the ultimate tensile strength. So, yield strength = 0.8 × 800 MPa = 640 MPa. Mechanical classes of screws (common examples) Class Tensile strength (MPa) Yield strength (MPa) Typical use 4.6 400 0.6 × 400 = 240 Low-strength screw, light use 5.6 500 0.6 × 500 = 300 General light to medium duty 8.8 800 0.8 × 800 = 640 High strength, mechanical, construction 10.9 1000 0.9 × 1000 = 900 Very high strength, demanding applications 12.9 1200 0.9 × 1200 = 1080 Ultra high strength, heavy industrial use Additional explanations: Ultimate tensile strength: maximum load the screw can withstand before breaking. Yield strength: maximum load before plastic deformation (permanent and irreversible). The higher the class, the stronger the screw, but it is also often more brittle (can break suddenly without much bending). Lower classes are used for assemblies that are less subject to high stresses. Unmarked screw = class 4.6 or equivalent (generally) In general, an unmarked screw is a low-strength screw, often made of mild steel or standard steel. It may correspond to a class 4.6 (tensile strength ~400 MPa, yield strength ~240 MPa) or sometimes even lower. These screws are suitable for assemblies not subject to high mechanical stress. Why are they suitable? Screws in higher classes (8.8, 10.9, 12.9, etc.) must be marked to guarantee their quality and traceability. The absence of marking often means that the screw is not standardised or is of low quality.: 8.8
Coating: ZINC White
COLOR: Grey
Norm: DIN 975,VS3347,VS0104
WEIGHT For THERE unit: 2100 GR

In stock 1306 Items

ean13 3663072050563

Description

Threaded Rod M20 Length 1 Meter Class 8.8 Zinc Plated Other Reference : 3617501486058 154615 A260010 TF*ACIER*ZING TGFILTZ20 TF20 1583 TF20-88Z TIFILM20CL 0531016 206327 014683 VTFZ20.3 0683092 57031 00999000 00727 936018007 20 9004000320 AKBBM20L1000 9A-1511008 MPYFZ200002 7001-0108-A TFD20AA 1300501200 TFZ20 103061001 302104 7019995 18.126.5926 TIGEF-20X100 1583 A107010 0005074 TF72-020 1583 00236811 TF20 PMM0090 19636000 41950 MU.TIGE.20.D LN0610 050866 2204.354 SF00 / CDE 523100261 110261 6005012156 02A012 204142 12746 ASSTIG032 gfd741548 THR20-1000-C TFZ-88M20L1 VI1037A 30058 654-0066-6 1002886 TF1120 S300020 MPYFZ200002 1300501200 AN 3663072050563
