8330601618_1
In stock 27778 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.50 €7.05 €8.40 €9.20

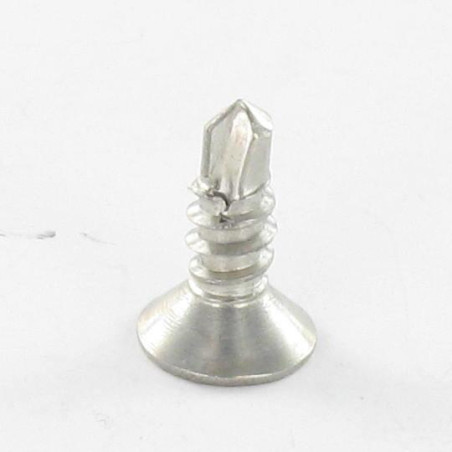

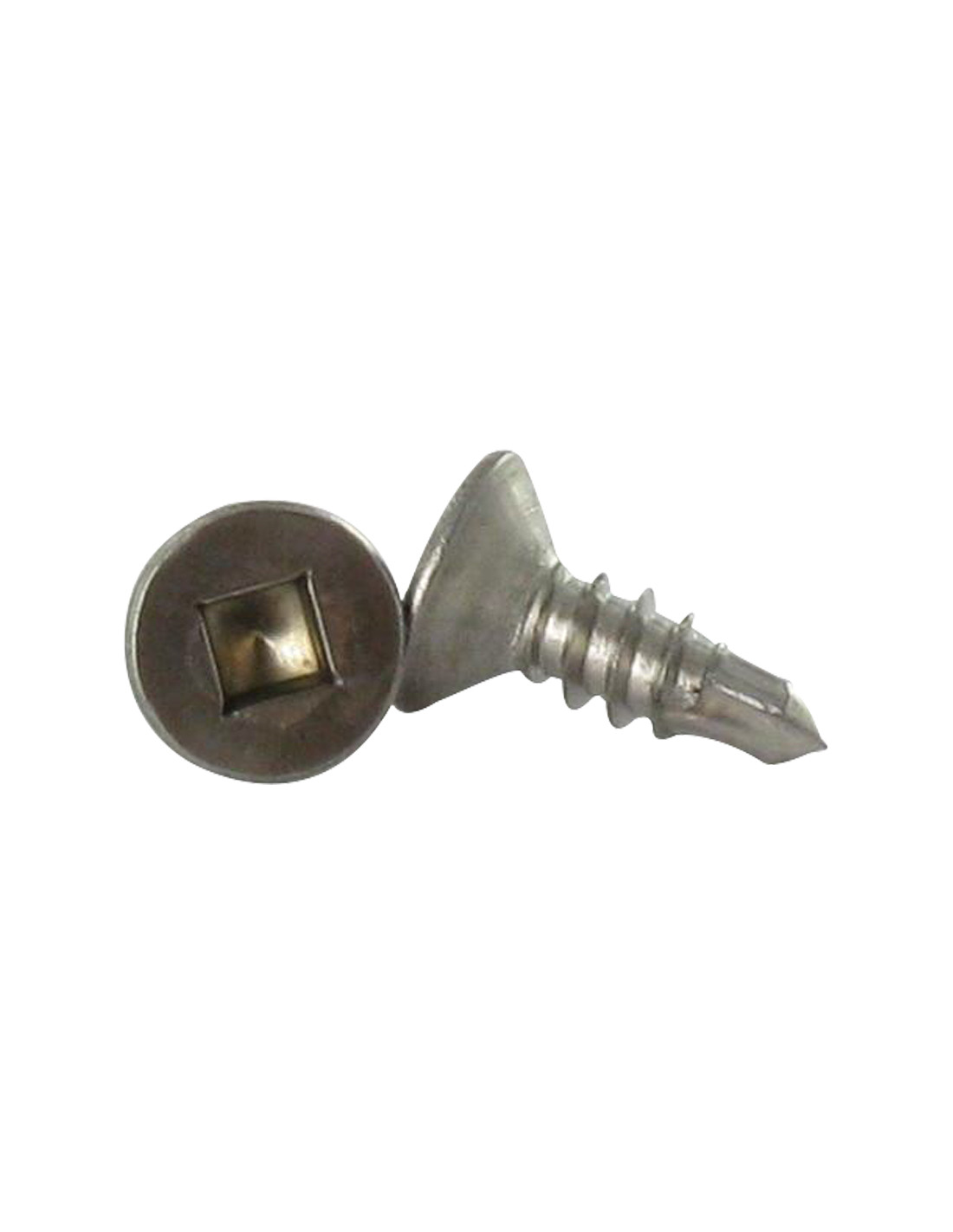

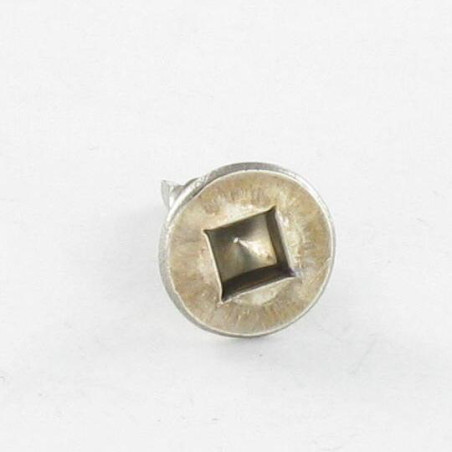

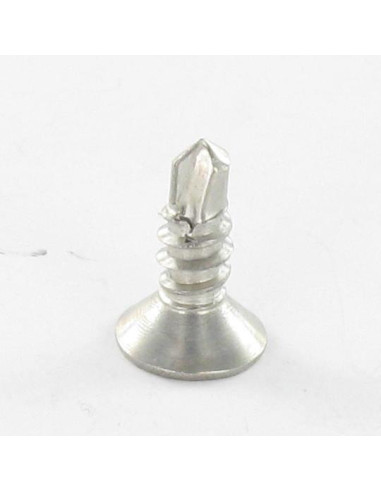

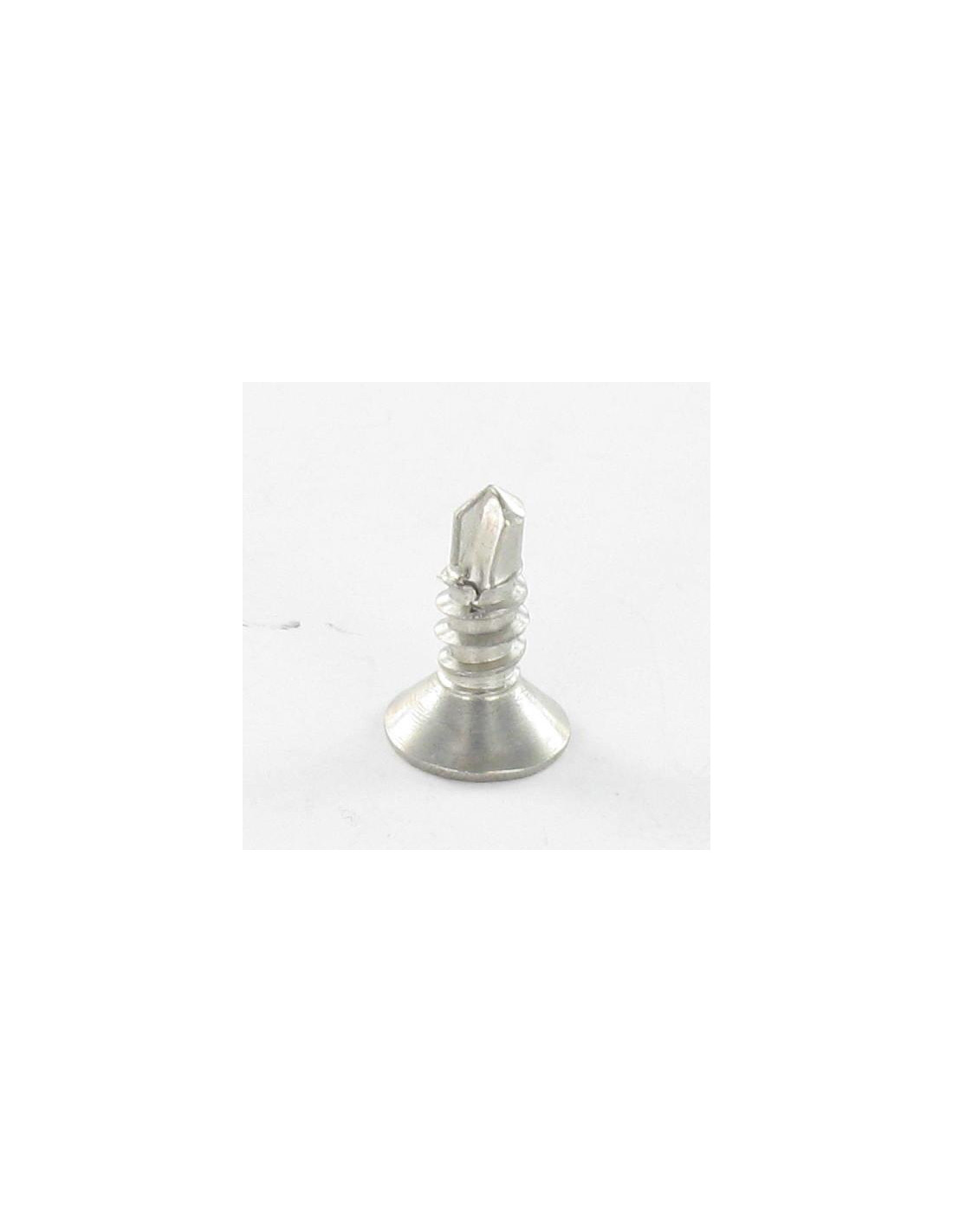

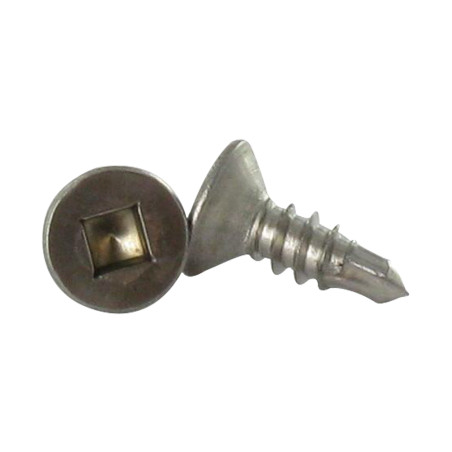

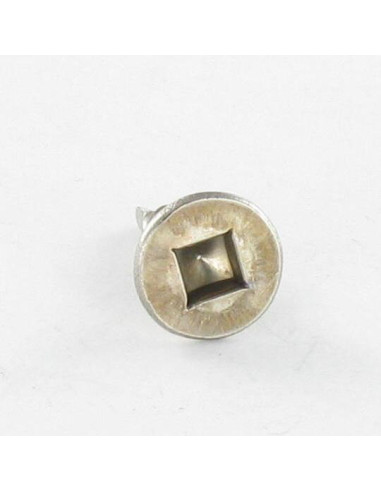

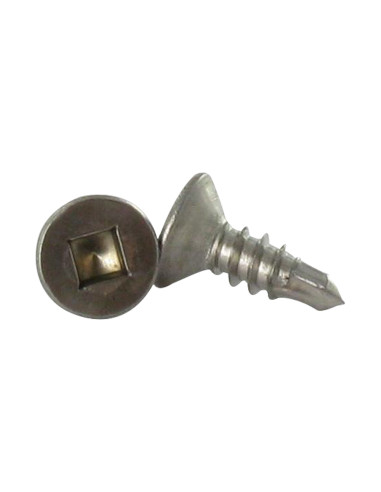

DIN 7504 O,VS3124 - Self Drilling Stainless Steel A2 Countersunk Head Square 3.5X16Only pierces aluminum.
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
3.5
Length
16
Size Drive Type
KEY Of 5.5
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 O,VS3124
Sub product family
Countersunk Head
Mounting pressure (N)
150
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
2.8
Maximum thickness to be fixed
9.2
Unit weight
1 GR
Material to be drilled
Aluminium
27778 Items
3663072154308
Self Drilling Stainless Steel A2 Countersunk Head Square 3.5X16 Other Reference : 3617501385726 7504P3916ZA2 3663072154308
