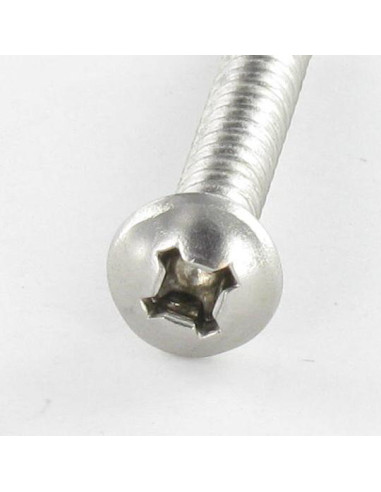

1 x Self Drilling Pan Head BECAUSE/ Phillips...
1 x Self Drilling Pan Head BECAUSE/ Phillips...
1 x Self Drilling Pan Head BECAUSE/ Phillips...
1 x Self Drilling Pan Head BECAUSE/ Phillips...

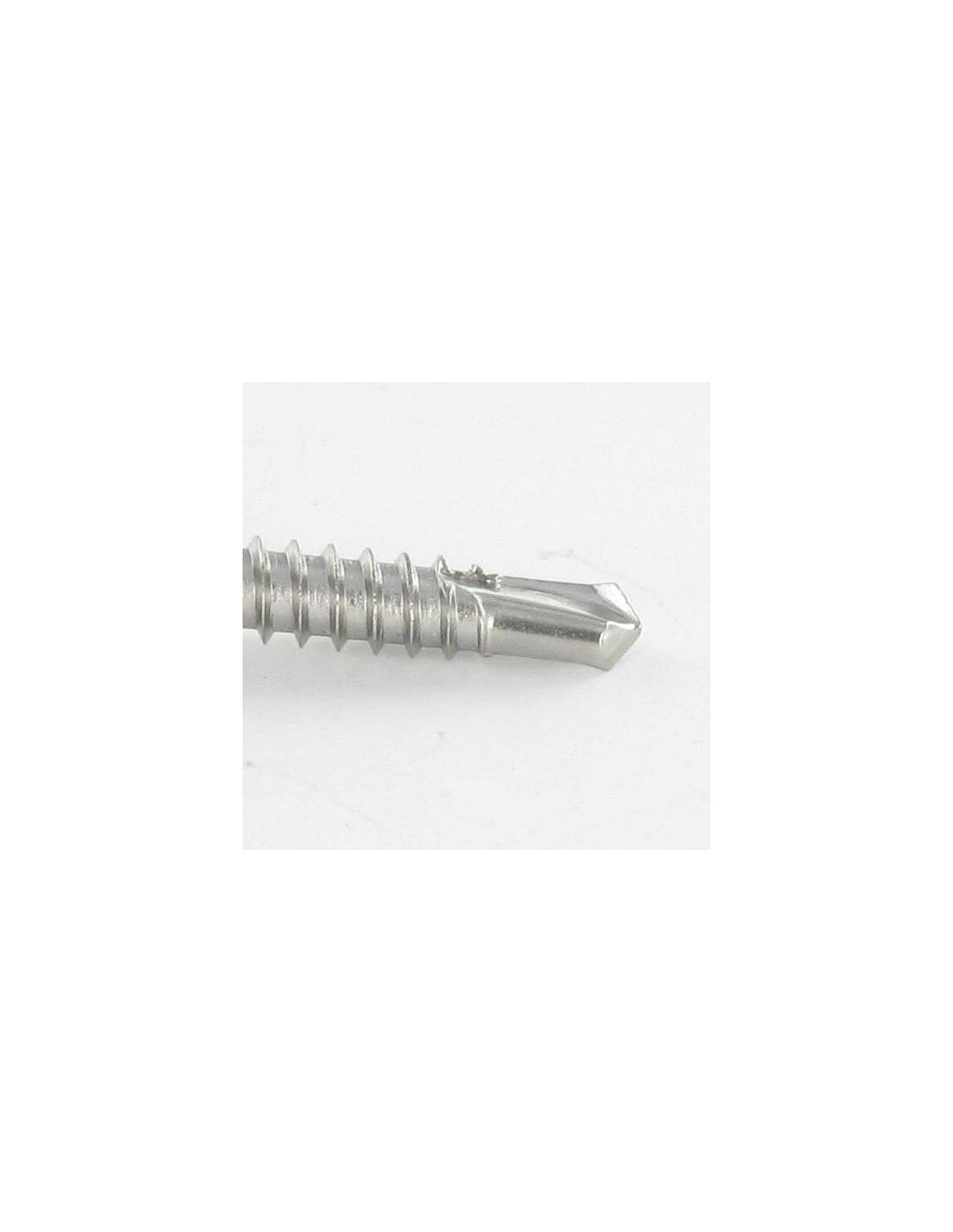

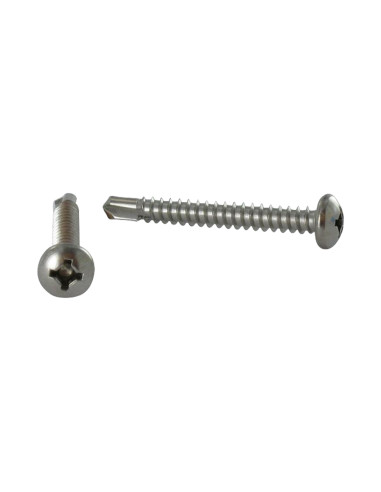

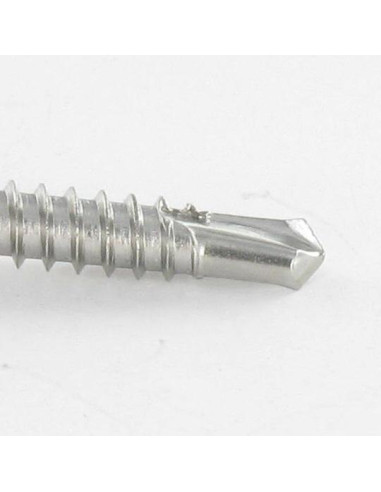

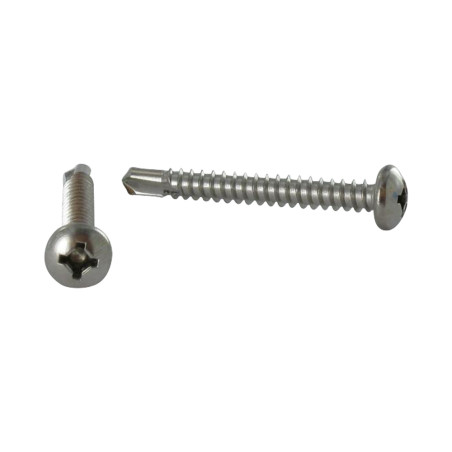

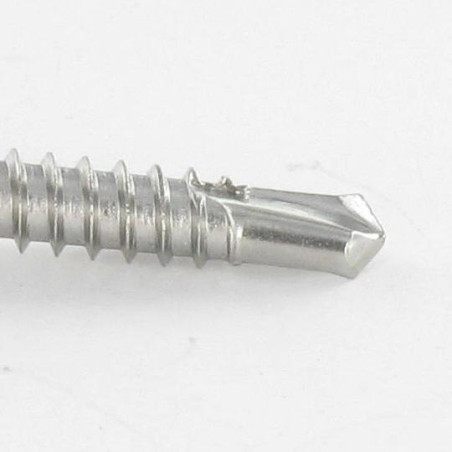

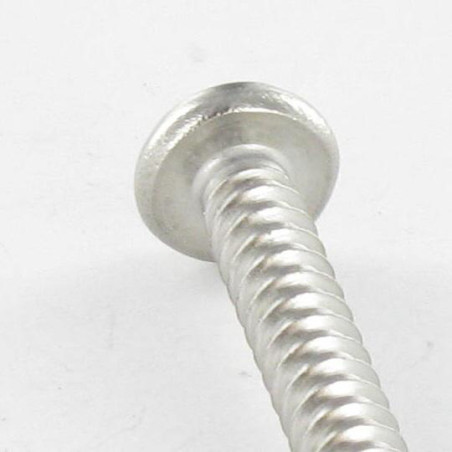

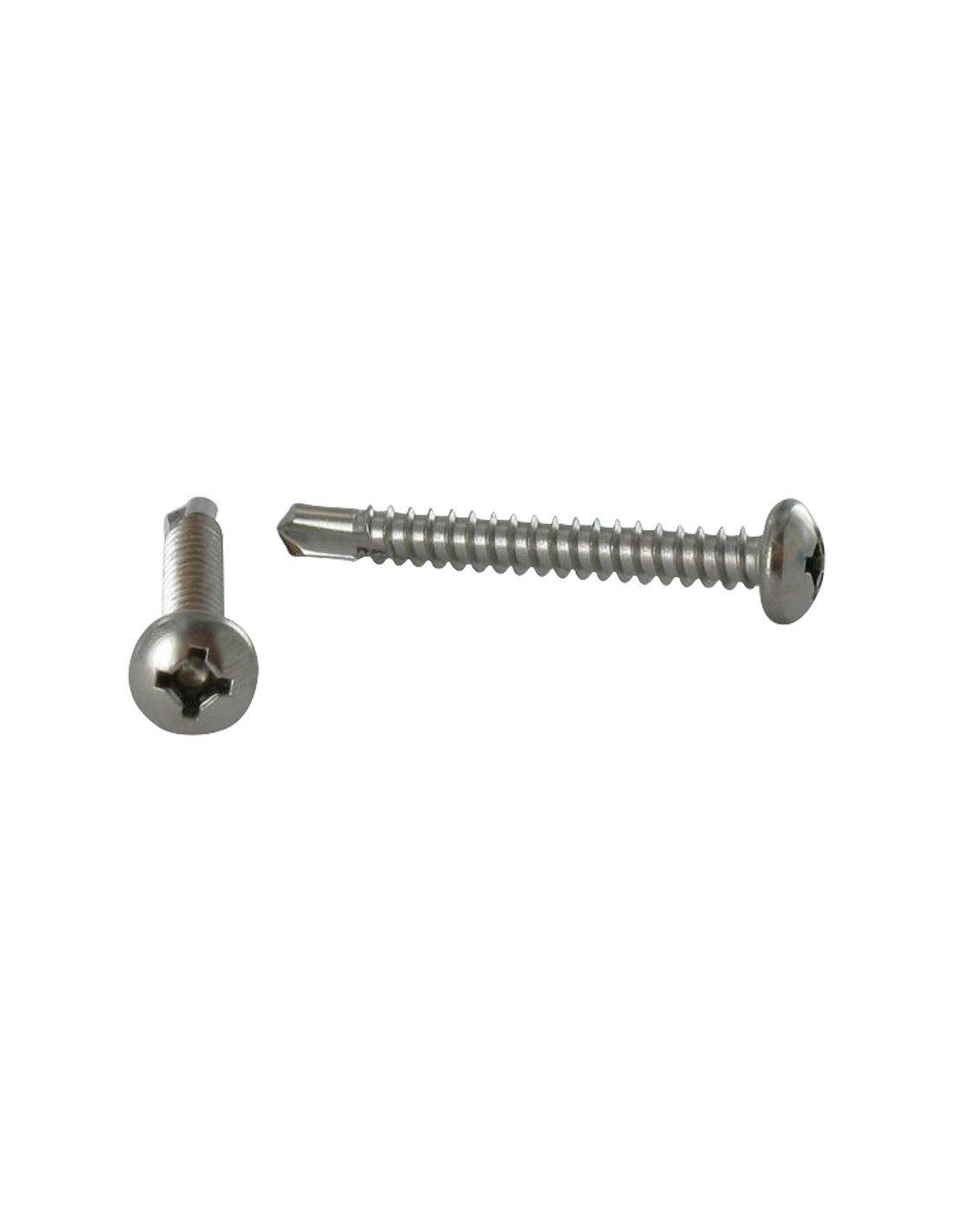

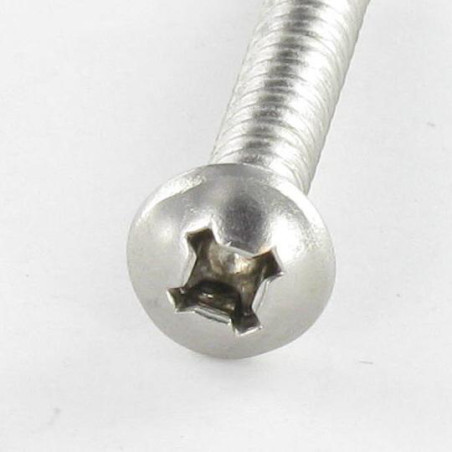

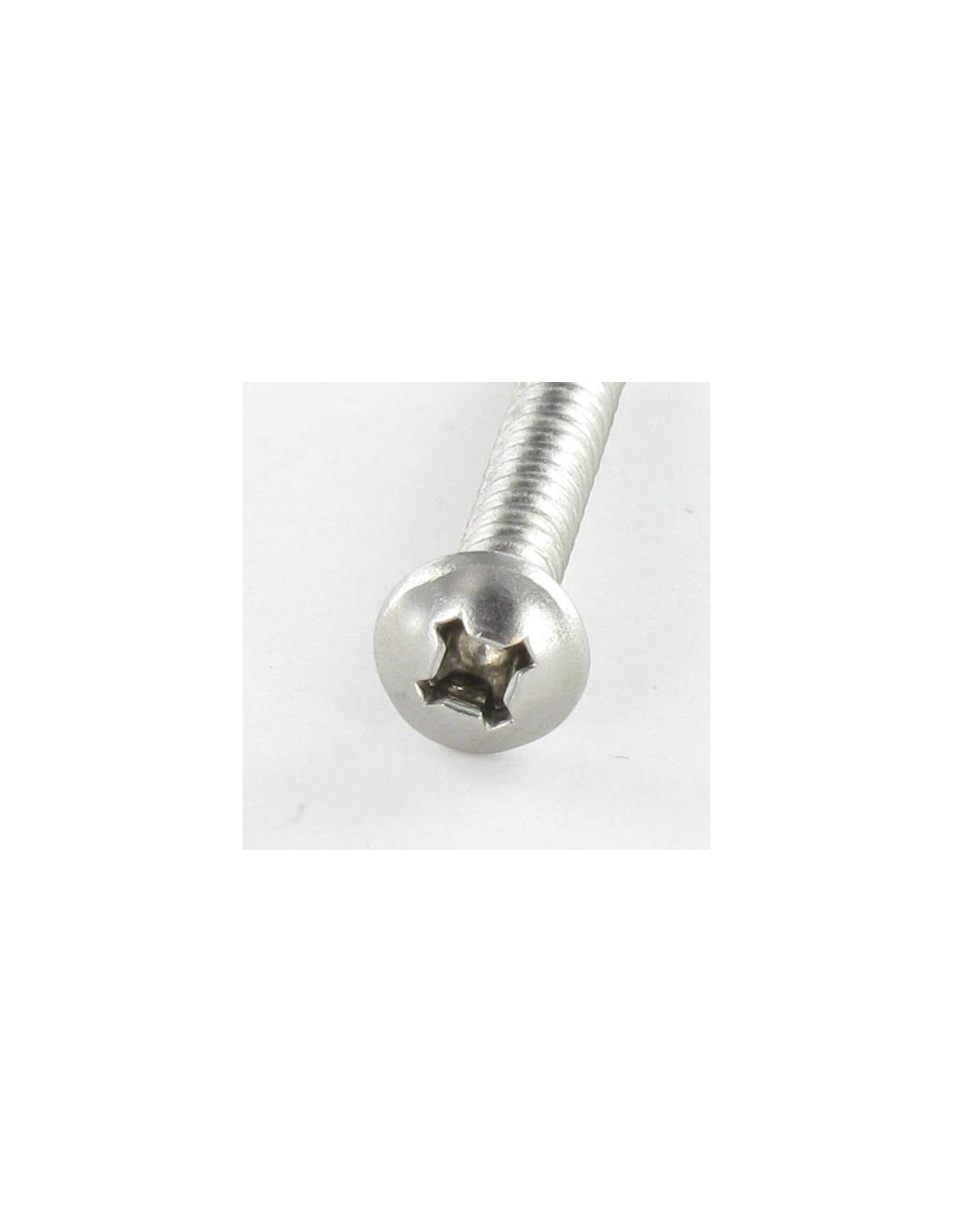

1 x Self Drilling Pan Head BECAUSE/ Phillips 4.8X50 SQ2+PH2 Stainless Steel A2

8329105018_1
In stock 149551 Pièces
€0.80 Incl VAT €1.60 -50%
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €0.80 €1.60 €1.95 €8.60
DIN 7504 N + CARR/PH,VS3124 - Self Drilling Pan Head BECAUSE/ Phillips 4.8X50 SQ2+PH2 Stainless Steel A2Only pierces aluminum.
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
Class 4.8
Length
50
Drive Type
Square PHILLIPS
Size Drive Type
KEY Of 8
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 7504 N + CARR/PH,VS3124
Sub product family
Cylindrical Head
Mounting pressure (N)
250
Rotation speed (rpm)
1800-2500
Minimum breaking torque (N.m)
6.5
Maximum thickness to be fixed
39.5
Unit weight
5.1 GR
Material to be drilled
Aluminium
149551 Items
3663072154216
Self Drilling Pan Head BECAUSE/ Phillips 4.8X50 SQ2+PH2 Stainless Steel A2 Other Reference : 3617501147959 2510304 212149 PC199 VB196 VB196 B0145 24628 3663072154216
Angélique F. (vis-express.fr)
2024-02-04

I am replacing the PVC rails of an aluminum structure gate The rails are 26 and the square tubes are 30
