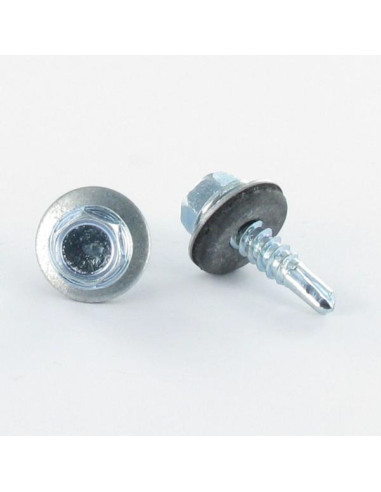

1 x Self Drilling Hexagonal Head 6.3X50...

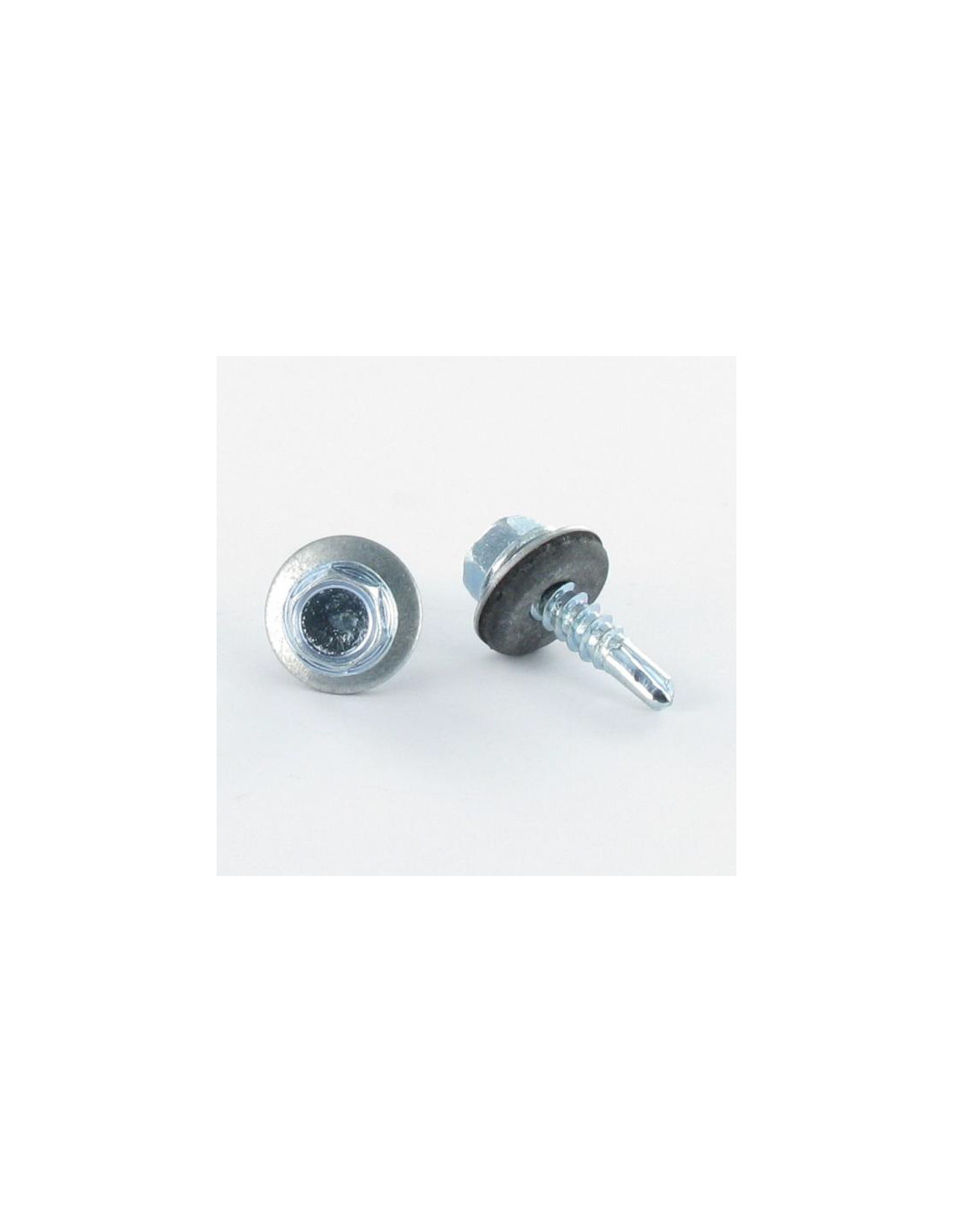

1 x Self Drilling Hexagonal Head 6.3X50 Neoprene Bonded Sealing Washer Epdm Zinc Plated

3129145002_1
In stock 1602 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.50 €7.05 €14.85 €99.00
DIN 7504K+ ROND VULCA, VS3124 - Self Drilling Hexagonal Head 6.3X50 Neoprene Bonded Sealing Washer Epdm Zinc Plated"Pierces steel
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
6.3
Length
50
Size Drive Type
KEY Of 10
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Norm
DIN 7504K+ Round VULCA, VS3124
Sub product family
Hex Head
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
14
Maximum thickness to be fixed
38
Head thickness
5.3-5.9
Base diameter
12.2-13.5
1602 Items
3663072276611
Self Drilling Hexagonal Head 6.3X50 Neoprene Bonded Sealing Washer Epdm Zinc Plated Other Reference : 3617500138897 3663072276611
Joanic C. (vis-express.fr)
2025-02-23

T-shaped cladding fixing


emmanuel f. (vis-express.fr)
2024-05-05

Screws for fixing cladding sheets to metal frames. Fixing to Z170 profile
