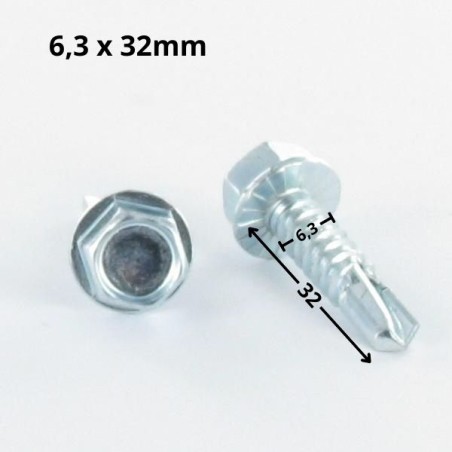

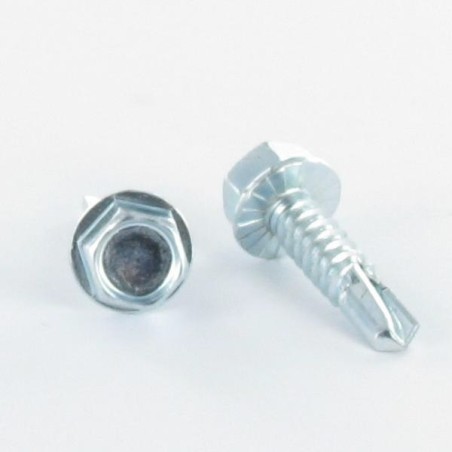

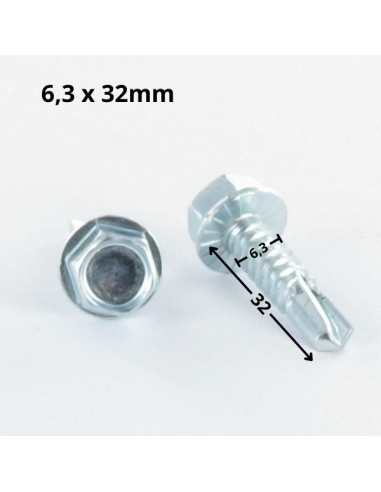

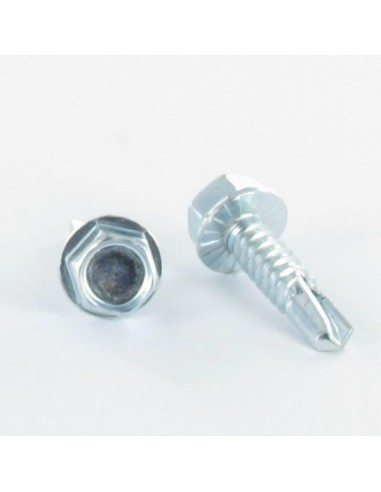

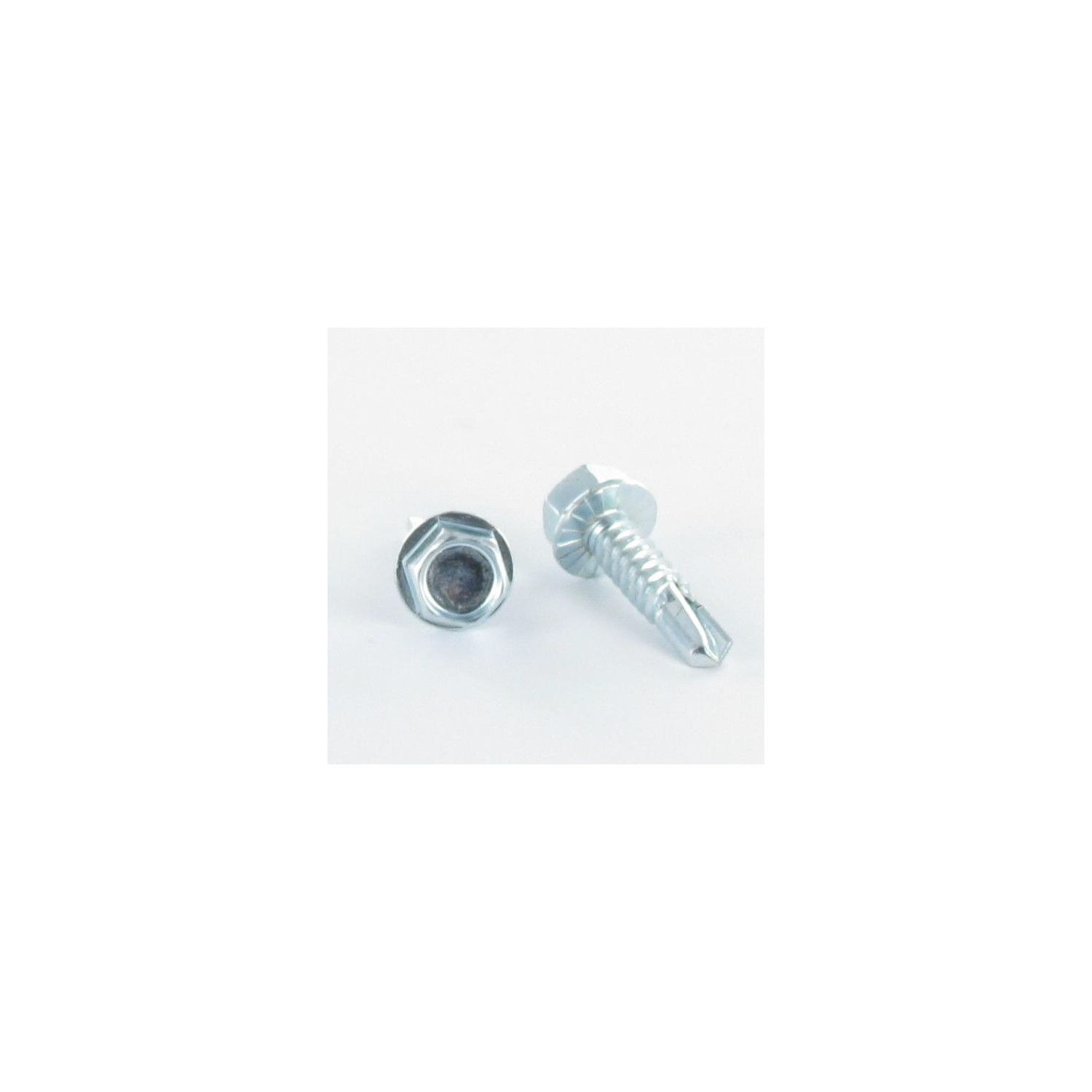

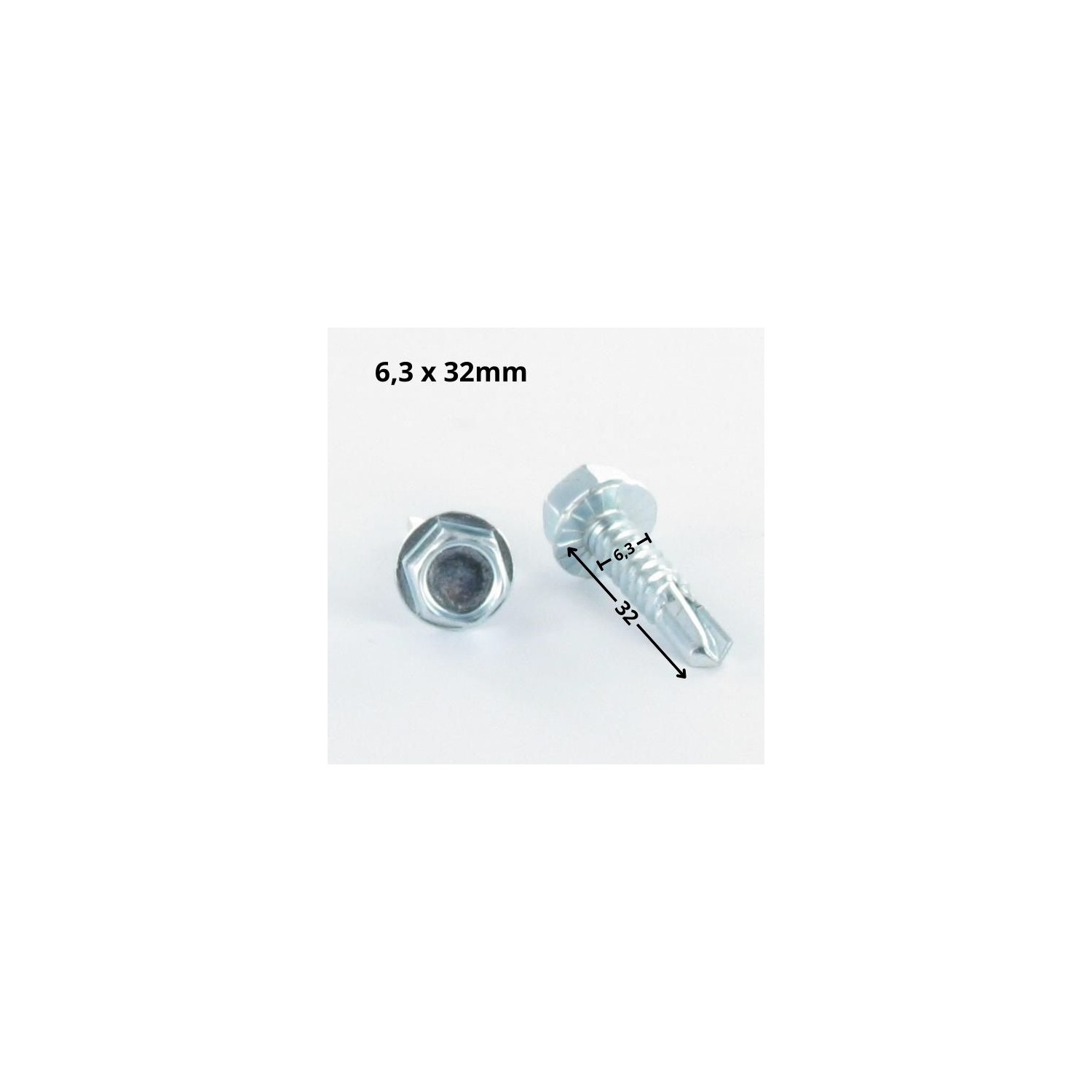

1 x Self Drilling Hexagonal Head 6.3X32 Sheet Metal Thread Zinc Plated

1 x Self Drilling Hexagonal Head 6.3X32 Sheet...

1 x Self Drilling Hexagonal Head 6.3X32 Sheet Metal Thread Zinc Plated

Name: 1 x Self Drilling Hexagonal Head 6.3X32 Sheet Metal Thread Zinc Plated
Brand: Vis-Express
SKU: 3127143202
Price: 0.5 EUR
Availability: InStock

Reference 3127143202_1

In stock 91317 Pièces

€0.50 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	100	400
Lot price VAT included	€0.50	€1.00	€1.35	€4.65	€16.20

DIN 7504K+ EMBASE CRANTEE, VS3124 - Self Drilling Hexagonal Head 6.3X32 Sheet Metal Thread Zinc Plated
"Pierces steel

Packaging

1 unit
10 units
30 units
100 units
400 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 6.3
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 32
Size Drive Type: Spanner 10
Material: Steel
Coating: Zinc Plated

Zinc Plated

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Norm: DIN 7504K+ Flange NOTCHED VS3124
Mounting pressure (N): 350
Rotation speed (rpm): 1000-1800
Minimum breaking torque (N.m): 14
Maximum thickness to be fixed: 20
Head thickness: 5.3-5.9
Base diameter: 12.2-13.5
Unit weight: 8.25 GR
Material to be drilled: STEEL+ALUMINUM+STAINLESS STEEL
Head shape: Hex Head

In stock 91317 Items

ean13 3663072039476

Description

Self Drilling Hexagonal Head 6.3X32 Sheet Metal Thread Zinc Plated
Diameter = 6.3, Length = 32, Coating = White zinc plated, Material = Steel, Norm = DIN 7504K+ Flange NOTCHED VS3124, Product Family = Self Drilling, Size Drive Type = Spanner 10

dimensional guide (mm)

numero	8	10	12
Diameter	4.2	4.8	5.5
Head Tickness	4.25	4.45	5.45
Across flats	7	8	8

Other Reference : THT10.63032 YVISAUTTHZN6 VISAAPTH0623 14319 165379 1063 VAUTH6.3X32Z 9705450 612356332Z GVA632 0C6BA30 Z0105 BR2400901 VP210A-MAT02 006346 08201 04507 08201 2BOAF0631G 2400901 2400901 DVI0001 GVA632 GVA632 GVA632 0IG05013 1212105 VCKH6332 7504KAZ6.332 VIS052 VIS052 950406652 03358 FIXVISTH6.3X 9705450 9VATH163032 VIS0057 400401 943122 1006507 1063 VIS052 1006507 10595030 VAUTH6.3X32Z NFL13278 NFL13278 ALBVIHEAN123 591599 LN01 310 591599 SC615601 SC615601 FVIAZIH VTH6*30A 591599-250 SC615601 2400901 AN 110128 QV166331ZING VTAPTH63X32 432500021 0209281 02146332 001831 40144 AQU0001 AC00362 AMVA00001 001831 VISAAPTH0623 VZ107 1046 03239500 A01198 9705450 / CDE 9705450 AN VIS0057 AN AN 3663072039476
