1 x Self Drilling Hexagonal Head Flange Smooth 6.3X22 Zinc Plated
1 x Self Drilling Hexagonal Head Flange Smooth 6.3X22 Zinc Plated
1 x Self Drilling Hexagonal Head Flange Smooth...
1 x Self Drilling Hexagonal Head Flange Smooth...

1 x Self Drilling Hexagonal Head Flange Smooth 6.3X22 Zinc Plated

3155142202_1
In stock 12769 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included £3.04 £7.51 £15.01 £35.62

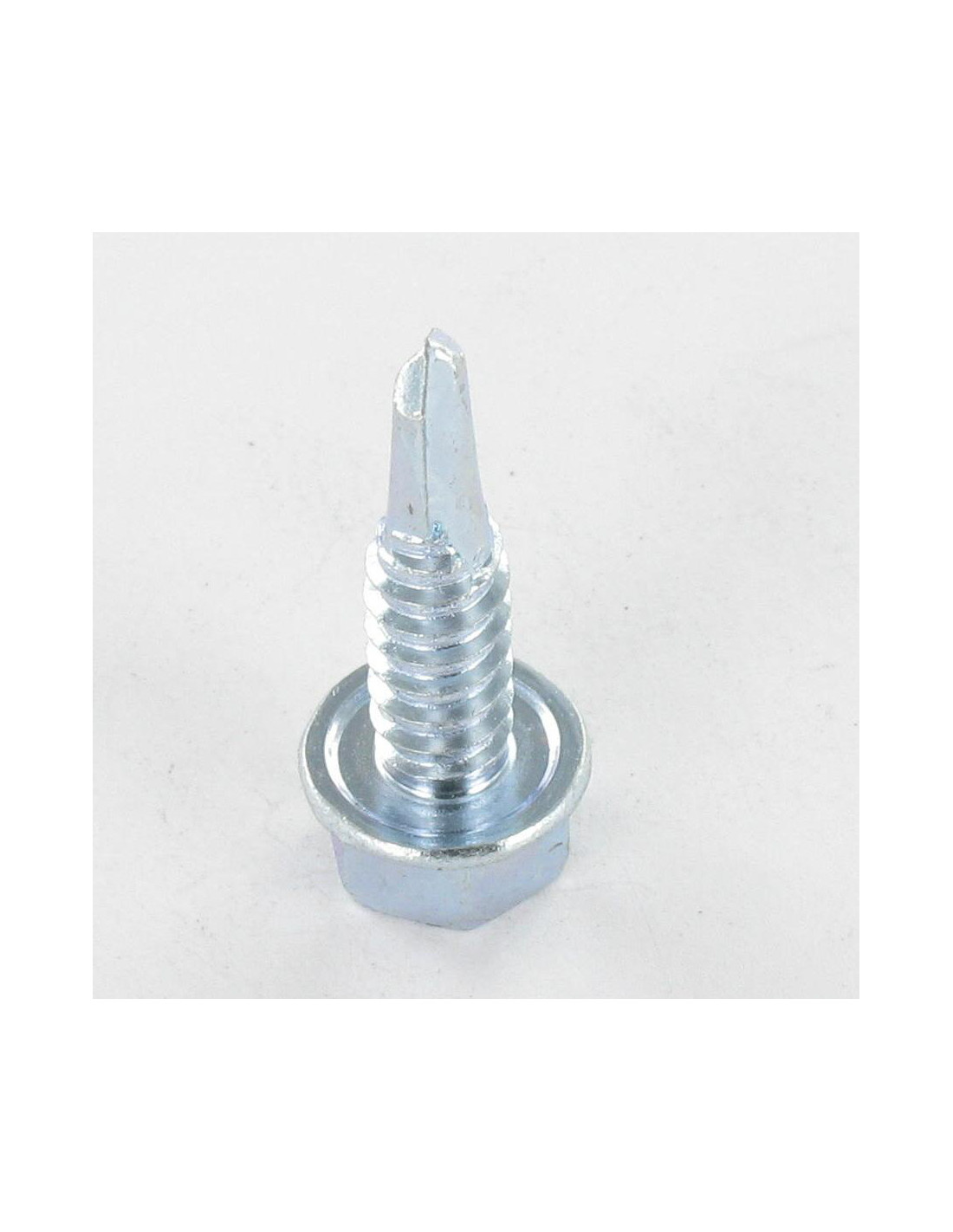

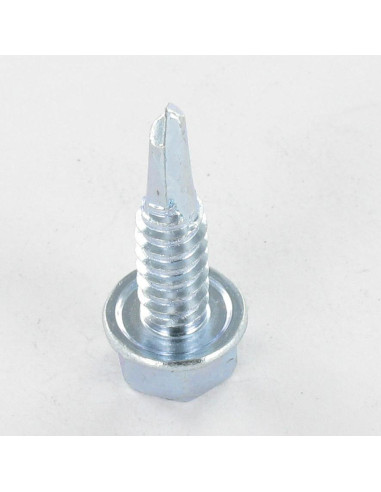

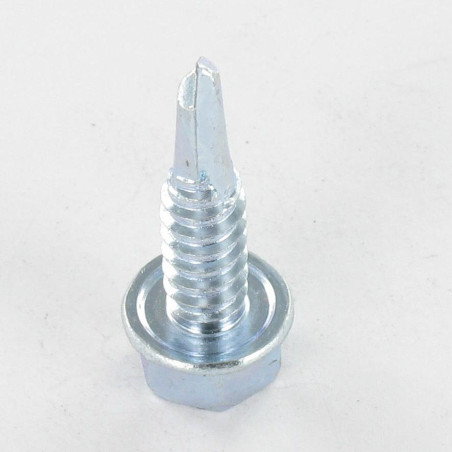

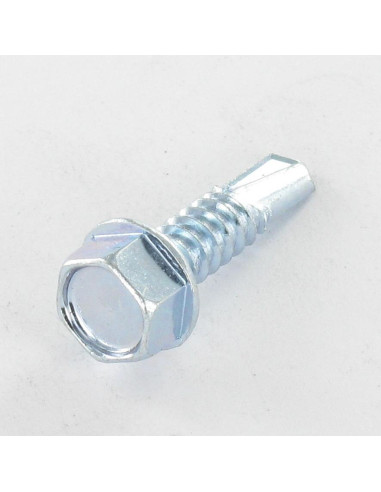

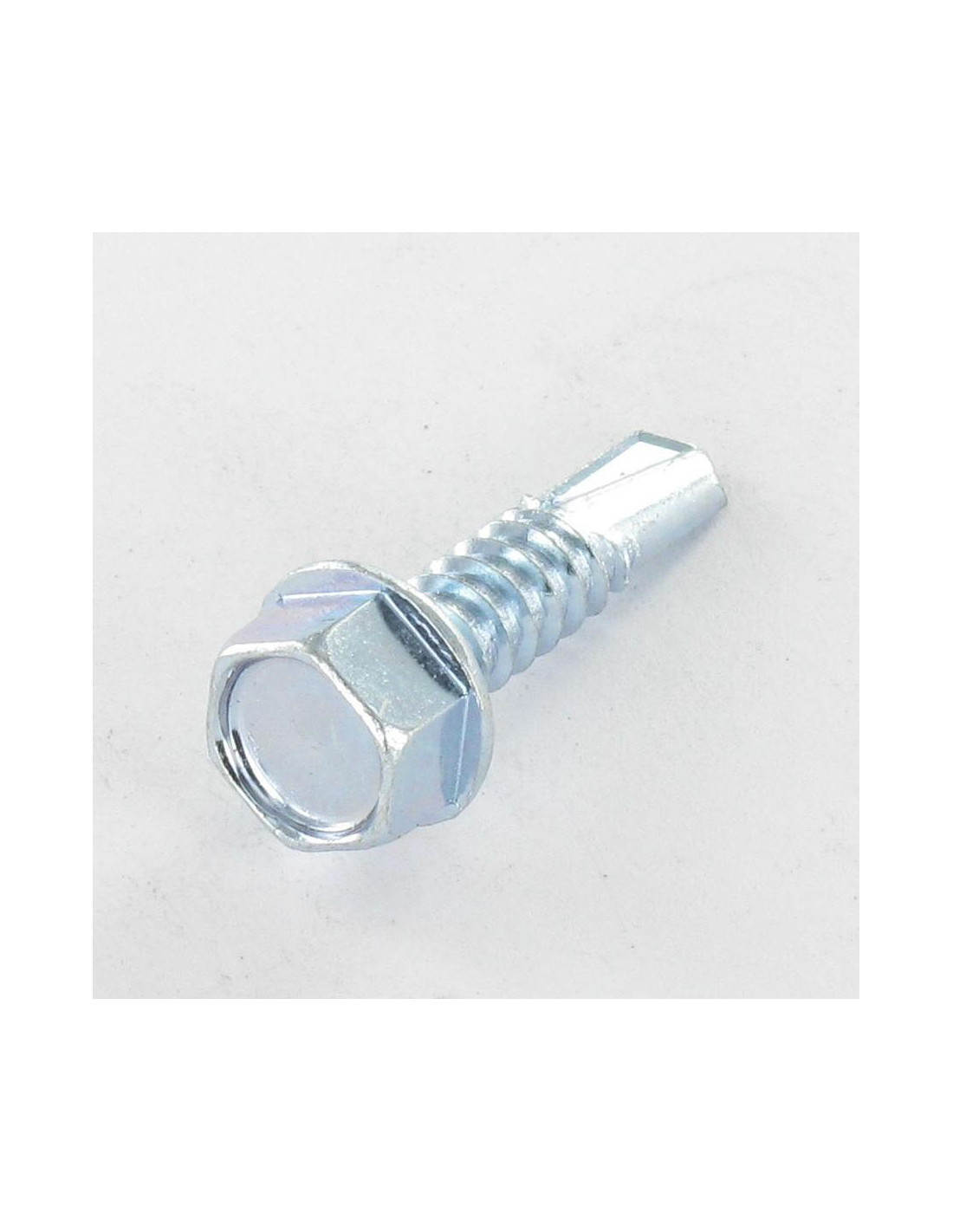

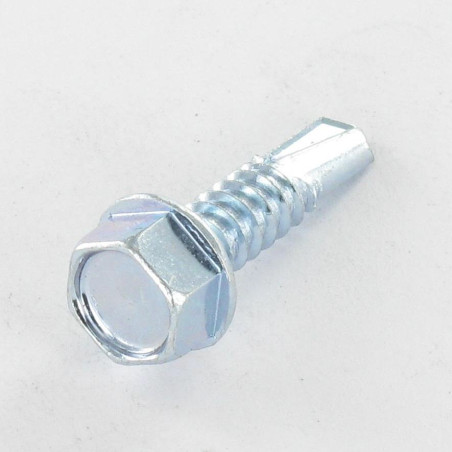

DIN 7504 EMB LISSE,VS3155 - Self Drilling Hexagonal Head Flange Smooth 6.3X22 Zinc Plated
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

Dimensions shown in millimeters (mm)

Diameter
6.3
Length
22
Size Drive Type
KEY Of 10
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504+ Flange SMOOTH, VS3155
Sub product family
Hexagonal Head Flange
WEIGHT For THERE unit
6.88 GR
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
14
Maximum thickness to be fixed
11.7
12769 Items
3663072354968
Self Drilling Hexagonal Head Flange Smooth 6.3X22 Zinc Plated Other Reference : 3663072354968
