1 x Self Drilling Hexagonal Head Flange Smooth 6.3X38 Zinc Plated
1 x Self Drilling Hexagonal Head Flange Smooth 6.3X38 Zinc Plated
1 x Self Drilling Hexagonal Head Flange Smooth...
1 x Self Drilling Hexagonal Head Flange Smooth...

1 x Self Drilling Hexagonal Head Flange Smooth 6.3X38 Zinc Plated

3155143802_1
In stock 10783 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €1.60 €10.35 €20.80 €45.05

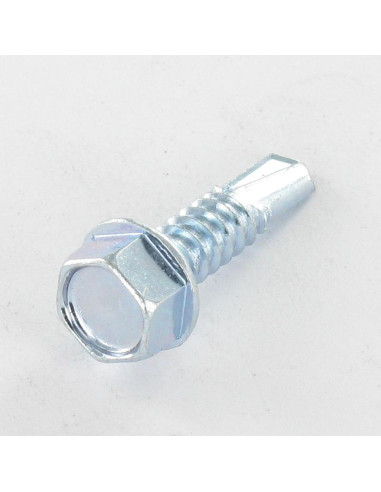

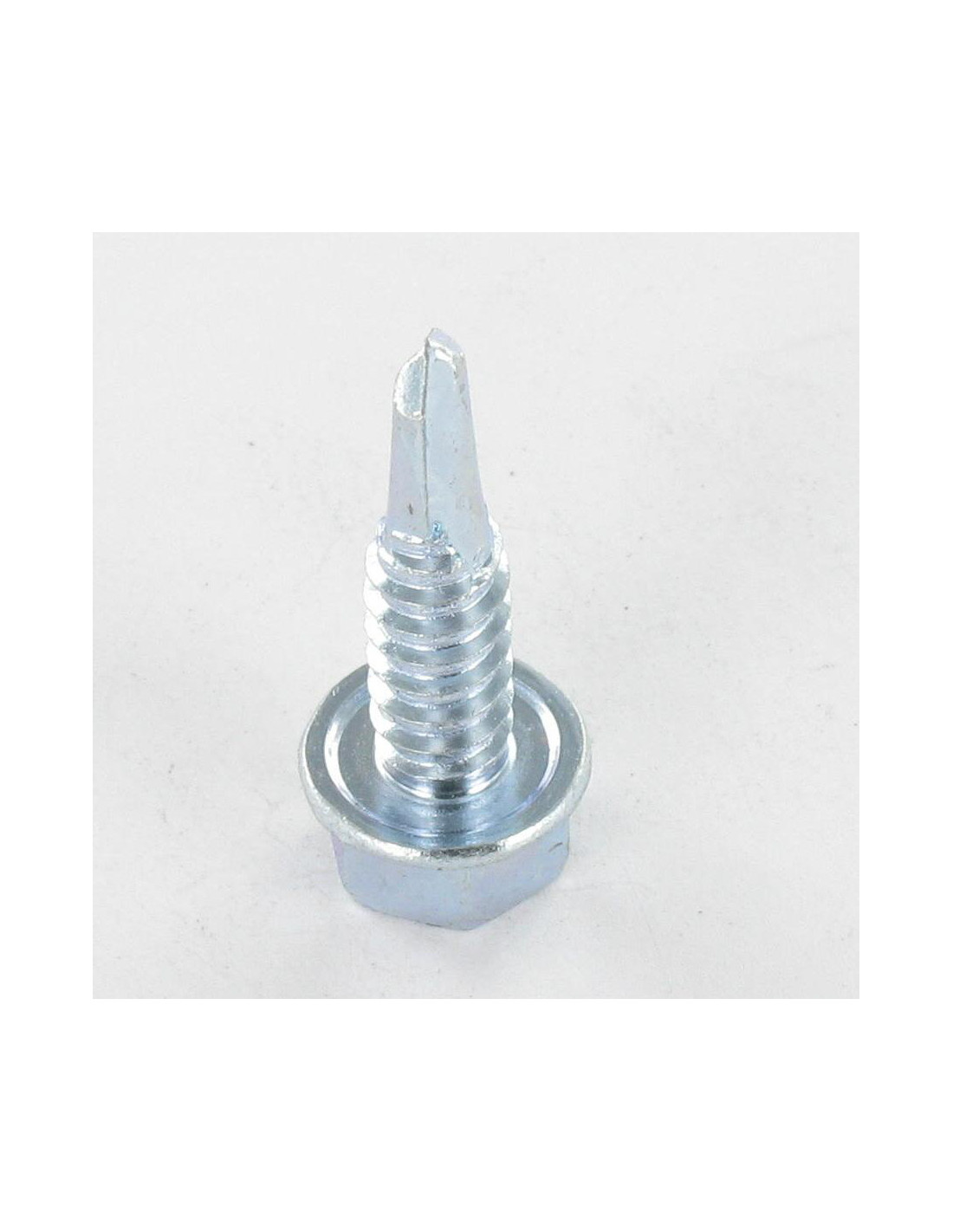

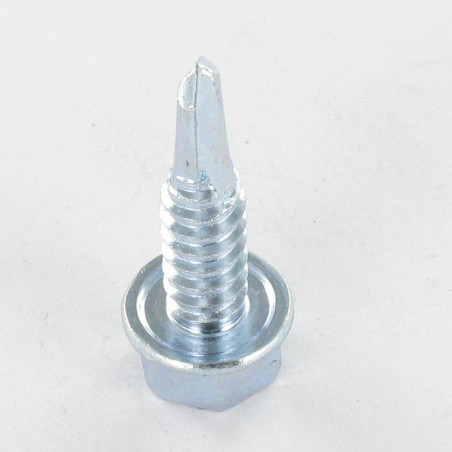

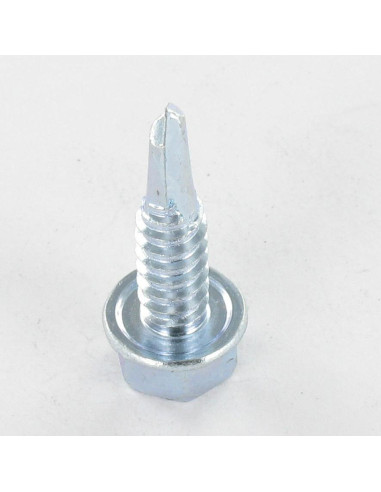

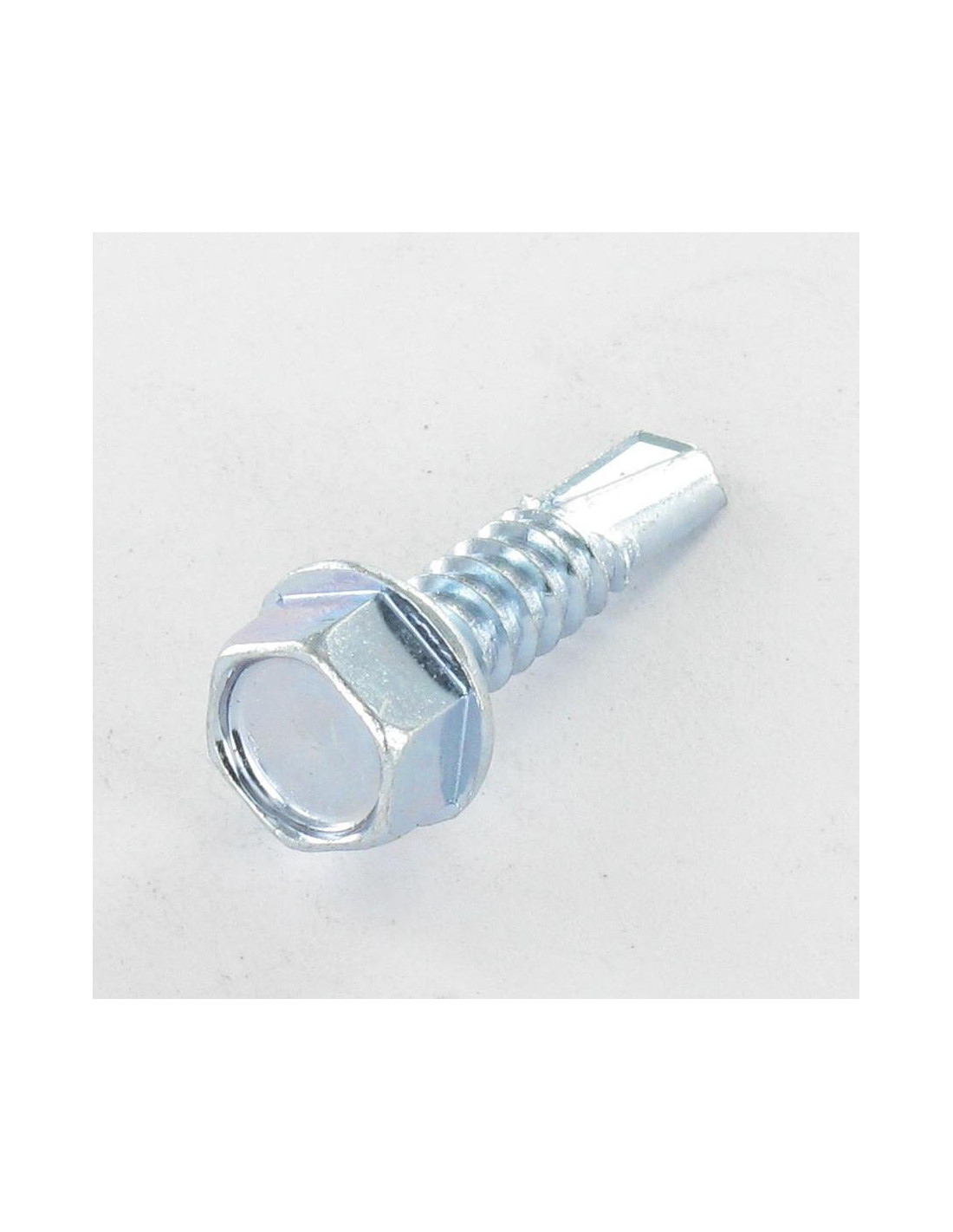

DIN 7504 EMB LISSE,VS3155 - Self Drilling Hexagonal Head Flange Smooth 6.3X38 Zinc Plated
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 units

Dimensions shown in millimeters (mm)

Diameter
6.3
Length
38
Size Drive Type
KEY Of 10
Material
Steel
Coating
ZINC White
COLOR
Grey
Norm
DIN 7504+ Flange SMOOTH, VS3155
Sub product family
Hexagonal Head Flange
WEIGHT For THERE unit
9.36 GR
Mounting pressure (N)
350
Rotation speed (rpm)
1000-1800
Minimum breaking torque (N.m)
14
Maximum thickness to be fixed
26
10783 Items
3663072489516
Self Drilling Hexagonal Head Flange Smooth 6.3X38 Zinc Plated Other Reference : 3663072489516
Nicolas R. (vis-express.fr)
2025-05-11

Use with EPDM sealing washer Corrugated sheet fixing, small wave, vertical
