8423500818_1
In stock 23827 Pièces
€1.70 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €1.70 €3.40 €4.05 €15.20 €55.40

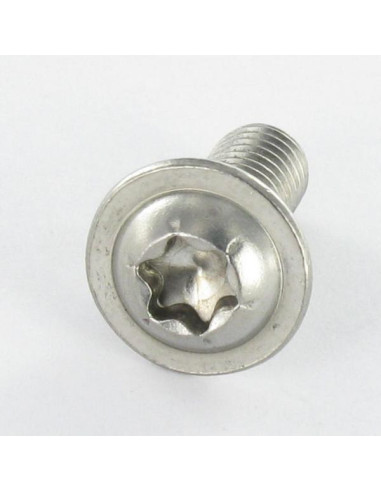

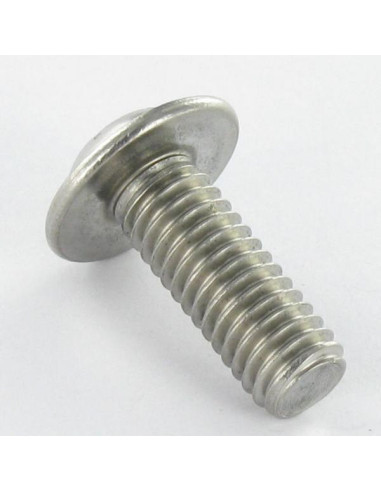

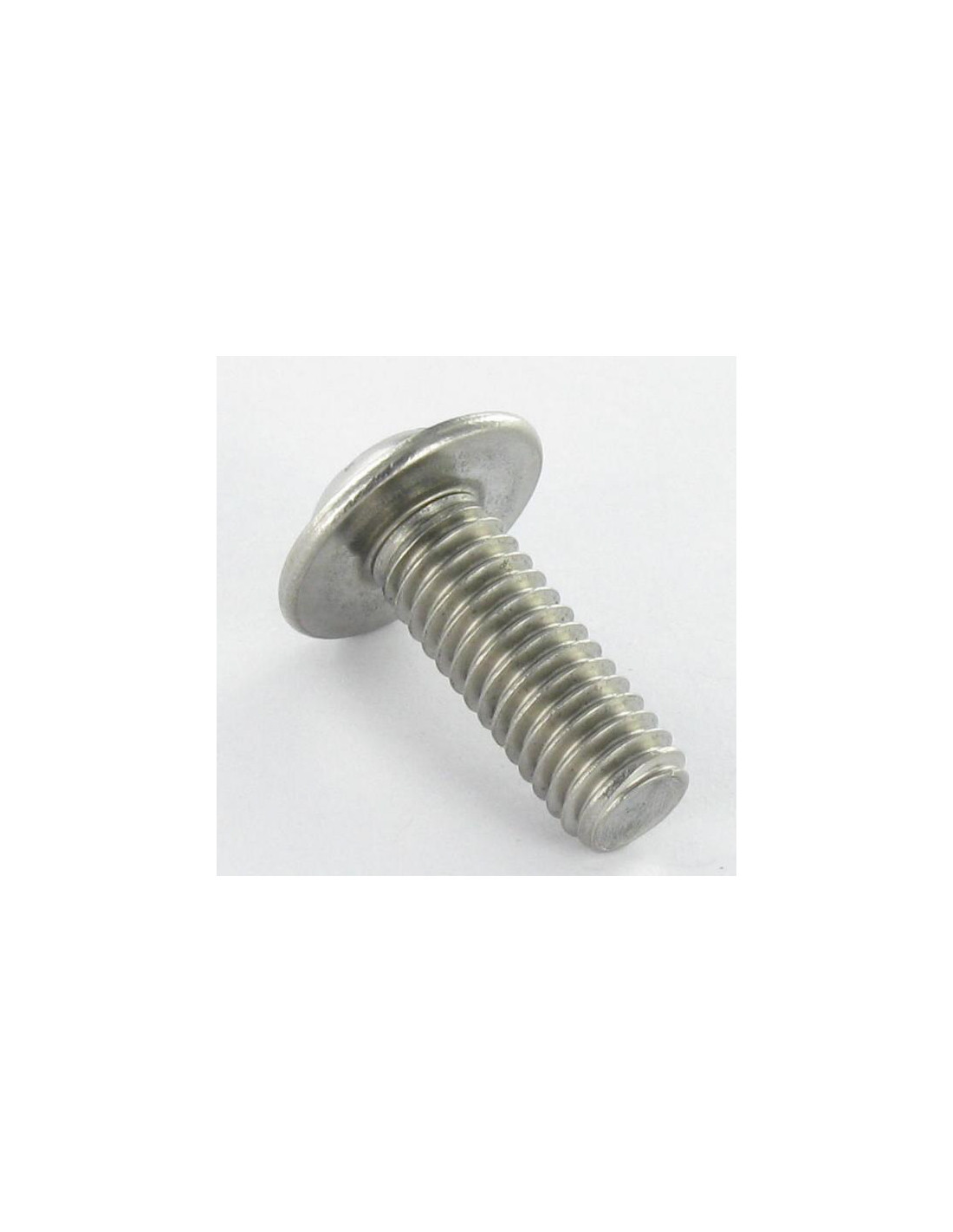

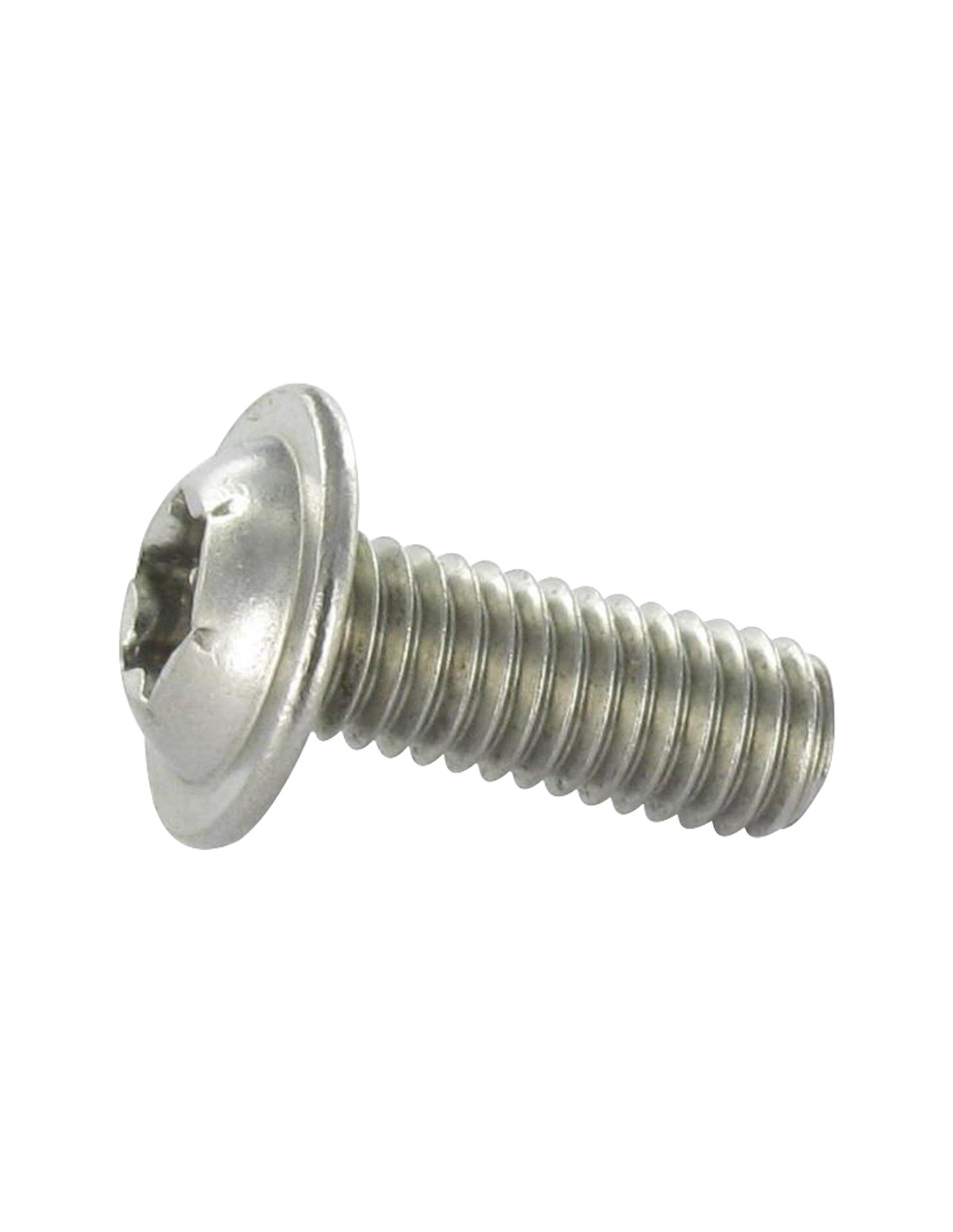

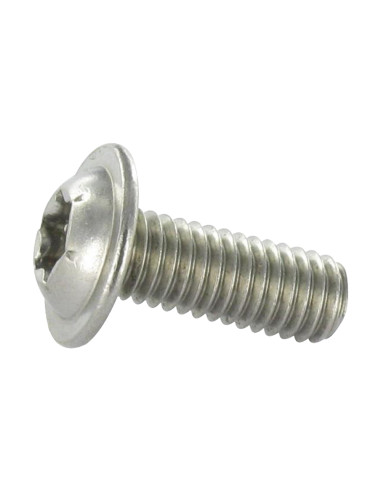

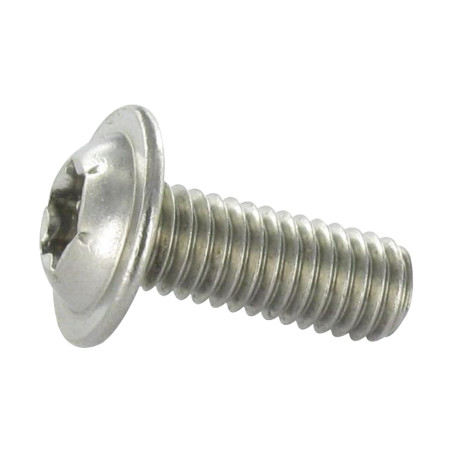

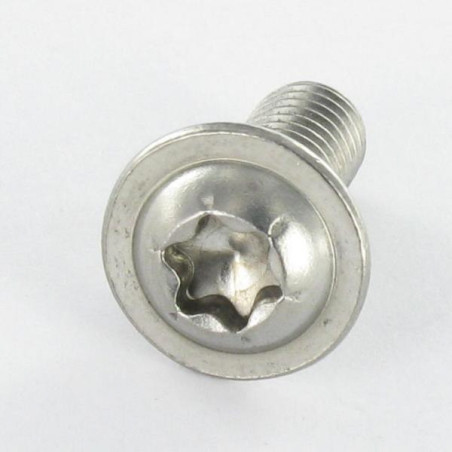

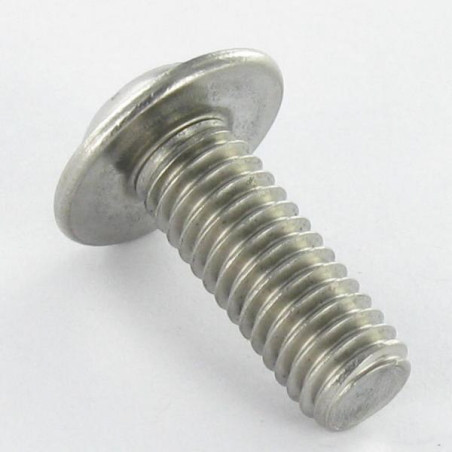

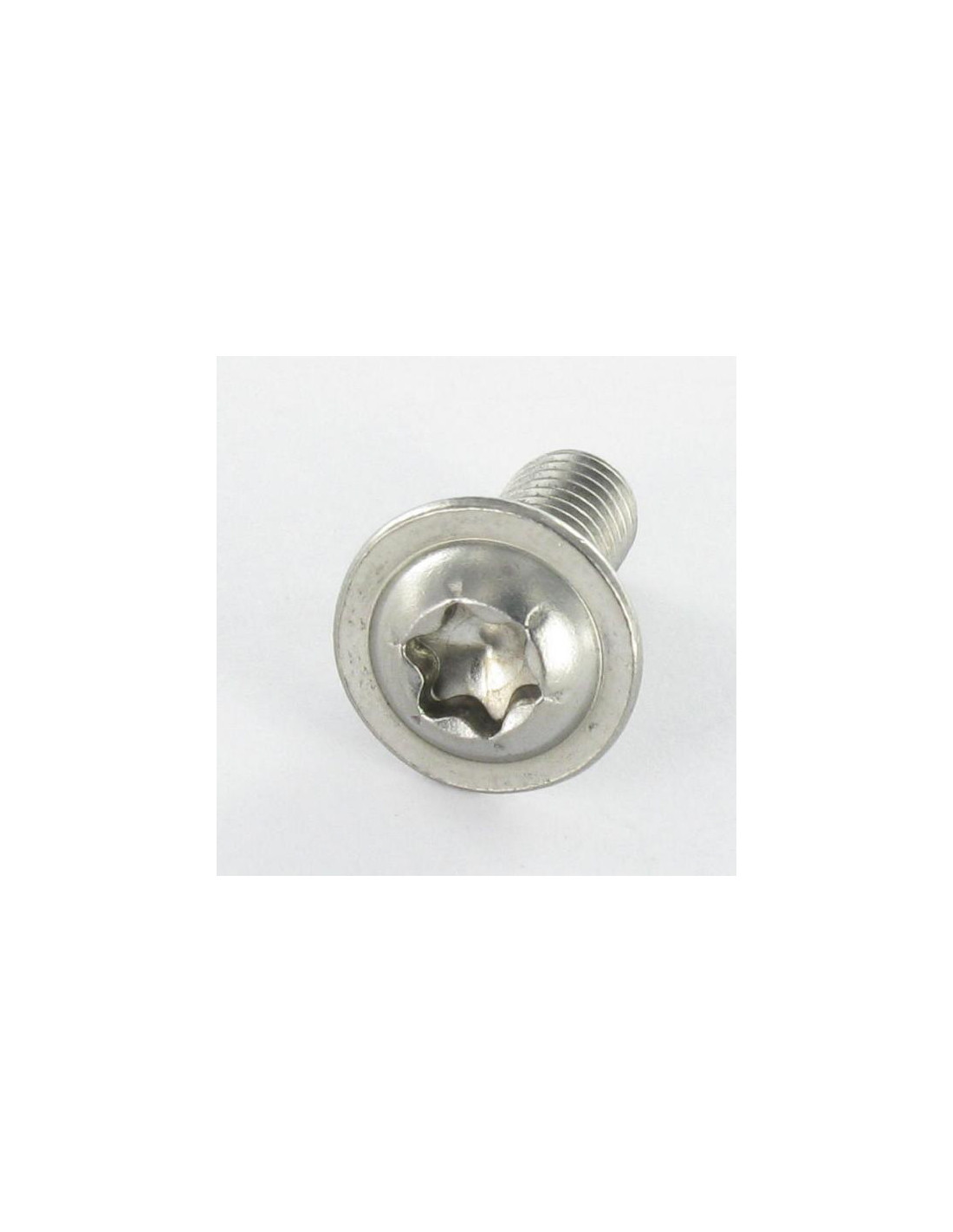

Machine Screw Pan Head Flange T25 M5X8 Full Thread Stainless Steel A2
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

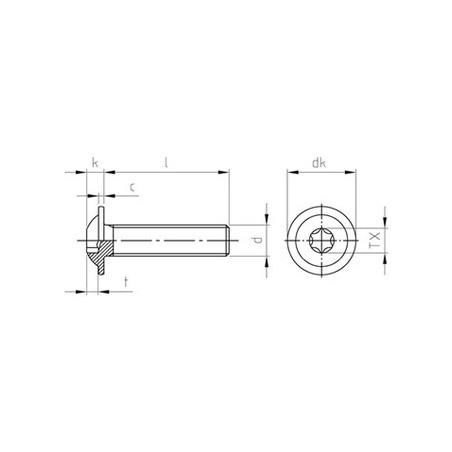

Dimensions shown in millimeters (mm)

Diameter
M5
Length
8
Thread
Metal
Drive Type
Torx
Size Drive Type
T25
Pitch
Standard pitch 80
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm

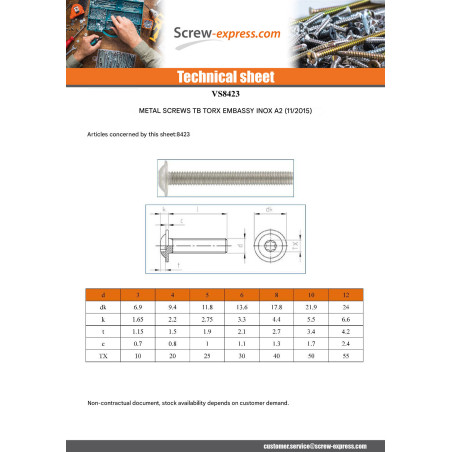

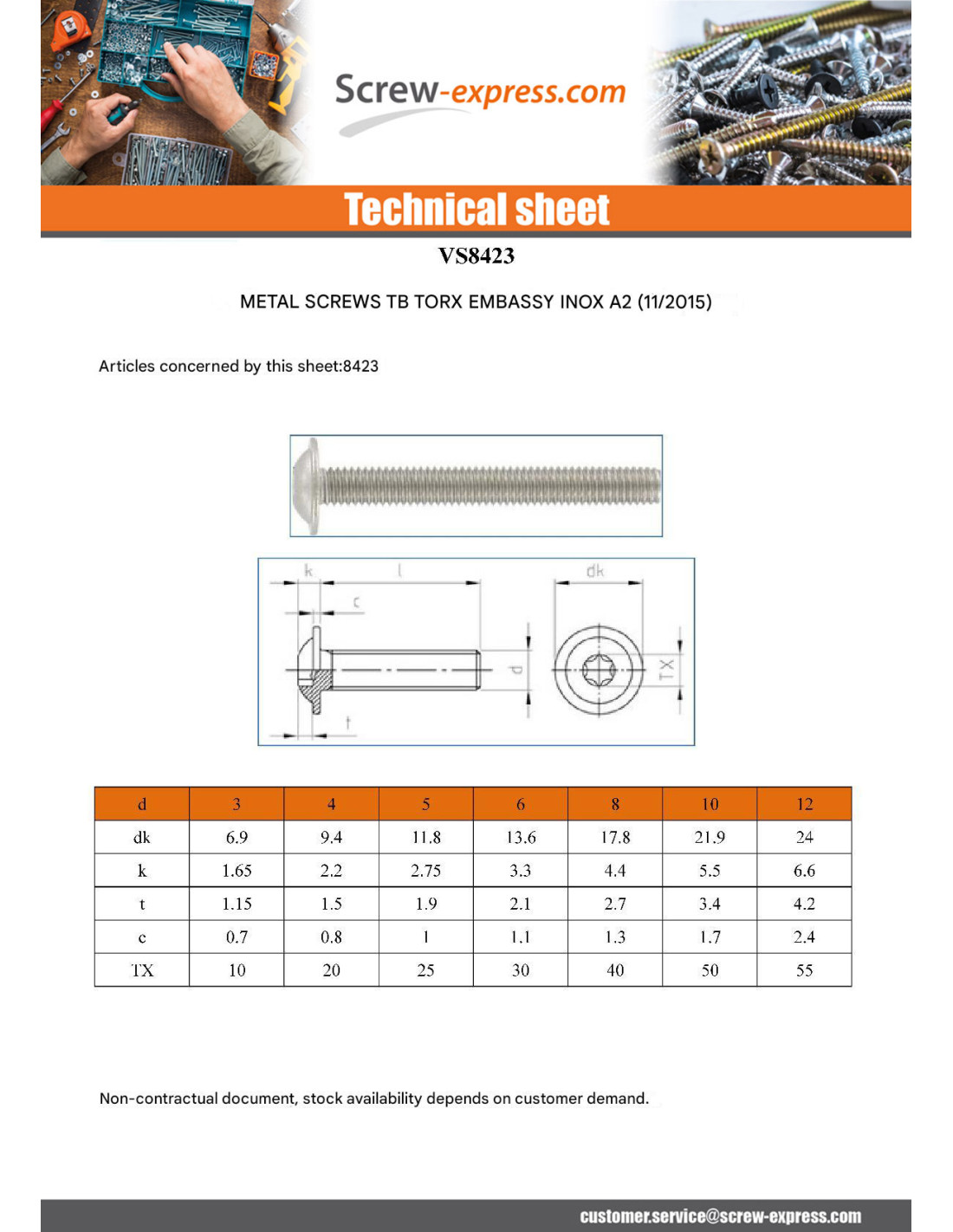

VSISO7380-2+6LOBES,VS8423
Product Family
Machine Screw
Sub product family
Head Pan Head
Diameter in mm
4.976 - 4.826
Unit weight
2.28 GR
23827 Items
3663072395084
Machine Screw Pan Head Flange T25 M5X8 Full Thread Stainless Steel A2
Diameter = M5, Length = 8, Material = Stainless Steel A2, Pitch = Standard pitch 80, Drive Type = Torx, Norm = VSISO7380-2+6LOBES,VS8423, Product Family = Machine Screw, Size Drive Type = T25

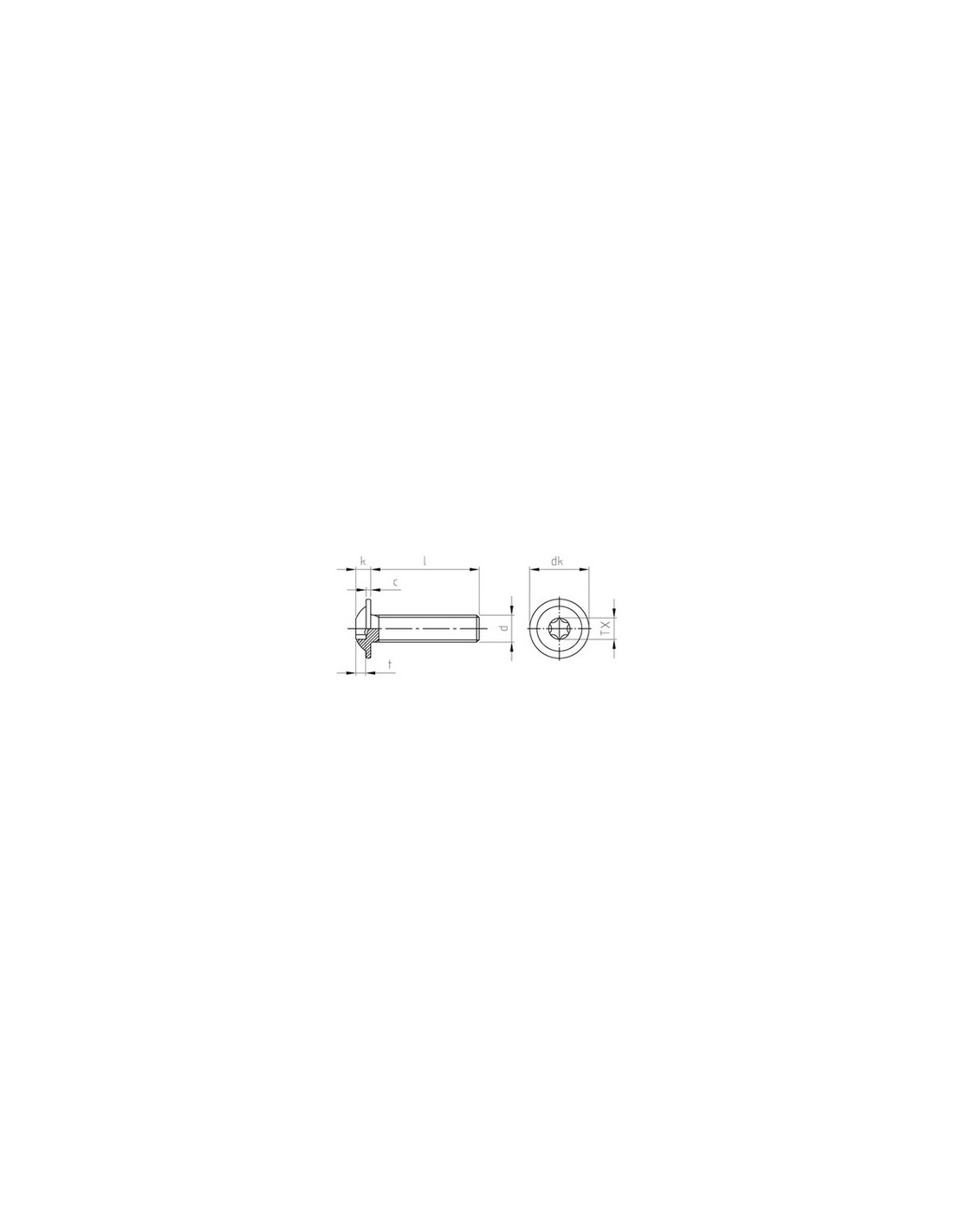

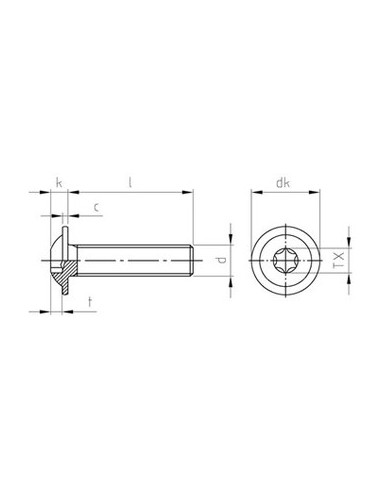

dimensional guide (mm)
Diameter M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M42 M48 M56
Across flats 1.3 1.5 1.5 2 2.5 3 4 5 6 8 10 12 14 14 17 17 19 19 22 24 27 32 36 41
Head diameter 2.6 3 3.8 4.5 5.5 7 8.5 10 13 16 18 21 24 27 30 33 36 40 45 50 54 63 72 84
Head tickness 1.4 1.6 2 2.5 3 4 5 6 8 10 12 14 16 18 20 22 24 27 30 33 36 42 48 56

Other Reference : 4043377242815 2382 V020087 3663072395084
Patrice C. (vis-express.fr)
2024-07-07

I want to attach runners to drawers intended for storage in a vehicle. The screws are used to fix the slides on a chassis manufactured using SYSTEAL brand components. The drawers are mounted in a SYSTEAL system composed of V-SLOT 20x20 aluminum profile, 6 mm slot: Reference 4-AS-6-2020-VSLOT The slides are HETTICH brand - Ref KA5632 L.550mm - Load 45 kg
