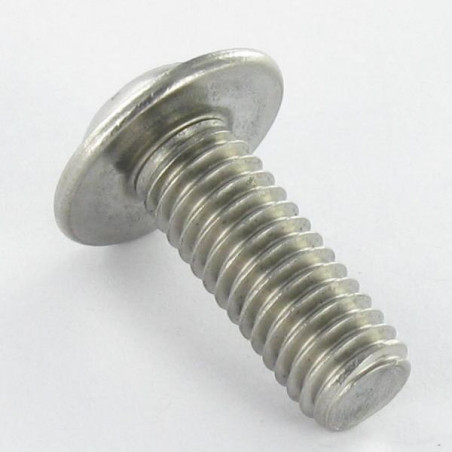

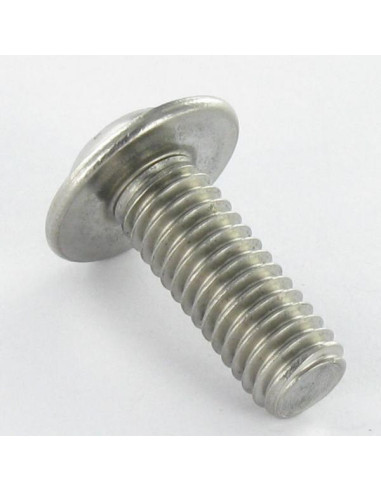

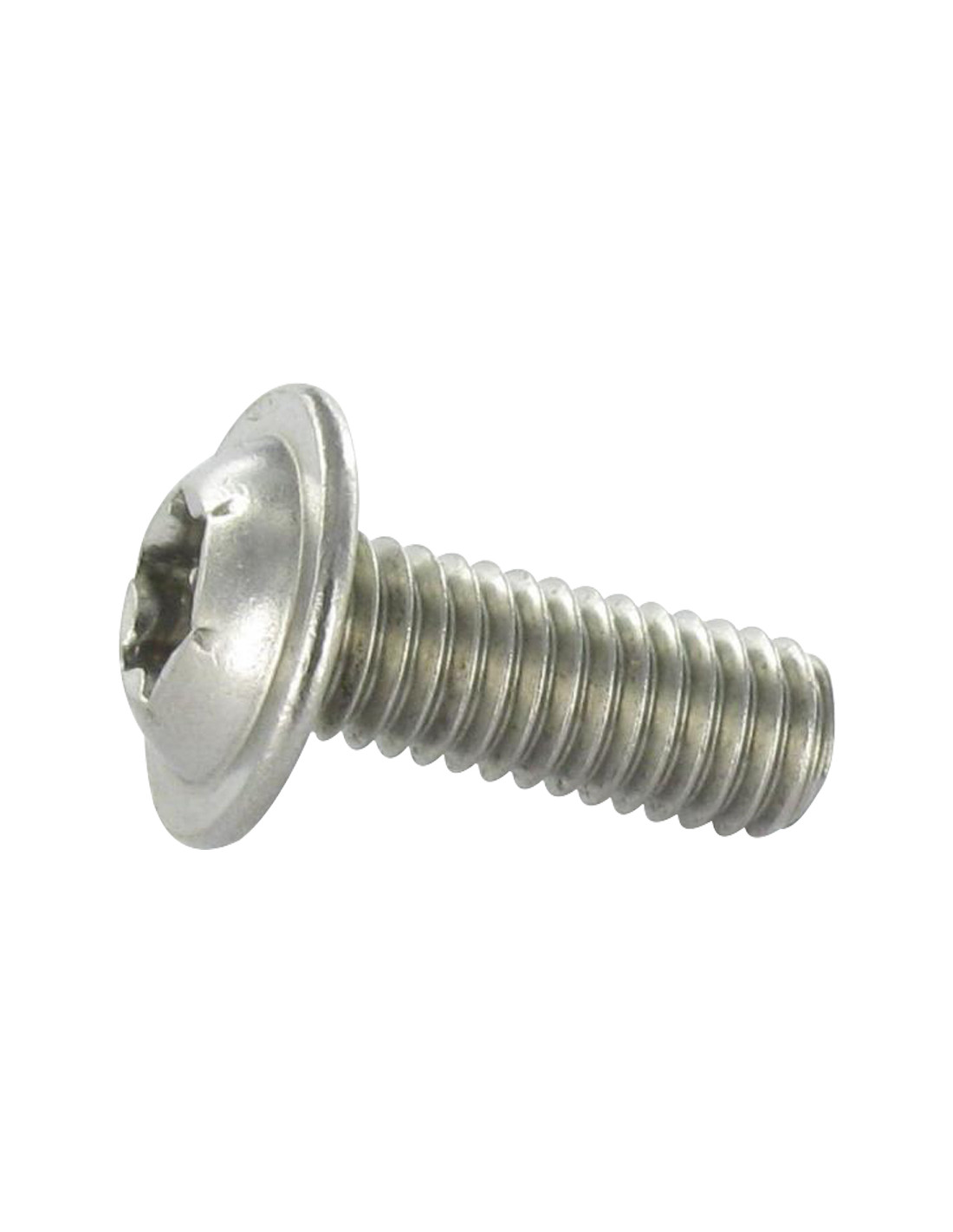

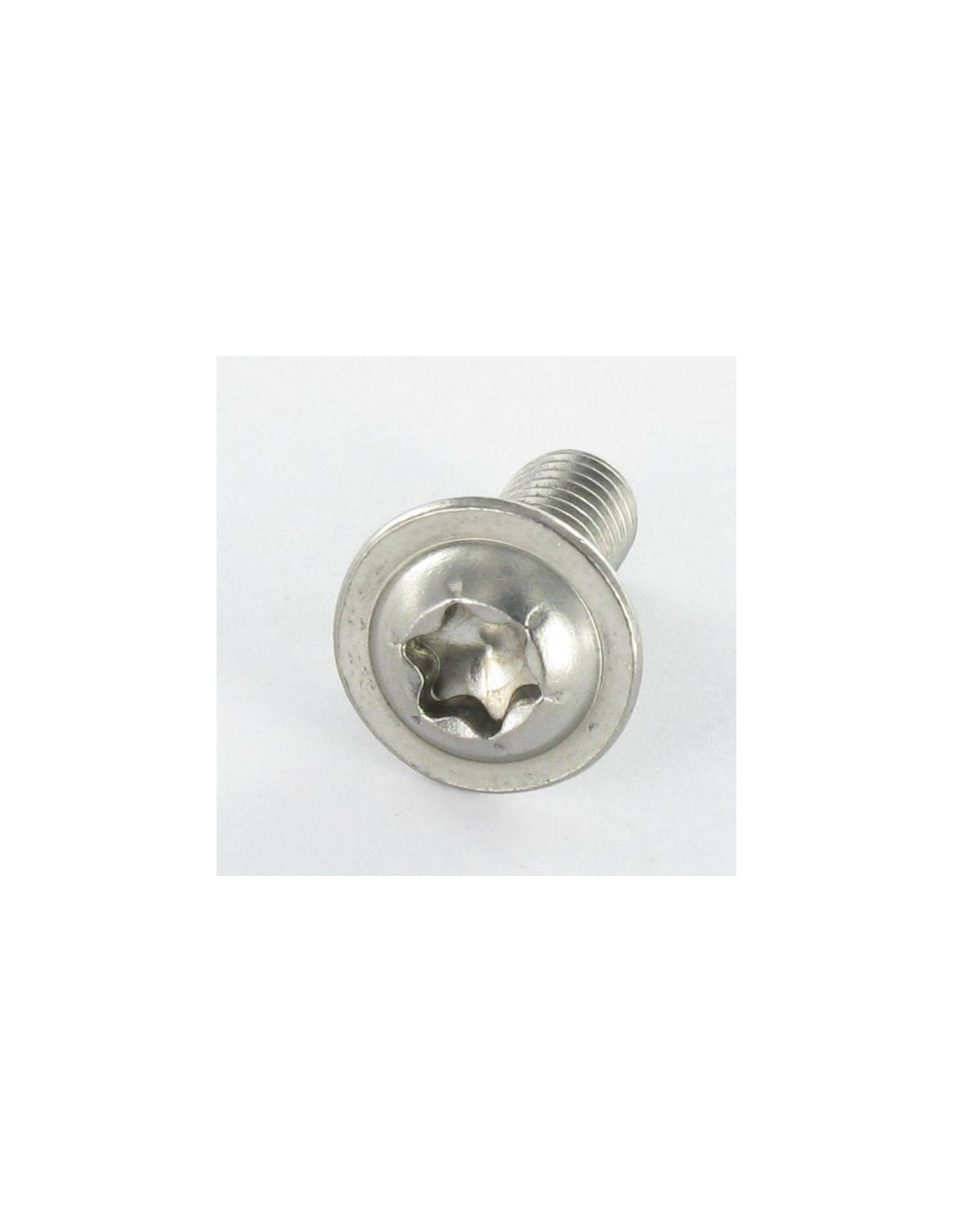

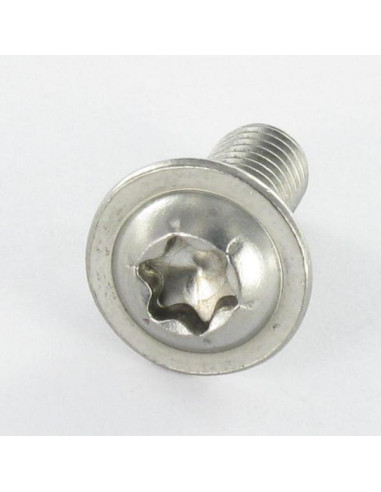

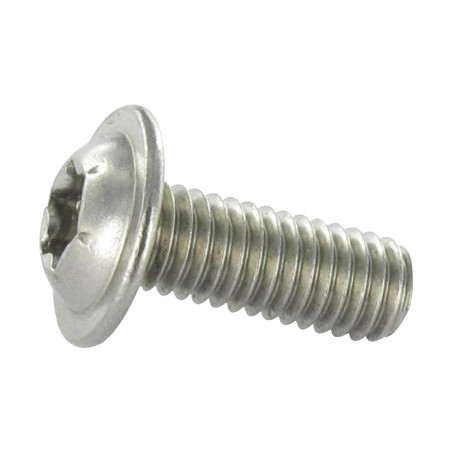

1 x Machine Screw Pan Head Flange T10 M3X30 Full Thread Stainless Steel A2 micro screw

8423303018_1
In stock 2927 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 1000
Lot price VAT included £3.04 £7.33 £10.76 £46.51

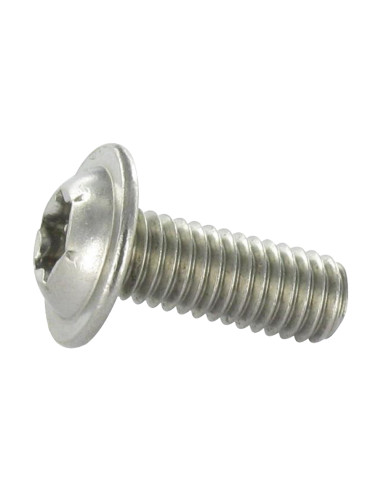

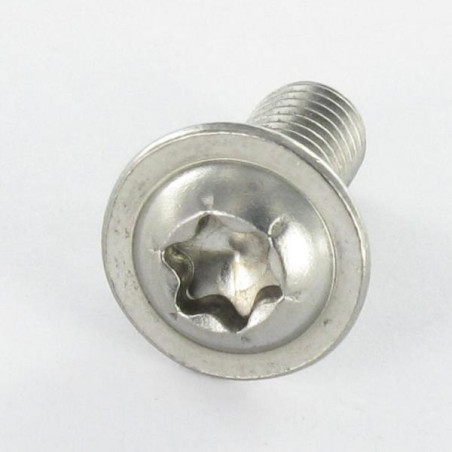

Machine Screw Pan Head Flange T10 M3X30 Full Thread Stainless Steel A2 micro screw
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 1000 Units

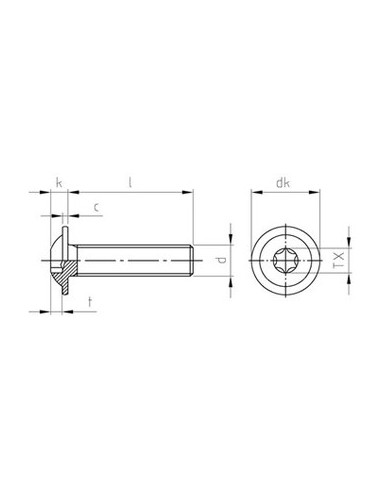

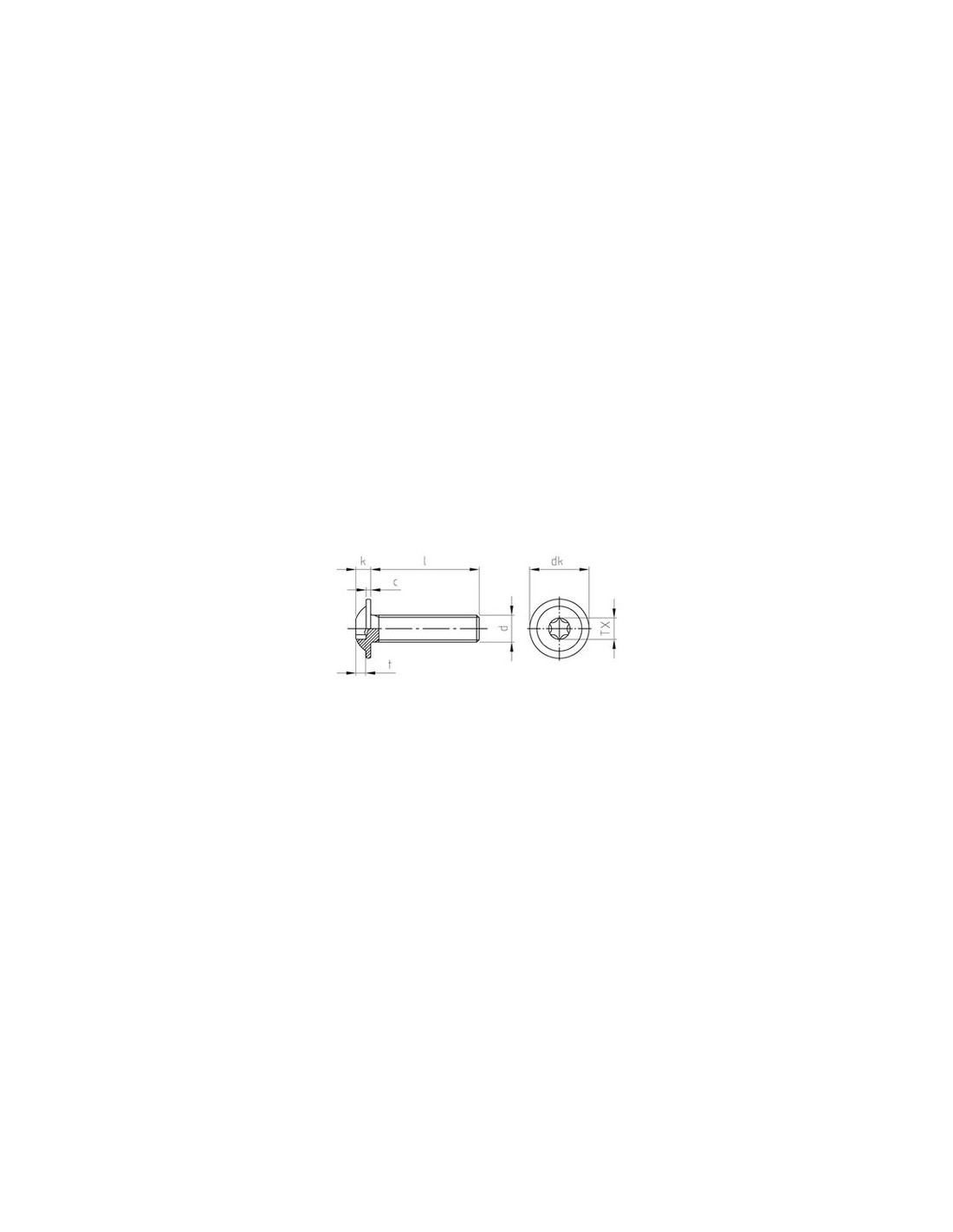

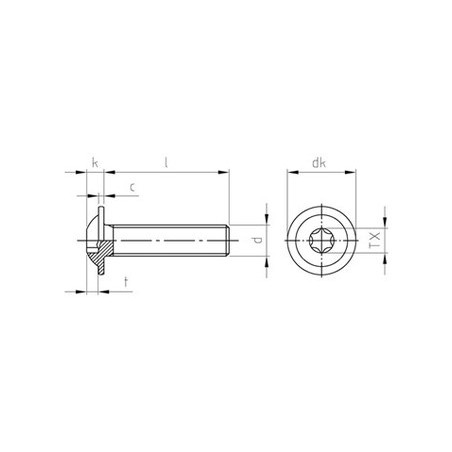

Dimensions shown in millimeters (mm)

Diameter
M3
Length
30
Thread
Metal
Drive Type
Torx
Size Drive Type
T10
Pitch
Standard pitch 50
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm

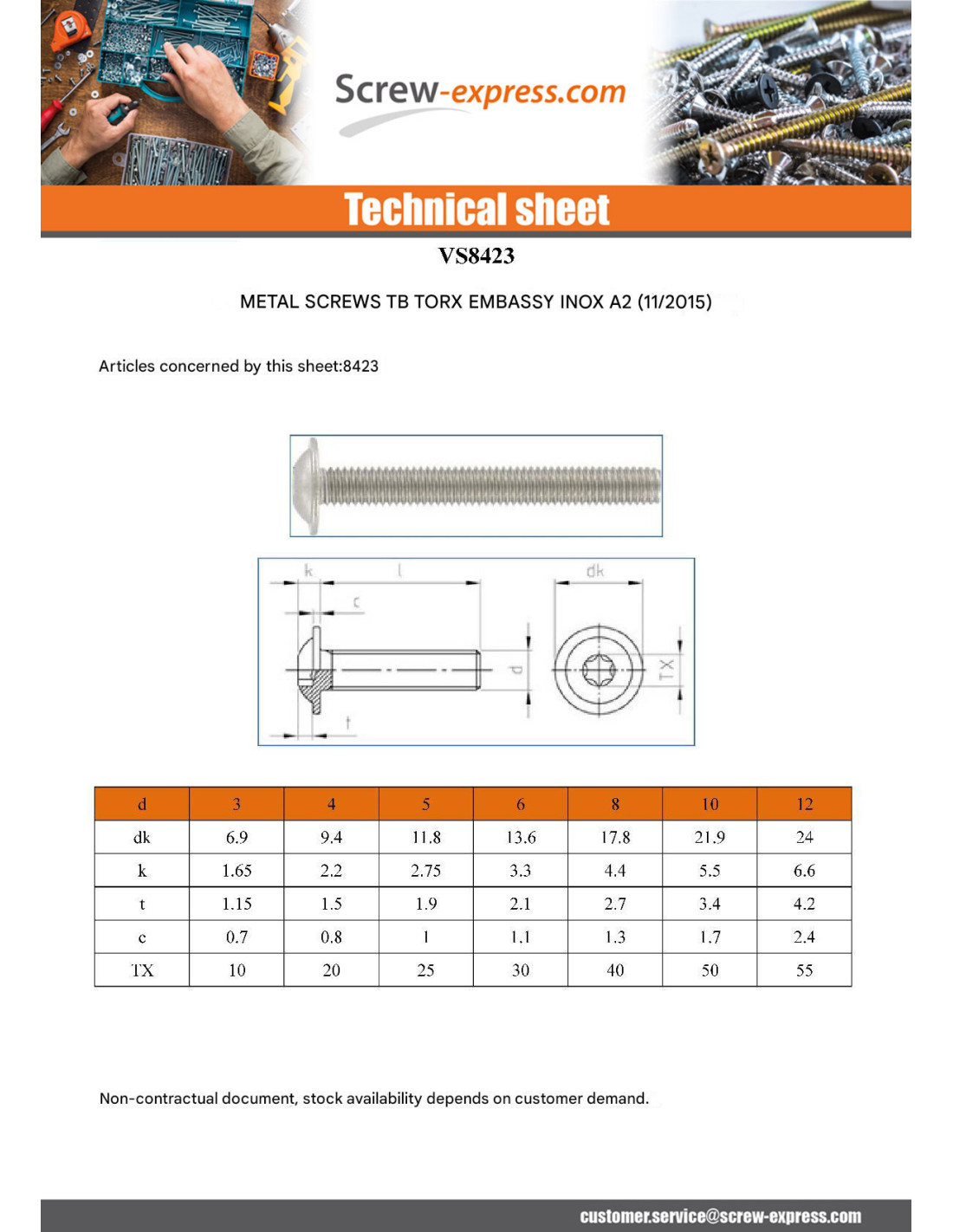

VSISO7380-2+6LOBES,VS8423
Product Family
Machine Screw / MICROVIS
Sub product family
Head Pan Head
Diameter in mm
2.974 - 2.835
Unit weight
1.54 GR
2927 Items
3663072394827
Machine Screw Pan Head Flange T10 M3X30 Full Thread Stainless Steel A2 micro screw
Diameter = M3, Length = 30, Sub Product Family = Head Pan Head, Material = Stainless Steel Stainless Steel A2, Pitch = Standard pitch 50, Drive Type = Torx, Norm = VSISO7380-2+6LOBES,VS8423, Product Family = Machine Screw / MICROVIS, Size Drive Type = T10


dimensional guide (mm)
Diameter M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M42 M48 M56
Across flats 1.3 1.5 1.5 2 2.5 3 4 5 6 8 10 12 14 14 17 17 19 19 22 24 27 32 36 41
Head diameter 2.6 3 3.8 4.5 5.5 7 8.5 10 13 16 18 21 24 27 30 33 36 40 45 50 54 63 72 84
Head tickness 1.4 1.6 2 2.5 3 4 5 6 8 10 12 14 16 18 20 22 24 27 30 33 36 42 48 56

Other Reference : 738022T3 30 3663072394827
