2620730202_1
In stock 750 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €3.85 €21.15 €63.45 €211.40

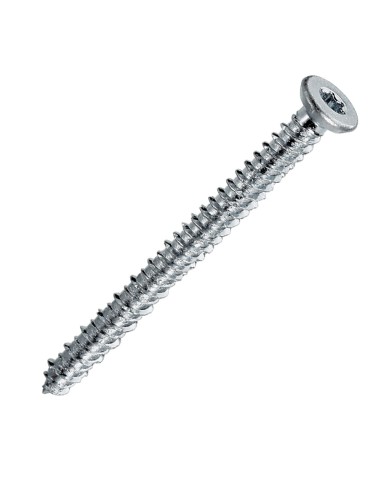

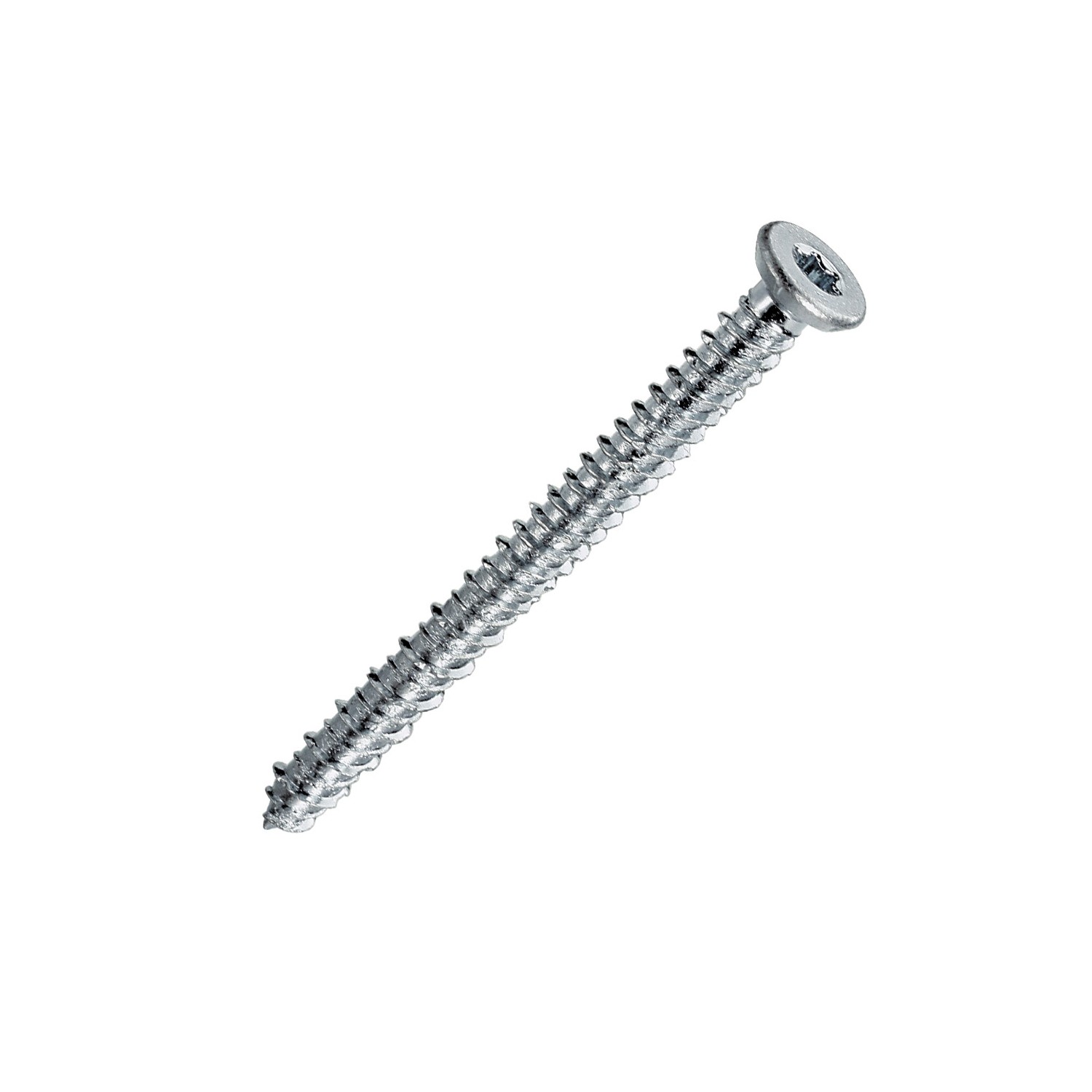

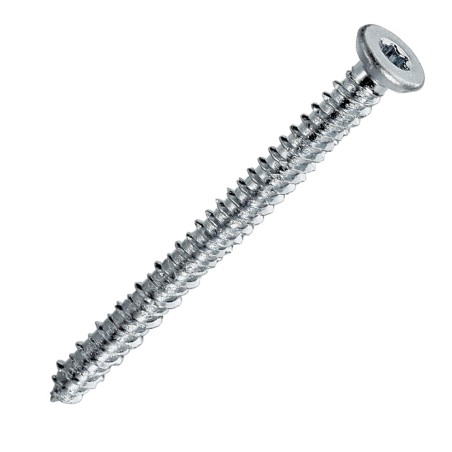

Screw Concrete Countersunk Head Reduced 7.5X302 T30 Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
7.5
Length
302
Drive Type
Torx
Size Drive Type
T30
Material
Steel
Coating
ZINC PLATED White
COLOR
Grey
Sub product family
Countersunk Head
WEIGHT For THERE unit
60 GR
750 Items
3663072495012

Application

  • Fixing rails, plates, brackets, brackets, hinges or angle brackets in concrete
  • Assembly of frames, door frames, metal door and window frames
  • Securing electrical components (trunking, enclosures, DIN rails, brackets)
  • Pipe supports, clamps or technical ducts
  • Renovation work, metalwork or dry construction
Screw Concrete Countersunk Head Reduced 7.5X302 T30 Zinc Plated
Diameter = 7.5, Length = 302, Coating = Zinc Plated, Material = Steel, Drive Type = Torx, Size Drive Type = T30

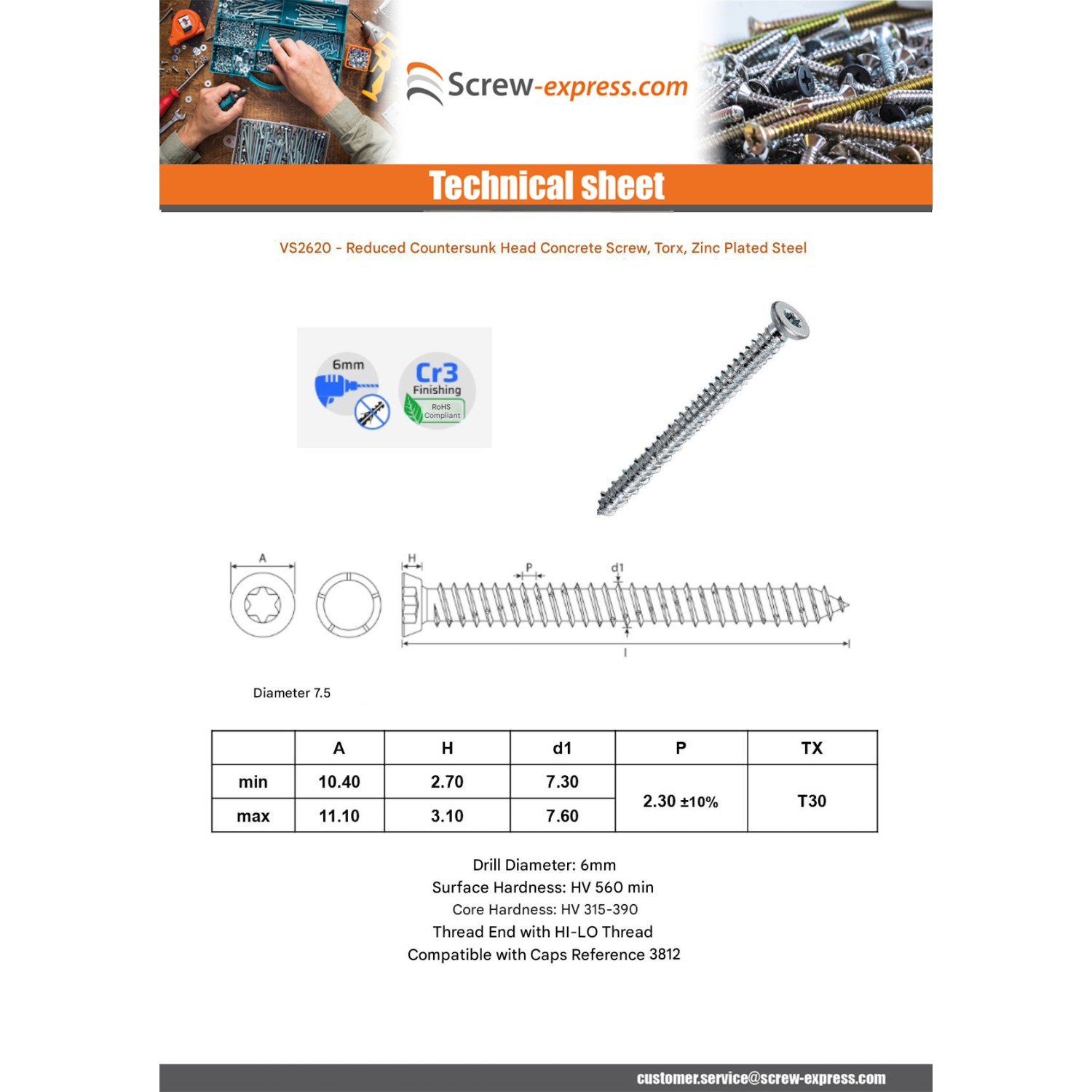

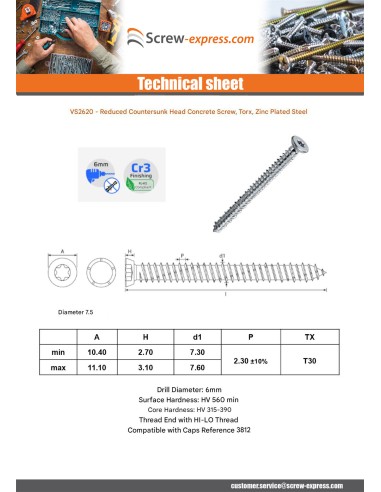

dimensional guide (mm)
d x LONGUEUR7.5X407.5X607.5X707.5X80X7.5X907.5X1007.5X1207.5X1507.5X180
Head diameter11.511.511.511.511.511.511.511.511.5
torxT30T30T30T30T30T30T30T30T30
epaisseur fixable maxi10304050607090120150

Other Reference : 07072- 3663072495012
DRG B. (vis-express.fr)
2025-10-19

This product is used to fix windows where the concrete is quite far away between the frame and the concrete is more than 15cm + the thickness of the frame so for a good fixing in the hard it must be 30cm away
