1 x Rivet Steel/ steel ZING 4.8X14 Thickness Of Panel 7 to 9 Large Head

1 x Rivet Steel/ steel ZING 4.8X14 Thickness Of...

1 x Rivet Steel/ steel ZING 4.8X14 Thickness Of Panel 7 to 9 Large Head

Name: 1 x Rivet Steel/ steel ZING 4.8X14 Thickness Of Panel 7 to 9 Large Head
Brand: Screw Express
SKU: 3706481401
Price: 3.85 EUR
Availability: InStock

Reference 3706481401_1

In stock 4235 Pièces

€3.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100	500
Lot price VAT included	€3.85	€7.70	€13.15	€62.40

Rivet Steel/ steel ZING 4.8X14 Thickness Of Panel 7 to 9 Large Head

Packaging

1 unit
10 units
100 units
500 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: 4.8
Diameter Head: 14
Material: BODY Steel / rod Steel
Sub product family: Rivets BLIND STANDARDS (USE GENERAL)
Shear (N): 2900
Clamping thickness: 7 a 9 mm
Rivet body length Rivet body length How to measure the length of a rivet? In our rivet designations, the length corresponds to the body length of the rivet (indicated by the arrow in the sketch below).: 14
Unit weight: 5.54 GR
Head shape: Head Large
Hole diameter: 5
Tensile strength

Tensile strength

Tensile Strength (Rm)
Tensile strength corresponds to the maximum force a material can withstand before breaking when it is pulled.

It is expressed in MPa (megapascals) and helps determine the strength of a screw or fastening component.

🔩 The higher the value, the more resistant the material is to breaking.: 3100

In stock 4235 Items

ean13 3663072064669

Application

Steel sheets
Lightweight metal structures
Body
Assemblies subjected to mechanical stress
Fixing panels or rigid parts

Description

Rivet Steel/ steel ZING 4.8X14 Thickness Of Panel 7 to 9 Large Head
Diameter = Class 4.8

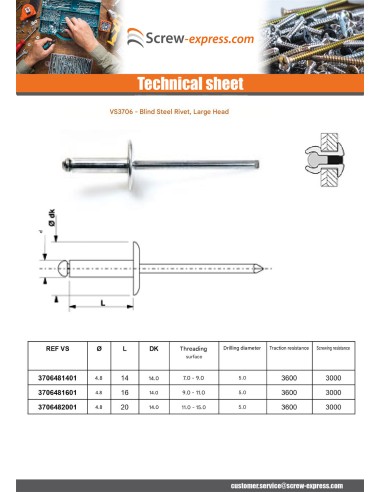

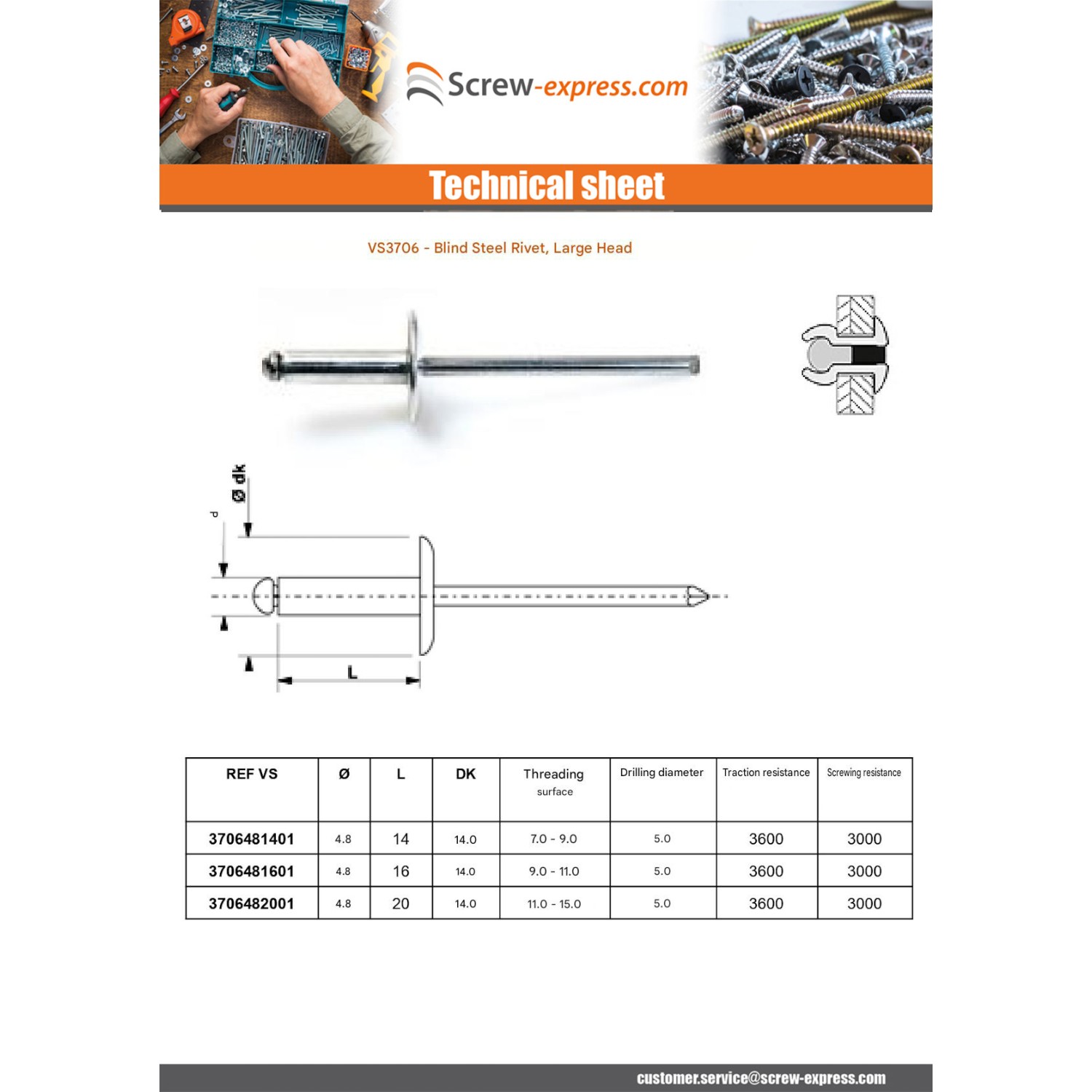

dimensional guide (mm)

Body diameter	4.8
Head diameter	14
diametre percage	5
longueur tige	27
resistance a la traction	4600
Shear strength	3000
longueur du corps est indique dans la designation
