1 x Rivet Steel/ steel ZING 4X10 Thickness Of Panel 4 to 6 Countersunk Head

3705401001_1
In stock 5610 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500
Lot price VAT included £3.69 £7.33 £8.81 £25.25

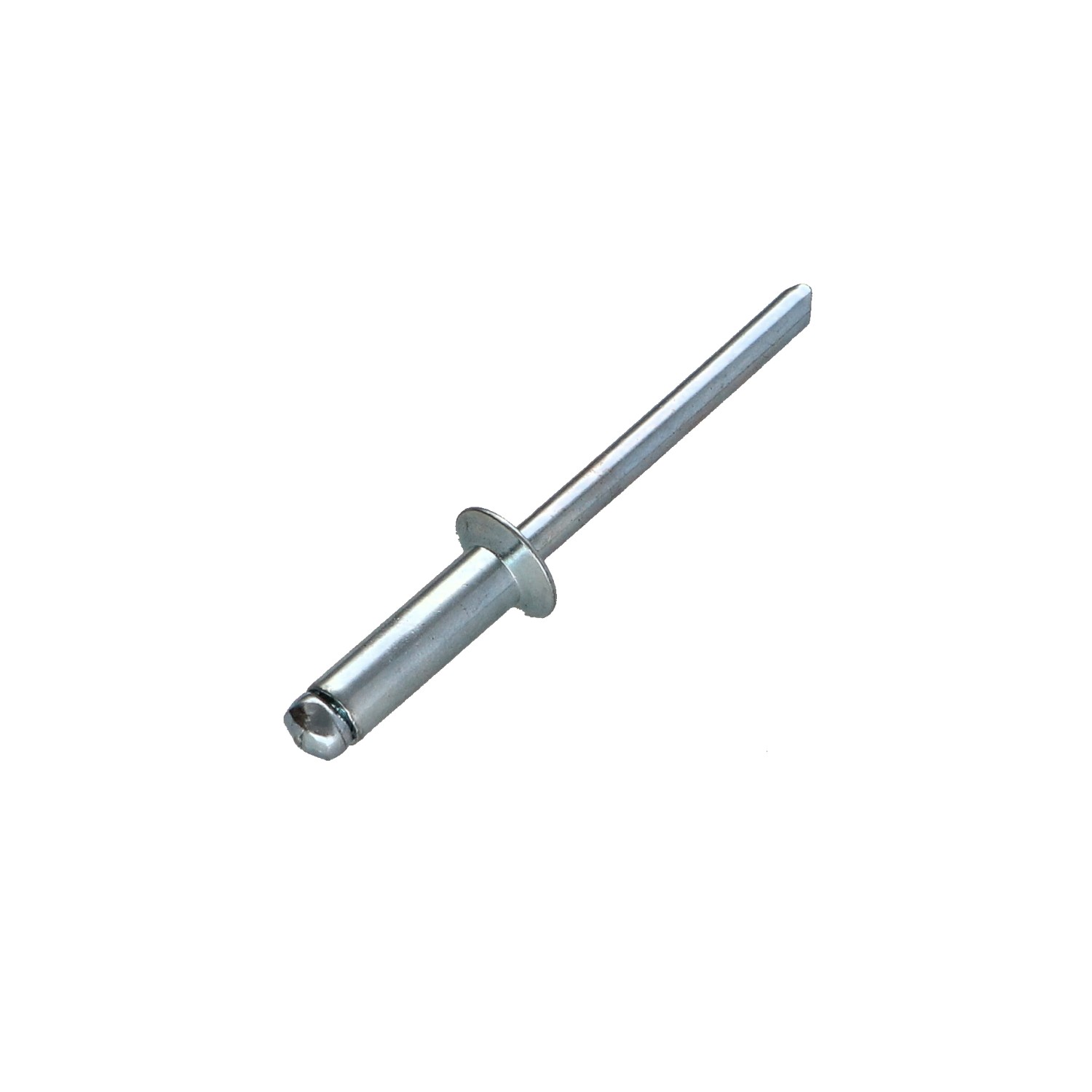

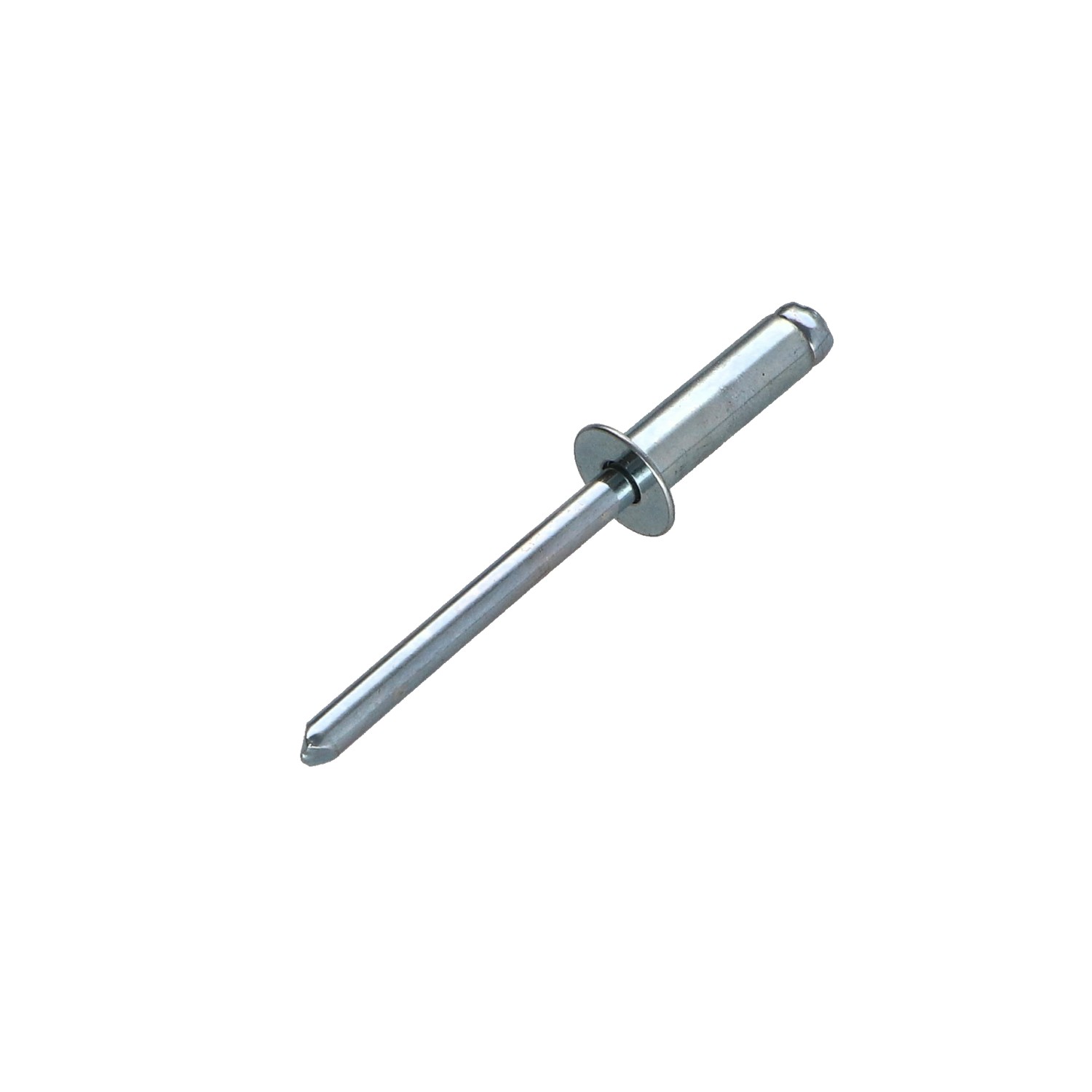

Rivet Steel/ steel ZING 4X10 Thickness Of Panel 4 to 6 Countersunk Head
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4
Diameter Head
8
Material
BODY Steel / rod Steel
Sub product family
Rivets BLIND STANDARDS (USE GENERAL)
Shear (N)
1700
Clamping thickness
4 a 6 mm
Rivet body length
10
Unit weight
2.37 GR
Head shape
Countersunk Head
Hole diameter
4.2
Tensile strength
2200
5610 Items
3663072302532

Application

  • Automobile
  • Trailers
  • Storage and handling equipment
  • Scales
Rivet Steel/ steel ZING 4X10 Thickness Of Panel 4 to 6 Countersunk Head
Diameter = 4

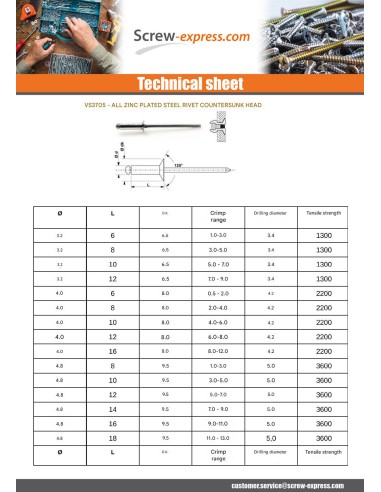

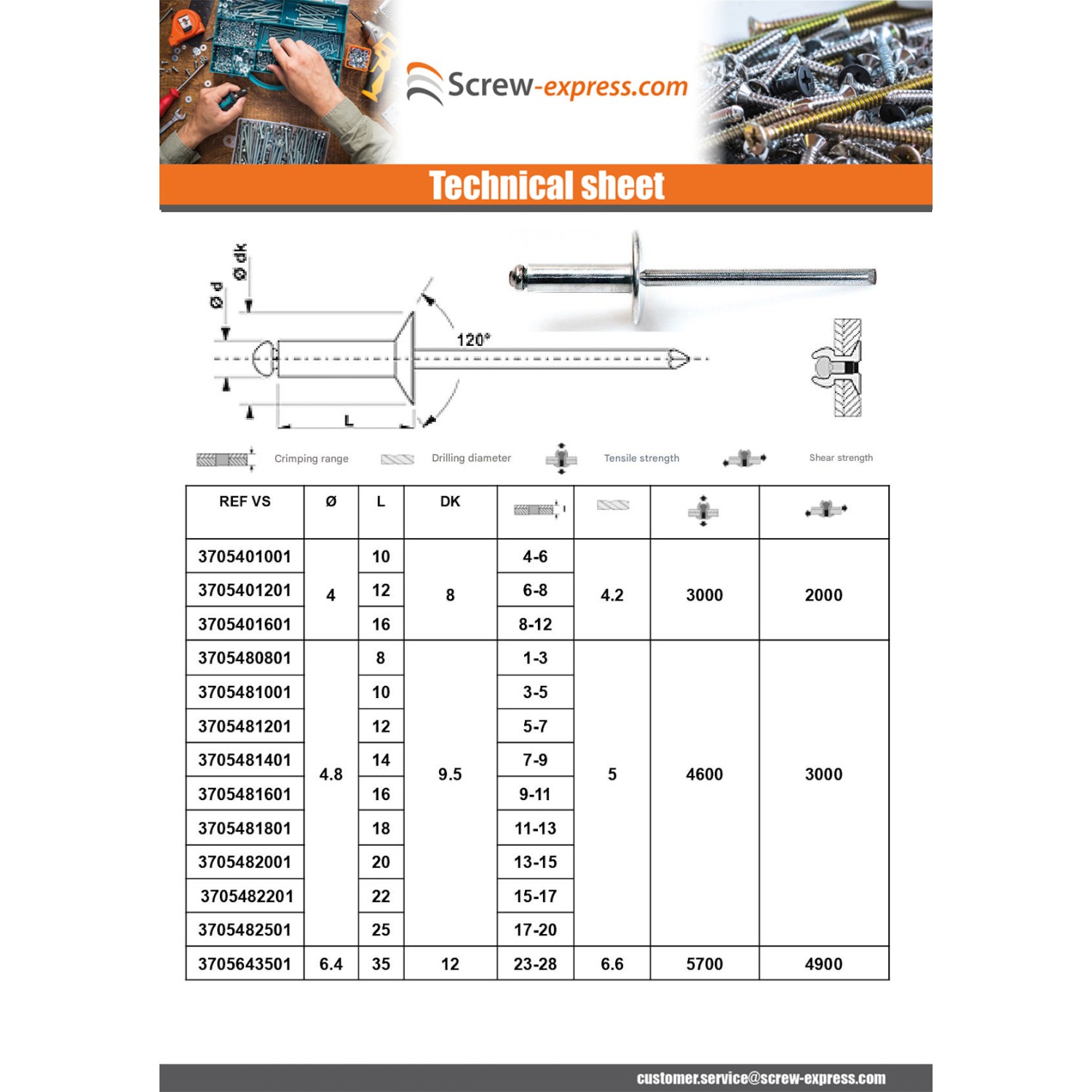

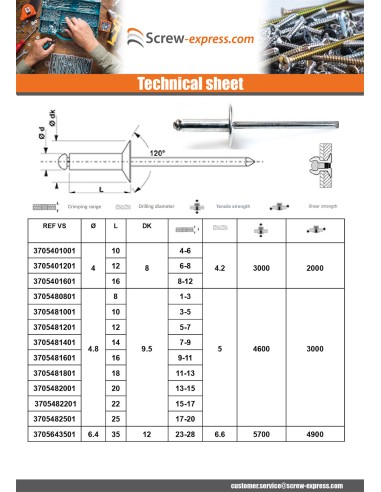

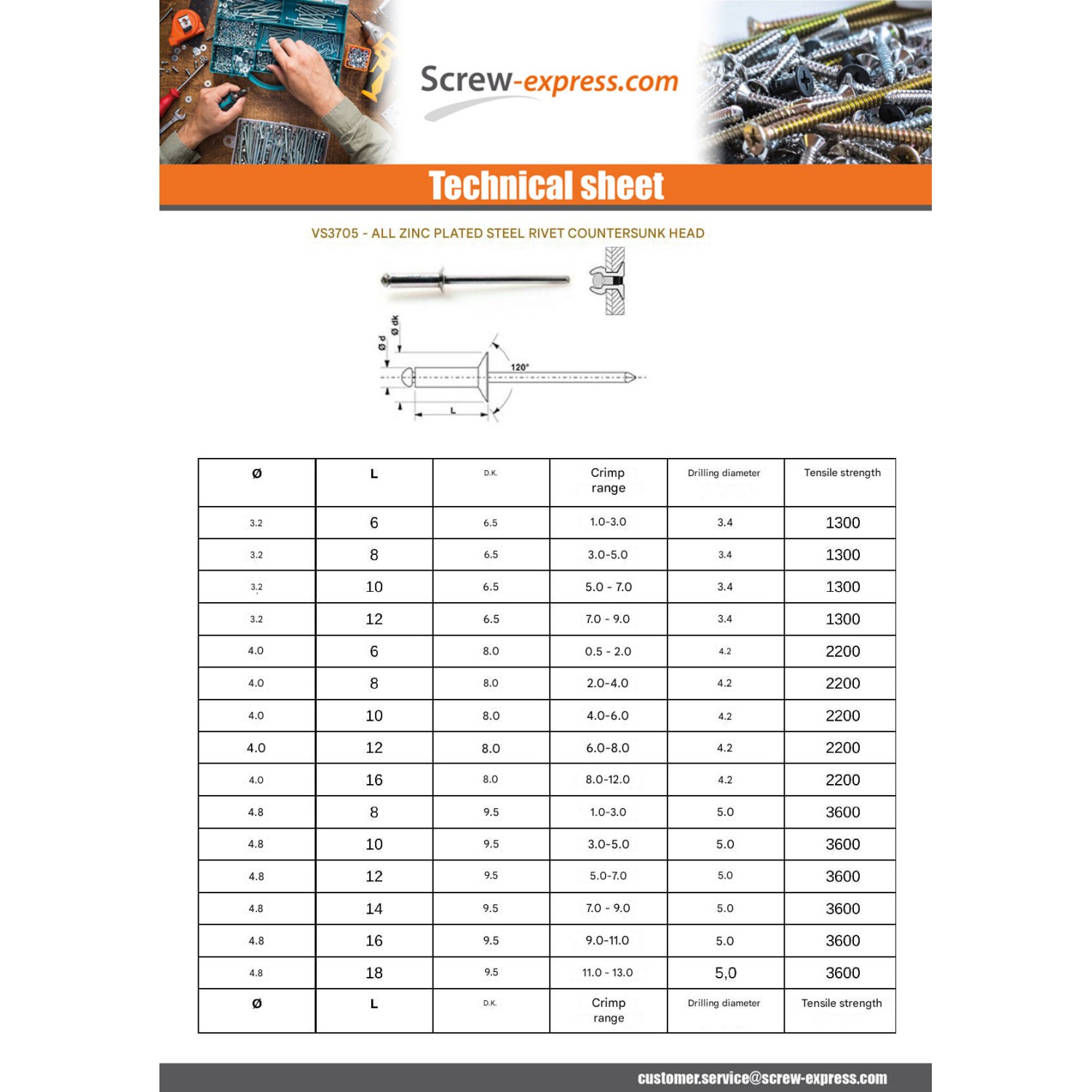

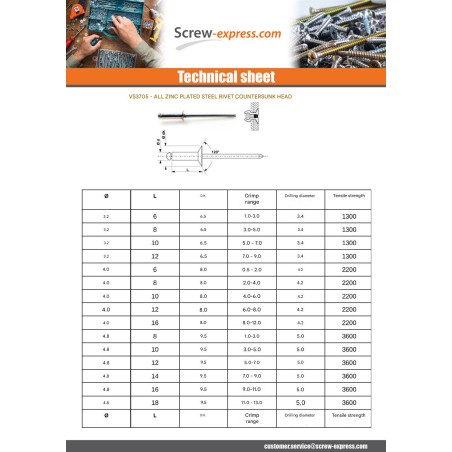

dimensional guide (mm)
Body diameter 3 3.2 4 4.8
Head diameter 6 6.5 8 9.5
Drilling diameter 3.2 3.4 4.2 5
longueur tige 25 25 27 27
resistance a la traction 1700 1800 3000 4600
Shear strength 1200 1300 2000 3000
La longueur du corps est indique dans la designation

Other Reference : 104440101 3663072302532
