1 x Rivet Stainless Steel GOSTOP TRS 4X10

1 x Rivet Stainless Steel GOSTOP TRS 4X10

Name: 1 x Rivet Stainless Steel GOSTOP TRS 4X10
Brand: Screw Express
SKU: 8654401018
Price: 1.85 EUR
Availability: InStock

Reference 8654401018_1

In stock 10345 Pièces

€1.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100	500	2000
Lot price VAT included	€1.85	€3.70	€15.30	€72.75	€291.00

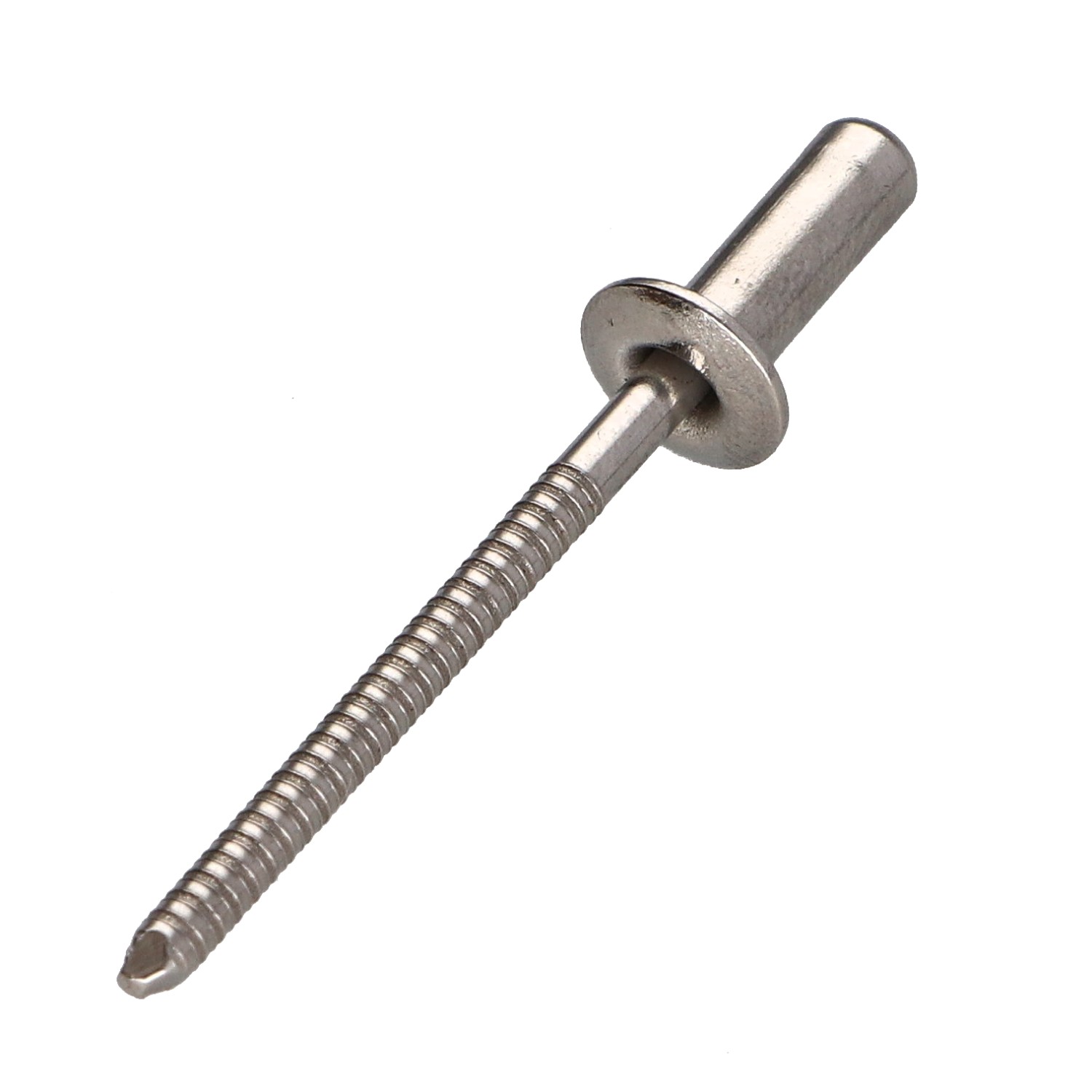

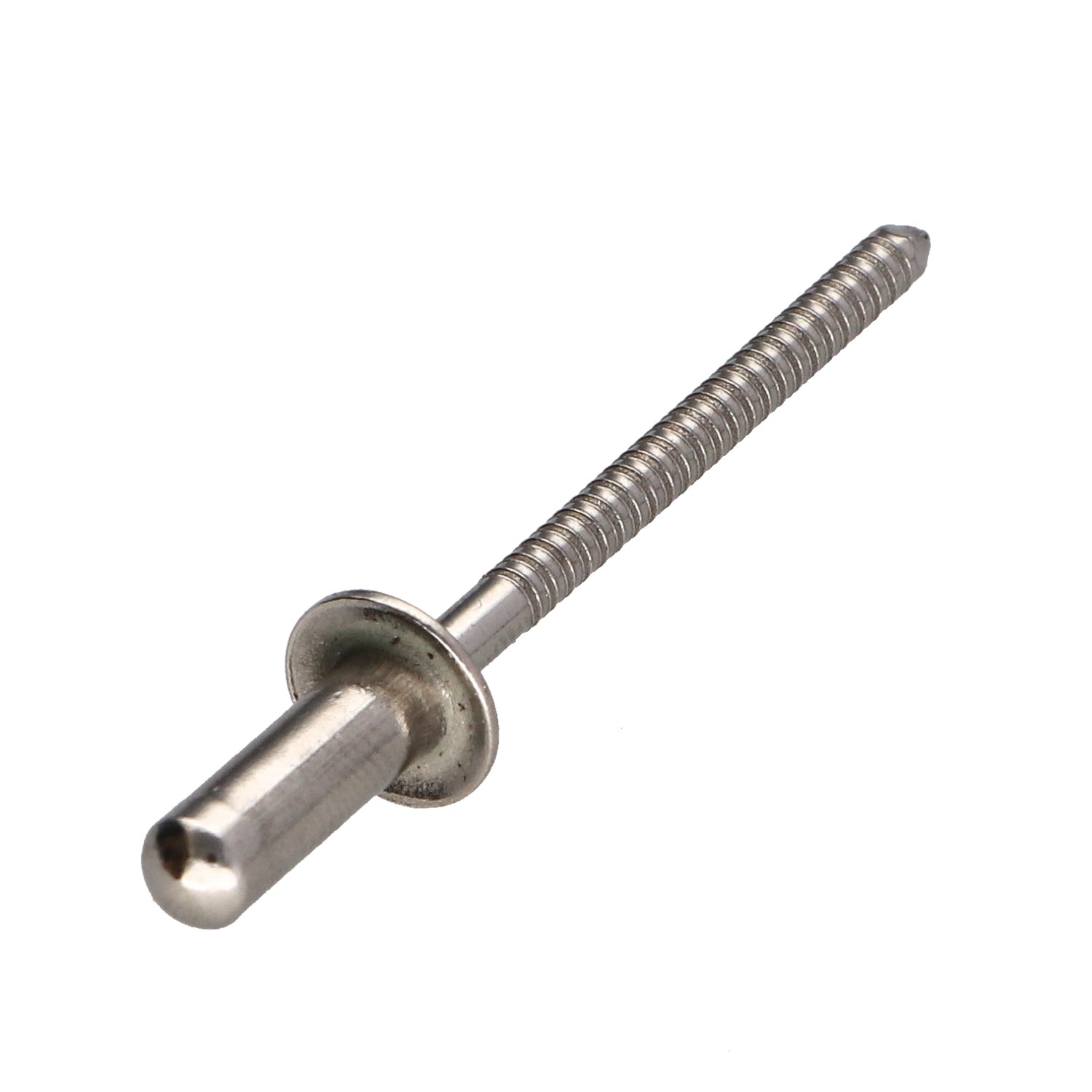

Rivet Stainless Steel GOSTOP TRS 4X10

Packaging

1 unit
10 units
100 units
500 Units
2000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 4
Diameter Head: 8
Material: Stainless Steel
COLOR: Grey
Sub product family: Rivets BLIND WATERPROOF
Use: External
Shear (N): 3000
Clamping thickness: 3 A 5
Rivet body length Rivet body length How to measure the length of a rivet? In our rivet designations, the length corresponds to the body length of the rivet (indicated by the arrow in the sketch below).: 10
Unit weight: 2.6 GR
Head shape: Round Head standard
Hole diameter: 4.1
Tensile strength

Tensile strength

Tensile Strength (Rm)
Tensile strength corresponds to the maximum force a material can withstand before breaking when it is pulled.

It is expressed in MPa (megapascals) and helps determine the strength of a screw or fastening component.

🔩 The higher the value, the more resistant the material is to breaking.: 4000

In stock 10345 Items

ean13 3663072170650

Application

Leisure equipment
Wishbone
Children's play structure

Description

Rivet Stainless Steel GOSTOP TRS 4X10
Diameter = 4, Material = Stainless Steel, Use = External
Other Reference : WTD4010 YRIVNOTPET41 8PARFIXC63 B0419363 RI010 3663072170650

Use Cases

Jermeie F. (vis-express.fr)
2024-05-12

To fix the steel tray sheets Use on the ridge sheets
