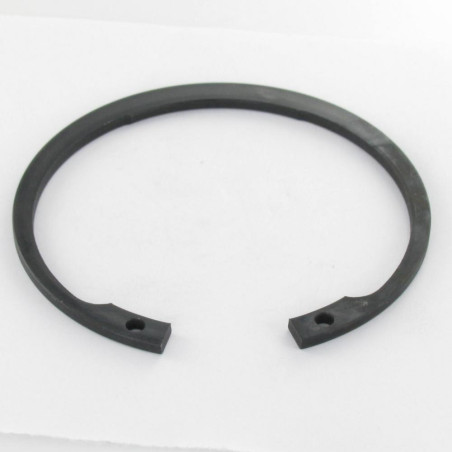

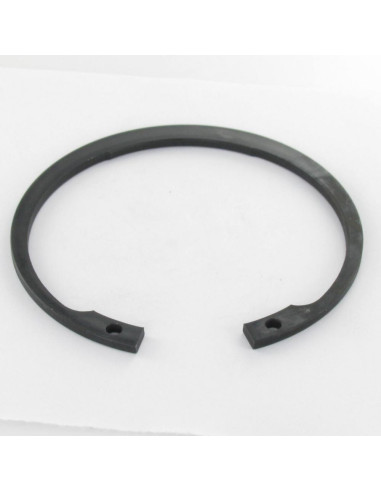

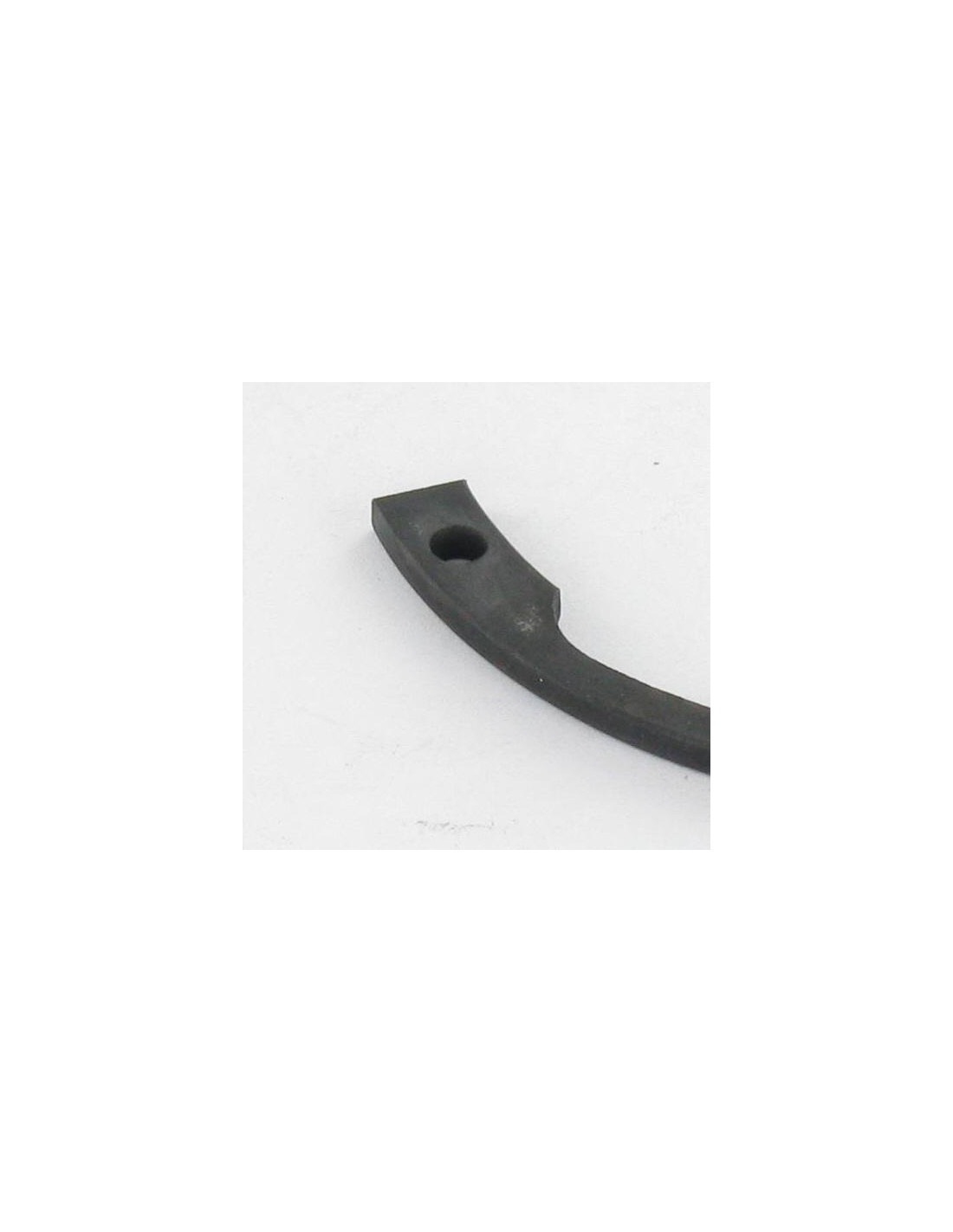

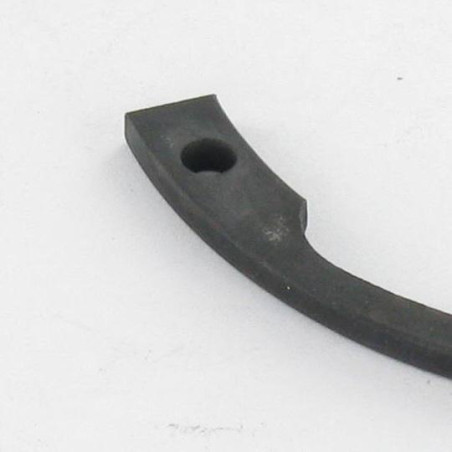

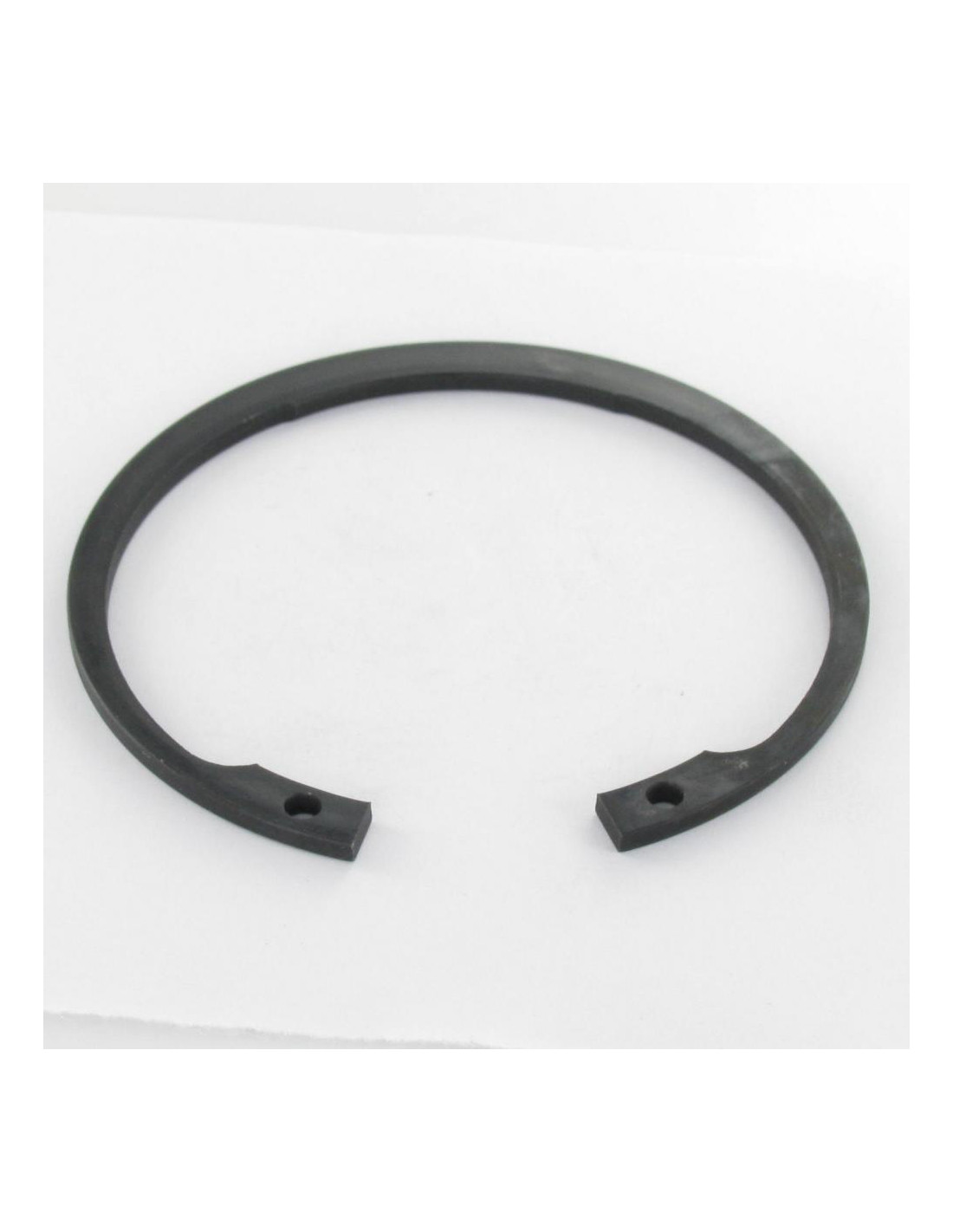

1 x Retaining Rings Internal Retaining Diameter 15 Steel
1 x Retaining Rings Internal Retaining Diameter 15 Steel
1 x Retaining Rings Internal Retaining Diameter...
1 x Retaining Rings Internal Retaining Diameter...

1 x Retaining Rings Internal Retaining Diameter 15 Steel

7087001501_1
In stock 1170 Pièces
£3.34 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included £3.34 £6.68 £8.03 £27.94
Retaining Rings Internal Retaining Diameter 15 Steel
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
15
Material
Steel
COLOR
Grey Steel / Black
Norm
VS-DIN472
Product Family
Snap Ring
Sub product family
Internal Retaining Ring
Unit weight
0.55 GR
1170 Items
3663072199491

Application

  • To hold a part in place on a tree
  • To hold a ball or needle bearing on a shaft or in a housing
  • Transmissions: Securing gears, sprockets, or pulleys to prevent axial movement
  • In cars or motorcycles, to retain hubs, wheel axles or gearbox shafts
  • Joints and pivot points: Holding pins, bushings, spacers or ball joints on their axis
  • Machine tools and electromechanical devices: Positioning of moving parts while facilitating maintenance.
Retaining Rings Internal Retaining Diameter 15 Steel
Diameter = 15, Sub Product Family = Internal Retaining Ring, Material = Steel, Norm = VS-DIN472, Product Family = Snap Ring


dimensional guide (mm)
Diameter 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 50 51 52 53 54 55 56 57 58 60 62 63 65 67 68 70 72 75 77 78 80 82 85 88 90 92 95 98 100 105 110 115 120 125 130 135 140 145 150 155 160 170 180 190 200
DIAMETRE EXTERIEUR 8.7 9.8 10.8 11.8 13 14.1 15.1 16.2 17.3 18.3 19.5 20.5 21.5 22.5 23.5 24.6 25.9 26.9 27.9 29.1 30.1 31.1 32.1 33.4 34.4 35.5 36.5 37.8 38.8 39.8 40.8 42 43.5 44.5 45.5 46.5 47.5 48.5 49.5 50.5 51.5 54.2 55.2 56.2 57.2 58.2 59.2 60.2 61.2 62.2 64.2 66.2 67.2 69.2 71.5 72.5 74.5 76.5 79.5 81.5 82.5 85.5 87.5 90.5 93.5 95.5 97.5 100.5 103.5 105.5 112 117 122 127 132 137 142 147 152 158 164 169 179.5 189.5 199.5 209.5
EPAISSEUR 0.8 0.8 1 1 1 1 1 1 1 1 1 1 1 1 1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 1.5 1.5 1.5 1.5 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 2 2 2 2 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

Other Reference : 80.0150 043915 3663072199491
