1 x Retaining Rings External Steel Retaining Diameter 32

7088003201_1
In stock 48 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included £3.69 £7.33 £8.85 £9.63

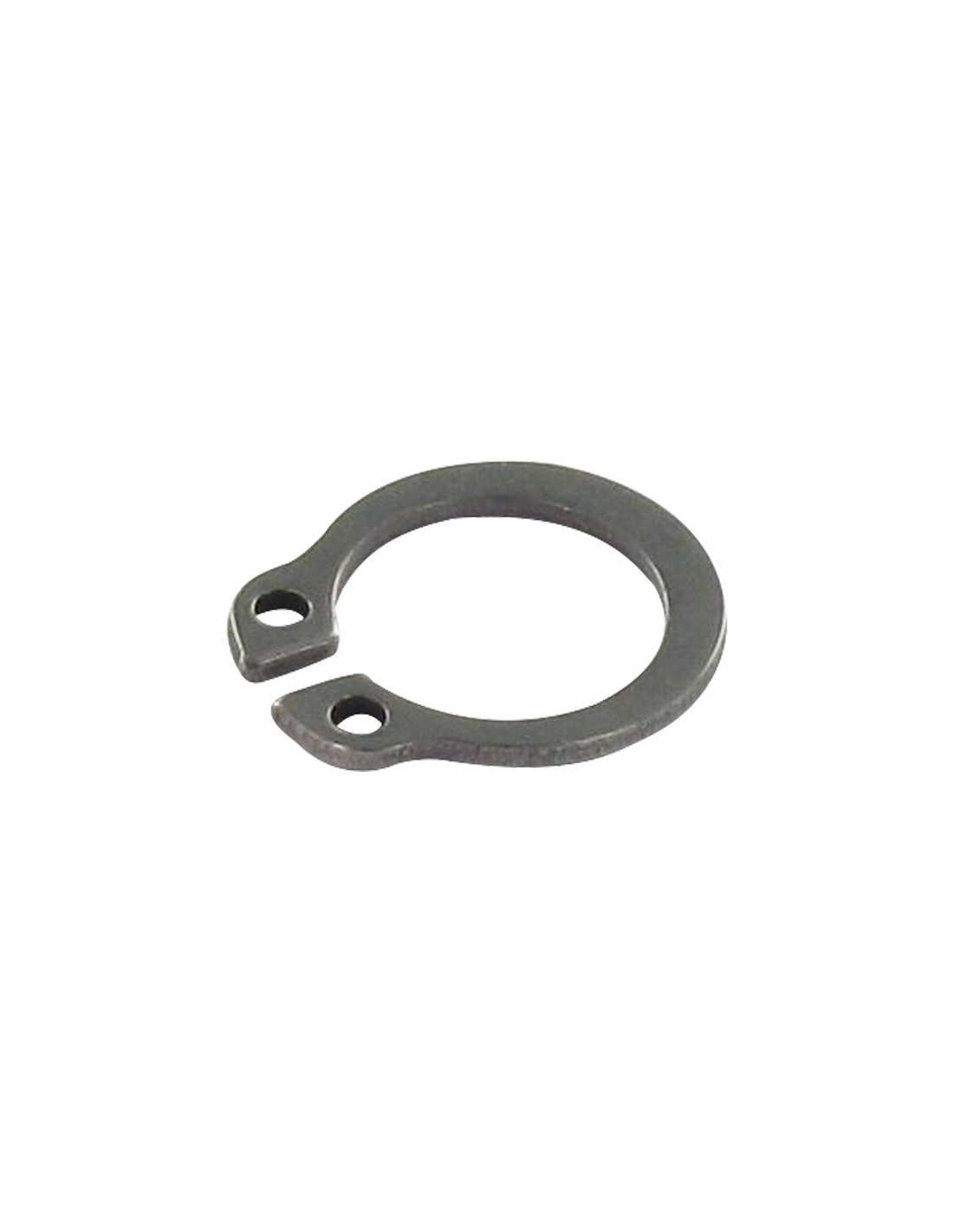

Retaining Rings External Steel Retaining Diameter 32
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
32
Material
Steel
COLOR
Grey Steel / Black
Norm
VS-DIN471
Product Family
Snap Ring
Sub product family
External Snap Ring
Unit weight
2 GR
48 Items
3663072350885
Retaining Rings External Steel Retaining Diameter 32
Diameter = 32, Sub Product Family = External Snap Ring, Material = Steel, Norm = VS-DIN471, Product Family = Snap Ring

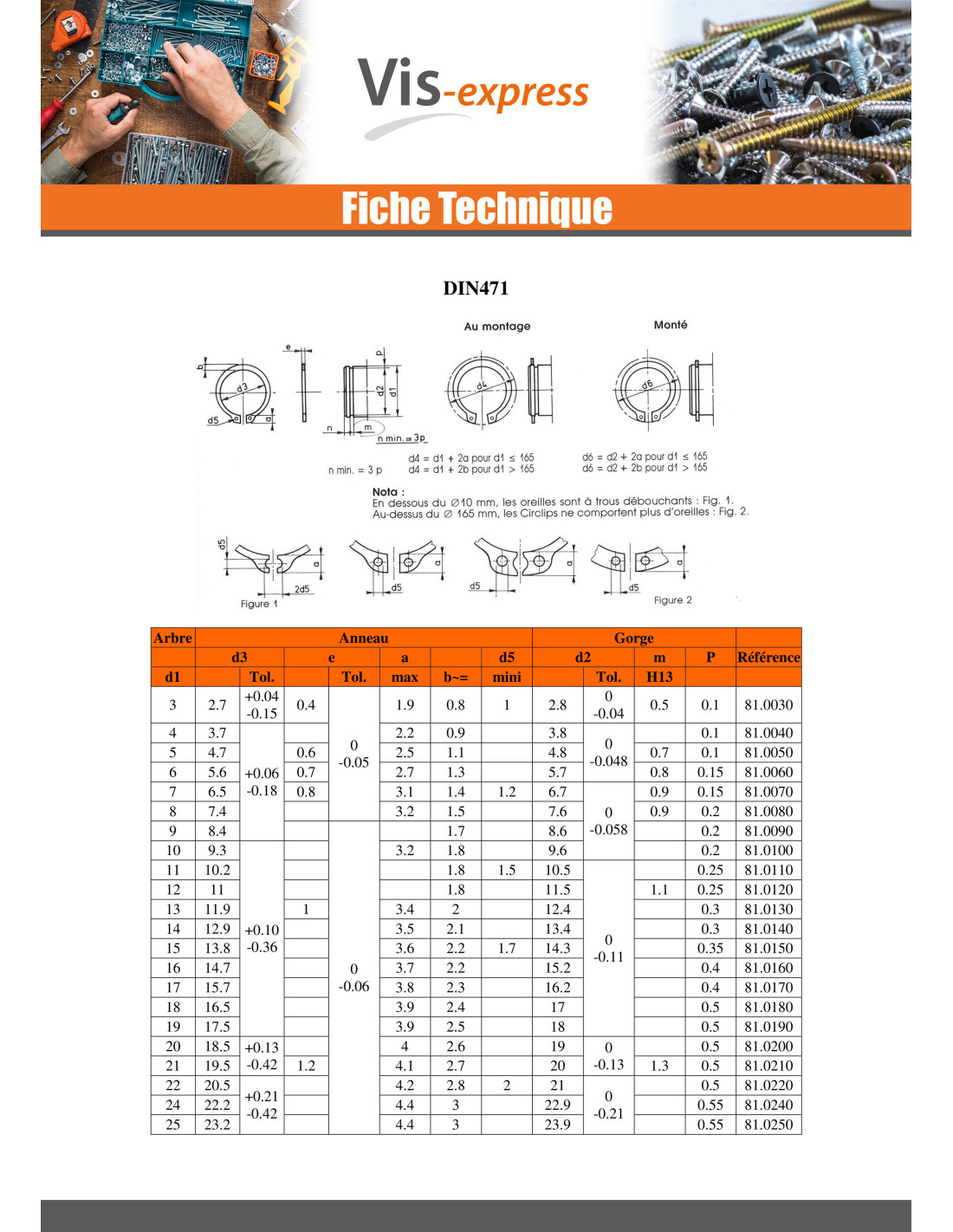

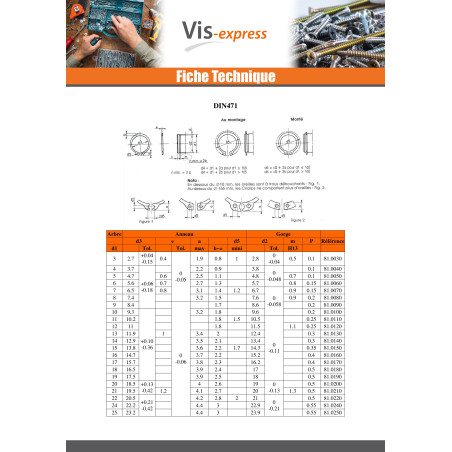

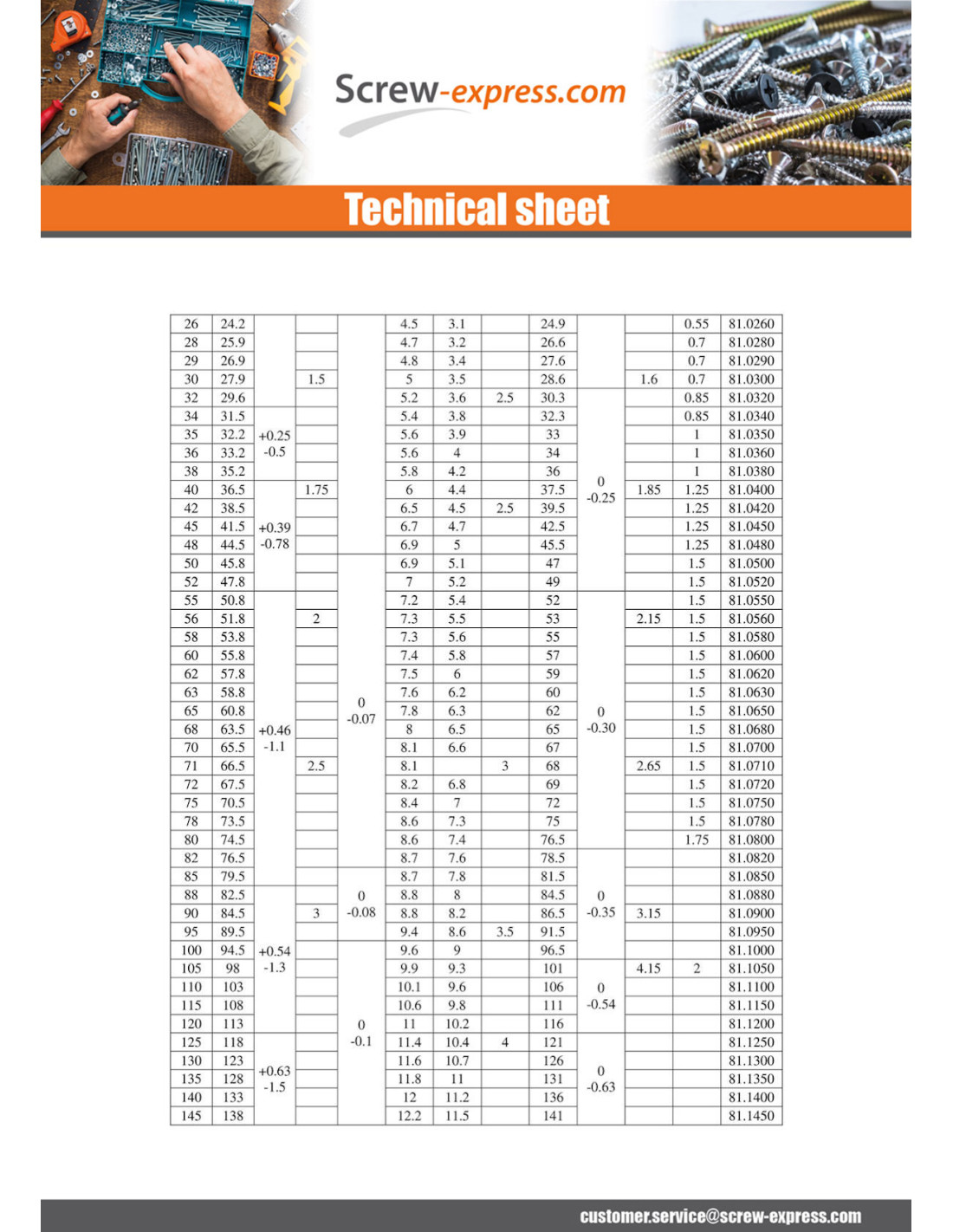

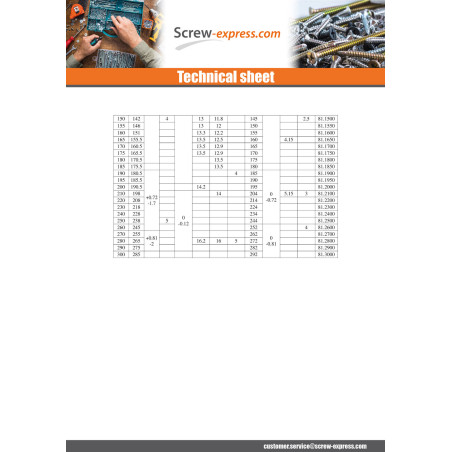

dimensional guide (mm)
DIAMETRE ARBRE 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 45 46 47 48 50 52 54 55 56 57 60 62 63 65 67 70 72 75 77 78 80 82 85 87 90 92 95 98 100 105 110 115 120 125 130
DIAMETRE INTERIEUR 2.7 3.7 4.7 5.6 6.5 7.4 8.4 9.3 10.2 11 11.9 12.9 13.8 14.7 15.7 16.5 17.5 18.5 19.5 20.5 21.5 22.2 23.2 24.2 24.9 25.9 26.9 27.9 28.6 29.6 30.5 31.5 32.2 33.2 34.2 35.2 36 36.5 37.5 38.5 40.5 41.5 42.5 43.5 44.5 45.8 47.8 49.8 50.8 51.8 52.8 55.8 57.8 58.8 60.8 62.5 65.5 67.5 70.5 72.5 73.5 74.5 76.5 79.5 81.5 84.5 86.5 89.5 92.5 94.5 98 103 108 120 118 123
EPAISSEUR 0.4 0.4 0.6 0.7 0.8 0.8 1 1 1 1 1 1 1 1 1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3 3 3 4 4 4 4 4 4

Other Reference : 81.0320 3663072350885
