7088002201_1
In stock 7390 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €4.25 €8.45 €12.70 €120.70

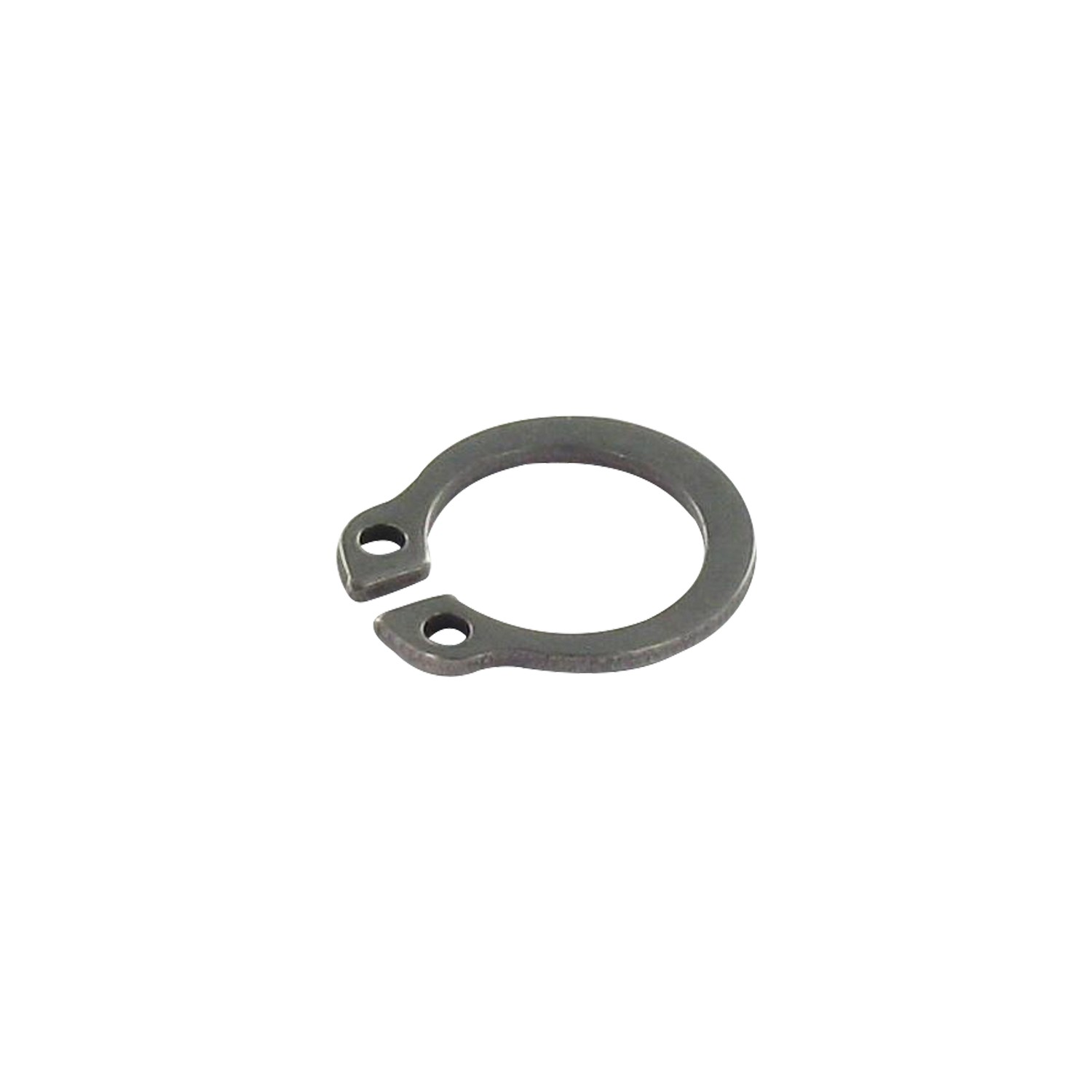

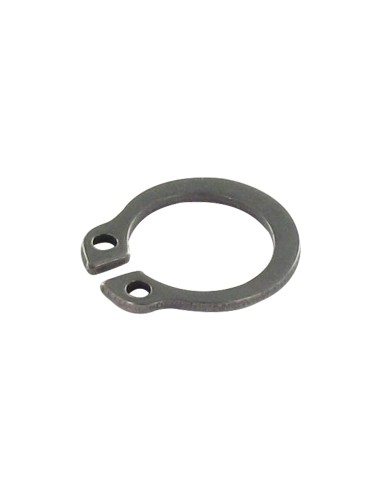

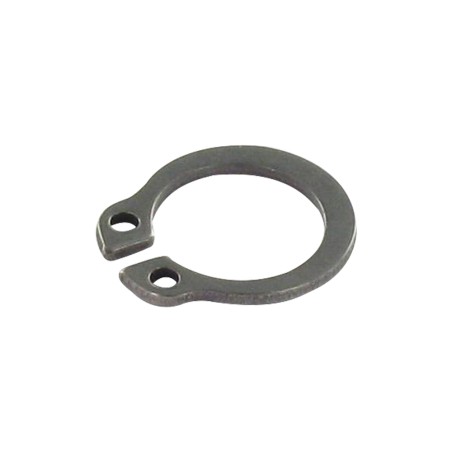

Retaining Rings External Steel Retaining Diameter 22
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
22
Material
Steel
COLOR
Grey Steel / Black
Norm
VS-DIN471
Product Family
Snap Ring
Sub product family
External Snap Ring
Unit weight
1.5 GR
7390 Items
3663072125025
Retaining Rings External Steel Retaining Diameter 22
Diameter = 22, Sub Product Family = External Snap Ring, Material = Steel, Norm = VS-DIN471, Product Family = Snap Ring

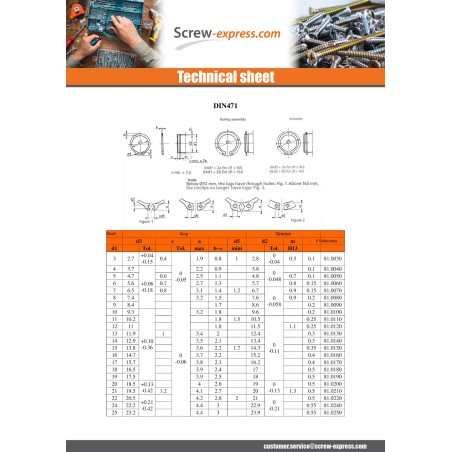

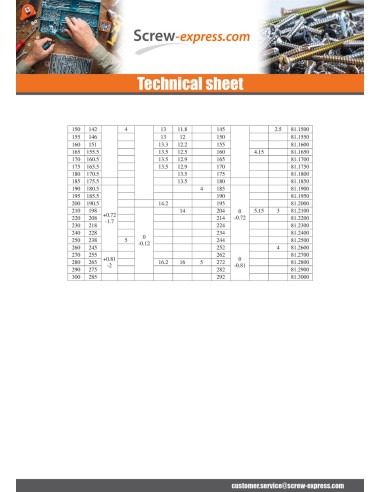

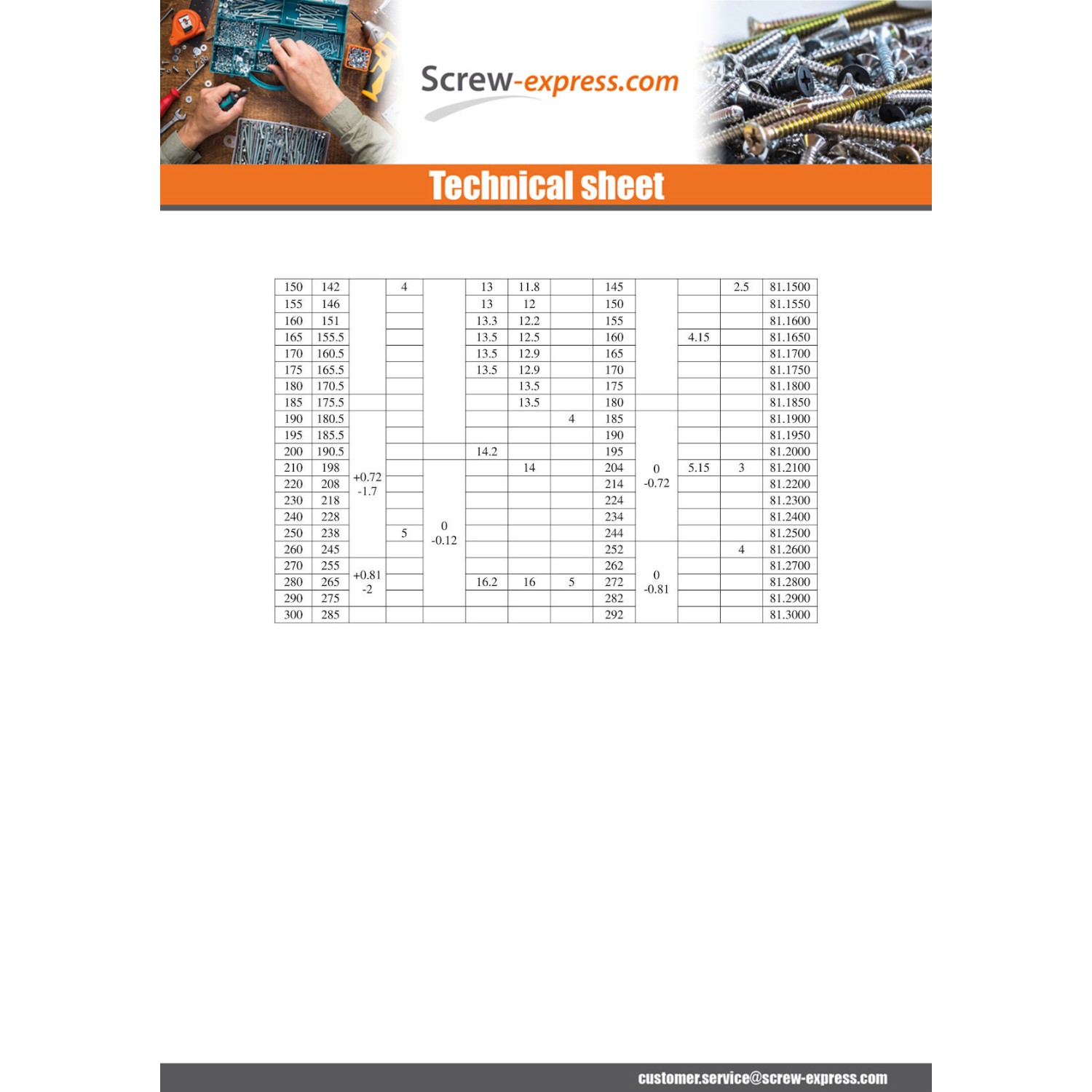

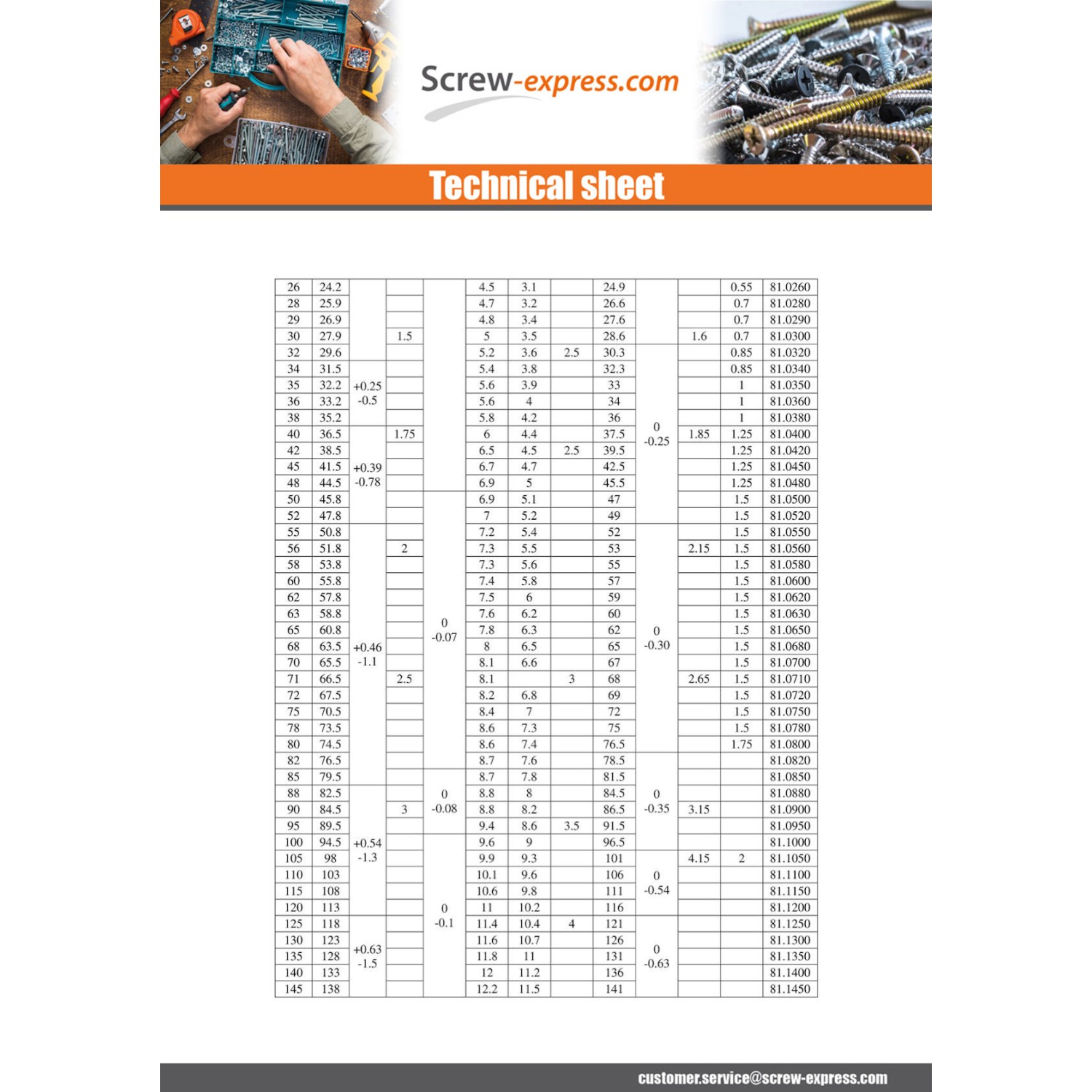

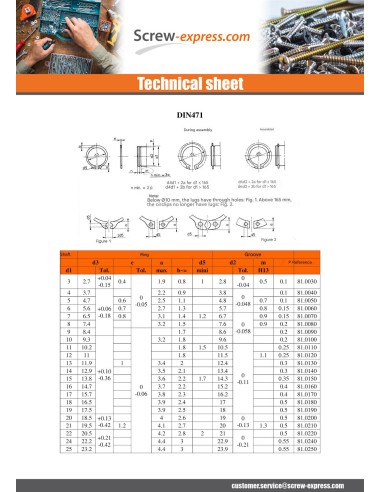

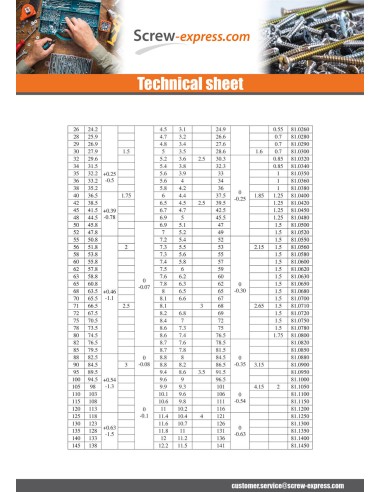

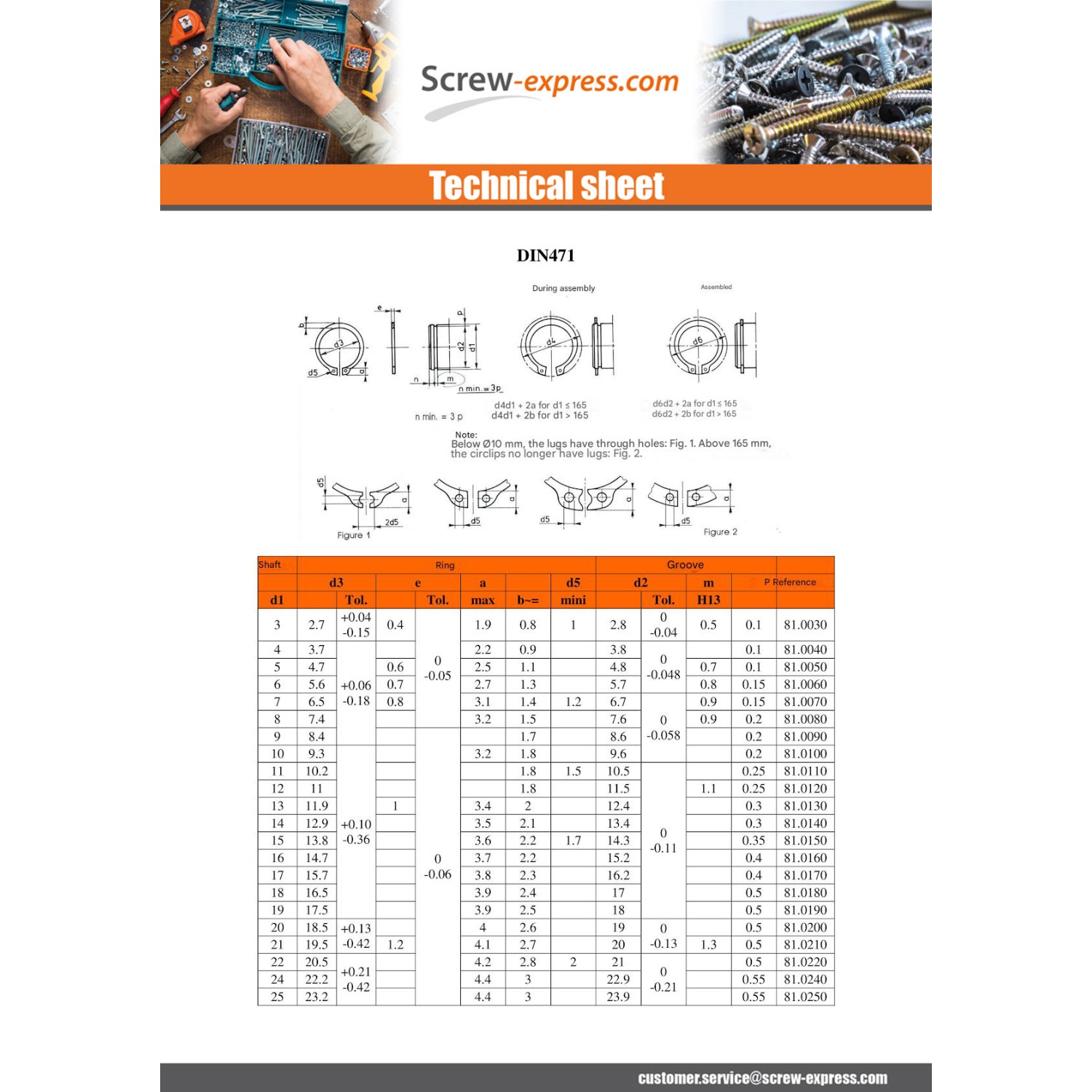

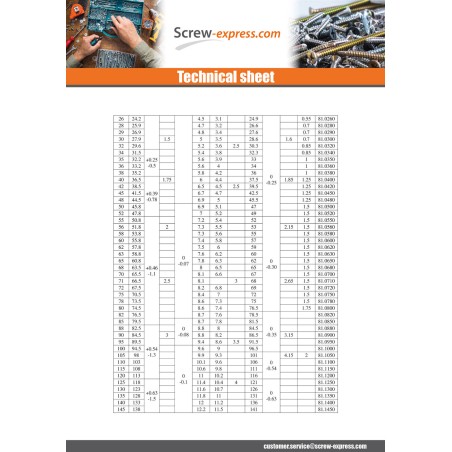

dimensional guide (mm)
DIAMETRE ARBRE 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 45 46 47 48 50 52 54 55 56 57 60 62 63 65 67 70 72 75 77 78 80 82 85 87 90 92 95 98 100 105 110 115 120 125 130
DIAMETRE INTERIEUR 2.7 3.7 4.7 5.6 6.5 7.4 8.4 9.3 10.2 11 11.9 12.9 13.8 14.7 15.7 16.5 17.5 18.5 19.5 20.5 21.5 22.2 23.2 24.2 24.9 25.9 26.9 27.9 28.6 29.6 30.5 31.5 32.2 33.2 34.2 35.2 36 36.5 37.5 38.5 40.5 41.5 42.5 43.5 44.5 45.8 47.8 49.8 50.8 51.8 52.8 55.8 57.8 58.8 60.8 62.5 65.5 67.5 70.5 72.5 73.5 74.5 76.5 79.5 81.5 84.5 86.5 89.5 92.5 94.5 98 103 108 120 118 123
EPAISSEUR 0.4 0.4 0.6 0.7 0.8 0.8 1 1 1 1 1 1 1 1 1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3 3 3 4 4 4 4 4 4

Other Reference : 81.0220 /AN 55115 VI190 1301181 NOR001315 EV46 Cirpclips 3663072125025
