7088001201_1
In stock 11057 Pièces
€1.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €1.85 €3.70 €4.45 €24.70

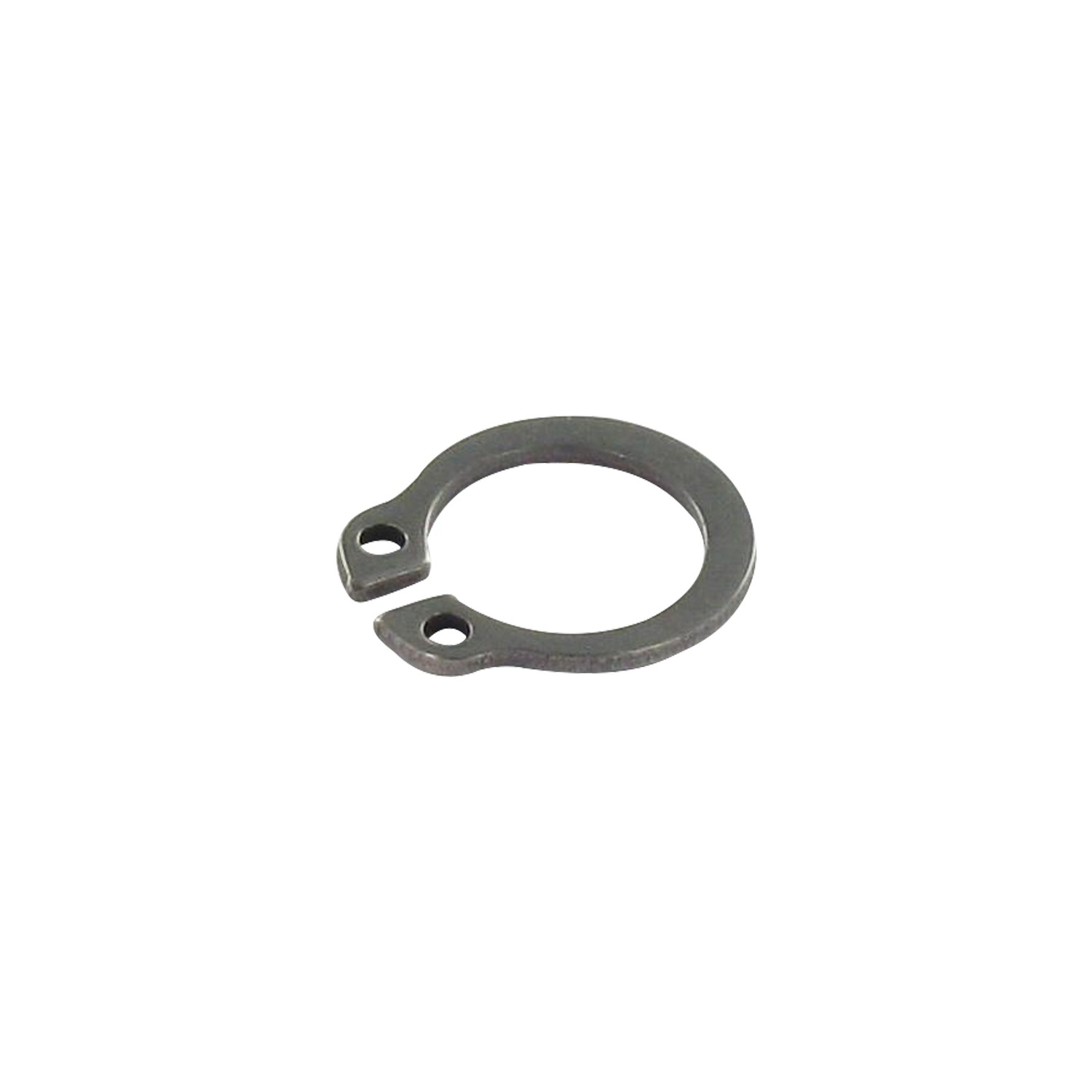

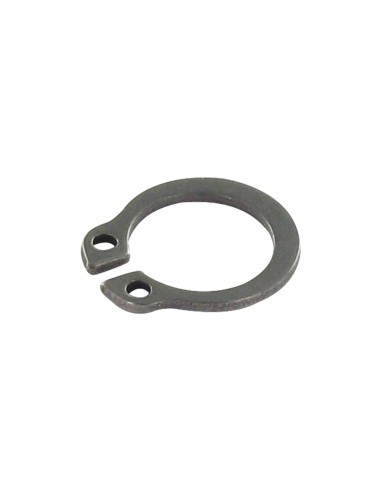

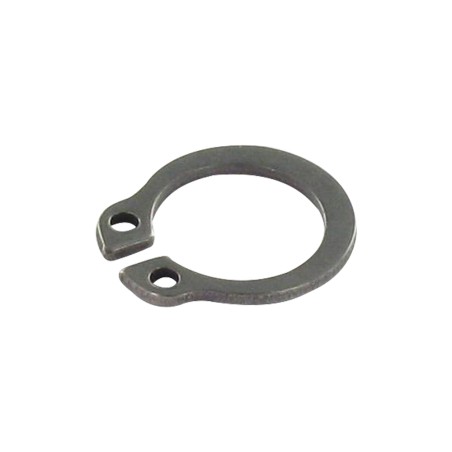

Retaining Rings External Steel Retaining Diameter 12
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

Dimensions shown in millimeters (mm)

Diameter
12
Material
Steel
COLOR
Grey Steel / Black
Norm
VS-DIN471
Product Family
Snap Ring
Sub product family
External Snap Ring
Unit weight
0.12 GR
11057 Items
3663072124974
Retaining Rings External Steel Retaining Diameter 12
Diameter = 12, Sub Product Family = External Snap Ring, Material = Steel, Norm = VS-DIN471, Product Family = Snap Ring

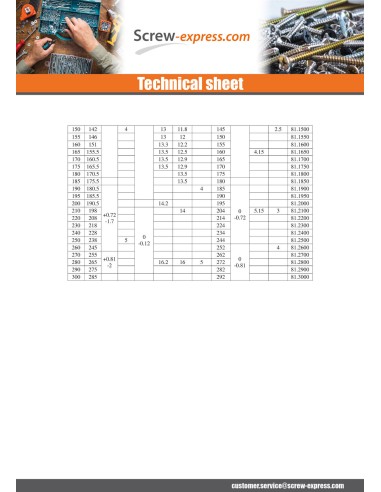

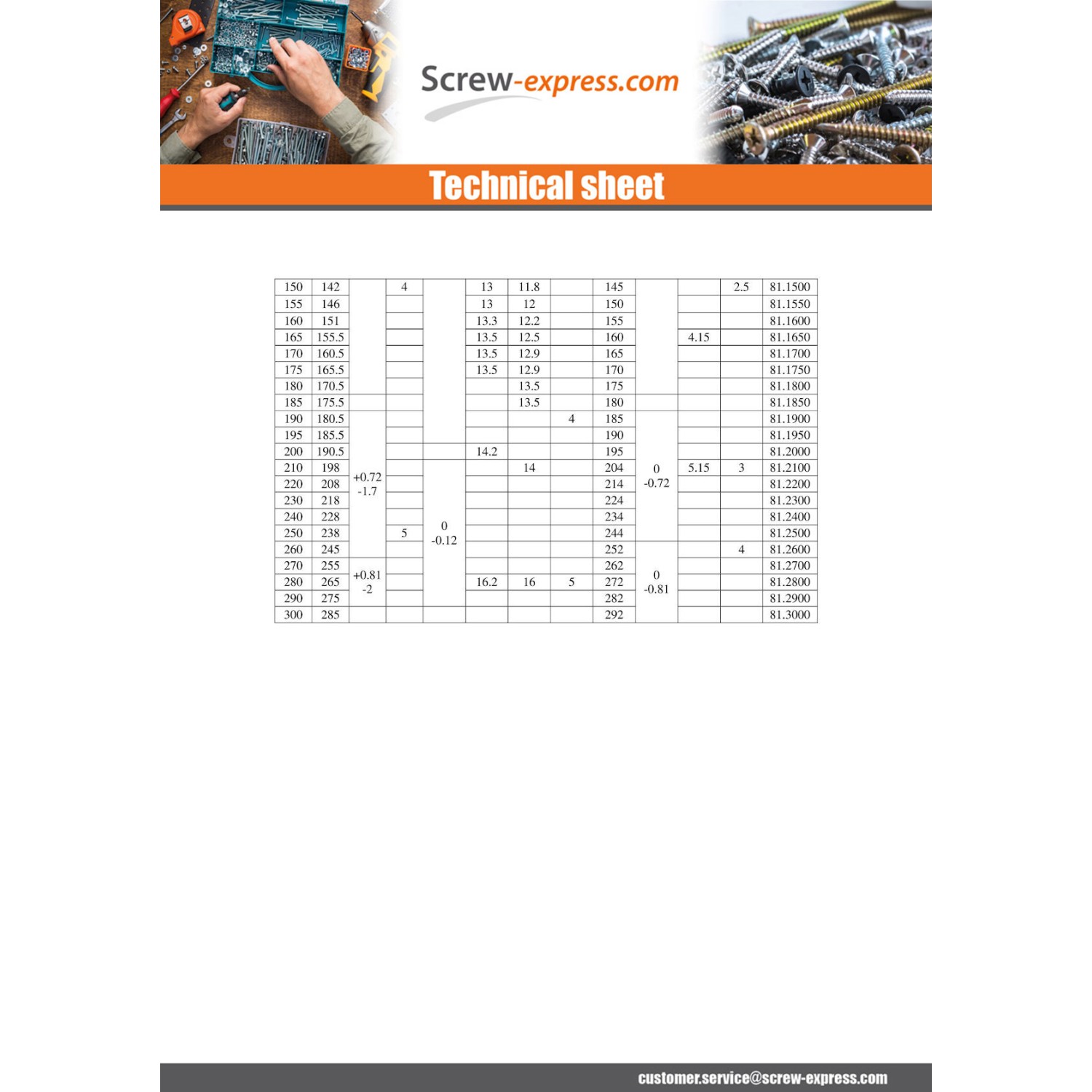

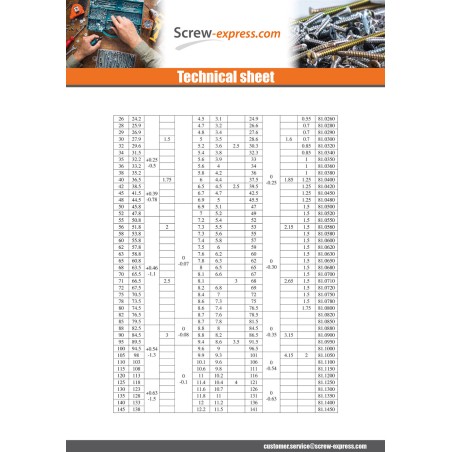

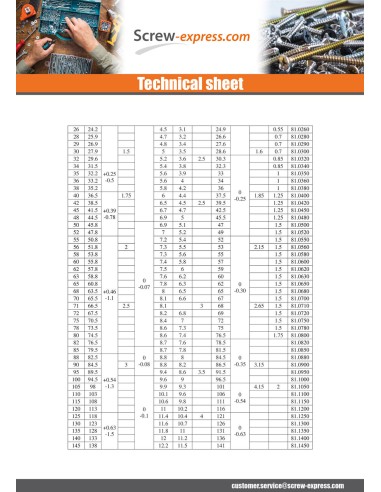

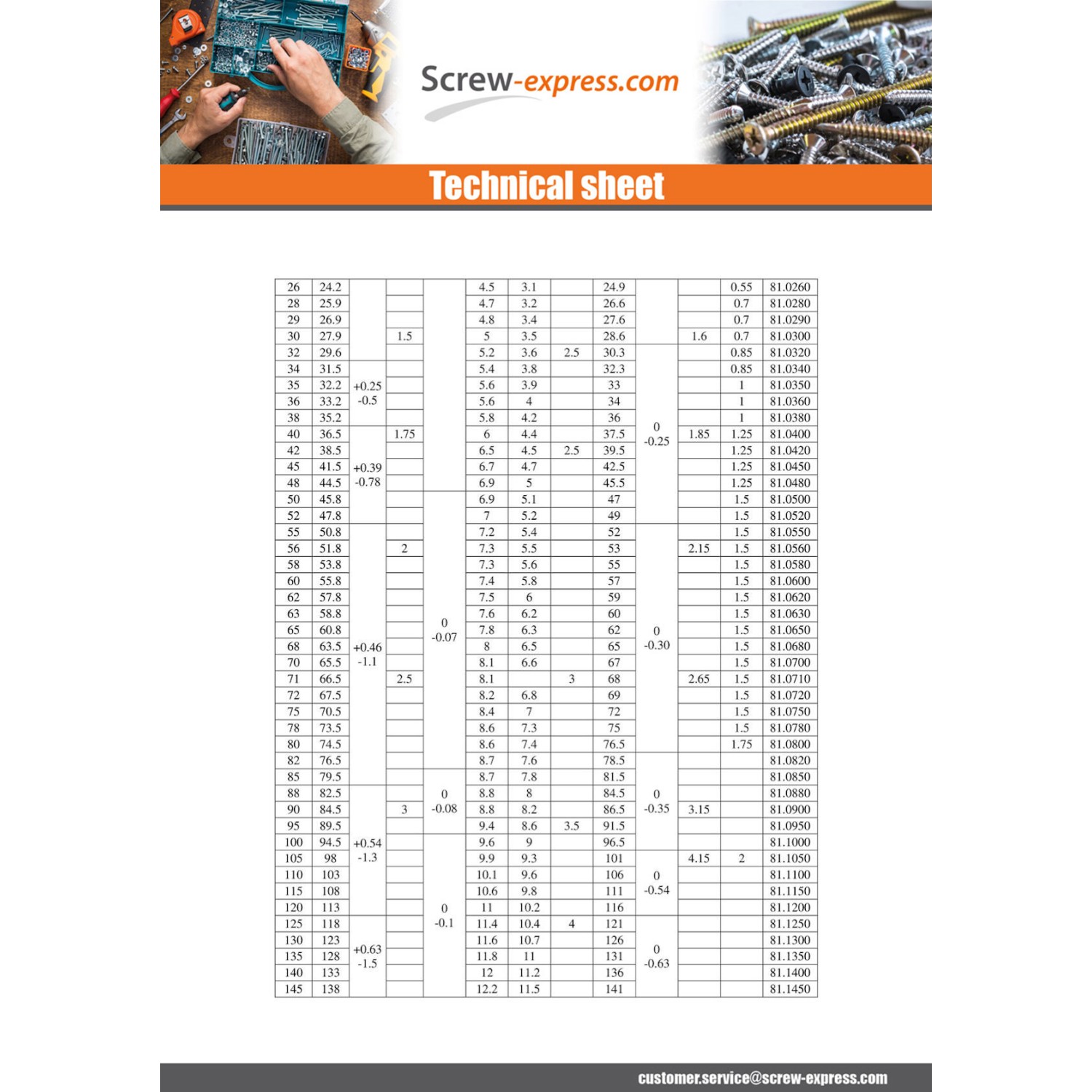

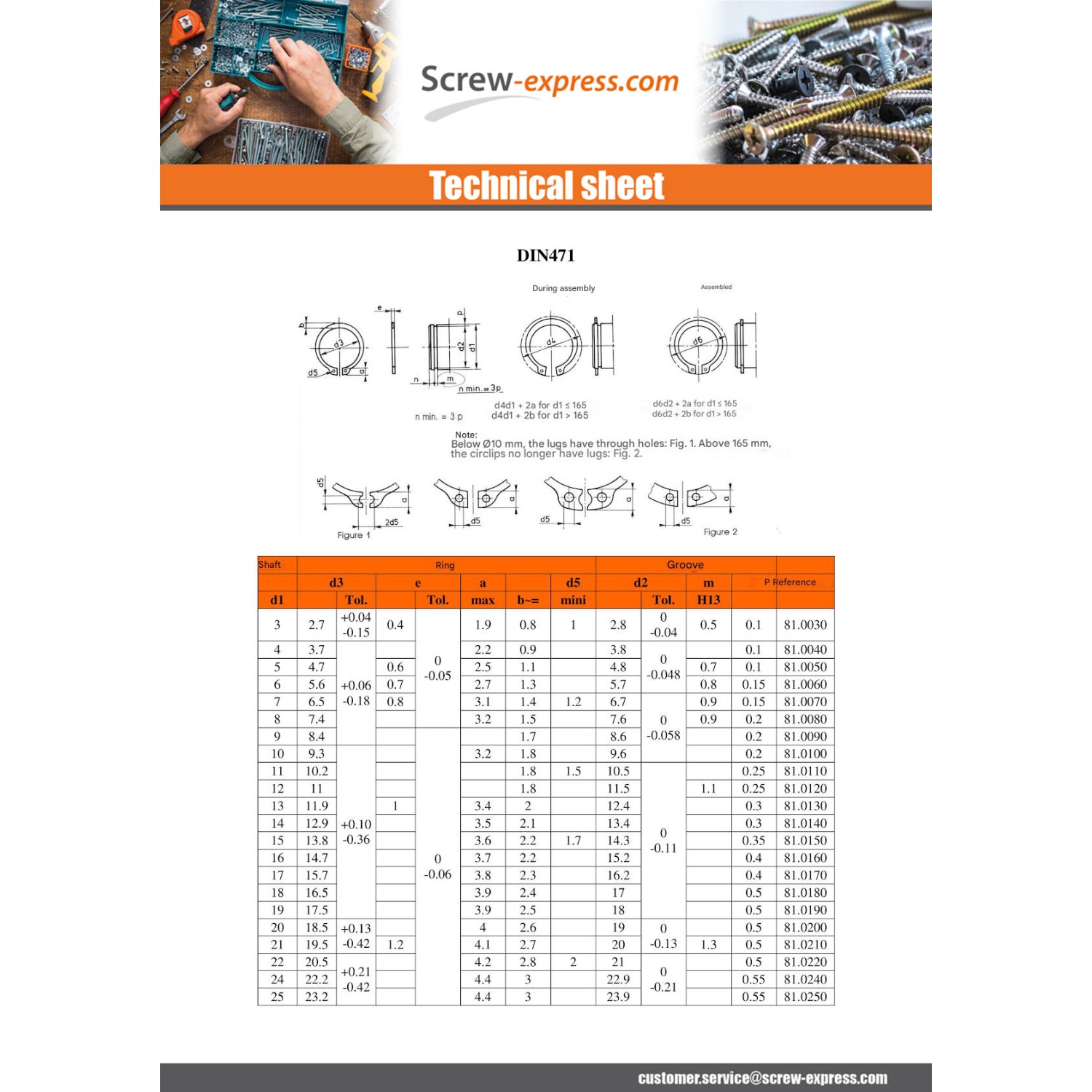

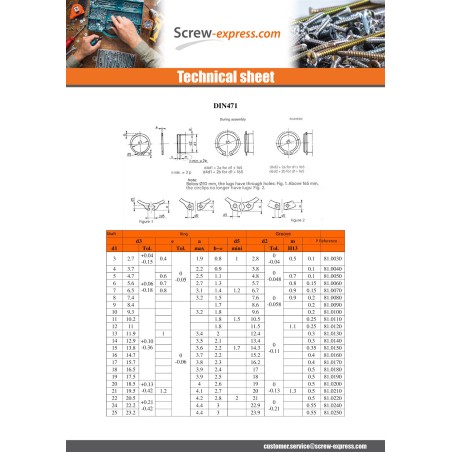

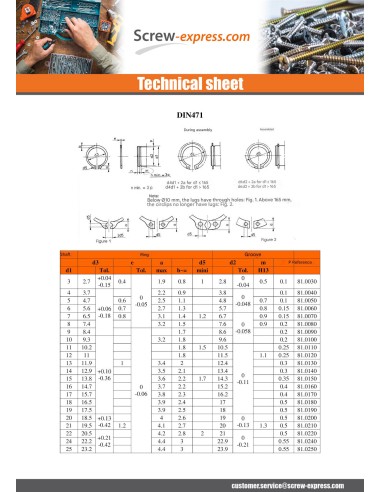

dimensional guide (mm)
DIAMETRE ARBRE 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 45 46 47 48 50 52 54 55 56 57 60 62 63 65 67 70 72 75 77 78 80 82 85 87 90 92 95 98 100 105 110 115 120 125 130
DIAMETRE INTERIEUR 2.7 3.7 4.7 5.6 6.5 7.4 8.4 9.3 10.2 11 11.9 12.9 13.8 14.7 15.7 16.5 17.5 18.5 19.5 20.5 21.5 22.2 23.2 24.2 24.9 25.9 26.9 27.9 28.6 29.6 30.5 31.5 32.2 33.2 34.2 35.2 36 36.5 37.5 38.5 40.5 41.5 42.5 43.5 44.5 45.8 47.8 49.8 50.8 51.8 52.8 55.8 57.8 58.8 60.8 62.5 65.5 67.5 70.5 72.5 73.5 74.5 76.5 79.5 81.5 84.5 86.5 89.5 92.5 94.5 98 103 108 120 118 123
EPAISSEUR 0.4 0.4 0.6 0.7 0.8 0.8 1 1 1 1 1 1 1 1 1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 1.75 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3 3 3 4 4 4 4 4 4

Other Reference : 81.0120 14265 7600012B 51065472 66156 PNG 27 525236 525236 AEED12 101628 525236 VCE12X1 21G004 1307345863 MPVIS00213 124115010 MPVIS00213 124115010 5260401 22.032.159 563 15109 525010 T1905012 CC003160 3663072124974
