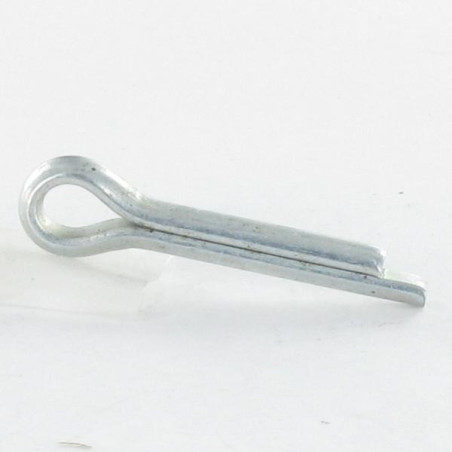

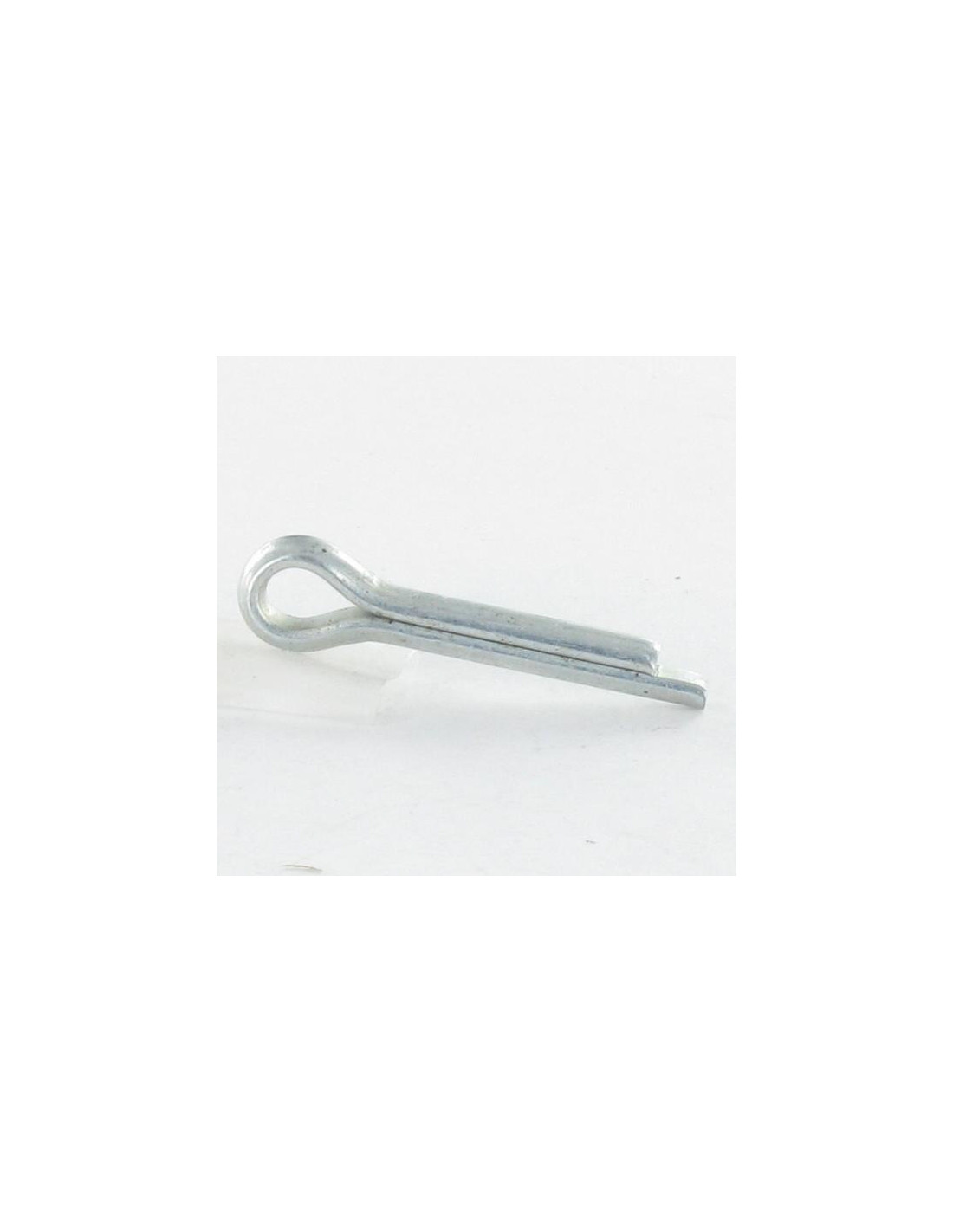

1 x Pin Slotted Zinc Plated 4X40

Name: 1 x Pin Slotted Zinc Plated 4X40
Brand: Screw Express
SKU: 7089404002
Price: 1.85 EUR
Availability: InStock

Reference 7089404002_1

In stock 50809 Pièces

€1.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	100	400
Lot price VAT included	€1.85	€3.70	€4.50	€4.45	€10.20

Pin Slotted Zinc Plated 4X40

Packaging

1 unit
10 units
30 units
100 units
400 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Product Details

Diameter: 3
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 40
Drive Type: Slotted
Material: Steel
Coating: ZINC PLATED White

ZINC PLATED White

Zinc plating 3 to 5 µm

All our zinc-plated parts meet this specification (unless otherwise stated).

🛡️ Corrosion protection: low
Thin 3 to 5 µm zinc coating, suitable for environments with low exposure.

🧂 Salt spray resistance: 24 to 96 h
Indicative resistance before the appearance of rust, depending on the coating finish.

🏠 Recommended environment
Indoor applications or environments with very low exposure to moisture.

🔩 Threads preserved
The low coating thickness limits dimensional variations and helps maintain thread accuracy.
COLOR: Grey
Norm: NFE 27487
Product Family: Pin
Sub product family: Slotted Pin
WEIGHT For THERE unit: 3.42 GR

In stock 50809 Items

ean13 3663072125506

Application

Mechanical assemblies
Fastening slotted nuts
Industrial machinery
Agricultural equipment
Automotive mechanics

Description

Pin Slotted Zinc Plated 4X40
Diameter = 4, Length = 40, Coating = Zinc Plated, Sub Product Family = Slotted Pin, Material = Steel, Drive Type = Slotted, Norm = NFE 27487, Product Family = Pin

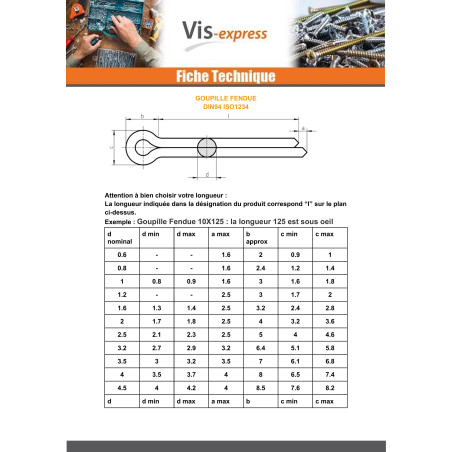

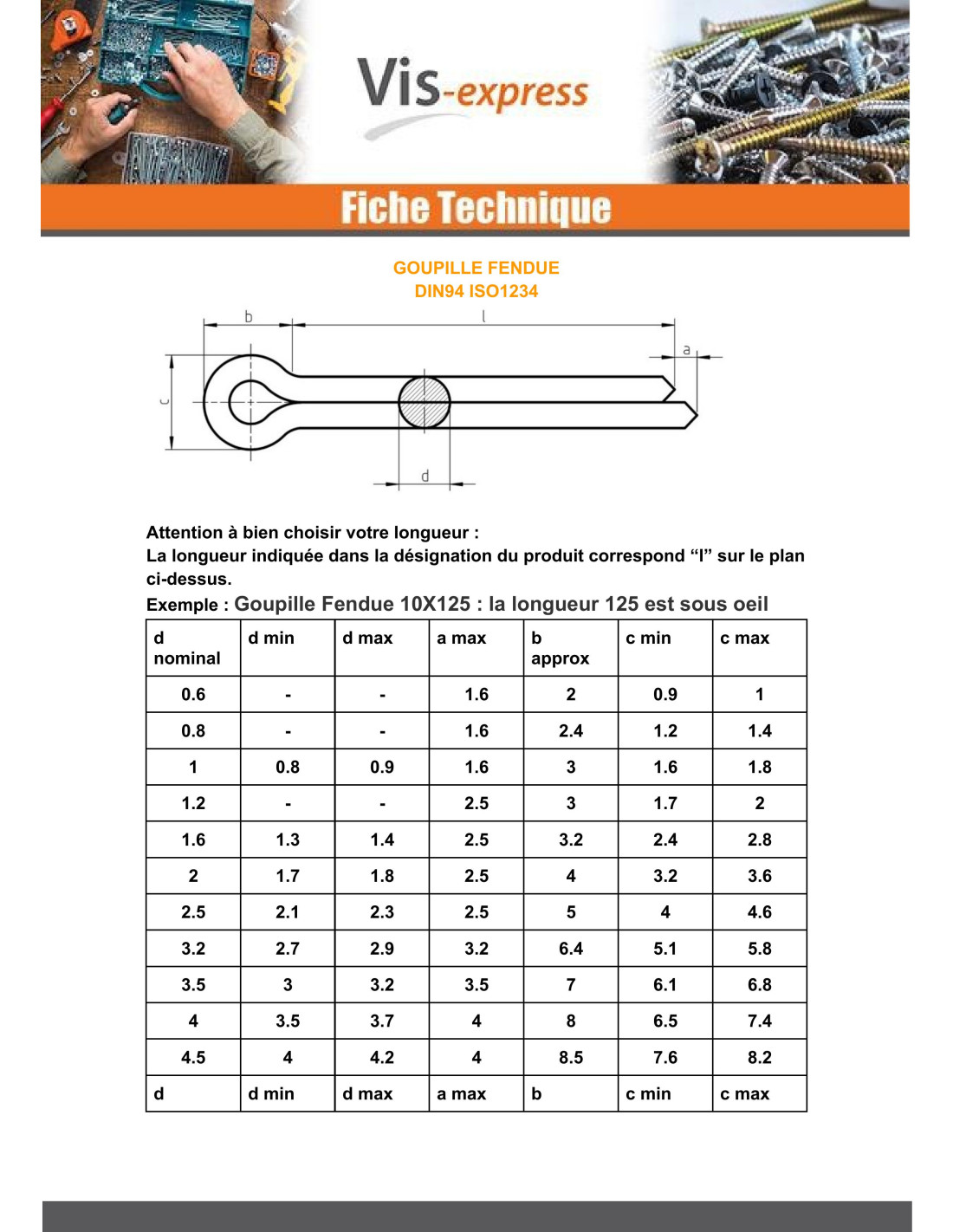

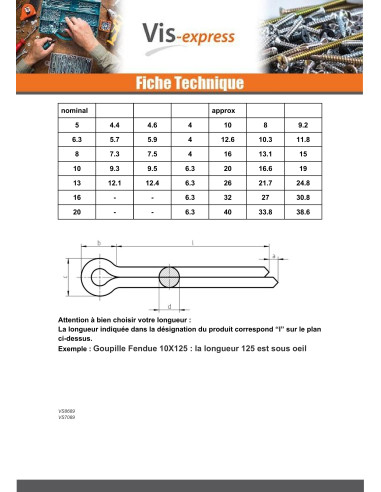

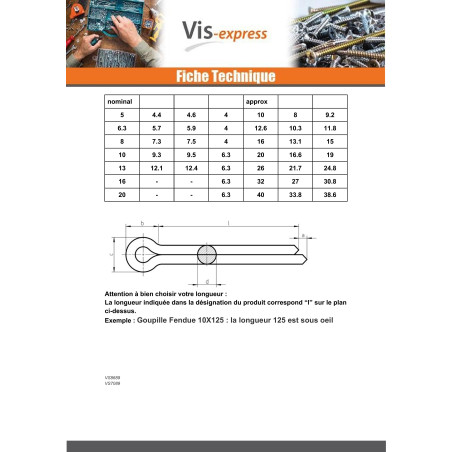

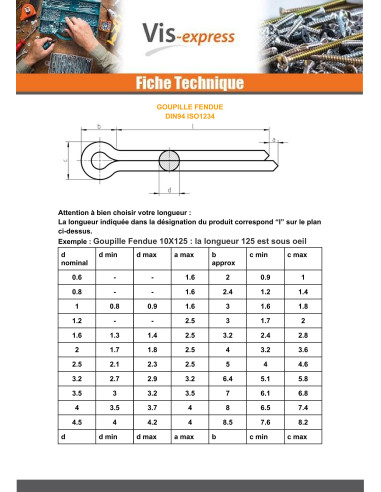

dimensional guide (mm)

Diameter	1	1.2	1.6	2	2.5	3.2	4	5	6.3	8	10	13
T	0.9	1	1.4	1.8	2.3	2.9	3.7	4.9	5.9	7.5	9.5	12.4

Other Reference : 3617500810953 R002144 2VIGOU007 79310440Z 0470 4 40 2VIGOU007 Z1122 GPIV4/40ZN 0582 04195540 7.801456 6636003 GOUZIFEN4X40 GOUPF4X40 2406103 1 222672 A1300893 0470440 290787 0002996 42032 00009037 0002996 0002996 6GOUP0440040 9 VI234 G411-04050 236885 A1300893 M05972 PMM1776 0606044 0002996 290787 6636003 6231 04B043 V4-40 290041 9 290041 836100001117 511710440 22050213 6231 A00339 58106 M00380 10754 3663072125506
