1 x Machine Screw Hexagonal Head 3/4X 1 1/4" Unf Grade 5 Steel

1 x Machine Screw Hexagonal Head 3/4X 1 1/4"...

1 x Machine Screw Hexagonal Head 3/4X 1 1/4" Unf Grade 5 Steel

Name: 1 x Machine Screw Hexagonal Head 3/4X 1 1/4" Unf Grade 5 Steel
Brand: Screw Express
SKU: 4128203201
Price: 3.34 GBP
Availability: InStock

Reference 4128203201_1

In stock 5 Pièces

£3.34 Incl VAT

Decreasing prices by quantity

Number of pieces	1	5	20	50
Lot price VAT included	£3.34	£14.01	£56.01	£140.01

ANSI B18-2-1,VS4126 - Machine Screw Hexagonal Head 3/4X 1 1/4" Unf Grade 5 Steel
1 inch = 25.4mm

Packaging

1 unit
5 units
20 units
50 units

Correspondence table inches and mm

Product Details

Diameter: 3/4
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 1"1/431,75
Thread: Metal
Pitch: Pitch Unf
Material: Steel
COLOR: Grey Steel / Black
Product Family: Screw AMERICANS
Number of threads per inch

Number of threads per inch

How to determine the diameter of a UNC or UNF screw:

The number of threads per inch will determine the diameter of the screw or nut of an American UNC or UNF screw.

Simply count the number of threads per inch (i.e. 25.4 mm) and refer to the table below.

For diameter 1 inch: 8 threads for 1 inch (25.4 mm) = UNC THREAD

Ø in inches

Ø in mm

Number of threads/inch in UNC

Number of threads/inch in UNF (fine pitch)

N°0

1.524

80

N°1

1.854

64

72

N°2

2.184

56

64

N°3

2.515

48

56

N°4

2.845

40

48

N°5

3.175

40

44

N°6

3.505

32

40

N°8

4.166

32

36

N°10

4.826

24

32

N°12

5.486

24

28

1/4

6.35

20

28

5/16

7.938

18

24

3/8

9.525

16

24

7/16

11.113

14

20

1/2

12.7

13

20

9/16

14.288

12

18

5/8

15.875

11

18

3/4

19.05

10

16

7/8

22.225

9

14

1”

25.4

8

14

1”1/8

28.575

7

12

1”1/4

31.75

7

12

1“1/2

38.1

6

12

1”3/4

44.45

5

-: 16
Diameter in mm: 19,05
Unit weight: 130 GR
Head shape: Hex Head

In stock 5 Items

ean13 3663072198708

Description

Machine Screw Hexagonal Head 3/4X 1 1/4" Unf Grade 5 Steel
Diameter = 3/4, Length = 1"1/431.75, Material = Steel, Pitch = Pitch Unf, Product Family = Screw AMERICANS

dimensional guide (mm)

DIAMETRE en pouce	1/4	5/16	3/8	7/16	1/2	5/8	3/4	7/8	1
Head Tickness	0.158	0.206	0.238	0.286	0.318	0.398	0.473	0.553	0.617
Across flats	0.4375	0.5	0.5625	0.625	0.75	0.9375	1.125	1.3125	1.5
PAS UNF(nbre de filets au pouce (sur 25.4mm))	28	24	24	20	20	18	16	14	12
1 pouce = 25.4 mm

Other Reference : 3473576742143 3663072198708

16 other products in the same category:

Machine Screw Brass Pan Head Knurlled M5X20

In stock

MACHINE SCREW BRASS PAN HEAD KNURLLED

Machine Screw Brass Pan Head Knurlled M5X20

1510502009

£3.34 Incl VAT

Machine Screw Brass Pan Head Knurlled M5X20

FOOT Screw Jack Adjustment M10X60 Head Diameter: 38

FOOT Screw Jack Adjustment M10X60 Head Diameter: 38 2

In stock

SCREW JACK REGLABLE

FOOT Screw Jack Adjustment M10X60 Head Diameter: 38

7416106115

£3.34 Incl VAT

FOOT Screw Jack Adjustment M10X60 Head Diameter: 38

Machine Screw Flat Head Hexagon Recess Hexagon Socket 2.5...

Machine Screw Flat Head Hexagon Recess Hexagon Socket 2.5... 2

In stock

Machine Screw Flat Head Hexagon Recess Hexagon Recess Class 10.9 iso10642,VS4721

Machine Screw Flat Head Hexagon Recess Hexagon Socket 2.5 M4X16 Full Thread Class 10.9...

4721401602

£1.48 Incl VAT

iso10642,VS4721 - Machine Screw Flat Head Hexagon Recess Hexagon Socket 2.5 M4X16 Full Thread Class 10.9 Zinc Plated

Plug Anchor + Hook Drill 16 M12X80 Zinc Plated

Plug Anchor + Hook Drill 16 M12X80 Zinc Plated 2

Available within 5 business days

Plug ANC + Hook Zinc Plated CHARGE AVERAGE

Plug Anchor + Hook Drill 16 M12X80 Zinc Plated

1155128002

£3.34 Incl VAT

Plug Anchor + Hook Drill 16 M12X80 Zinc Plated

In stock

Table fitting round

Table fitting 5 Hole Zinc Plated

Vis-Express

9690000402

£3.34 Incl VAT

Table fitting 5 Hole Zinc Plated

Screw Mushroom Pozi And Slotted M6X15 With Serration Zinc...

Screw Mushroom Pozi And Slotted M6X15 With Serration Zinc... 2

In stock

MACHINE SCREW MUSHROOM POZZI/FENDUE STEEL

Screw Mushroom Pozi And Slotted M6X15 With Serration Zinc Plated

3217601502

£3.34 Incl VAT

3217 - Screw Mushroom Pozi And Slotted M6X15 With Serration Zinc Plated

Machine Screw Hexagonal Head M12X30 Flange With Serration...

Machine Screw Hexagonal Head M12X30 Flange With Serration... 2

In stock

MACHINE SCREW HEXAGONAL HEAD FLANGE WITH SERRATION CLASS 8.8 DIN 6921

Machine Screw Hexagonal Head M12X30 Flange With Serration Class 8.8 Zinc Plated

4120123002

£1.48 Incl VAT

DIN6921+8.8+FILETAGE TOTAL+CRANT - Machine Screw Hexagonal Head M12X30 Flange With Serration Class 8.8 Zinc Plated

Machine Screw Socket Head Hexagon Recess Hexagon Socket 2...

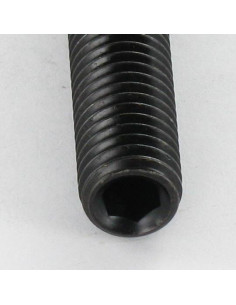

Machine Screw Socket Head Hexagon Recess Hexagon Socket 2... 2
