1 x Bolt Partial Thread Hexagonal Head 5/16X 3"1/2 Unc Or Bsw British Standard Whitworth Grade 5 Zinc Plated

1 x Bolt Partial Thread Hexagonal Head 5/16X...

1 x Bolt Partial Thread Hexagonal Head 5/16X 3"1/2 Unc Or Bsw British Standard Whitworth Grade 5 Zinc Plated

Name: 1 x Bolt Partial Thread Hexagonal Head 5/16X 3"1/2 Unc Or Bsw British Standard Whitworth Grade 5 Zinc Plated
Brand: Screw Express
SKU: 4127808902
Price: 3.04 GBP
Availability: InStock

Reference 4127808902_1

In stock 83 Pièces

£3.04 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	100
Lot price VAT included	£3.04	£15.32	£45.95	£153.29

ANSI B18-2-1, VS4126 - Bolt Partial Thread Hexagonal Head 5/16X 3"1/2 Unc Or Bsw British Standard Whitworth Grade 5 Zinc Plated1 inch = 25.4mm

Packaging

1 unit
10 units
30 units
100 units

Correspondence table inches and mm

Product Details

Diameter: 5/16 (7,938 mm)
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 3"1/2 (89 mm)
Pitch: Pitch Unc EQUIVALENT BSW
Material: Steel
Coating: ZINC White
COLOR: Grey
Product Family: Bolts Hexagonal Head
Sub product family: Hex Head
WEIGHT For THERE unit: 45 GR
Number of threads per inch

Number of threads per inch

How to determine the diameter of a UNC or UNF screw:

The number of threads per inch will determine the diameter of the screw or nut of an American UNC or UNF screw.

Simply count the number of threads per inch (i.e. 25.4 mm) and refer to the table below.

For diameter 1 inch: 8 threads for 1 inch (25.4 mm) = UNC THREAD

Ø in inches

Ø in mm

Number of threads/inch in UNC

Number of threads/inch in UNF (fine pitch)

N°0

1.524

80

N°1

1.854

64

72

N°2

2.184

56

64

N°3

2.515

48

56

N°4

2.845

40

48

N°5

3.175

40

44

N°6

3.505

32

40

N°8

4.166

32

36

N°10

4.826

24

32

N°12

5.486

24

28

1/4

6.35

20

28

5/16

7.938

18

24

3/8

9.525

16

24

7/16

11.113

14

20

1/2

12.7

13

20

9/16

14.288

12

18

5/8

15.875

11

18

3/4

19.05

10

16

7/8

22.225

9

14

1”

25.4

8

14

1”1/8

28.575

7

12

1”1/4

31.75

7

12

1“1/2

38.1

6

12

1”3/4

44.45

5

-: 18

In stock 83 Items

EAN13 3663072082724

Description

Bolt Partial Thread Hexagonal Head 5/16X 3"1/2 Unc Or Bsw British Standard Whitworth Grade 5 Zinc Plated Other Reference : 3617500861931 3663072082724

Use Cases

Axel C. (vis-express.fr)
2025-09-07

To replace the suitcase mounting screws On a 2019 Harley Davidson Sportster

16 other products in the same category:

In stock

COACH SCREW DIN 571

Coach Screw 10X90 Zinc Plated

4400109002

£1.39 Incl VAT

DIN 571 - Coach Screw 10X90 Zinc Plated

Wood Screw Brass 4.5X40 Hole And Drill M3 Step 60

Wood Screw Brass 4.5X40 Hole And Drill M3 Step 60 2

In stock

WOOD SCREW BRASS HOLE AND DRILL

Wood Screw Brass 4.5X40 Hole And Drill M3 Step 60

5100454009

£3.04 Incl VAT

Wood Screw Brass 4.5X40 Hole And Drill M3 Step 60

In stock

MACHINE SCREW STAINLESS STEEL A2 SOCKET HEAD HEXAGON SOCKET 8 FULL THREAD DIN 912

Machine Screw Stainless Steel A2 Socket Head Hexagon Socket 5 M6X10 Full Thread

8420601018

£1.39 Incl VAT

Machine Screw Stainless Steel A2 Socket Head Hexagon Socket 5 M6X10 Full Thread

Screw WHEEL M14X40 Pitch 150 S/PL17 Class 10.9 Zinc Plated

Screw WHEEL M14X40 Pitch 150 S/PL17 Class 10.9 Zinc Plated 2

In stock

SCREW ROUE ACROSS FLAT CL8.8

Screw WHEEL M14X40 Pitch 150 S/PL17 Class 10.9 Zinc Plated

4015144002

£3.04 Incl VAT

Screw WHEEL M14X40 Pitch 150 S/PL17 Class 10.9 Zinc Plated

Available within 20 working days

Nut Of SECURITY PAL Steel DIN7967 VS4397

Nut PAL M20 Steel

4397002001

£3.04 Incl VAT

DIN7967 VS4397 - Nut PAL M20 Steel

Multinailing Gusset Zinc Plated Sendzimir 25X99X1

In stock

PLATINUM to Nail Zinc Plated Sendzimir

Multinailing Gusset Zinc Plated Sendzimir 25X99X1

9681259902

£3.04 Incl VAT

Multinailing Gusset Zinc Plated Sendzimir 25X99X1

Round tube plug Diameter External 50 Internal 41-45 black...

Round tube plug Diameter External 50 Internal 41-45 black... 2

In stock

CAP EXTREMITE ROUND

Round tube plug Diameter External 50 Internal 41-45 black nylon

7372050315

£3.04 Incl VAT

Round tube plug Diameter External 50 Internal 41-45 black nylon

Savis Chipsboard Screw Round Head Pozi 2 4X17 Yellow Zinc

Savis Chipsboard Screw Round Head Pozi 2 4X17 Yellow Zinc 2

In stock

Chipboard Screw Round Head Pozi

Savis Chipsboard Screw Round Head Pozi 2 4X17 Yellow Zinc

2005401703

£3.04 Incl VAT

Savis Chipsboard Screw Round Head Pozi 2 4X17 Yellow Zinc

Bolt Partial Thread Hexagonal Head M20X160 Class 10.9 Steel

Bolt Partial Thread Hexagonal Head M20X160 Class 10.9 Steel 2

In stock

BOLT PARTIAL THREAD HEXAGONAL HEAD 10.9 ISO 4014

Bolt Partial Thread Hexagonal Head M20X160 Class 10.9 Steel

4111211601

£3.04 Incl VAT

ISO4014,VS4109 - Bolt Partial Thread Hexagonal Head M20X160 Class 10.9 Steel

Machine Screw Stainless Steel A2 Hex Socket Pan Head Cap...

Machine Screw Stainless Steel A2 Hex Socket Pan Head Cap... 2

In stock

MACHINE SCREW STAINLESS STEEL A2 HEX SOCKET PAN HEAD CAP FULL THREAD HEXAGON RECESS ISO 7380

Machine Screw Stainless Steel A2 Hex Socket Pan Head Cap M8X12 Full Thread Hexagon...

8421801218

£1.39 Incl VAT

Machine Screw Stainless Steel A2 Hex Socket Pan Head Cap M8X12 Full Thread Hexagon Socket 5

Machine Screw Hexagonal Head M4X20 Stainless Steel A4

Machine Screw Hexagonal Head M4X20 Stainless Steel A4 2

In stock

MACHINE SCREW HEXAGONAL HEAD STAINLESS STEEL A4 DIN 933

Machine Screw Hexagonal Head M4X20 Stainless Steel A4

8722402018

£3.04 Incl VAT

Machine Screw Hexagonal Head M4X20 Stainless Steel A4

Bolt Partial Thread Hexagonal Head M18X80 Class 10.9 Zinc...

Bolt Partial Thread Hexagonal Head M18X80 Class 10.9 Zinc... 2

In stock

BOLT PARTIAL THREAD HEXAGONAL HEAD 10.9 DIN 931

Bolt Partial Thread Hexagonal Head M18X80 Class 10.9 Zinc Plated

4011188002

£3.04 Incl VAT

DIN931,VS4109 - Bolt Partial Thread Hexagonal Head M18X80 Class 10.9 Zinc Plated

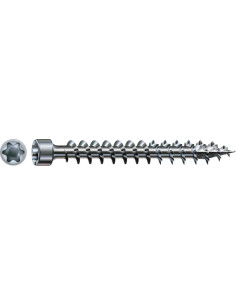

Spax Wood Screw Pan Head T30 6X180 Full Thread 4CUT WIROX
