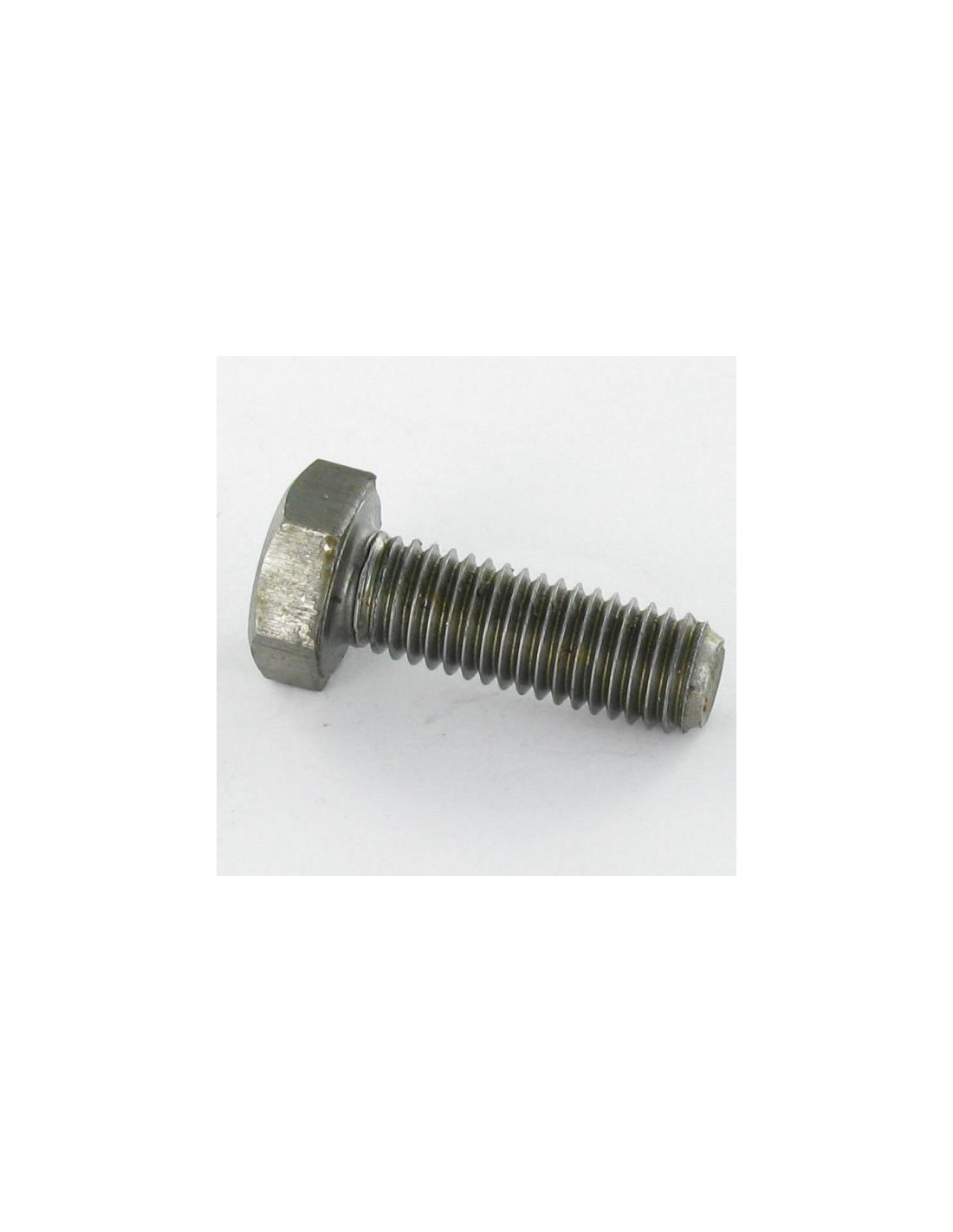

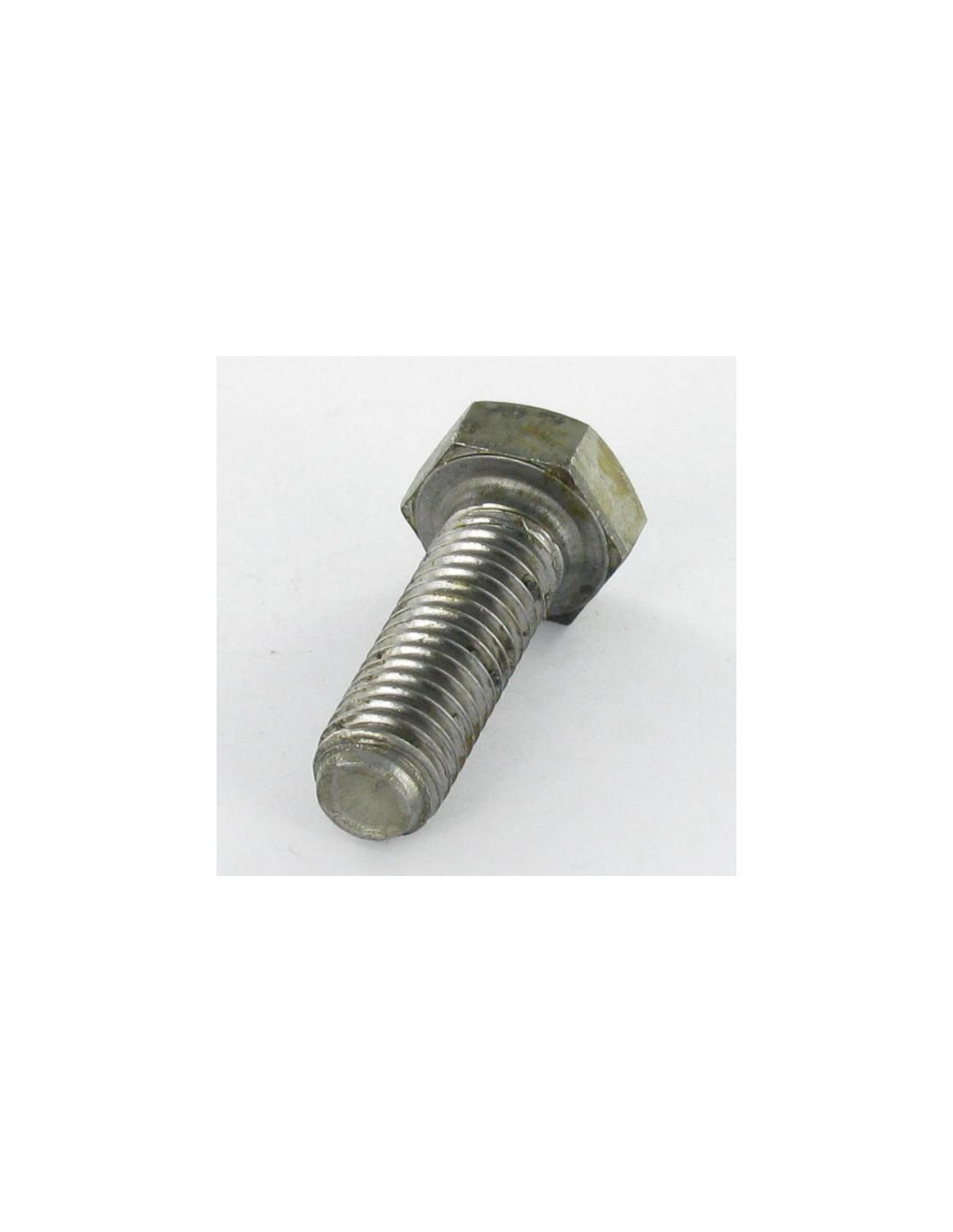

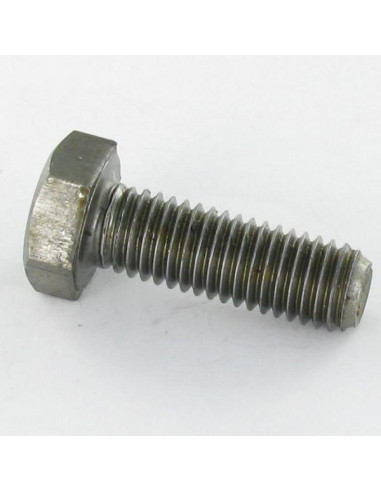

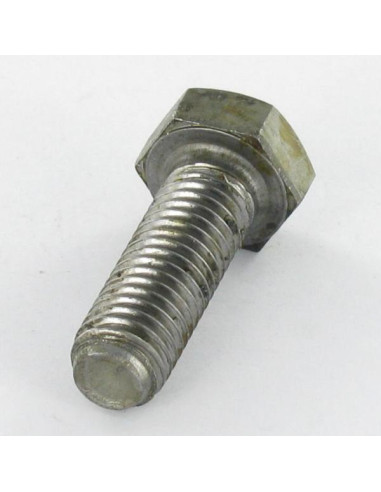

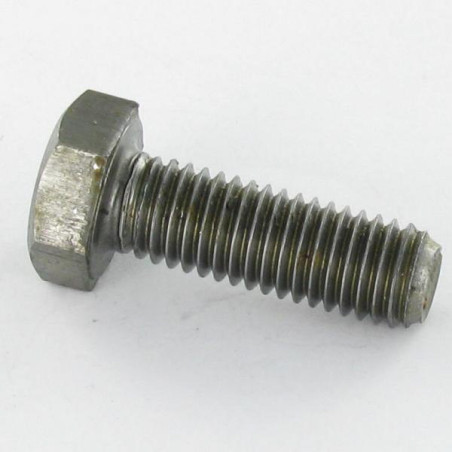

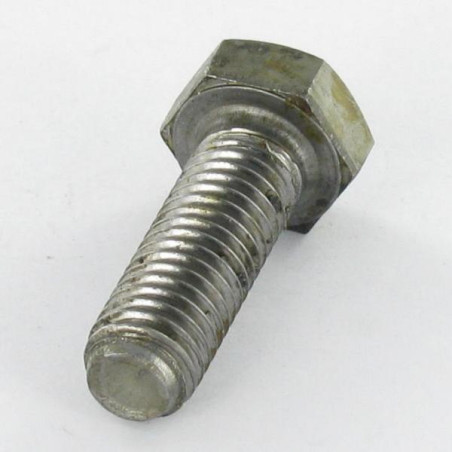

1 x Machine Screw Hexagonal Head 3/4X 2"1/2 Unc Or Bsw British Standard Whitworth Grade 5 Steel

1 x Machine Screw Hexagonal Head 3/4X 2"1/2 Unc...

1 x Machine Screw Hexagonal Head 3/4X 2"1/2 Unc Or Bsw British Standard Whitworth Grade 5 Steel

Name: 1 x Machine Screw Hexagonal Head 3/4X 2"1/2 Unc Or Bsw British Standard Whitworth Grade 5 Steel
Brand: Screw Express
SKU: 4126206301
Price: 5.85 EUR
Availability: InStock

Reference 4126206301_1

In stock 29 Pièces

€5.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	5	20	50
Lot price VAT included	€5.85	€29.20	€116.75	€291.90

ANSIB18-2-1 VS4126 - Machine Screw Hexagonal Head 3/4X 2"1/2 Unc Or Bsw British Standard Whitworth Grade 5 Steel1 inch = 25.4mm

Packaging

1 unit
5 units
20 units
50 units

Correspondence table inches and mm

Product Details

Diameter: 3/4
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 2"1/264
Thread: Metal
Pitch: Pitch Unc EQUIVALENT BSW
Material: Steel
COLOR: Grey Steel / Black
Product Family: Screw AMERICANS
Sub product family: Hex Head
Number of threads per inch

Number of threads per inch

How to determine the diameter of a UNC or UNF screw:

The number of threads per inch will determine the diameter of the screw or nut of an American UNC or UNF screw.

Simply count the number of threads per inch (i.e. 25.4 mm) and refer to the table below.

For diameter 1 inch: 8 threads for 1 inch (25.4 mm) = UNC THREAD

Ø in inches

Ø in mm

Number of threads/inch in UNC

Number of threads/inch in UNF (fine pitch)

N°0

1.524

80

N°1

1.854

64

72

N°2

2.184

56

64

N°3

2.515

48

56

N°4

2.845

40

48

N°5

3.175

40

44

N°6

3.505

32

40

N°8

4.166

32

36

N°10

4.826

24

32

N°12

5.486

24

28

1/4

6.35

20

28

5/16

7.938

18

24

3/8

9.525

16

24

7/16

11.113

14

20

1/2

12.7

13

20

9/16

14.288

12

18

5/8

15.875

11

18

3/4

19.05

10

16

7/8

22.225

9

14

1”

25.4

8

14

1”1/8

28.575

7

12

1”1/4

31.75

7

12

1“1/2

38.1

6

12

1”3/4

44.45

5

-: 10
Diameter in mm: 19.05
Unit weight: 191.6 GR

In stock 29 Items

ean13 3663072221994

Description

Machine Screw Hexagonal Head 3/4X 2"1/2 Unc Or Bsw British Standard Whitworth Grade 5 Steel Other Reference : 3617501327450 3663072221994

16 other products in the same category:

Thread Rolling Screw Countersunk Head Phillips 1 2.9X9.5...

In stock

THREAD ROLLING SCREW COUNTERSUNK HEAD PHILLIPS STEEL

Thread Rolling Screw Countersunk Head Phillips 1 2.9X9.5 Zinc Plated

3432400902

€3.50 Incl VAT

Thread Rolling Screw Countersunk Head Phillips 1 2.9X9.5 Zinc Plated

RIVET STAINLESS STEEL STAINLESS STEEL A2 4.8X8 HEAD FLAT

In stock

STANDARD RIVET BLIND FLAT HEAD STAINLESS STEEL A2 GESIPA

RIVET STAINLESS STEEL STAINLESS STEEL A2 4.8X8 HEAD FLAT

9046330614

€3.50 Incl VAT

RIVET STAINLESS STEEL STAINLESS STEEL A2 4.8X8 HEAD FLAT

Chipboard Screw Tekor Disc Head Screw T30 cut Type 17...

Chipboard Screw Tekor Disc Head Screw T30 cut Type 17... 2

In stock

Chipboard Screw Tekor Disc Head Screw Torx cut Type 17 Drilling Point

Chipboard Screw Tekor Disc Head Screw T30 cut Type 17 Drilling Point 6X110 Thread...

Tekor

2011611002

€1.60 Incl VAT

Chipboard Screw Tekor Disc Head Screw T30 cut Type 17 Drilling Point 6X110 Thread Length: 50 Zinc Plated

Screw Wing M5X10 Form American Zinc Plated

Screw Wing M5X10 Form American Zinc Plated 2

In stock

FORM US STEEL

Screw Wing M5X10 Form American Zinc Plated

3140501002

€3.50 Incl VAT

FORME AMERICAINE,VS3140 - Screw Wing M5X10 Form American Zinc Plated

On sale!
-30%

In stock

Plug Steel Fischer FH II

Plug Steel Fischer FH II 10/25 S

Fischer

1163102502

€3.43 €4.90 Incl VAT

Plug Steel Fischer FH II 10/25 S

Machine Screw Stainless Steel A2 Countersunk Head Slotted...

Machine Screw Stainless Steel A2 Countersunk Head Slotted... 2

In stock

MACHINE SCREW STAINLESS STEEL A2 COUNTERSUNK HEAD SLOTTED ISO 2009

Machine Screw Stainless Steel A2 Countersunk Head Slotted M4X40

8301404018

€3.50 Incl VAT

DIN 963 ISO 2009 - Machine Screw Stainless Steel A2 Countersunk Head Slotted M4X40

Bolt Partial Thread Hexagonal Head M10X120 Class 8.8 Steel

Bolt Partial Thread Hexagonal Head M10X120 Class 8.8 Steel 2

In stock

BOLT PARTIAL THREAD HEXAGONAL HEAD CLASS 8.8 ISO 4014

Bolt Partial Thread Hexagonal Head M10X120 Class 8.8 Steel

4110111201

€3.50 Incl VAT

ISO4014,VS4109 - Bolt Partial Thread Hexagonal Head M10X120 Class 8.8 Steel

Coupling Nut Cylindrical Smooth 5X25 Diameter Internal...

Coupling Nut Cylindrical Smooth 5X25 Diameter Internal... 2

Available within 10 working days

COUPLING NUT CYLINDRICAL SMOOTH STAINLESS STEEL A2

Coupling Nut Cylindrical Smooth 5X25 Diameter Internal 2.5 Stainless Steel

8470502518

€3.50 Incl VAT

Coupling Nut Cylindrical Smooth 5X25 Diameter Internal 2.5 Stainless Steel

In stock

STANDARD RIVET BLIND ALUMINIUM TIGE STEEL FLAT HEAD GESIPA

RIVET 4X6 FLAT HEAD

9006300413

€3.50 Incl VAT

RIVET 4X6 FLAT HEAD

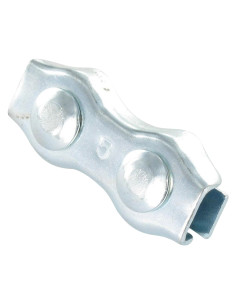

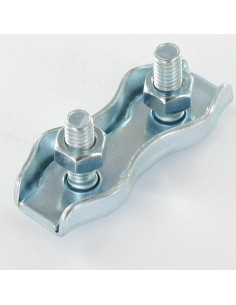

Wire Rope Clip FLAT DUPLEX Zinc Plated Wire Rope Of 10
