1 x Rivet Nuts Flat Head M5X12 ACPC35 Zinc Plated
1 x Rivet Nuts Flat Head M5X12 ACPC35 Zinc Plated
1 x Rivet Nuts Flat Head M5X12 ACPC35 Zinc Plated
1 x Rivet Nuts Flat Head M5X12 ACPC35 Zinc Plated

1 x Rivet Nuts Flat Head M5X12 ACPC35 Zinc Plated

4350050002_1
In stock 83968 Pièces
€0.45 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 500 2000
Lot price VAT included €0.45 €0.90 €5.05 €21.80 €87.20

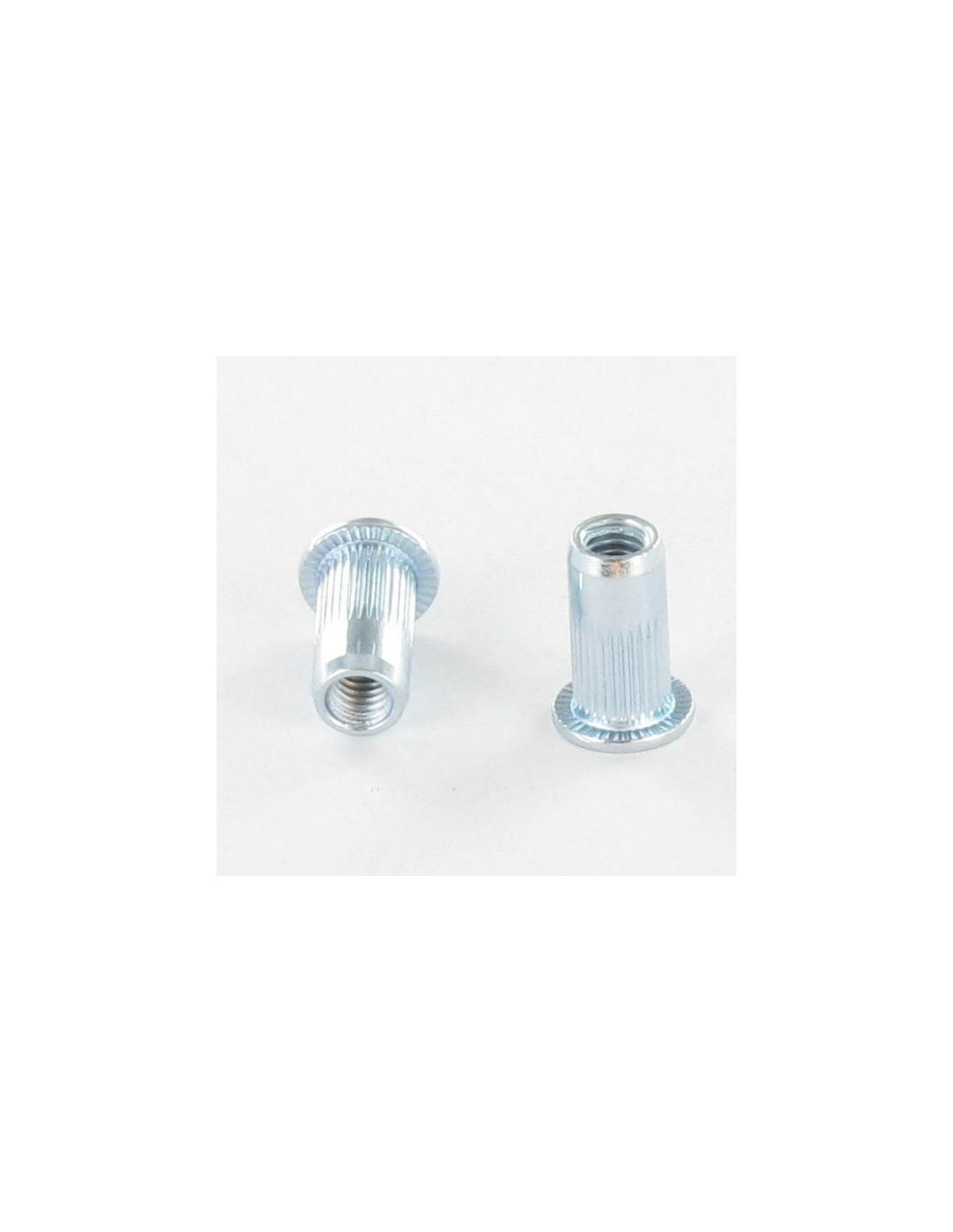

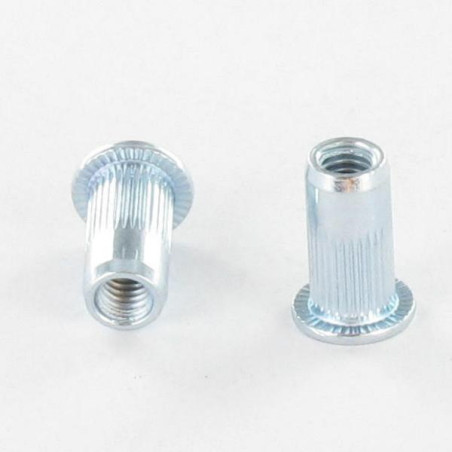

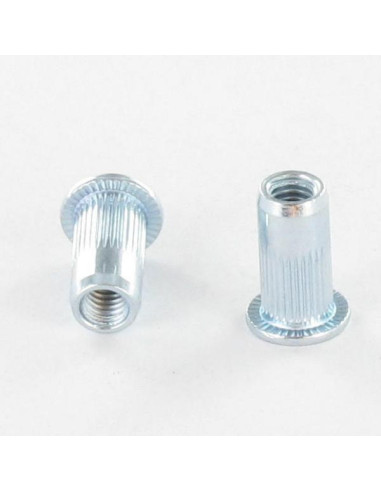

Rivet Nuts Flat Head M5X12 ACPC35 Zinc Plated
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 500 Units
  • 2000 Units

Dimensions shown in millimeters (mm)

Diameter
M5
Length
12
Pitch
Standard pitch 80
Material
Steel
Coating
ZINGUE White
COLOR
Grey
Product Family
Nut
Sub product family
Rivet Nut
Diameter in mm
4.02 - 4.12
Unit weight
1.84 GR
83968 Items
3663072092174
Rivet Nuts Flat Head M5X12 ACPC35 Zinc Plated
Diameter = M5, Length = 12, Coating = Zinc Plated, Sub Product Family = Rivet Nut, Material = Steel, Pitch = Standard pitch 80, Product Family = Nut

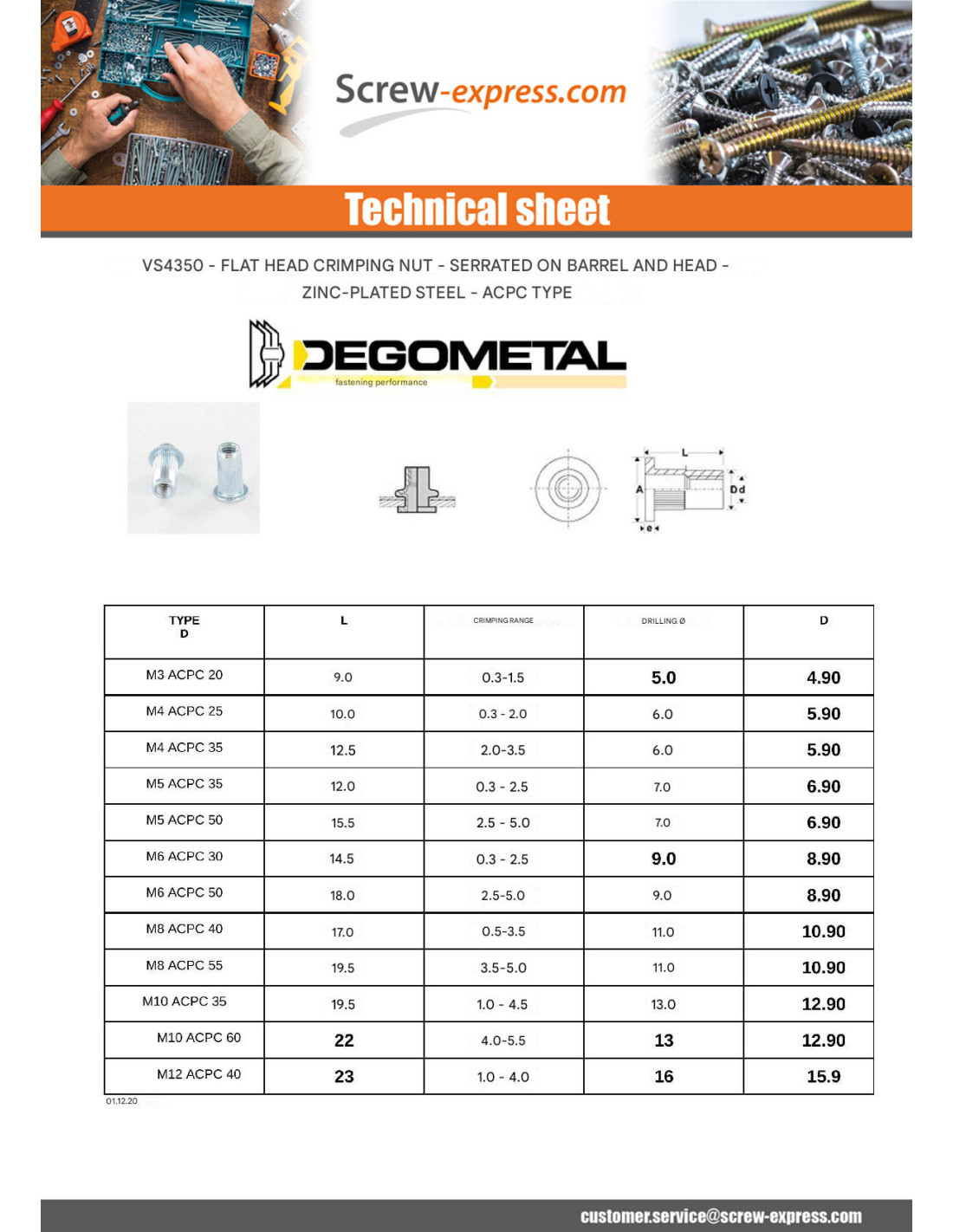

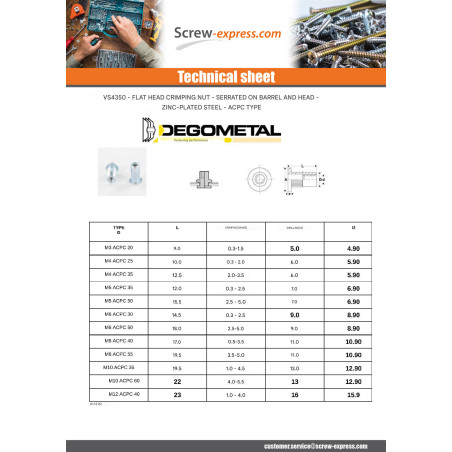

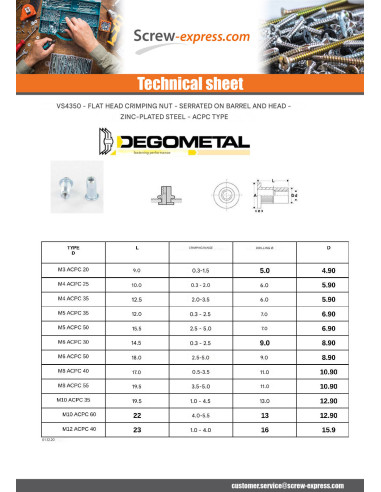

dimensional guide (mm)
Diameter M3 M4 M4 M5 M5 M6 M6 M8 M8 M10 M10
Crimp thickness 0.3-1.8 0.3-2.5 2.5-4 0.5-3 3-5 0.5-2.3 4-6 0.8-3.5 3.5-6 1-3.5 3.5-6
d Perc 5 6 6 7 7 9 9 11 11 12 12
Exterior diameter 4.9 5.9 5.9 6.9 6.9 8.9 8.9 10.9 10.9 11.9 11.9
dc 8 9 9 10 10 12 12 15 15 16 16
S1 0.8 1 1 1.2 1.2 1.5 1.5 1.5 1.5 1.7 1.7

Other Reference : 171105351C 0658 QIEC5 8000500ZB0 QUINC201AC W120009 VISECRSERTIR 54011 H69904 VIS0100 VS/435005000 0400675 ZZ 16580 3663072092174
Cédric C. (vis-express.fr)
2025-12-07

Bicycle assembly Bicycle model TS/R


Cédric C. (vis-express.fr)
2025-09-21

Bike assembly Bikle bike assembly


Boris T. (vis-express.fr)
2025-05-11

fixing panels in a camper van Renault Master 2024.


Larry J. (vis-express.fr)
2025-04-06

Fixing elements in a utility vehicle with a view to converting it into a camper van. Fixing furniture, plywood panels and other


Kilian S. (vis-express.fr)
2024-12-22

Fixing plywood panels inside a converted van using existing holes use with a threaded insert clamp and fix using M5 x 16 metal screws for 10mm plywood
