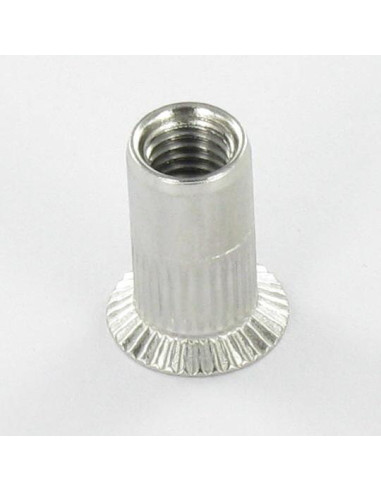

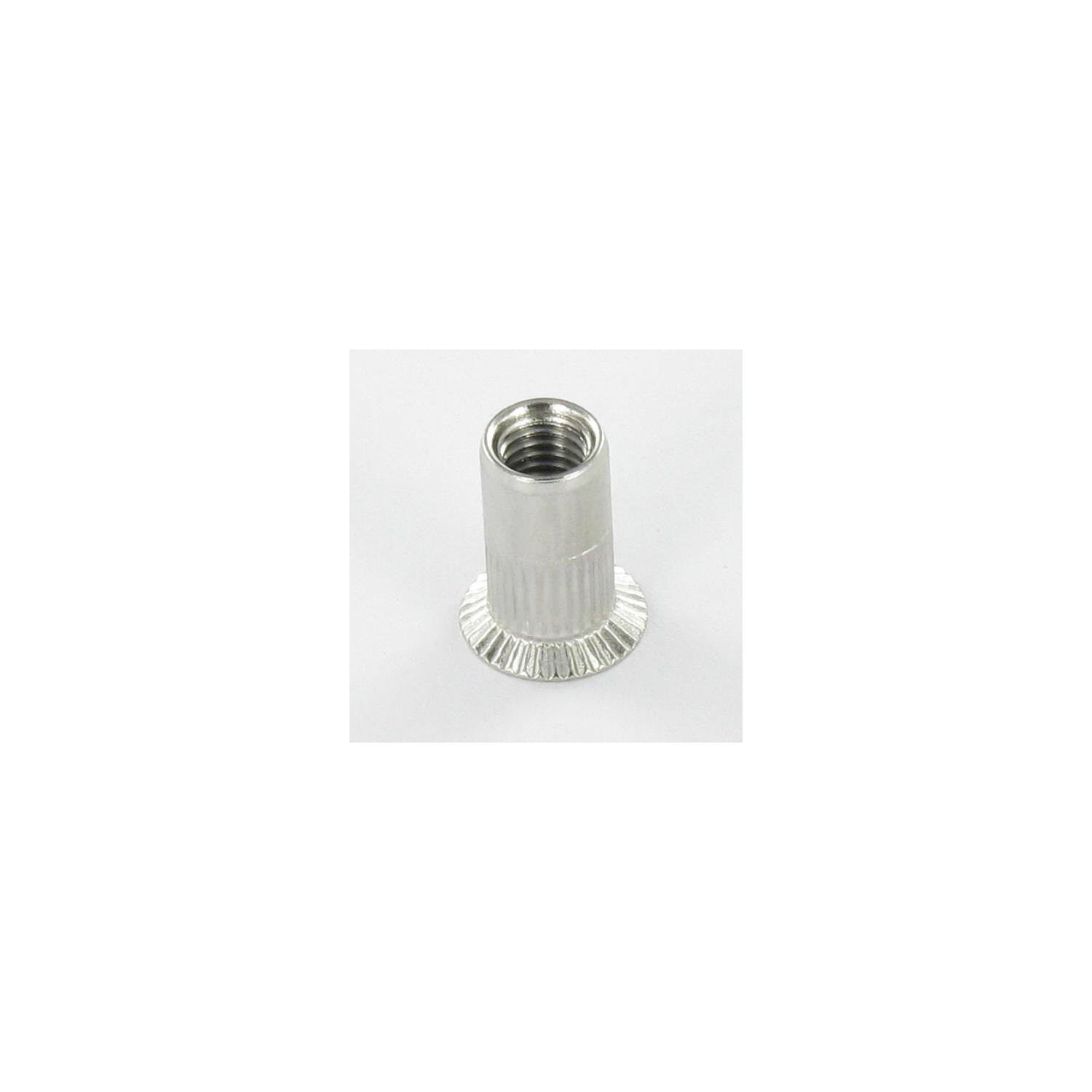

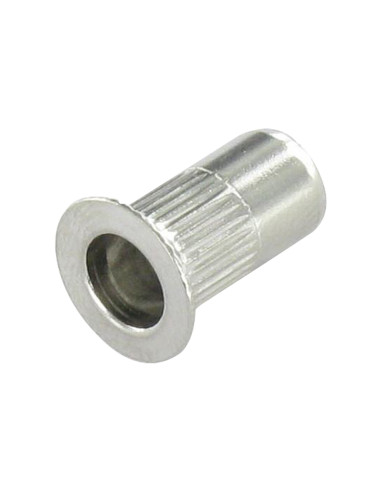

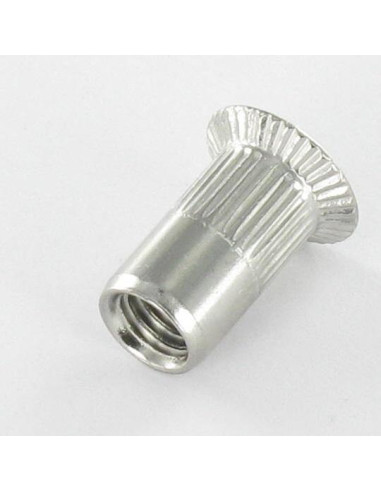

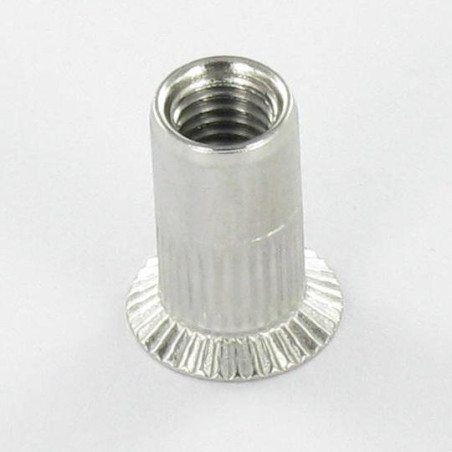

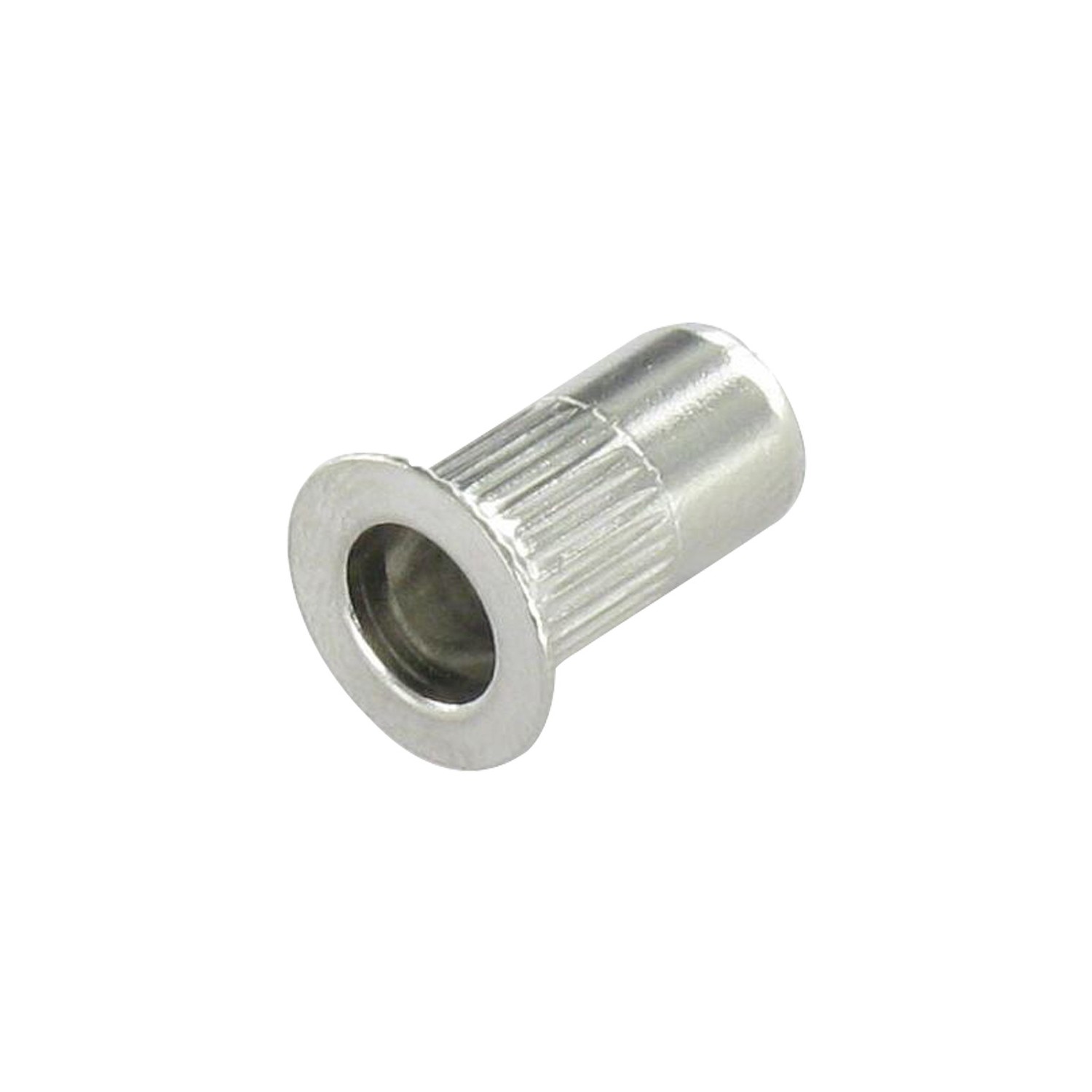

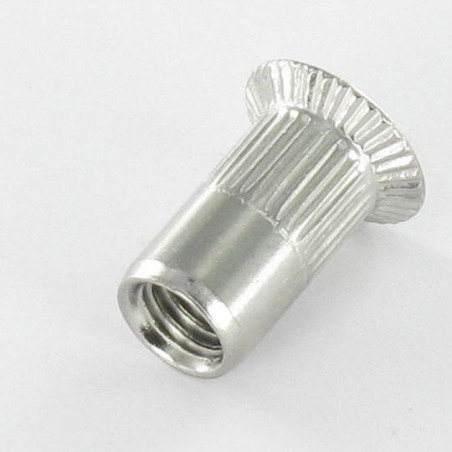

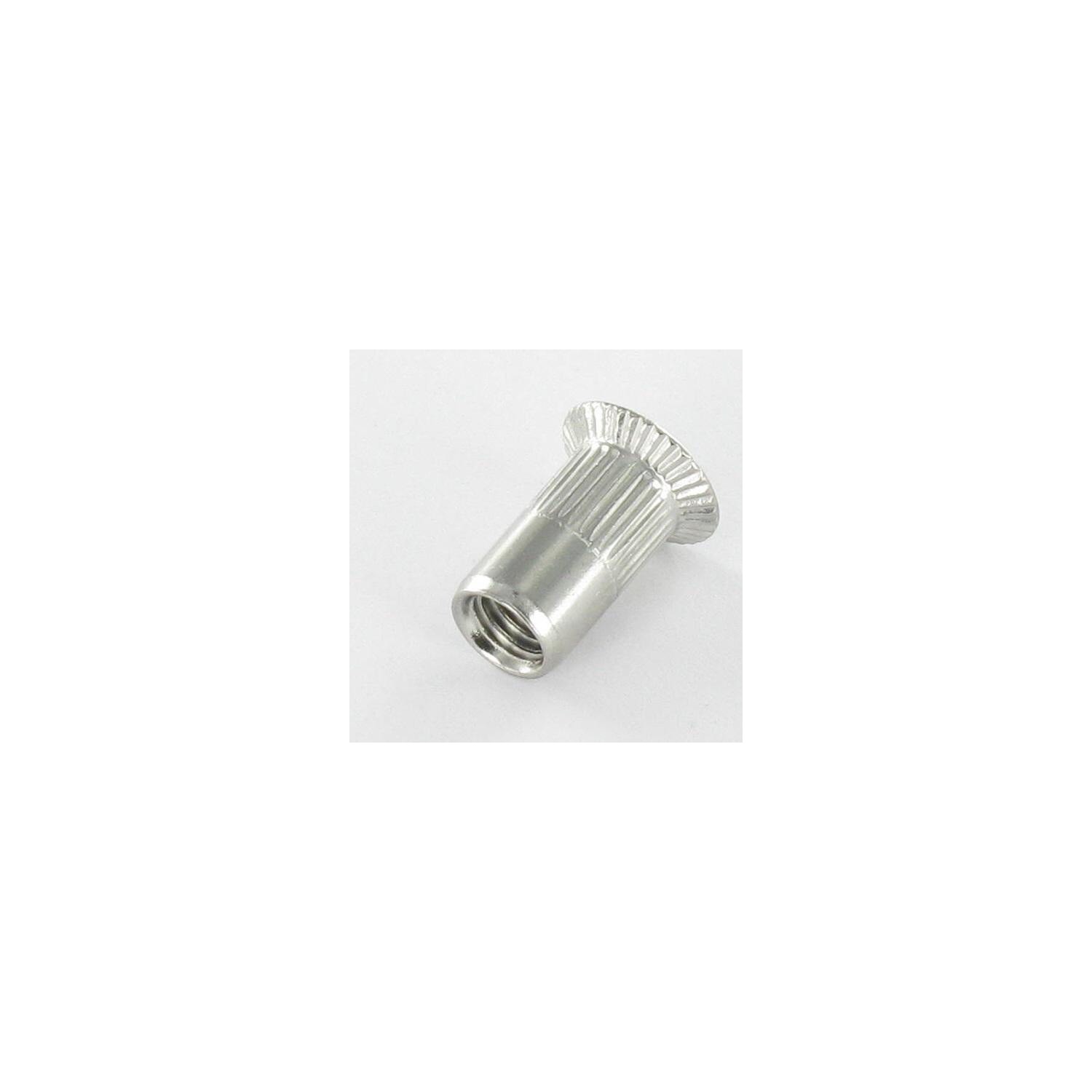

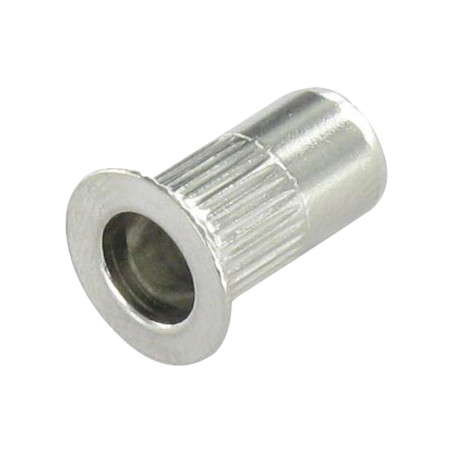

1 x Rivet nut Countersunk Head With Serration M5X13.5 INFC 40 Stainless Steel A2

1 x Rivet nut Countersunk Head With Serration...

1 x Rivet nut Countersunk Head With Serration M5X13.5 INFC 40 Stainless Steel A2

Name: 1 x Rivet nut Countersunk Head With Serration M5X13.5 INFC 40 Stainless Steel A2
Brand: Vis-Express
SKU: 8665005018
Price: 1.7 EUR
Availability: InStock

Reference 8665005018_1

In stock 7370 Pièces

€1.70 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100	500	2000
Lot price VAT included	€1.70	€3.40	€21.40	€101.75	€380.80

Rivet nut Countersunk Head With Serration M5X13.5 INFC 40 Stainless Steel A2

Packaging

1 unit
10 units
100 units
500 Units
2000 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: M5
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 13.5
Pitch: Standard pitch 80
Material: Stainless Steel
COLOR: Grey
Product Family: Nut
Sub product family: Countersunk Head
Use: External
Diameter in mm: 4.02 - 4.12
Unit weight: 1.5 GR

In stock 7370 Items

ean13 3663072399280

Description

Rivet nut Countersunk Head With Serration M5X13.5 INFC 40 Stainless Steel A2
Diameter = M5, Length = 13.5, Material = Stainless Steel A2, Pitch = Standard pitch 80, Product Family = Nut

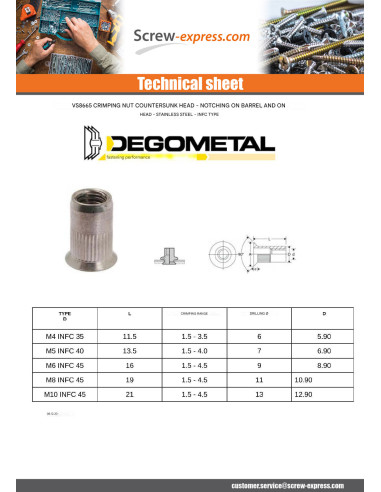

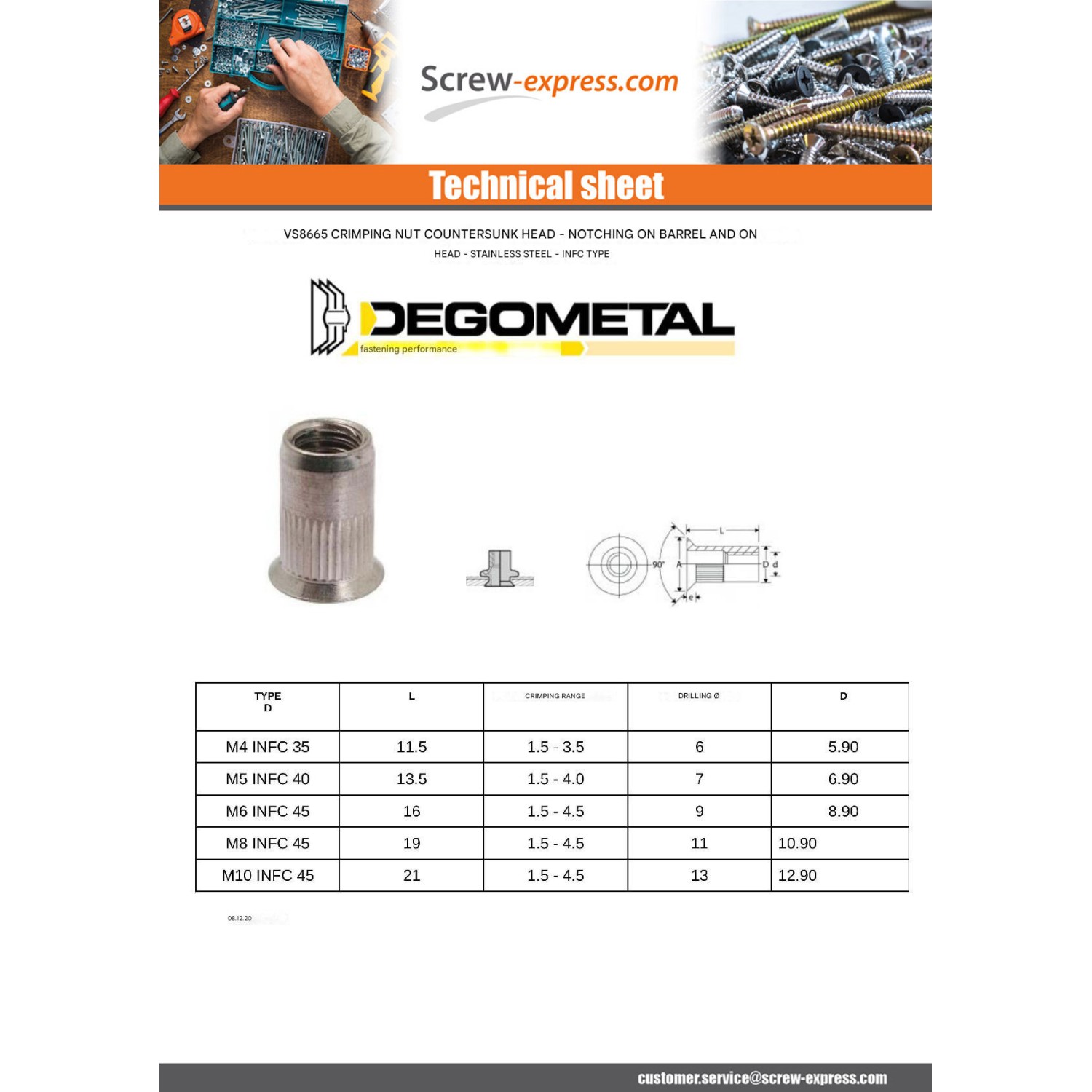

dimensional guide (mm)

REF	8665004018	8665005018	8665006002	8665008002
DIAMETRE/TYPE	M4/35	M5/40	M6/45	M8/45
DIAMETRE FUT	5.9	6.9	8.9	10.9
DIMATRE TETE	9	10	12	14

Other Reference : 179405401C 3663072399280

Use Cases

Mickael M. (vis-express.fr)
2026-02-08

Used to make modifications to stainless steel professional kitchen equipment Such as Tournus, Rosinox, Emainox, Sudinox stainless steel

Sylvain L. (vis-express.fr)
2024-02-25

I use these crimped threaded inserts (TF Crant M5X13.5 INFC 40 Inox) to fix the suspension of a pendulum balance on a steel chassis that I manufacture. I crimp these inserts into my chassis made of square tubes 16x16mmx1.5mm thickness in steel (S235).
