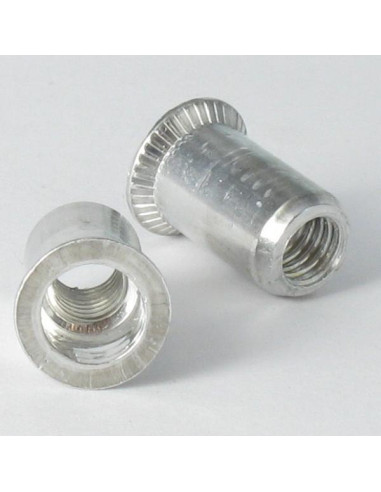

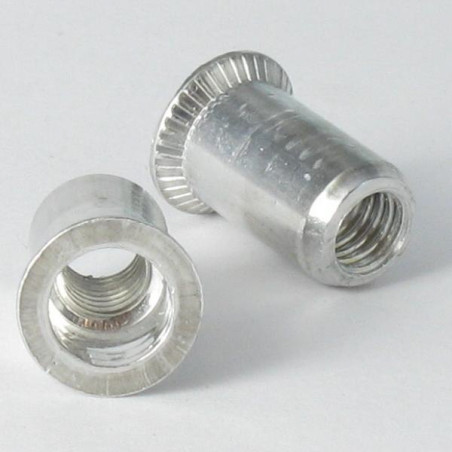

1 x Rivet Nuts Countersunk Head M10X20.5 ACF 60
1 x Rivet Nuts Countersunk Head M10X20.5 ACF 60
1 x Rivet Nuts Countersunk Head M10X20.5 ACF 60
1 x Rivet Nuts Countersunk Head M10X20.5 ACF 60

1 x Rivet Nuts Countersunk Head M10X20.5 ACF 60

4351001002_1
In stock 598 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 100
Lot price VAT included €4.25 €8.45 €21.15 €64.15
Rivet Nuts Countersunk Head M10X20.5 ACF 60
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 100 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M10
Length
20.5
Pitch
Standard pitch 150
Product Family
Nut
Sub product family
Rivet Nut
Diameter in mm
8.47 - 8.65
Unit weight
8 GR
598 Items
3663072496330
Rivet Nuts Countersunk Head M10X20.5 ACF 60
Diameter = M10, Length = 20.5, Pitch = Standard pitch 150, Product Family = Nut

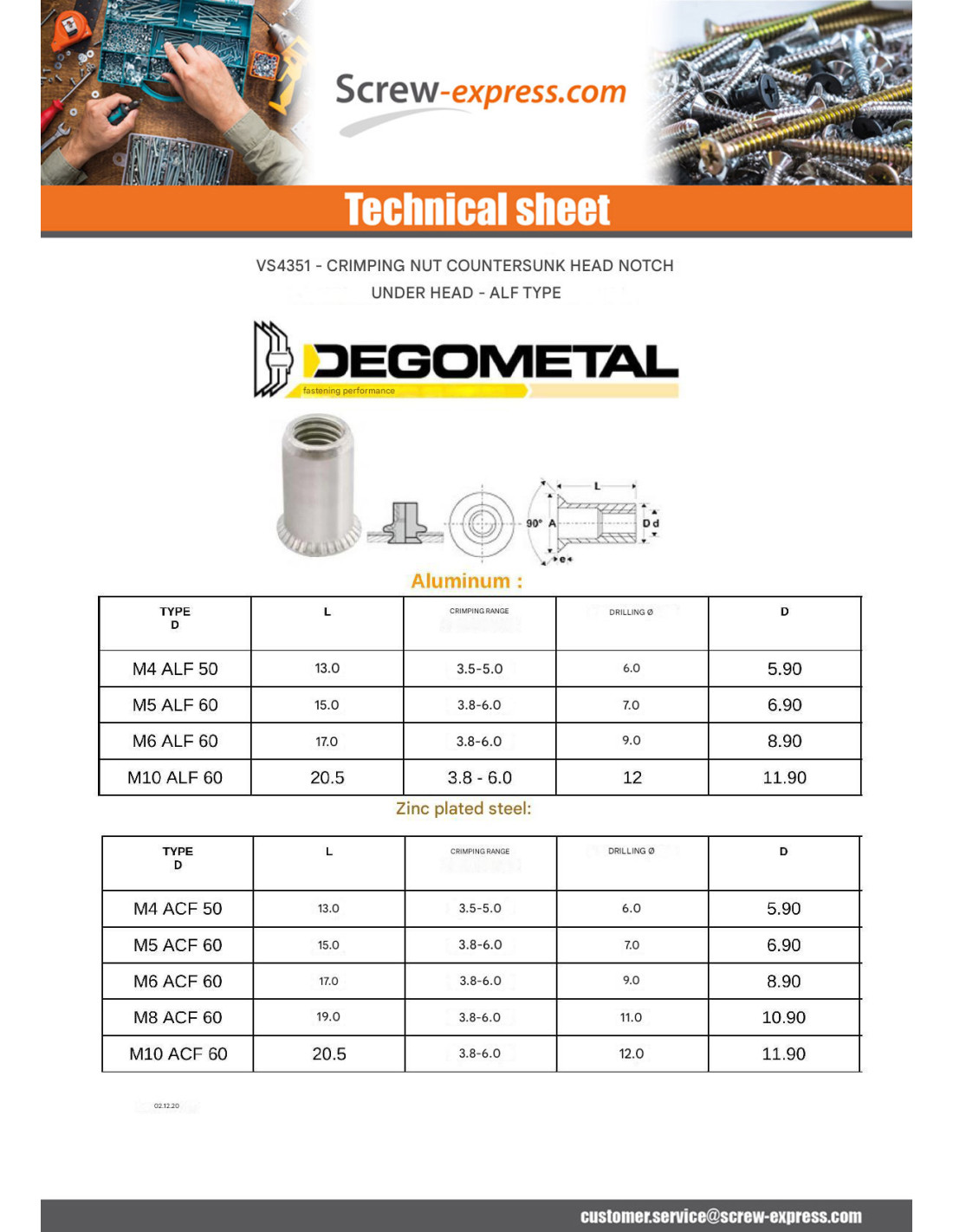

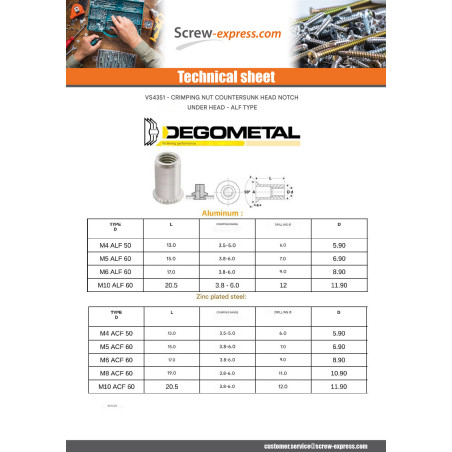

dimensional guide (mm)
Diameter M3 M4 M4 M5 M5 M6 M6 M8 M8 M10 M10
Crimp thickness 2-3 2-3.5 3.5-5 2.5-4 4-6 2.5-4 4-6 2.5-4 4-6 2.5-4 4-6
d Perc 5 6 6 7 7 9 9 11 11 12 12
Exterior diameter 4.9 5.9 5.9 6.9 6.9 8.9 8.9 10.9 10.9 11.9 11.9
dc 0 9 9 10 10 12 12 14 14 15 15
S1 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5

Other Reference : 171 410 601 3663072496330
