1 x Hexagonal nut to SLOTS Stainless Steel A1 M12
1 x Hexagonal nut to SLOTS Stainless Steel A1 M12
1 x Hexagonal nut to SLOTS Stainless Steel A1 M12
1 x Hexagonal nut to SLOTS Stainless Steel A1 M12

1 x Hexagonal nut to SLOTS Stainless Steel A1 M12

8462001218_1
In stock 9 Pièces
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 5 20 50
Lot price VAT included €3.85 €7.70 €25.85 €64.70

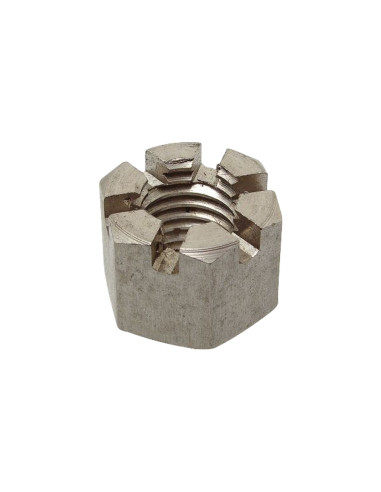

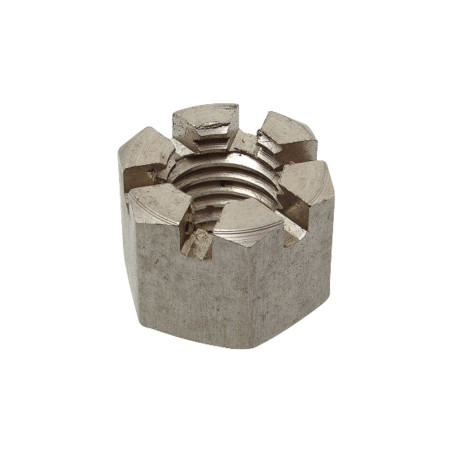

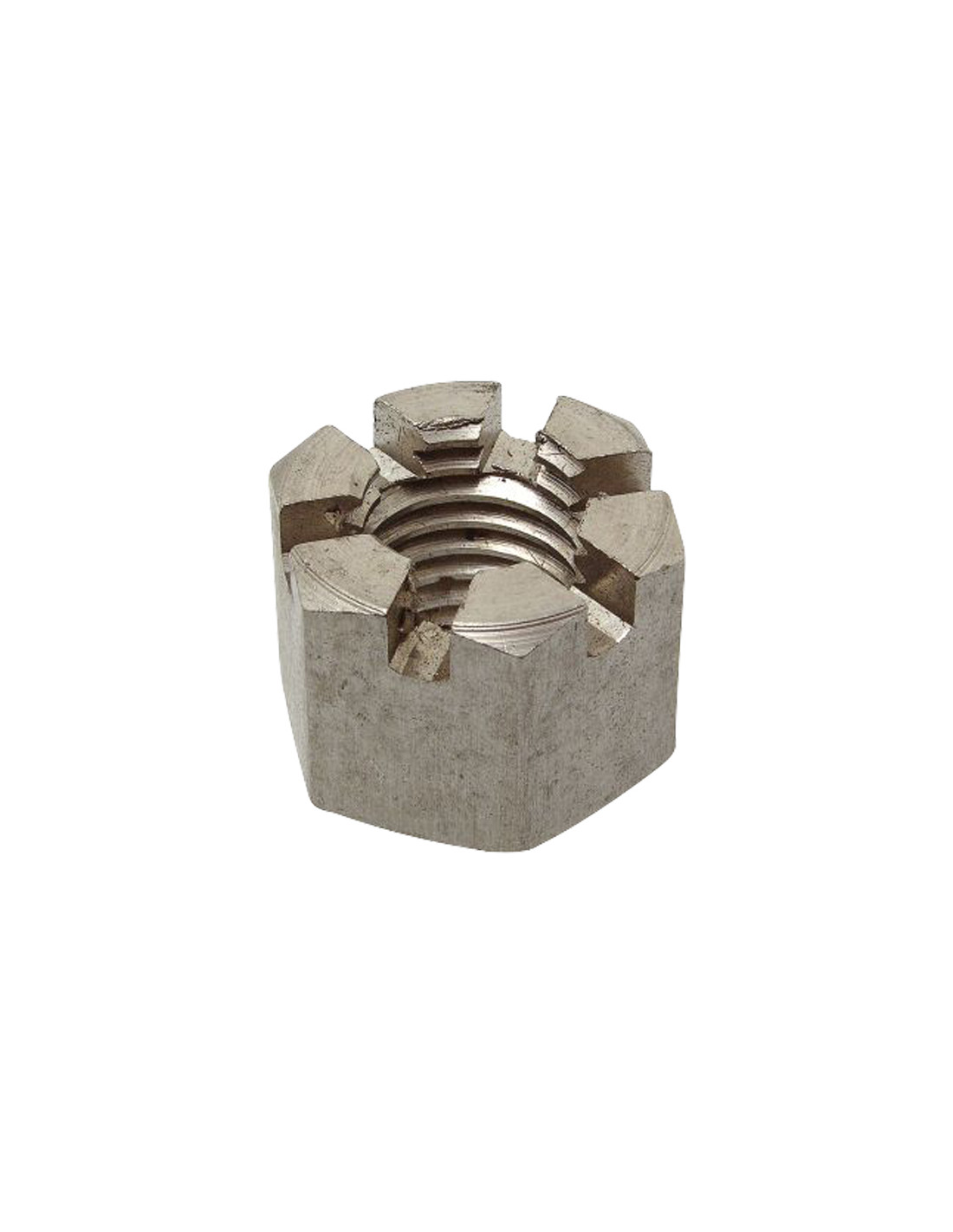

DIN935 - Hexagonal nut to SLOTS Stainless Steel A1 M12
Packaging
  • 1 unit
  • 5 units
  • 20 units
  • 50 units

Dimensions shown in millimeters (mm)

Diameter
M12
Pitch
Standard pitch 175
Material
Stainless Steel Stainless Steel A1
Norm
DIN935
Product Family
Nut
Diameter in mm
10.24 - 10.44
Unit weight
20 GR
9 Items
3663072242920
Hexagonal nut to SLOTS Stainless Steel A1 M12
Diameter = M12, Sub Product Family = Nut Hexagon, Material = Stainless Steel A1, Pitch = Standard pitch 175, Norm = DIN935, Product Family = Nut

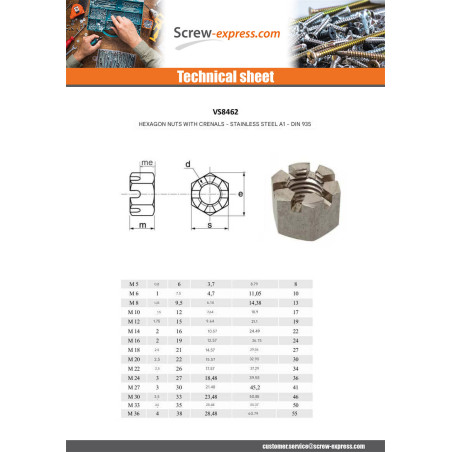

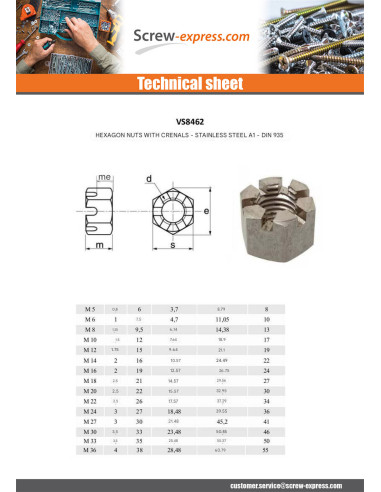

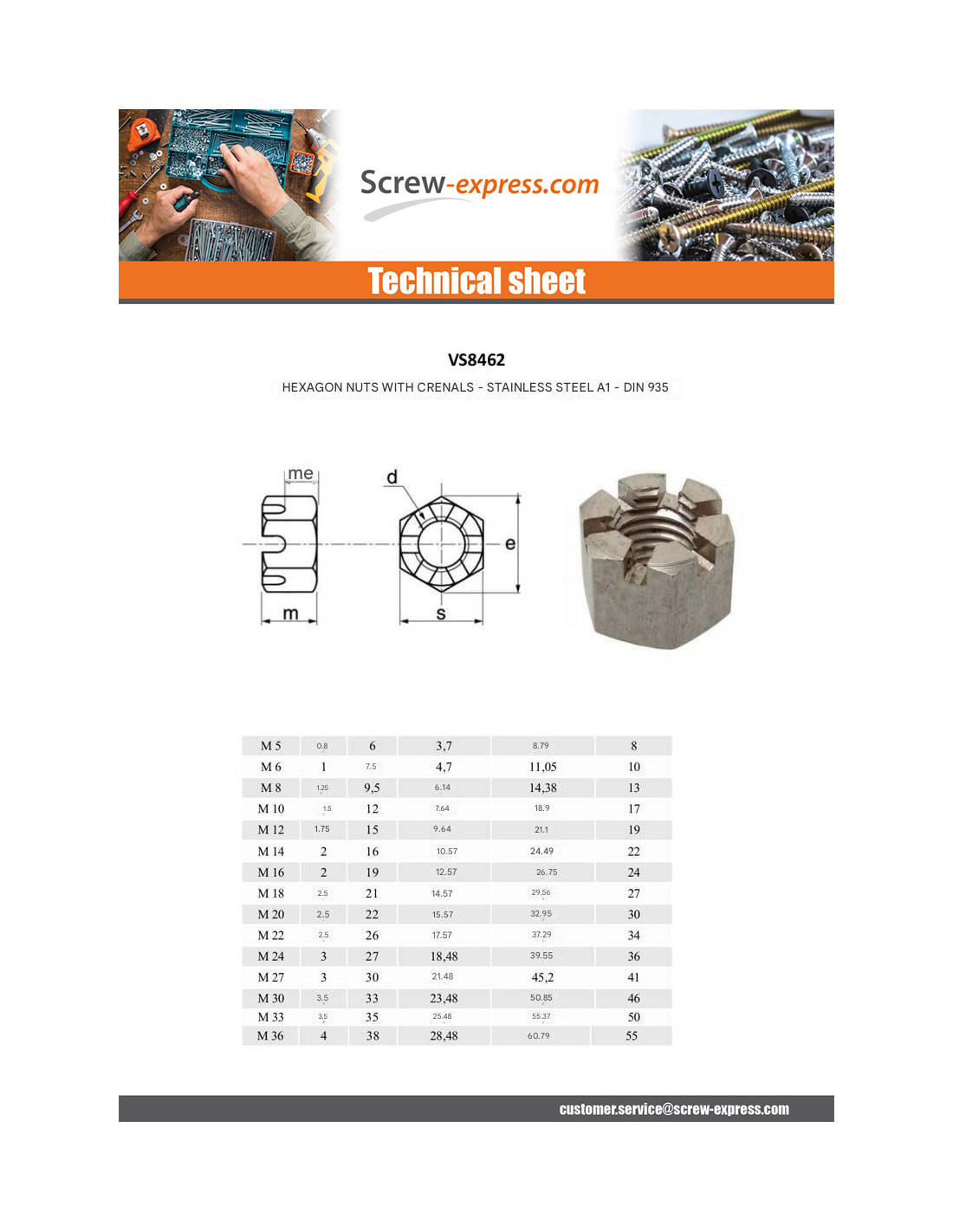

dimensional guide (mm)
Diameter M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M39 M42 M45 M48 M56
Pitch 80 100 125 150 175 200 200 250 250 250 270 300 330 350 380 400 460 480 500 570
Tickness 6 7.5 9.5 12 15 16 19 21 22 26 27 30 33 35 38 40 46 48 50 57
Height 4 5 6.5 8 10 11 13 15 16 18 19 22 24 26 29 31 34 36 38 45
Across flats 8 10 13 17 19 22 24 27 30 32 36 41 46 50 55 60 65 70 75 85
e 8.8 11 14.4 18.9 21.1 24.5 26.8 29.36 33 35 39.6 45.2 50.9 55.4 60.8 66.4 71.3 77 82.6 93.6
Minimum slot width 1.4 2 2.5 2.8 3.5 3.5 4.5 4.5 4.5 5.5 5.5 5.5 7 7 7 7 9 9 9 9

Other Reference : 3617501709201 3663072242920
CLAUDE C. (vis-express.fr)
2026-07-12

To make a chess set with 12mm screws For the four pieces that will make the rook, the reverse for the queen and king
