1 x Blind rivets Aluminium Stahlgewinde 4X17 Large Head Multigrip

1 x Blind rivets Aluminium Stahlgewinde 4X17...

1 x Blind rivets Aluminium Stahlgewinde 4X17 Large Head Multigrip

Name: 1 x Blind rivets Aluminium Stahlgewinde 4X17 Large Head Multigrip
Brand: Vis-Express
SKU: 9126700209
Price: 3.34 GBP
Availability: InStock

Reference 9126700209_1

In stock 415 Pièces

£3.34 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	100	500
Lot price VAT included	£3.34	£6.68	£13.67	£65.04

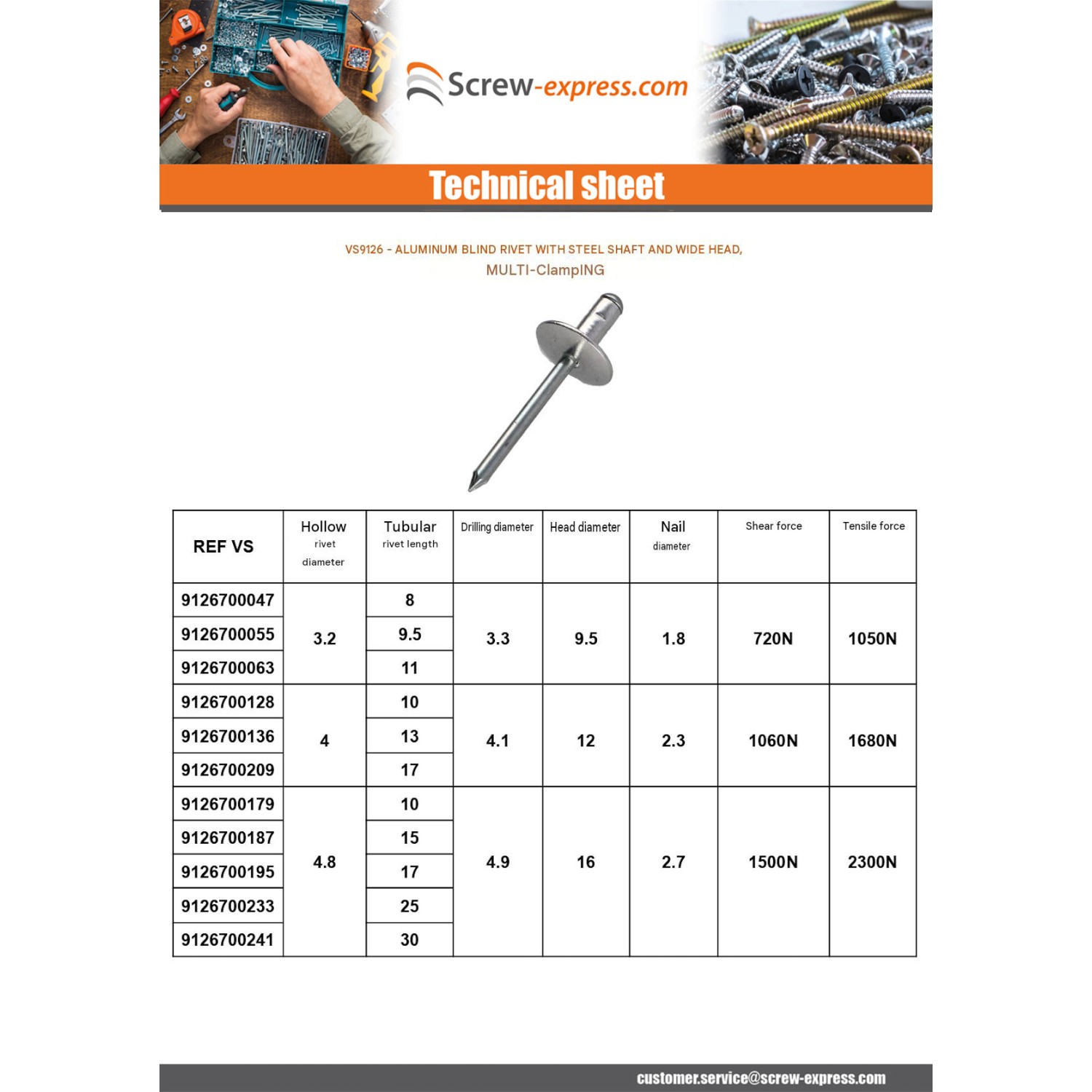

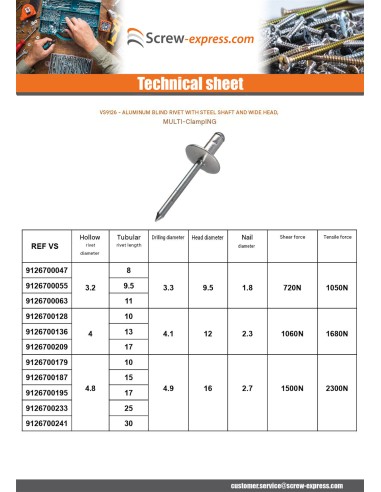

DOC 3720 - Blind rivets Aluminium Stahlgewinde 4X17 Large Head Multigrip

Packaging

1 unit
10 units
100 units
500 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: 3
Length

Length

How do I measure the length of a screw?

The length of a countersunk screw is measured with the head. For all other heads, the length is measured under the head.: 17
Material: Aluminium STEM Steel
WEIGHT For THERE unit: 2.28 GR

In stock 415 Items

ean13 3663072176775

Application

Description

Blind rivets Aluminium Stahlgewinde 4X17 Large Head Multigrip
Diameter = 4, Sub Product Family = Rivets BLIND MULTI-CLASPING (LARGE) range Of TIGHTENING), Material = BODY Aluminium / rod Steel

dimensional guide (mm)

Diameter	3.2	3.2	3.2	4	4	4	4.8	4.8	4.8	4.8	4.8
Length	8	9.5	11	10	13	17	10	15	17	25	30
d Perc	3.3	3.3	3.3	4.1	4.1	4.1	4.9	4.9	4.9	4.9	4.9
Crimp thickness	0.5-5.0	1.5-6.5	3.0-8.0	0.5-6.5	3.5-9.5	7.0-13.0	0.5-6.5	4.5-11.0	6.5-17.0	11.0-19.5	16.0-24.0
