1 x Multigrip blind rivets Aluminum Steel Rod TRS 4.8X15
1 x Multigrip blind rivets Aluminum Steel Rod TRS 4.8X15
1 x Multigrip blind rivets Aluminum Steel Rod TRS 4.8X15
1 x Multigrip blind rivets Aluminum Steel Rod...
1 x Multigrip blind rivets Aluminum Steel Rod...
1 x Multigrip blind rivets Aluminum Steel Rod...

1 x Multigrip blind rivets Aluminum Steel Rod TRS 4.8X15

3720481512_1
In stock 18568 Pièces
£3.69 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 250
Lot price VAT included £3.69 £7.33 £8.85 £16.14

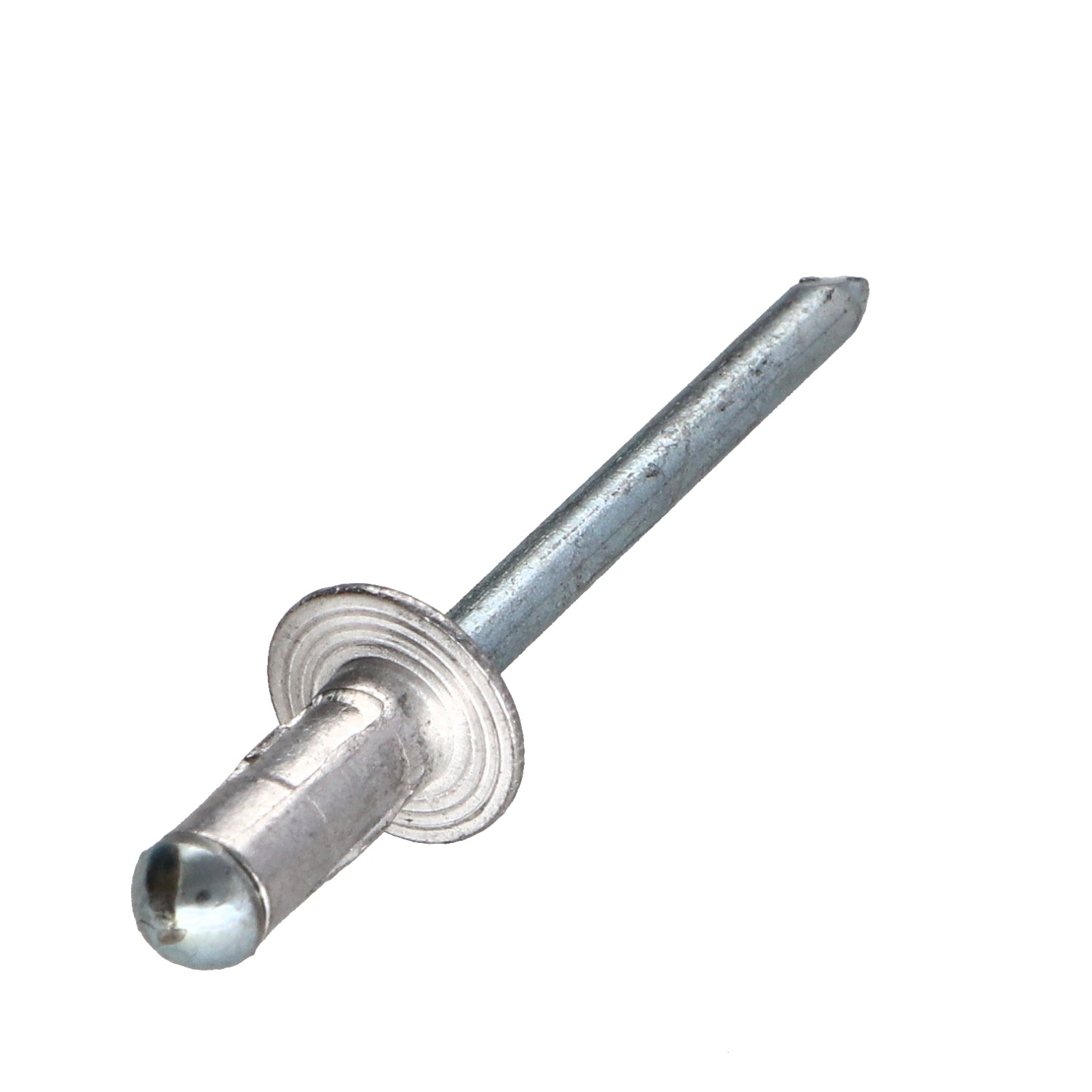

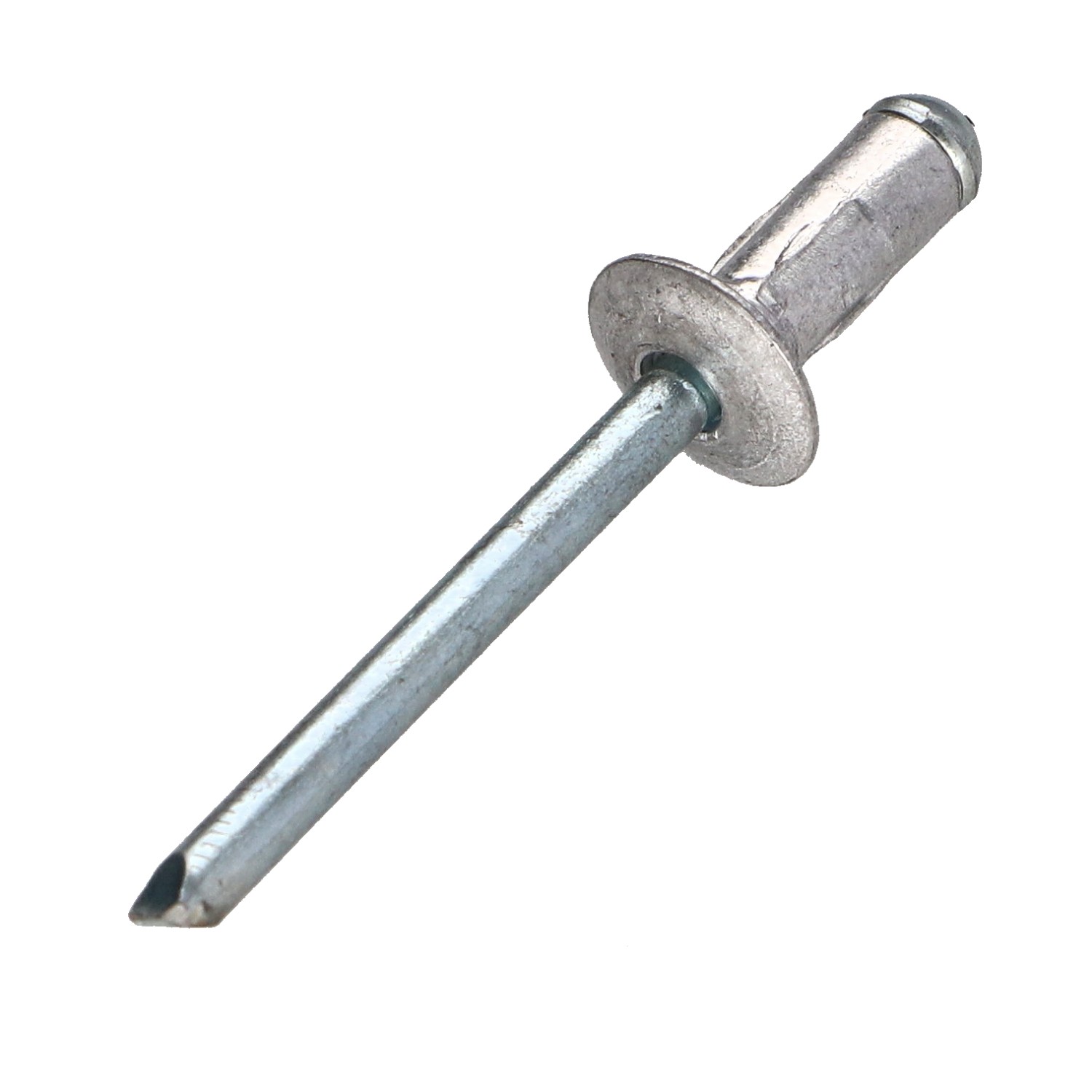

Multigrip blind rivets Aluminum Steel Rod TRS 4.8X15
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 250 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
4.8
Diameter Head
9.5
Material
BODY Aluminium / rod Steel
Sub product family
Rivets BLIND MULTI-CLASPING (LARGE) range Of TIGHTENING)
Shear (N)
1400
Clamping thickness
5 A 10
Rivet body length
15
Unit weight
2.78 GR
Head shape
Round Head standard
Hole diameter
5
Tensile strength
2000
18568 Items
3663072065192

Application

  • Automobile
  • Caravanning trailers
  • Electricity and lighting
  • Electrical equipment Refrigerator
  • Electronic card
  • Storage and handling equipment
  • Conveyor belts, greenhouses, demountable structures
Multigrip blind rivets Aluminum Steel Rod TRS 4.8X15
Diameter = Class 4.8, Material = Aluminium rod Steel

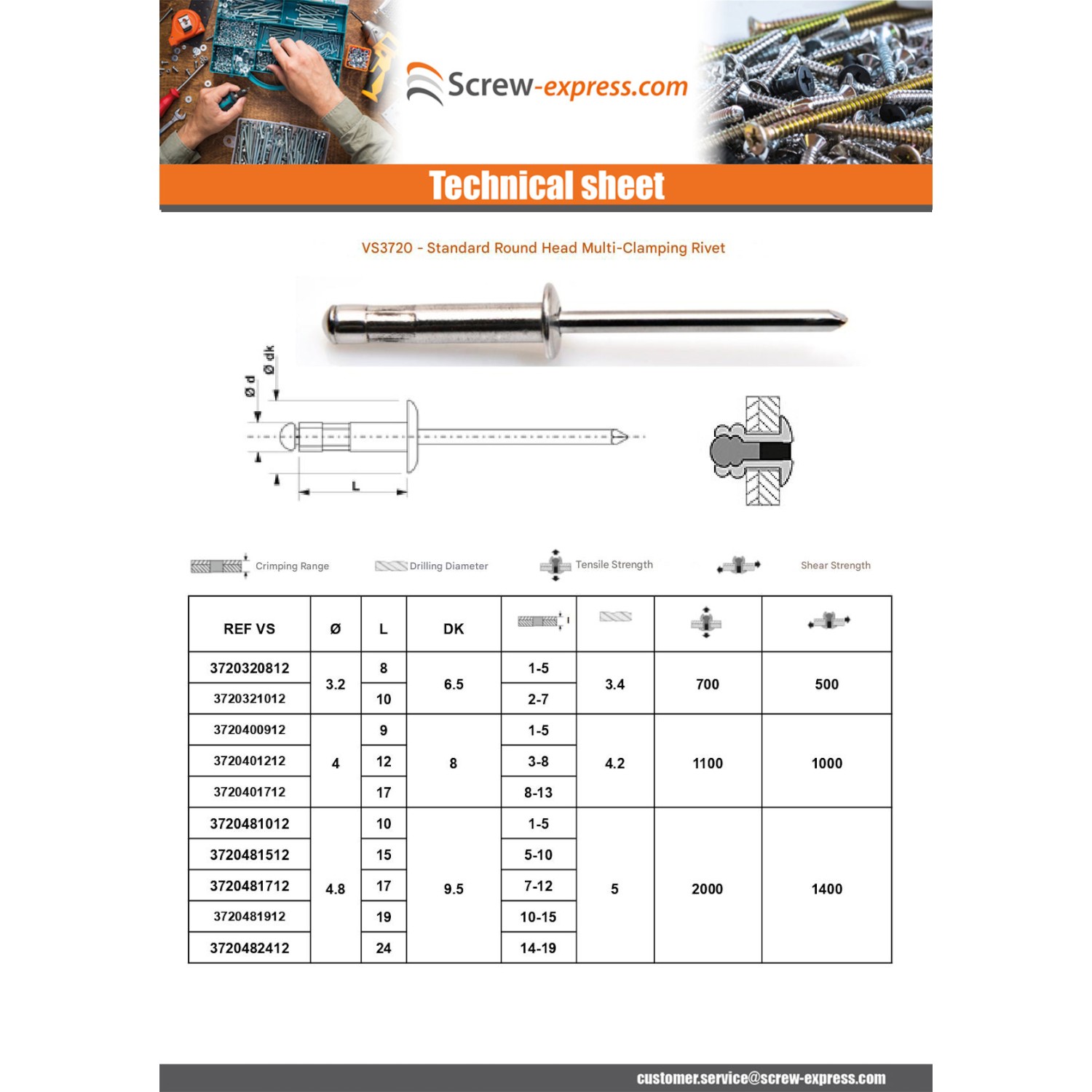

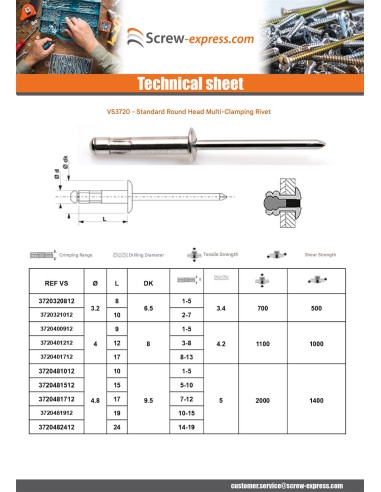

dimensional guide (mm)
Diameter 3.2 3.2 4 4 4 4.8 4.8 4.8 4.8
Head diameter 6.7 6.7 8.4 8.4 8.4 10.1 10.1 10.1 10.1
Length 8 10 9 12 17 10 15 17 24
Crimp thickness 1.0-5.0 2.0-7.0 1.0-5.0 3.0-8.0 8.0-13.0 1.0-5.0 5.0-10.0 7.0-12.0 14.0-19.0

Other Reference : 140148151 AN 3749 1661-0619 K500052 AV0062 7021370515 7021370515 Fi02-0005 3663072065192
