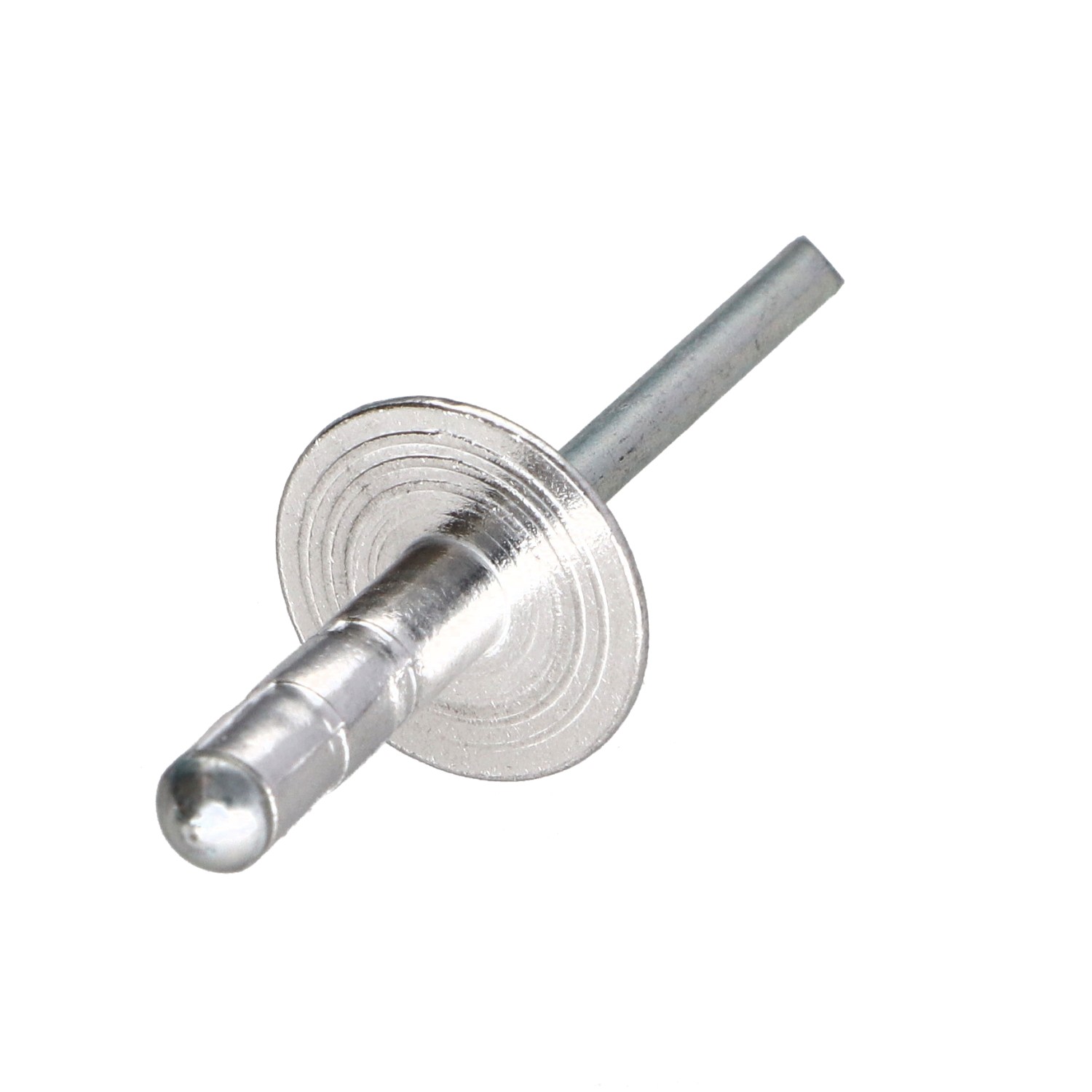

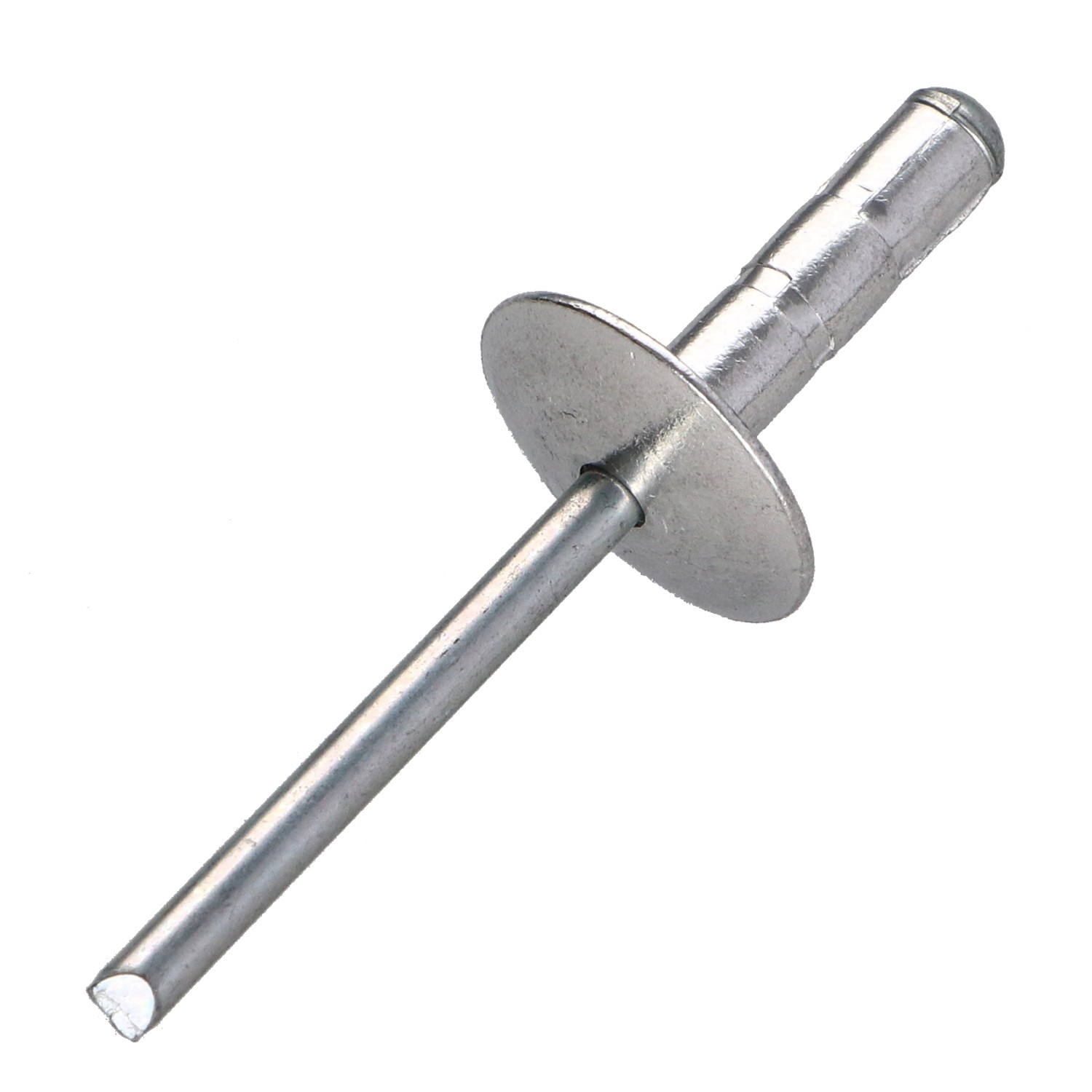

1 x Multigrip blind rivets Aluminum Steel Rod 4.8X10 Extra Large Head

1 x Multigrip blind rivets Aluminum Steel Rod...

1 x Multigrip blind rivets Aluminum Steel Rod 4.8X10 Extra Large Head

Name: 1 x Multigrip blind rivets Aluminum Steel Rod 4.8X10 Extra Large Head
Brand: Screw Express
SKU: 3722481001
Price: 3.85 EUR
Availability: InStock

Reference 3722481001_1

In stock 250 Pièces

€3.85 Incl VAT

Decreasing prices by quantity

Number of pieces	1	10	30	250
Lot price VAT included	€3.85	€7.70	€9.30	€20.55

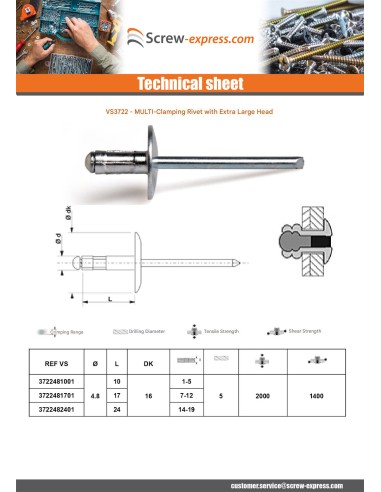

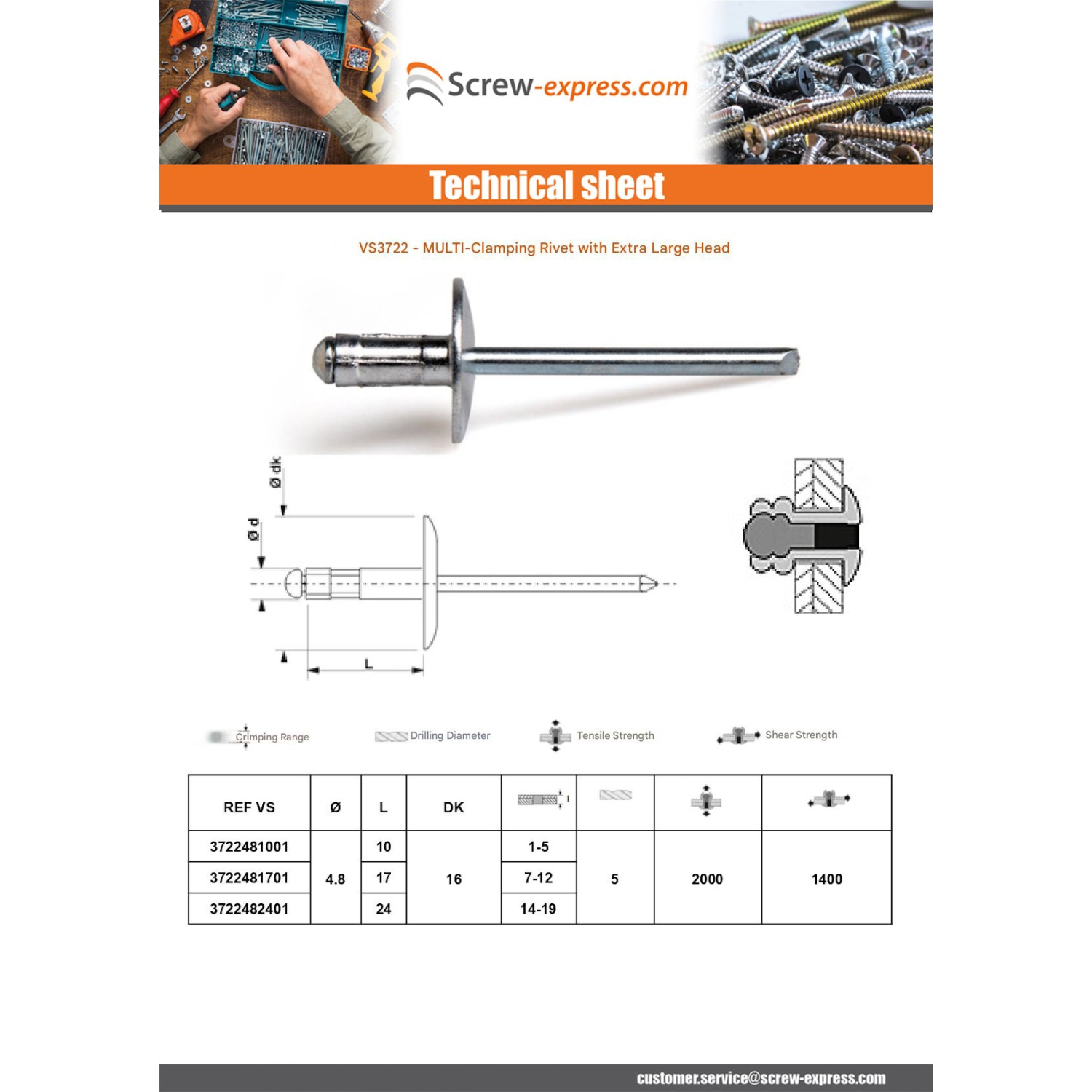

DOC 3720 - Multigrip blind rivets Aluminum Steel Rod 4.8X10 Extra Large Head

Packaging

1 unit
10 units
30 units
250 Units

Dimensions shown in millimeters (mm)

Product Details

Diameter: 4.8
Diameter Head: 16
Material: BODY Aluminium / rod Steel
Sub product family: Rivets BLIND MULTI-CLASPING (LARGE) range Of TIGHTENING)
Shear (N): 1400
Clamping thickness: 1 A 5
Rivet body length Rivet body length How to measure the length of a rivet? In our rivet designations, the length corresponds to the body length of the rivet (indicated by the arrow in the sketch below).: 10
Unit weight: 1.5 GR
Head shape: Head EXTRA-LARGE
Hole diameter: 5
Tensile strength

Tensile strength

Tensile Strength (Rm)
Tensile strength corresponds to the maximum force a material can withstand before breaking when it is pulled.

It is expressed in MPa (megapascals) and helps determine the strength of a screw or fastening component.

🔩 The higher the value, the more resistant the material is to breaking.: 2000

In stock 250 Items

ean13 3663072063143

Application

Automobile
Caravanning trailers
Electricity and lighting
Electrical equipment Refrigerator
Electronic card
Storage and handling equipment
Conveyor belts, greenhouses, demountable structures

Description

Multigrip blind rivets Aluminum Steel Rod 4.8X10 Extra Large Head
Diameter = Class 4.8, Material = Aluminium rod Steel
Other Reference : 140 348 101 3663072063143
