1 x Self Tapping Screw Linch Pin Plastic Pan Head Phillips 0 2X5 Zinc Plated micro screw
1 x Self Tapping Screw Linch Pin Plastic Pan Head Phillips 0 2X5 Zinc Plated micro screw
1 x Self Tapping Screw Linch Pin Plastic Pan Head Phillips 0 2X5 Zinc Plated micro screw
1 x Self Tapping Screw Linch Pin Plastic Pan...
1 x Self Tapping Screw Linch Pin Plastic Pan...
1 x Self Tapping Screw Linch Pin Plastic Pan...

1 x Self Tapping Screw Linch Pin Plastic Pan Head Phillips 0 2X5 Zinc Plated micro screw

3166200502_1
In stock 9600 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100 1000
Lot price VAT included €4.25 €8.45 €10.15 €83.90

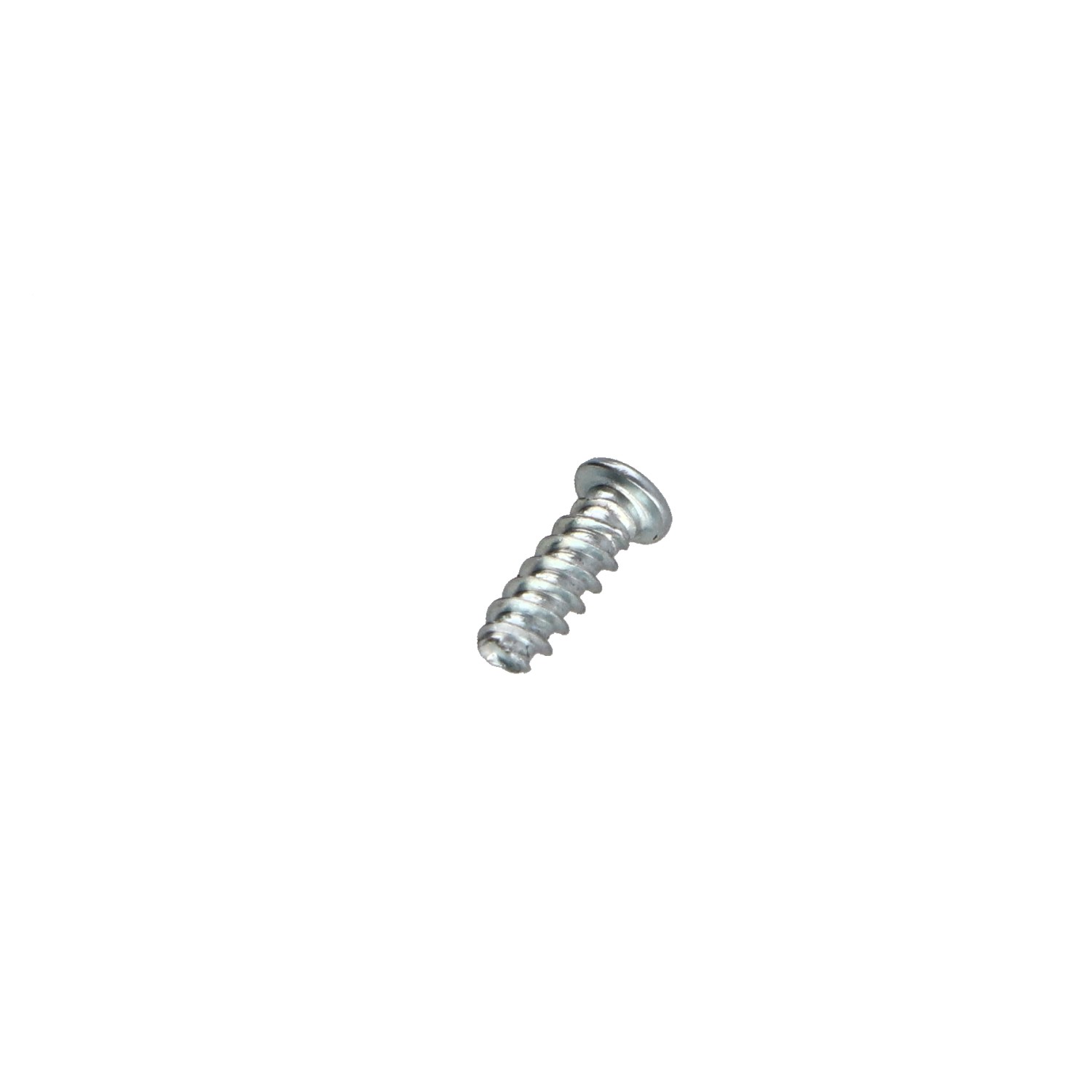

Self Tapping Screw Linch Pin Plastic Pan Head Phillips 0 2X5 Zinc Plated micro screw
Packaging
  • 1 unit
  • 10 units
  • 100 units
  • 1000 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
2
Length
5
Drive Type
PHILLIPS
Material
Steel
Coating
ZINC PLATED White
COLOR
Grey
Sub product family
Cylindrical Head
WEIGHT For THERE unit
0.11 GR
9600 Items
3663072257412

Application

  • Plastics & electronics: Plastic housings (remote controls, covers, boxes), Electronic devices, Connectors, internal supports, Boards and sub-assemblies (excluding electrical areas)
  • Industry & Assembly: Assembly of injected plastic parts, fastening of clips, covers, and caps, micromechanics and small mechanisms
  • Consumer products: Toys, Small household appliances, Plastic technical objects
Self Tapping Screw Linch Pin Plastic Pan Head Phillips 0 2X5 Zinc Plated micro screw
Diameter = 2, Length = 5, Coating = Zinc Plated, Material = Steel

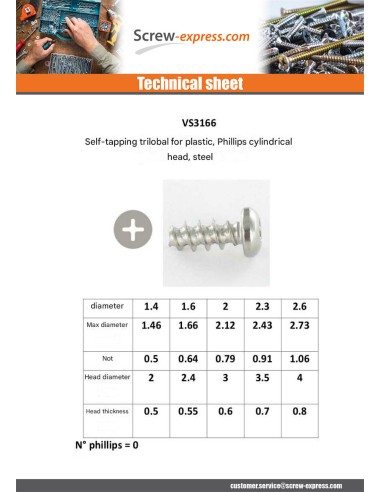

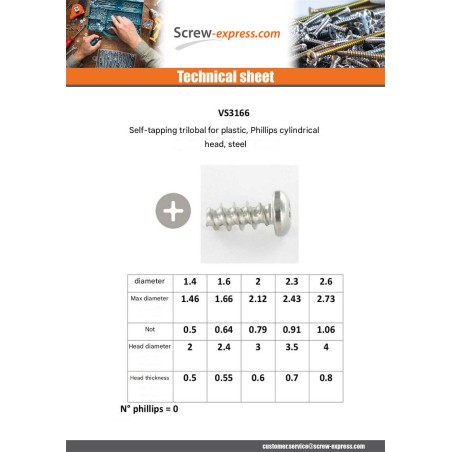

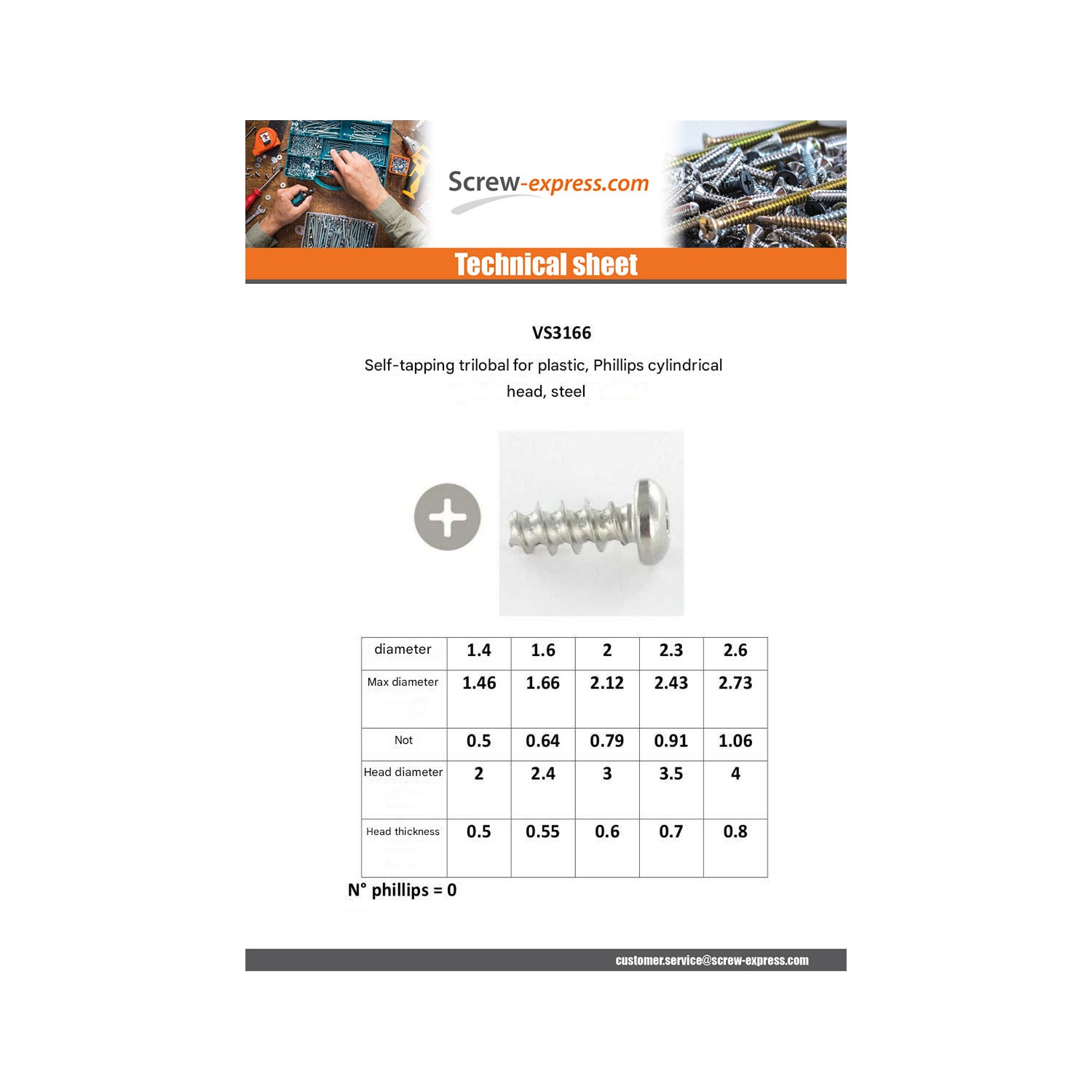

dimensional guide (mm)
Diameter 1.4 1.6 2 2.3 2.6
Pitch 0.5 0.64 0.79 0.91 1.06
Max diameter 1.46 1.66 2.12 2.43 2.73
diam tete 2 2.4 3 3.5 4
Head tickness 0.5 0.55 0.6 0.7 0.8

Other Reference : 3617501909601 3663072257412
Hoyam B. (vis-express.fr)
2025-05-18

We use them to screw PCBs into boxes. These are gas detectors
