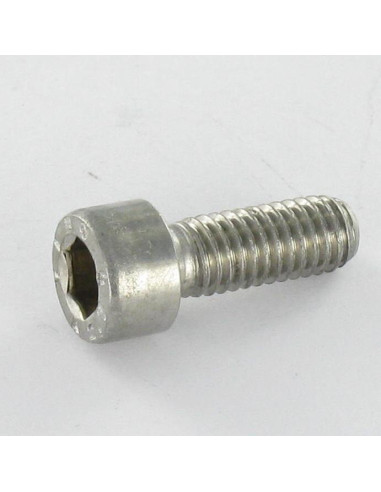

1 x Machine Screw Stainless Steel A2 Socket...

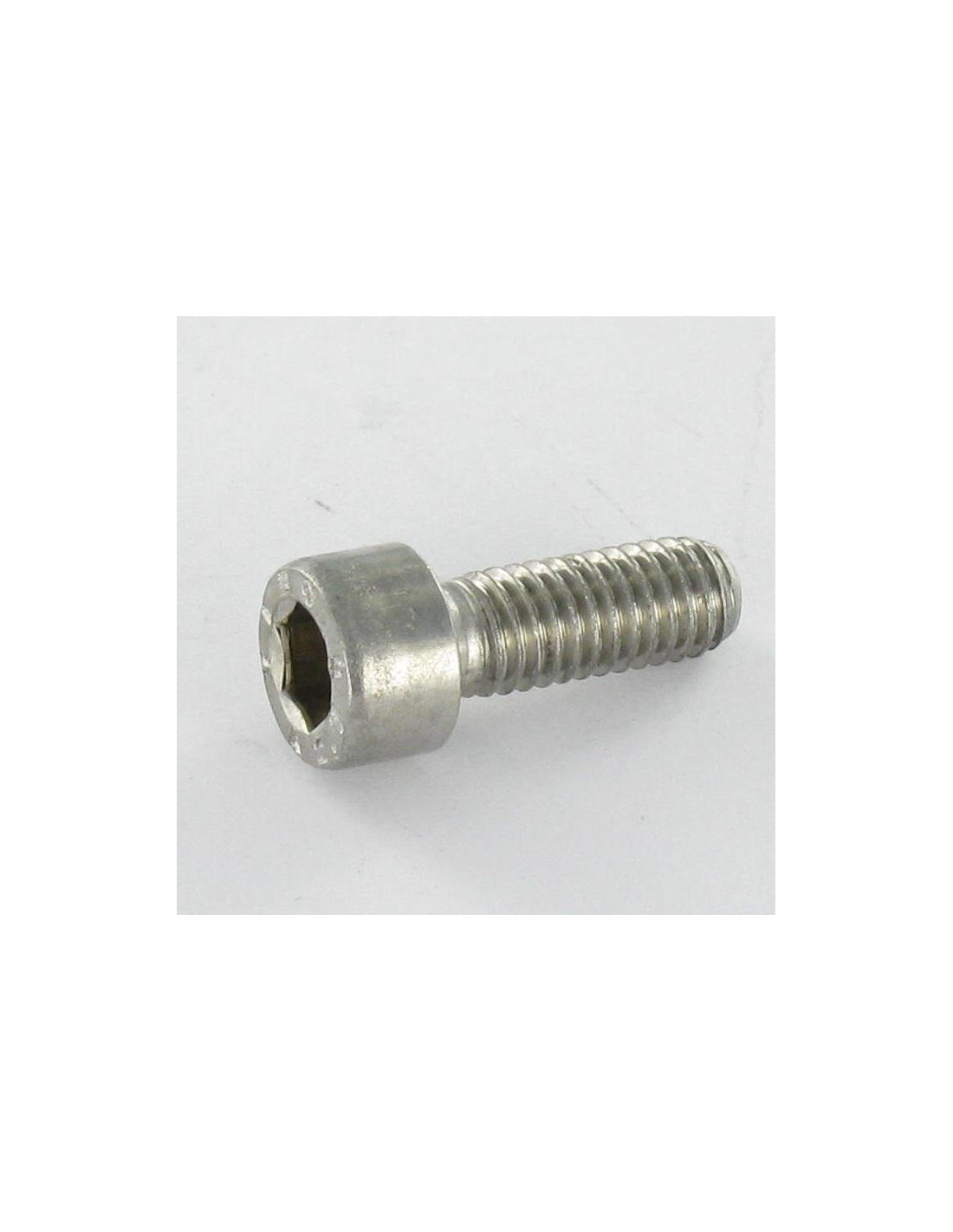

1 x Machine Screw Stainless Steel A2 Socket Head Hexagon Socket 2.5 M3X8 Full Thread micro screw

8420300818_1
In stock 13310 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €1.60 €3.20 €3.90 €4.20
DIN 912 ISO 4762 - Machine Screw Stainless Steel A2 Socket Head Hexagon Socket 2.5 M3X8 Full Thread micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
8
Thread
Metal
Drive Type
Socket Cap
Size Drive Type
Hexagon Socket 2.5
Pitch
Standard pitch 50
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 912 ISO 4762
Product Family
Machine Screw / MICROVIS
Sub product family
Head Socket Head BTR
Diameter in mm
2.974 - 2.835
Unit weight
0.8 GR
13310 Items
3663072165083
Machine Screw Stainless Steel A2 Socket Head Hexagon Socket 2.5 M3X8 Full Thread micro screw
Diameter = M3, Length = 8, Sub Product Family = Head Socket Head BTR, Material = Stainless Steel Stainless Steel A2, Pitch = Standard pitch 50, Drive Type = Socket Cap, Norm = DIN 912 ISO 4762, Product Family = Machine Screw / MICROVIS, Size Drive Type = Hexagon Socket 2.5


dimensional guide (mm)
Diameter M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M7 M8 M10 M12 M14 M16 M18 M20 M22 M24 M27 M30 M33 M36 M42 M48 M56
Across flats 1.3 1.5 1.5 2 2.5 3 4 5 6 6 8 10 12 14 14 17 17 19 19 22 24 27 32 36 41
Head diameter 2.6 3 3.8 4.5 5.5 7 8.5 10 12 13 16 18 21 24 27 30 33 36 40 45 50 54 63 72 84
Head tickness 1.4 1.6 2 2.5 3 4 5 6 7 8 10 12 14 16 18 20 22 24 27 30 33 36 42 48 56
Thread length 14 15 16 17 18 20 22 24 26 28 32 36 40 44 48 52 56 60 66 72 78 84 96 108 124

Other Reference : 622013X8 VSCHC3X8 b0419108 0094 3 8 0094 3 8 73003008 0VICHC308 A004917 CHC3X8I 8420300818 A866 MVIS001-CHC- 2003887 0041034 100321 39462 VIO3010007 0204008 VM3X8IN01 S05/06601 182057 6514211 99124284 3957 106013 TESS692 97002055 7003000820 3663072165083
Frédéric P. (vis-express.fr)
2025-11-09

To replace the pin screws on my flat pedals which are too long, I'm changing from 10mm to 8mm.


Thibaut F. (vis-express.fr)
2025-11-09

Assembly screws for a nautical model Assembling the cowlings onto the hulls


NOVARETTI C. (vis-express.fr)
2025-09-14

I use these screws to create works with 3D printing I screw spikes through printed plates, to make inclusions.


NOVARETTI C. (vis-express.fr)
2024-11-03

I create personalized 3D objects. https://www.amazon.fr/dp/B08LYKV1KF?ref=ppx_yo2ov_dt_b_fed_asin_title
