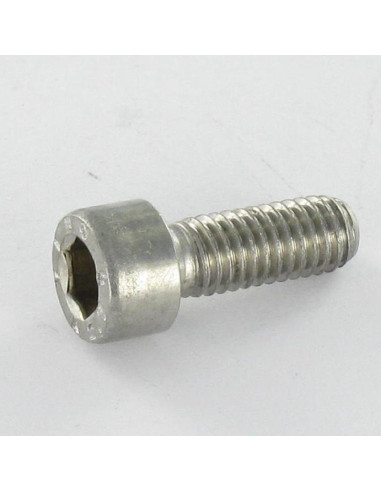

1 x Machine Screw Stainless Steel A2 Socket...

1 x Machine Screw Stainless Steel A2 Socket Head Hexagon Socket 1.5 Full Thread M2X10 micro screw

8420281018_1
In stock 16509 Pièces
€1.60 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €1.60 €3.20 €3.90 €4.90
DIN 912 ISO 4762 - Machine Screw Stainless Steel A2 Socket Head Hexagon Socket 1.5 Full Thread M2X10 micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M2
Length
10
Thread
Metal
Drive Type
Socket Cap
Size Drive Type
Hexagon Socket 1.5
Pitch
Standard pitch 40
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 912 ISO 4762
Product Family
Machine Screw / MICROVIS
Sub product family
Head Socket Head BTR
Diameter in mm
1.509 - 1.567
Unit weight
0.3 GR
16509 Items
3663072394377
Machine Screw Stainless Steel A2 Socket Head Hexagon Socket 1.5 Full Thread M2X10 micro screw
Diameter = M2, Length = 10, Sub Product Family = Head Socket Head BTR, Material = Stainless Steel Stainless Steel A2, Pitch = Standard pitch 40, Drive Type = Socket Cap, Norm = DIN 912 ISO 4762, Product Family = Machine Screw / MICROVIS, Size Drive Type = Hexagon Socket 1.5


dimensional guide (mm)
DiameterM1.4M1.6M2M2.5M3M4M5M6M7M8M10M12M14M16M18M20M22M24M27M30M33M36M42M48M56
Across flats1.31.51.522.53456681012141417171919222427323641
Head diameter2.633.84.55.578.5101213161821242730333640455054637284
Head tickness1.41.622.5345678101214161820222427303336424856
Thread length1415161718202224262832364044485256606672788496108124

Other Reference : 622012X10 1130000032 CHC2X10i 203151 387024 3663072394377
Projet N. (vis-express.fr)
2026-02-22

3D printing for a boat Screws to connect two pieces of my engine mount for a 100% AI-powered autonomous model. If you'd like to help us, we'd be very happy to work with you! Contact us: ernest.maximoff@gmail.com


Thomas S. (vis-express.fr)
2025-07-13

assembly of a mold COURBIS brand for rolling molding
