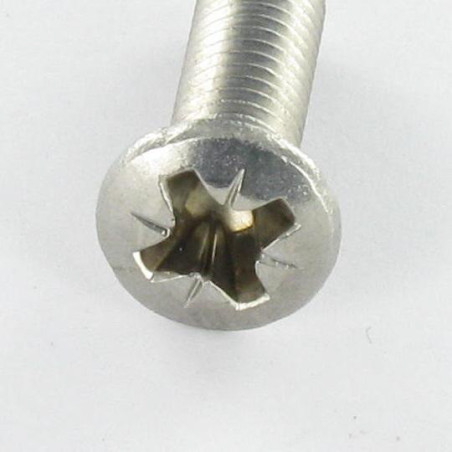

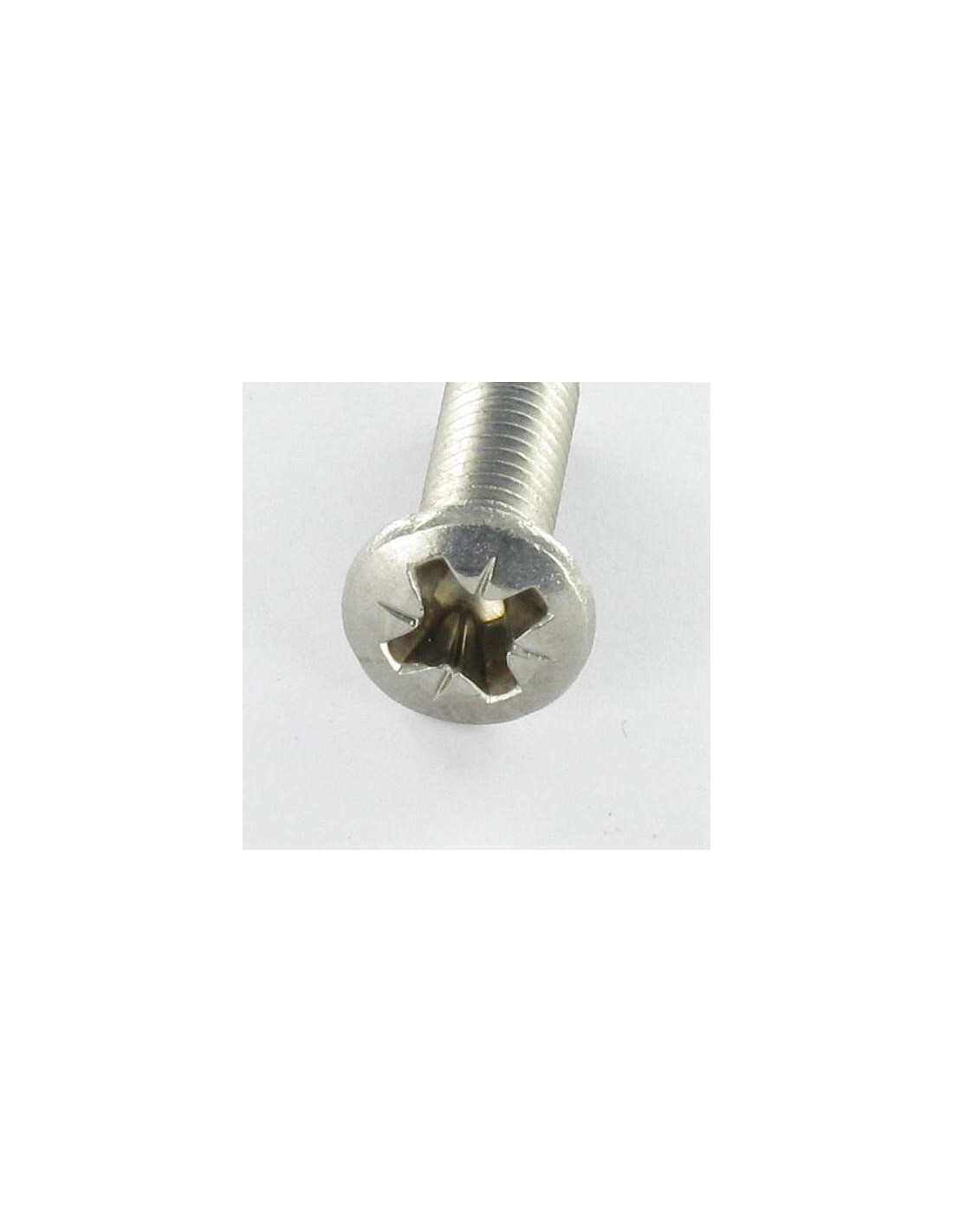

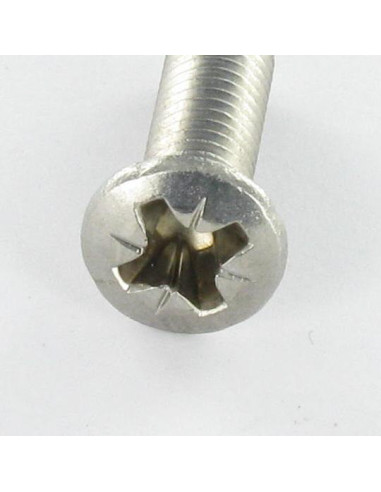

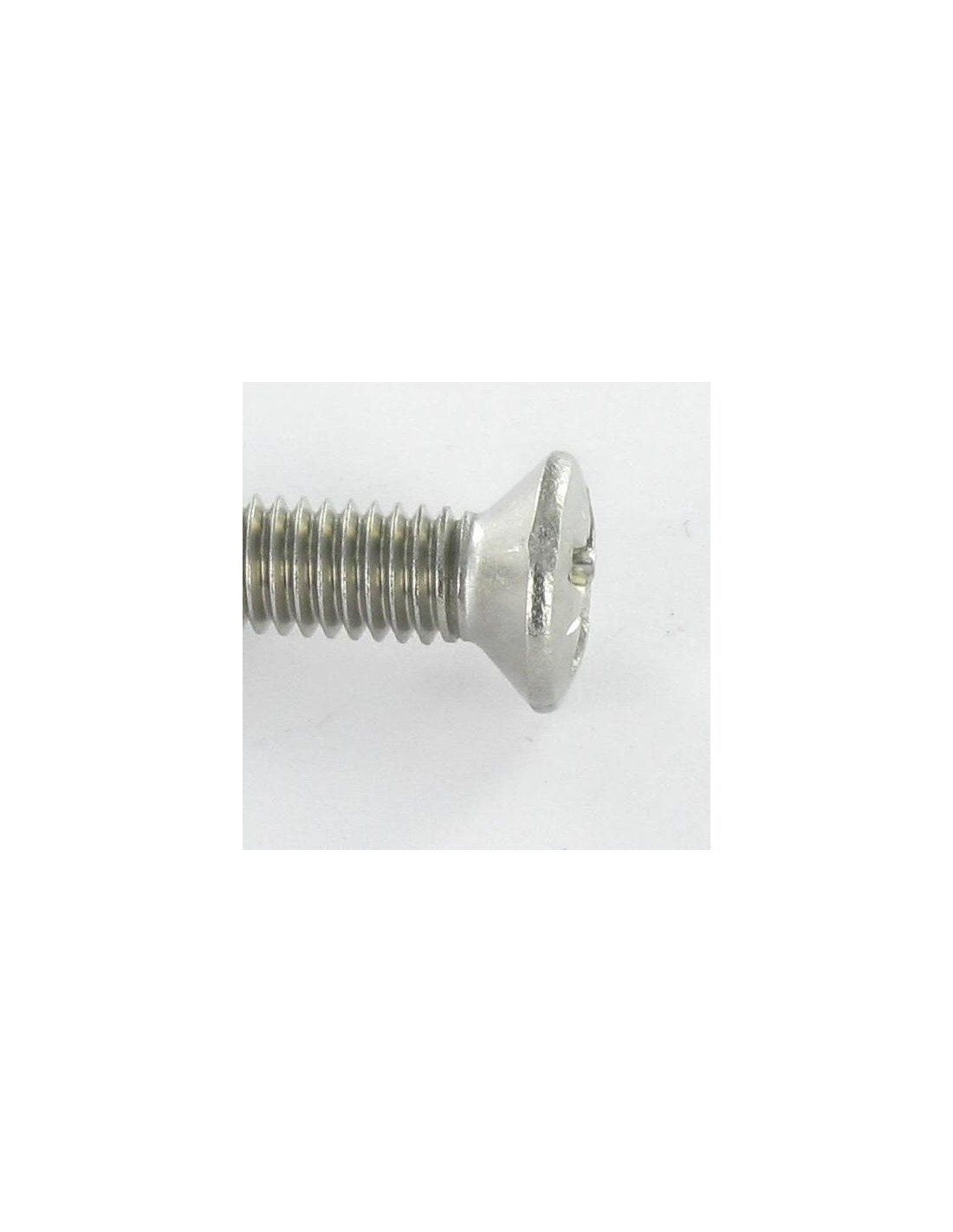

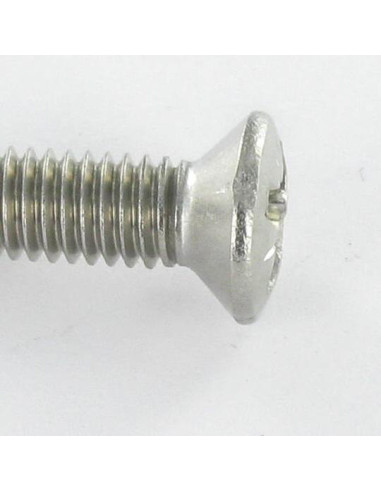

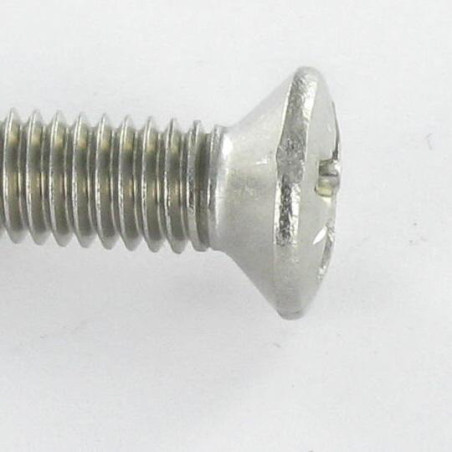

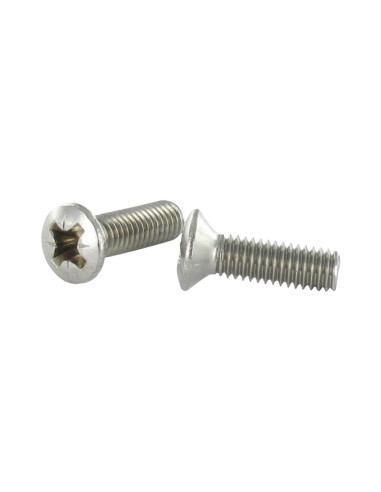

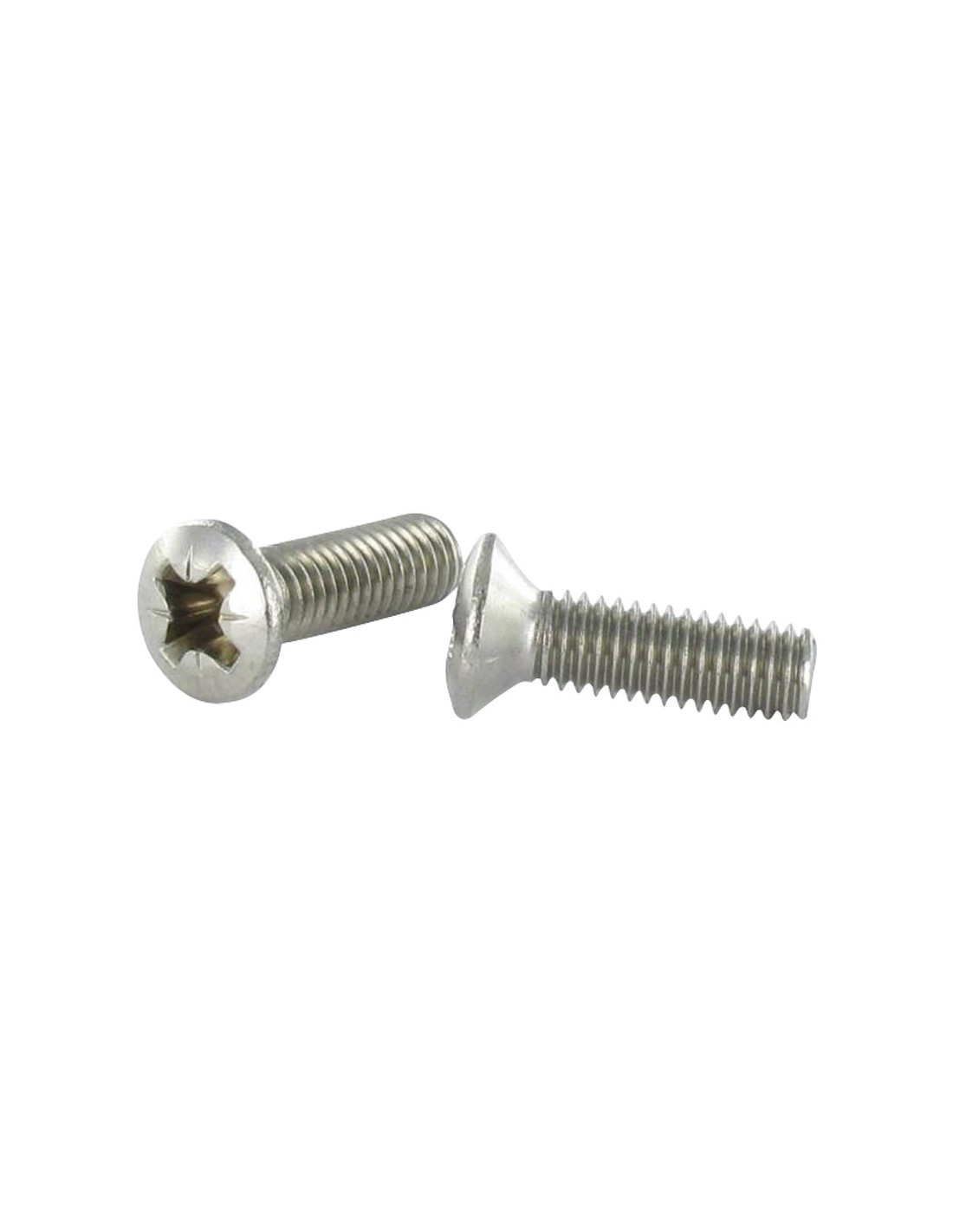

1 x Machine Screw Stainless Steel A2 Pan Countersunk Head Pozi M3X10 micro screw

8306301018_1
In stock 1055 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.04 £6.12 £7.29 £7.98
DIN 966 ISO 2010 - Machine Screw Stainless Steel A2 Pan Countersunk Head Pozi M3X10 micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
10
Thread
Metal
Pitch
Standard pitch 50
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 966 ISO 2010
Product Family
Machine Screw / MICROVIS
Sub product family
Pan Countersunk Head
Diameter in mm
2.974 - 2.835
Unit weight
0.6 GR
1055 Items
3663072147928
Machine Screw Stainless Steel A2 Pan Countersunk Head Pozi M3X10 micro screw
Diameter = M3, Length = 10, Sub Product Family = Pan Countersunk Head, Material = Stainless Steel Stainless Steel A2, Pitch = Standard pitch 50, Norm = DIN 966 ISO 2010, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Diameter 2.5 3 4 5 6 8
Head diameter 4.7 5.6 7.5 9.2 11 14.5
Head Tickness 1.5 1.65 2.2 2.5 3 4
Pozi 1 1 2 2 3 4

Other Reference : 622213X10 A436615000 3663072147928
