1 x Machine Screw Stainless Steel A2 Large Pan...

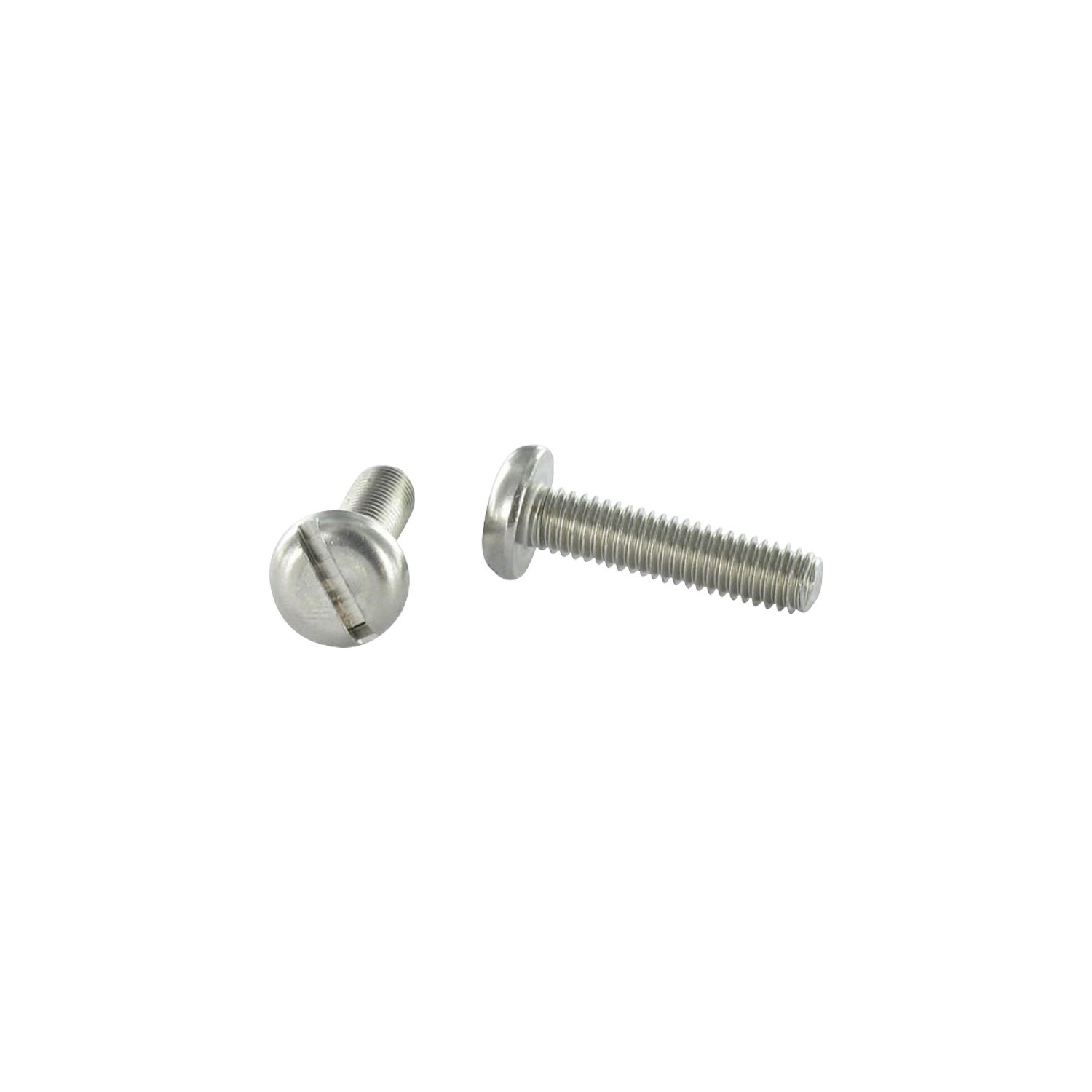

1 x Machine Screw Stainless Steel A2 Large Pan Head Slotted M5X60

8309506018_1
Available within 10 business days
€3.85 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.85 €7.70 €9.30 €32.10
DIN 85 ISO 1580 - Machine Screw Stainless Steel A2 Large Pan Head Slotted M5X60
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M5
Length
60
Thread
Metal
Drive Type
Slotted
Size Drive Type
1.26-1.51 (WIDTH SLOT) / 1.20 (DEPTH SLOT)
Pitch
Standard pitch 80
Diameter Head
9.64-10.00
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 85 ISO 1580
Product Family
Machine Screw
Sub product family
Cylindrical Head Large
Head thickness
2.86-3.00
Diameter in mm
4.976 - 4.826
Unit weight
8.96 GR
3663072386303
Machine Screw Stainless Steel A2 Large Pan Head Slotted M5X60
Diameter = M5, Length = 60, Material = Stainless Steel A2, Pitch = Standard pitch 80, Drive Type = Slotted, Norm = DIN 85 ISO 1580, Product Family = Machine Screw, Size Drive Type = 1.26-1.51 (WIDTH SLOT) / 1.20 (DEPTH SLOT), Diameter Head = 9.64-10.00


dimensional guide (mm)
Diameter M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
Head diameter 3 4 5 6 8 10 12 16 20
Head Tickness 1 1.2 1.5 1.8 2.4 3 3.6 4.8 6
Slot width 0.4 0.7 0.8 0.8 1.2 1.2 1.6 2 2.5

Other Reference : 622115X60 3663072386303
