1 x Machine Screw Stainless Steel A2 Large Pan...

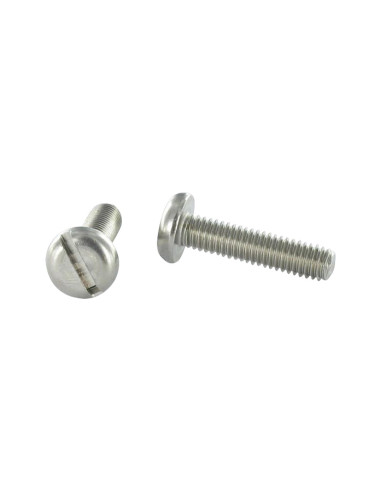

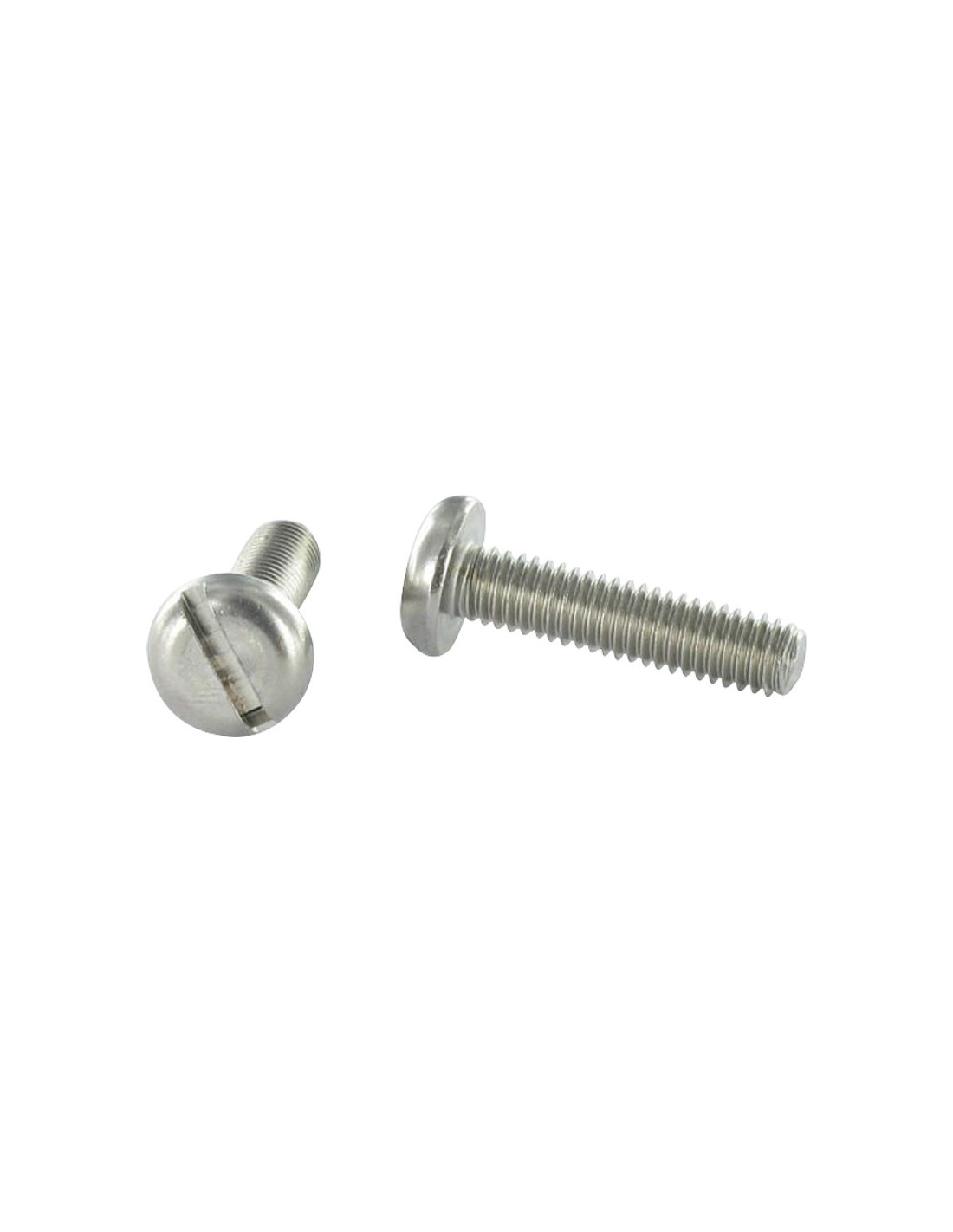

1 x Machine Screw Stainless Steel A2 Large Pan Head Slotted M3X35 micro screw

8309303518_1
In stock 650 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.50 €7.05 €8.40 €9.20
DIN 85 ISO 1580 - Machine Screw Stainless Steel A2 Large Pan Head Slotted M3X35 micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
35
Thread
Metal
Drive Type
Slotted
Size Drive Type
0.86-1 (WIDTH SLOT) / 0.70 (DEPTH SLOT)
Pitch
Standard pitch 50
Diameter Head
5.70-6.00
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 85 ISO 1580
Product Family
Machine Screw / MICROVIS
Sub product family
Cylindrical Head Large
Head thickness
1.66-1.80
Diameter in mm
2.974 - 2.835
Unit weight
1.88 GR
650 Items
3663072150034
Machine Screw Stainless Steel A2 Large Pan Head Slotted M3X35 micro screw
Diameter = M3, Length = 35, Sub Product Family = Cylindrical Head Large, Material = Stainless Steel Stainless Steel A2, Pitch = Standard pitch 50, Drive Type = Slotted, Norm = DIN 85 ISO 1580, Product Family = Machine Screw / MICROVIS, Size Drive Type = 0.86-1 (WIDTH SLOT) / 0.70 (DEPTH SLOT), Diameter Head = 5.70-6.00


dimensional guide (mm)
Diameter M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
Head diameter 3 4 5 6 8 10 12 16 20
Head Tickness 1 1.2 1.5 1.8 2.4 3 3.6 4.8 6
Slot width 0.4 0.7 0.8 0.8 1.2 1.2 1.6 2 2.5

Other Reference : 622113X35 3663072150034
