1 x Machine Screw Stainless Steel A2 Large Pan...

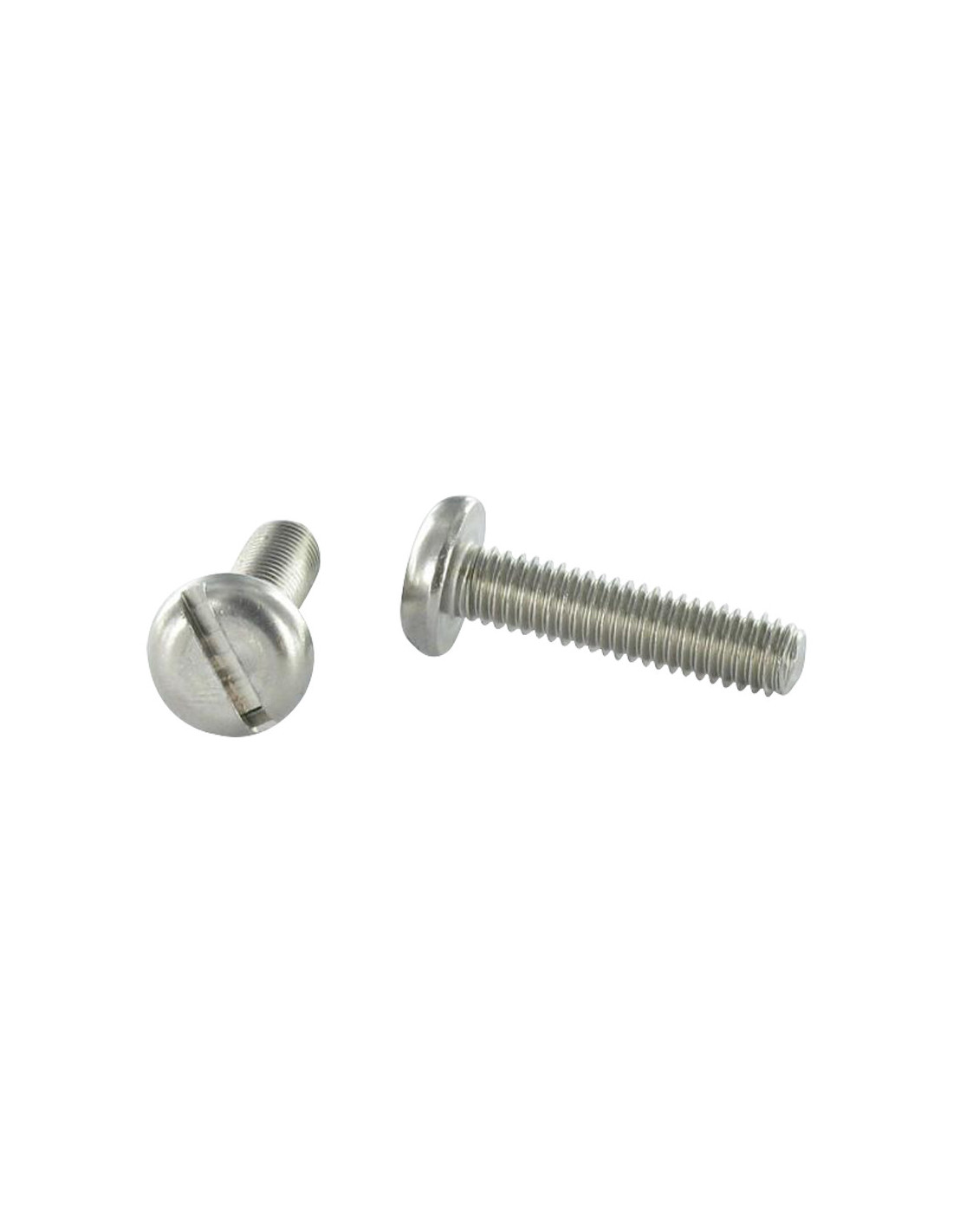

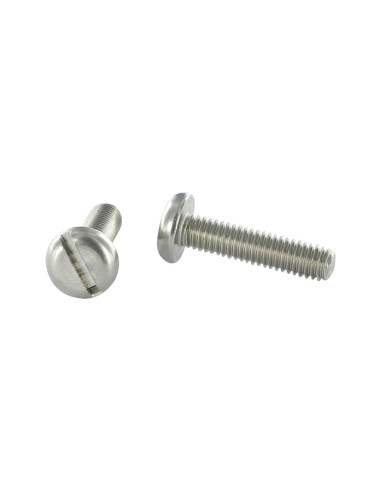

1 x Machine Screw Stainless Steel A2 Large Pan Head Slotted M2.5X25 micro screw

8309252518_1
In stock 357 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €3.50 €8.45 €9.20 €15.40
DIN 85 ISO 1580 - Machine Screw Stainless Steel A2 Large Pan Head Slotted M2.5X25 micro screw
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
M2.5
Length
25
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 45
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 85 ISO 1580
Product Family
Machine Screw / MICROVIS
Sub product family
Cylindrical Head Large
Diameter in mm
1.948 - 2013
Unit weight
0.93 GR
357 Items
3663072149939
Machine Screw Stainless Steel A2 Large Pan Head Slotted M2.5X25 micro screw
Diameter = M2.5, Length = 25, Sub Product Family = Cylindrical Head Large, Material = Stainless Steel Stainless Steel A2, Pitch = Standard pitch 45, Drive Type = Slotted, Norm = DIN 85 ISO 1580, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Diameter M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
Head diameter 3 4 5 6 8 10 12 16 20
Head Tickness 1 1.2 1.5 1.8 2.4 3 3.6 4.8 6
Slot width 0.4 0.7 0.8 0.8 1.2 1.2 1.6 2 2.5

Other Reference : 622112,5X25 3663072149939
