1 x Machine Screw Stainless Steel A2 Hexagonal...

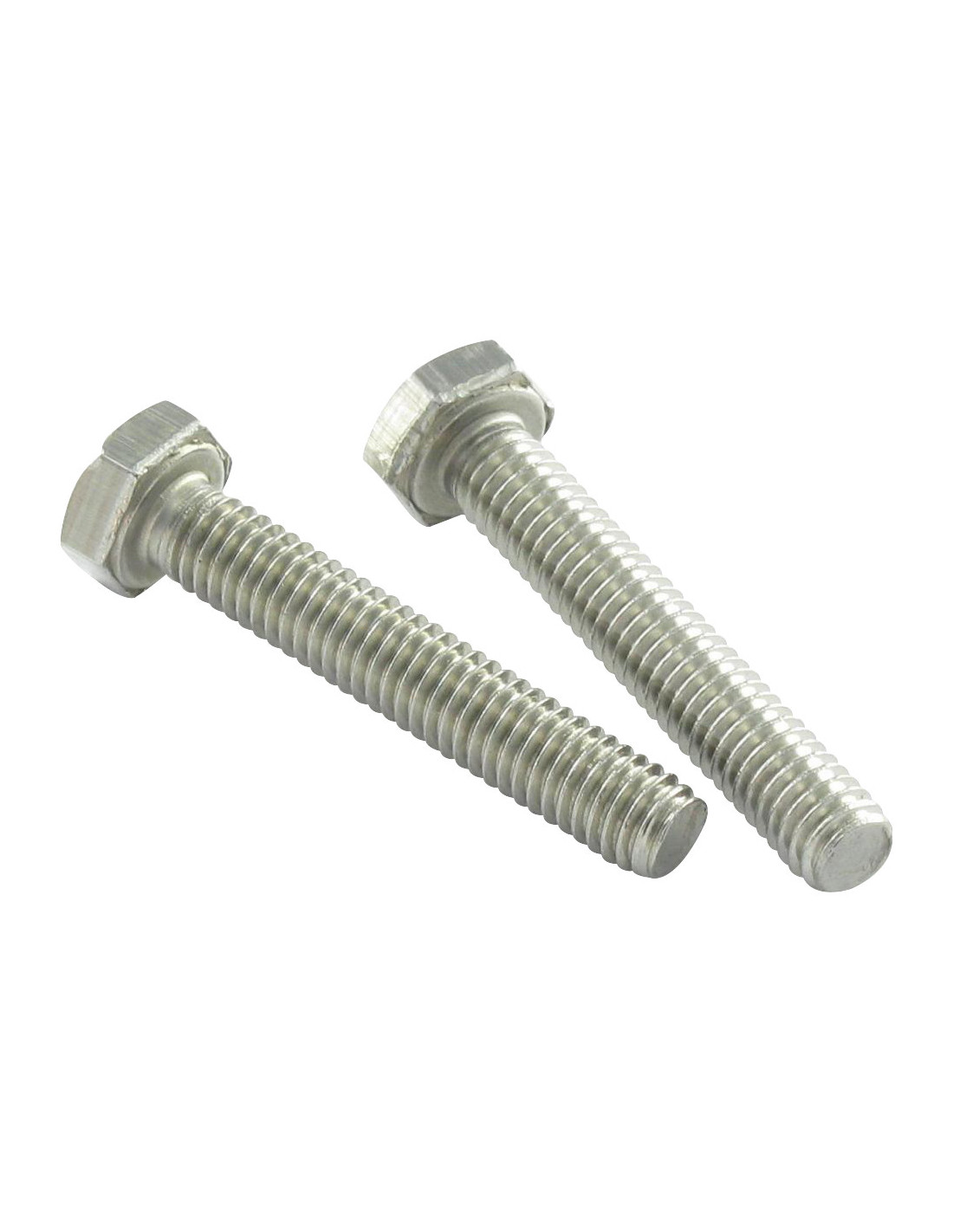

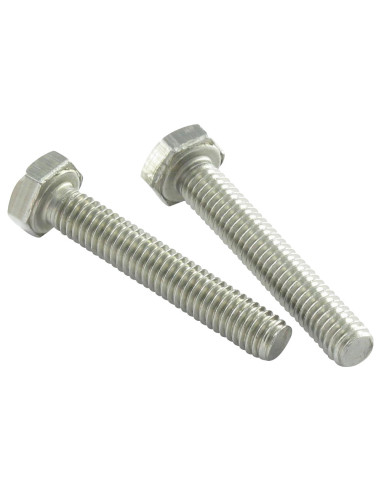

1 x Machine Screw Stainless Steel A2 Hexagonal Head M3X20 micro screw

8412332018_1
In stock 2593 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.04 £6.12 £7.29 £7.98
DIN 933 - Machine Screw Stainless Steel A2 Hexagonal Head M3X20 micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
20
Thread
Metal
KEY Of
5.5
Pitch
Standard pitch 50
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 933
Product Family
Machine Screw / MICROVIS
Sub product family
Hex Head
Diameter in mm
2.974 - 2.835
Unit weight
1.18 GR
2593 Items
3663072161238
Machine Screw Stainless Steel A2 Hexagonal Head M3X20 micro screw
Diameter = M3, Length = 20, Sub Product Family = Hex Head, Material = Stainless Steel Stainless Steel A2, Pitch = Standard pitch 50, Norm = DIN 933, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Diameter 3 4 5 6 8 10 12 14 16 18 20 24
Head diameter 2 2.8 3.5 4 5.3 6.4 7.5 8.8 10 11.5 12.5 15
Across flats 5.5 7 8 10 13 17 19 22 24 27 30 36

Other Reference : 621013X20 MVIS001-HM3X CPMECVIS030 A005082 VISINOHM3X20 MVISINO00115 B190054 25360320 3663072161238
