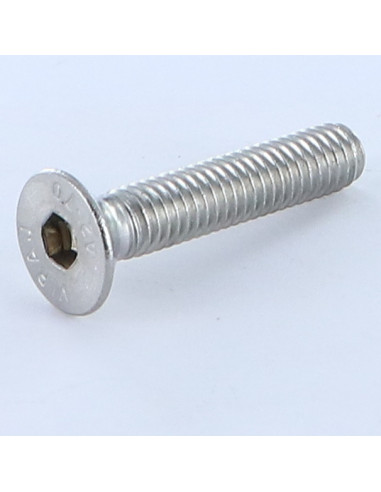

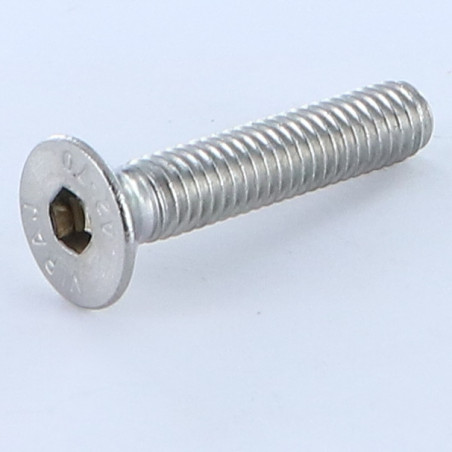

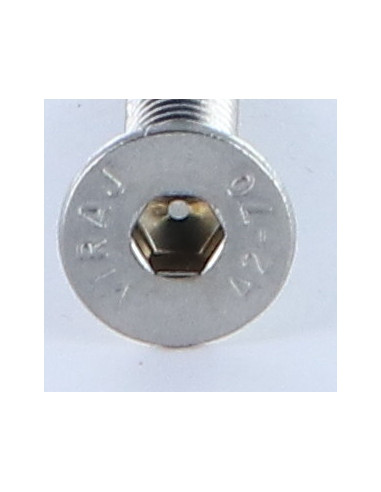

1 x Machine Screw Stainless Steel A2 Flat Head Hexagon Recess Hexagon Socket 4 M6X40 Partial Thread
1 x Machine Screw Stainless Steel A2 Flat Head Hexagon Recess Hexagon Socket 4 M6X40 Partial Thread
1 x Machine Screw Stainless Steel A2 Flat Head...
1 x Machine Screw Stainless Steel A2 Flat Head...

1 x Machine Screw Stainless Steel A2 Flat Head Hexagon Recess Hexagon Socket 4 M6X40 Partial Thread

8419604118_1
In stock 7 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €3.50 €7.05 €8.40 €31.40
ISO10642 SIMILAIRE DIN7991 FT - Machine Screw Stainless Steel A2 Flat Head Hexagon Recess Hexagon Socket 4 M6X40 Partial Thread
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

7 Items
3663072393400
Machine Screw Stainless Steel A2 Flat Head Hexagon Recess Hexagon Socket 4 M6X40 Partial Thread
Diameter = M6, Length = 40, Sub Product Family = Head Flat Head Hexagon Recess, Material = Stainless Steel Stainless Steel A2, Pitch = Standard pitch 100, Drive Type = Socket Cap, Norm = ISO10642 SIMILAR DIN7991 Full Thread, Product Family = Machine Screw, Size Drive Type = Hexagon Socket 4


dimensional guide (mm)
Diameter M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24
Across flats 2 2.5 3 4 5 6 8 10 10 12 12 14 14
Head diameter 6 8 10 12 16 20 24 27 30 33 36 36 39
Thread length for screw L<125 12 14 16 18 22 26 30 34 38 42 46 50 54
Thread length for screw 125 - - - 24 28 32 36 40 44 48 52 56 60
Thread length for screw L>200 - - - - - 45 49 53 57 61 65 69 73
L=LONGUEUR

Other Reference : 622036X40/40 3663072393400
