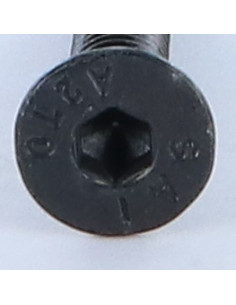

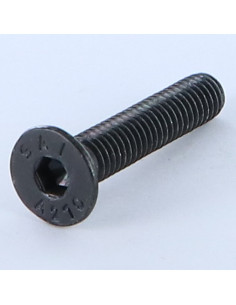

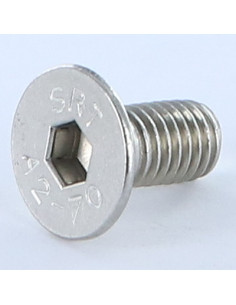

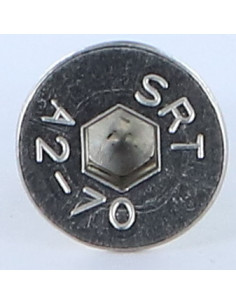

1 x Machine Screw Stainless Steel A2 Flat Head...

1 x Machine Screw Stainless Steel A2 Flat Head Hexagon Recess Hexagon Socket 2 M3X8 Full Thread micro screw

8419300818_1
In stock 26472 Pièces
£1.61 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200 800
Lot price VAT included £1.61 £3.21 £3.91 £4.17 £6.60
ISO10642 SIMILAIRE DIN7991 FT - Machine Screw Stainless Steel A2 Flat Head Hexagon Recess Hexagon Socket 2 M3X8 Full Thread micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units
  • 800 Units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M3
Length
8
Thread
Metal
Drive Type
Socket Cap
Size Drive Type
Hexagon Socket 2
Pitch
Standard pitch 50
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
ISO10642 SIMILAR DIN7991 Full Thread
Product Family
Machine Screw / MICROVIS
Sub product family
Head Flat Head Hexagon Recess
Diameter in mm
2.974 - 2.835
Unit weight
0.47 GR
26472 Items
3663072164215
Machine Screw Stainless Steel A2 Flat Head Hexagon Recess Hexagon Socket 2 M3X8 Full Thread micro screw
Diameter = M3, Length = 8, Material = Stainless Steel A2, Pitch = Standard pitch 50, Drive Type = Socket Cap, Norm = ISO10642 SIMILAR DIN7991 Full Thread, Product Family = Machine Screw / MICROVIS, Size Drive Type = Hexagon Socket 2


dimensional guide (mm)
Diameter M3 M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24
Across flats 2 2.5 3 4 5 6 8 10 10 12 12 14 14
Head diameter 6 8 10 12 16 20 24 27 30 33 36 36 39
Thread length for screw L<125 12 14 16 18 22 26 30 34 38 42 46 50 54
Thread length for screw 125 - - - 24 28 32 36 40 44 48 52 56 60
Thread length for screw L>200 - - - - - 45 49 53 57 61 65 69 73
L=LONGUEUR

Other Reference : 622033X8 VISTFHC38A2 2VIS1VM004 FHC3X8 306-0005 A3695 VISMI03008FH 26034 205003 DCXN218 0204047 3958 070700332 3663072164215
