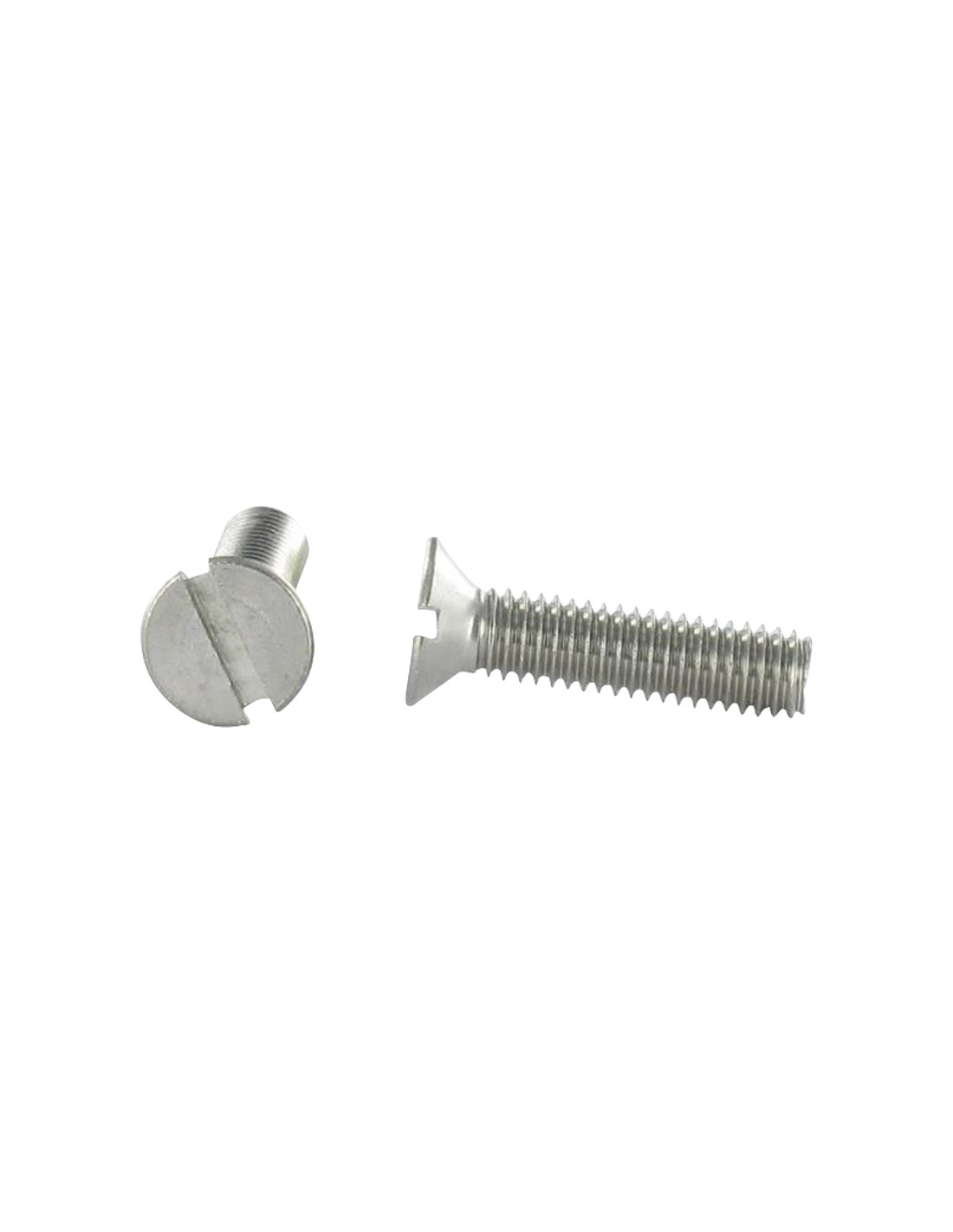

1 x Machine Screw Stainless Steel A2 Countersunk Head Slotted M3X10 micro screw

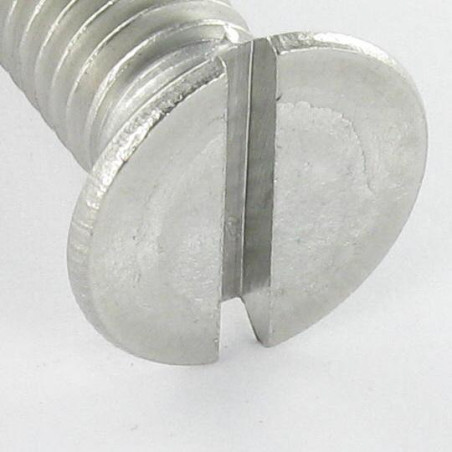

1 x Machine Screw Stainless Steel A2 Countersunk Head Slotted M3X10 micro screw

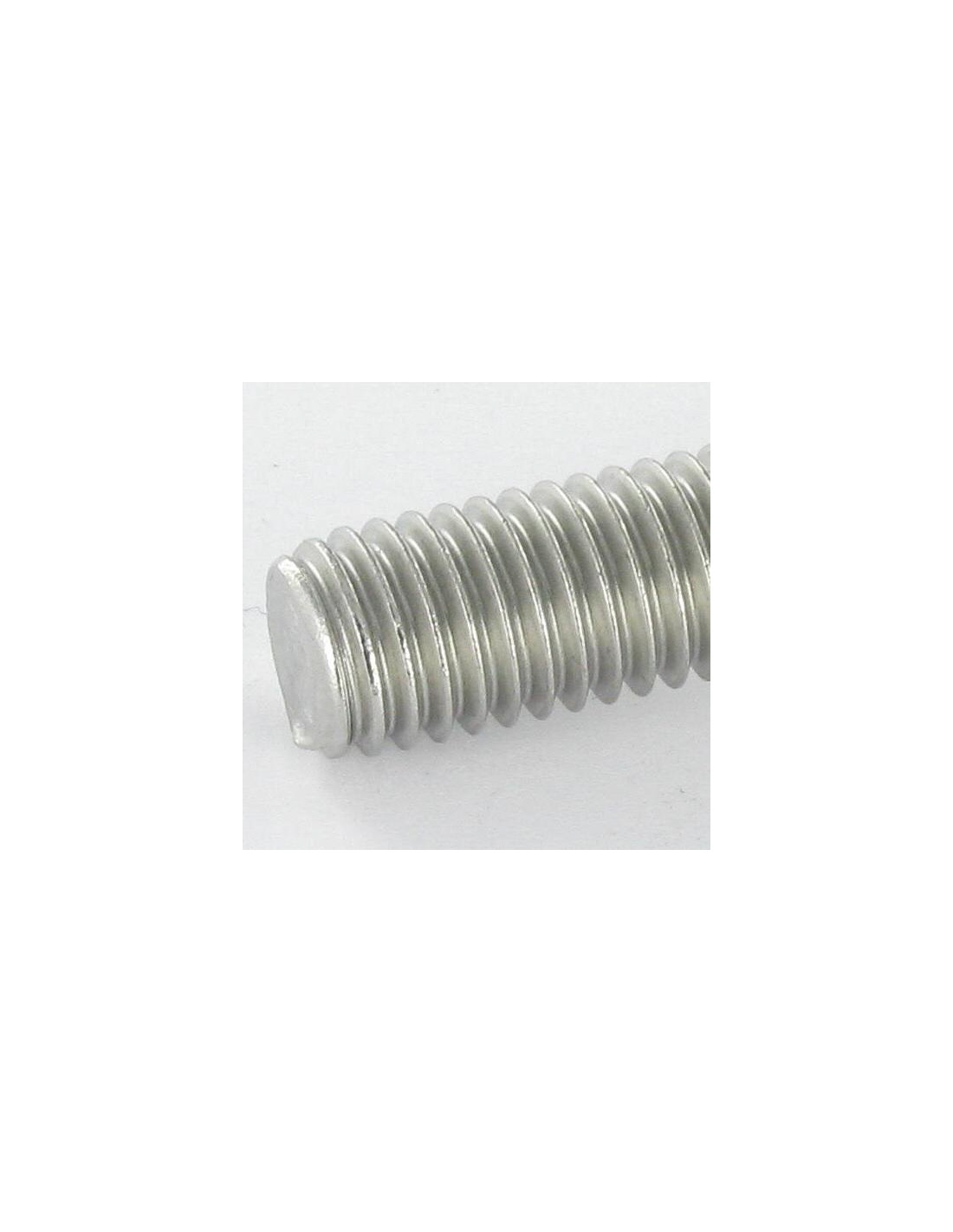

1 x Machine Screw Stainless Steel A2 Countersunk Head Slotted M3X10 micro screw

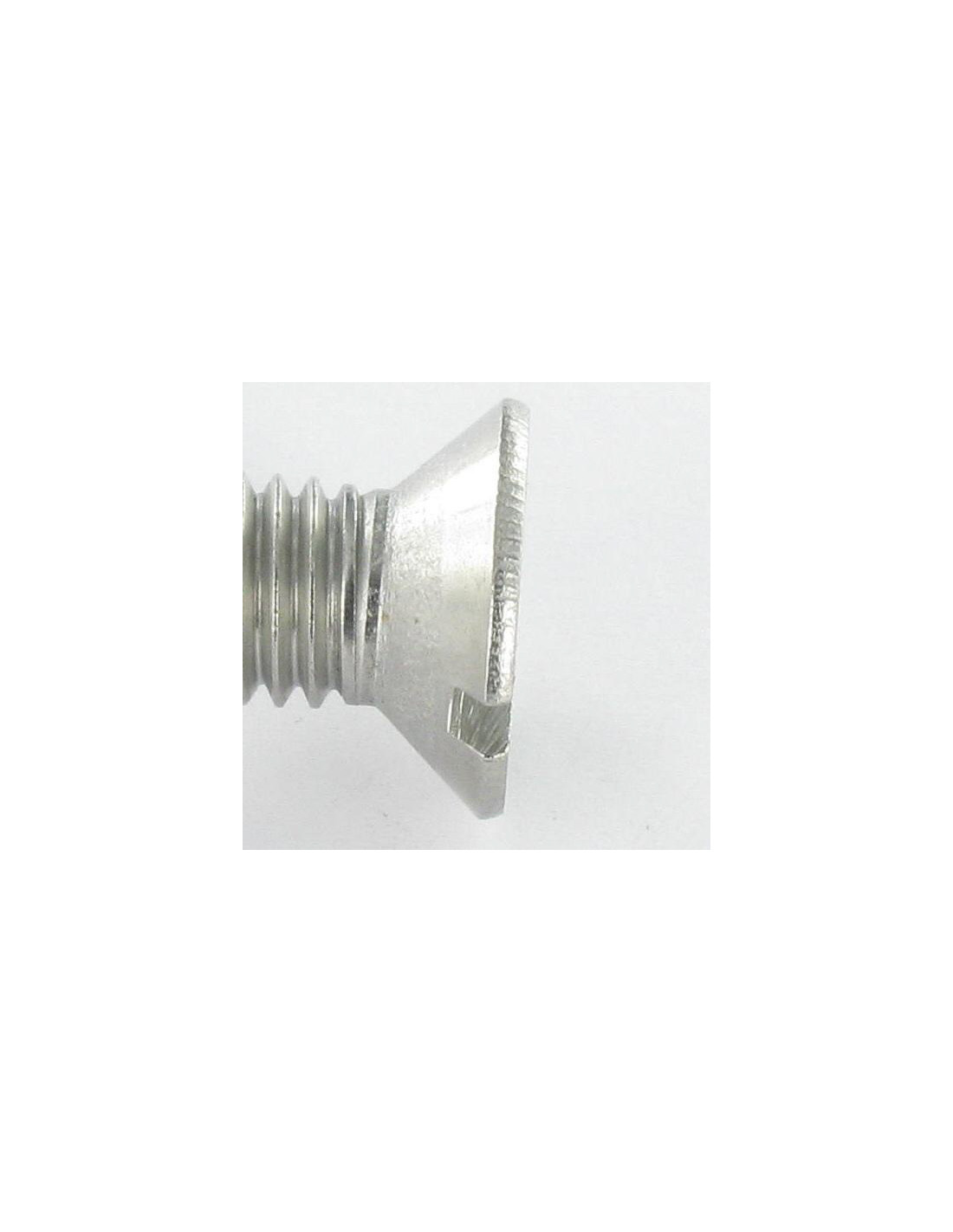

1 x Machine Screw Stainless Steel A2 Countersunk Head Slotted M3X10 micro screw

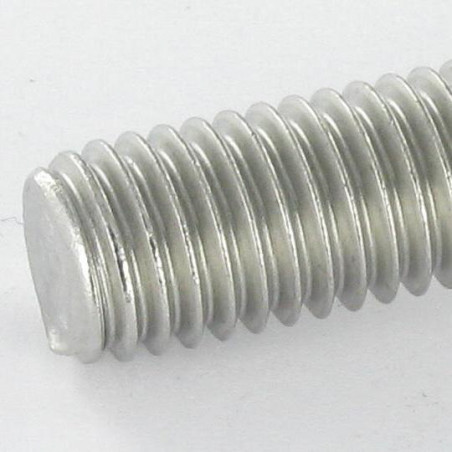

1 x Machine Screw Stainless Steel A2...

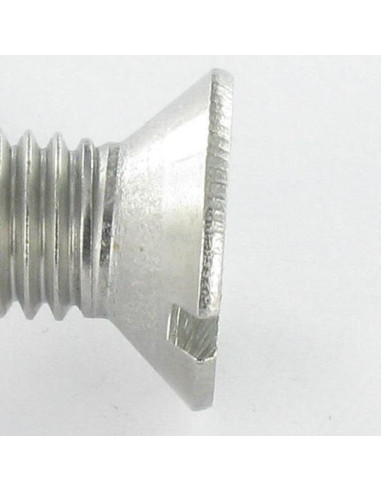

1 x Machine Screw Stainless Steel A2...

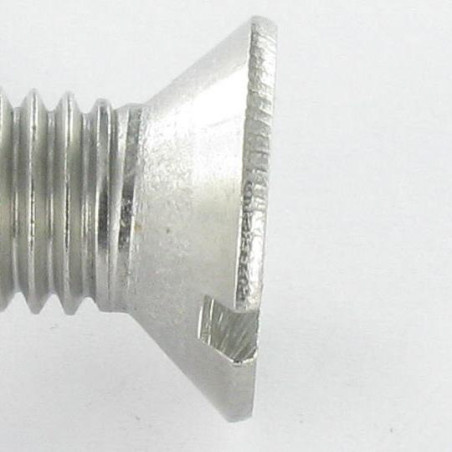

1 x Machine Screw Stainless Steel A2...

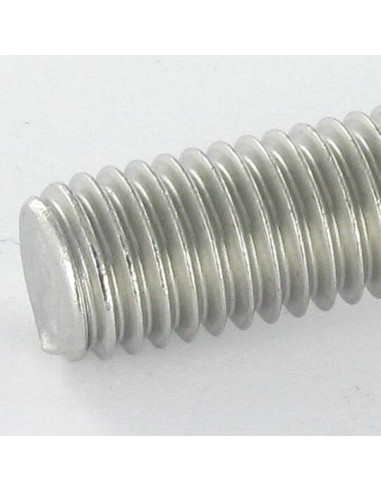

1 x Machine Screw Stainless Steel A2...

1 x Machine Screw Stainless Steel A2 Countersunk Head Slotted M3X10 micro screw

8301301018_1
In stock 15383 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included £3.04 £6.12 £7.29 £7.98

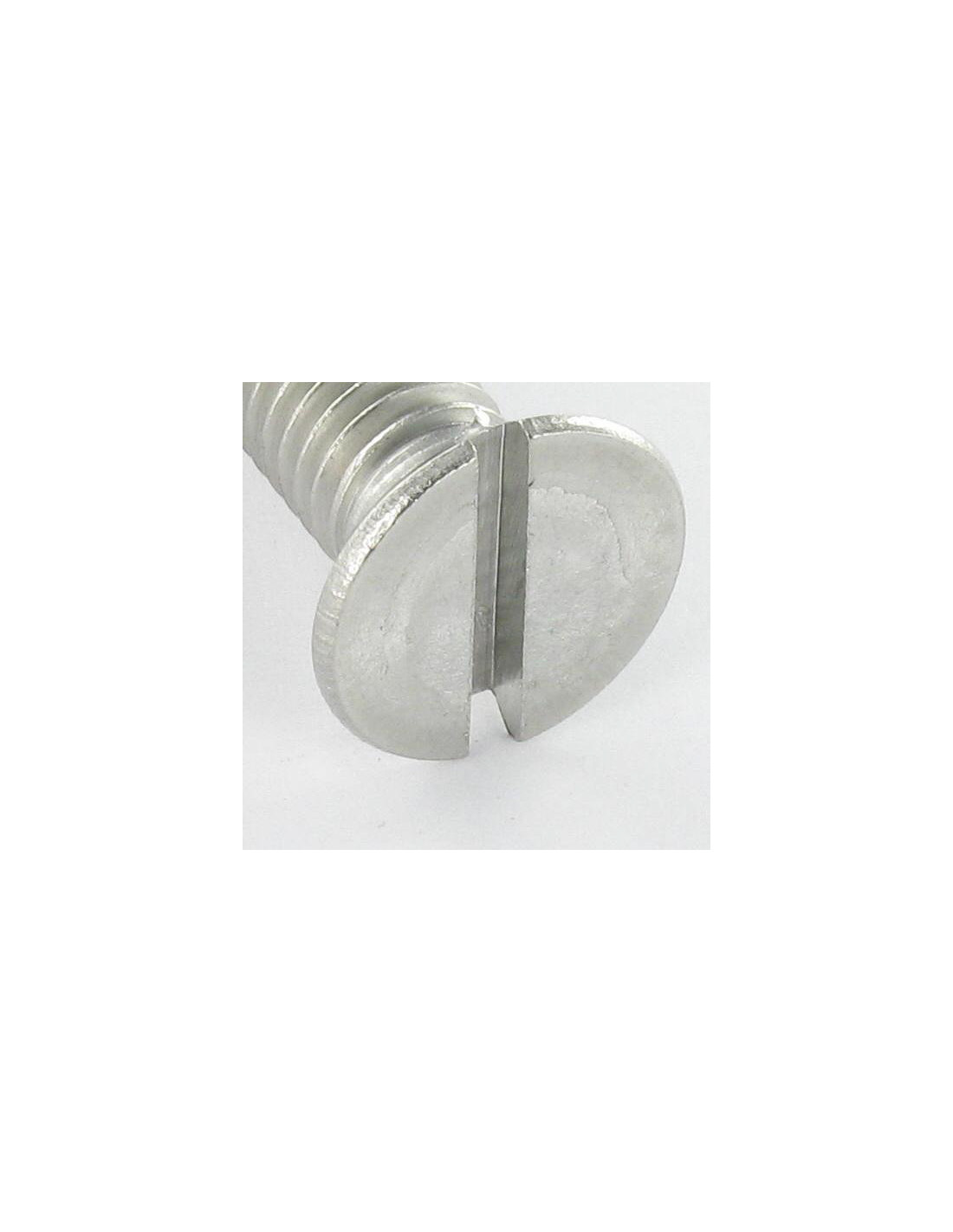

DIN 963 ISO 2009 - Machine Screw Stainless Steel A2 Countersunk Head Slotted M3X10 micro screw
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
10
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 50
Material
Stainless Steel Stainless Steel A2
COLOR
Grey
Norm
DIN 963 ISO 2009
Product Family
Machine Screw / MICROVIS
Sub product family
Countersunk Head
Diameter in mm
2.974 - 2.835
Unit weight
0.56 GR
15383 Items
3663072143883
Machine Screw Stainless Steel A2 Countersunk Head Slotted M3X10 micro screw
Diameter = M3, Length = 10, Sub Product Family = Countersunk Head, Material = Stainless Steel Stainless Steel A2, Pitch = Standard pitch 50, Drive Type = Slotted, Norm = DIN 963 ISO 2009, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Diameter 1.6 2 2.5 3 4 5 6 8 10 12
Head diameter 3 3.8 4.7 5.6 7.5 9.2 11 14.5 18 22
Head Tickness 0.96 1.2 1.5 1.65 2.2 2.5 3 4 5 6
Slot width 0.4 0.5 0.6 0.8 1 1.2 1.6 2 2.5 3

Other Reference : 622083X10 74003010 02756H C171010.00 24863 F3X10I 01G0406101 VIS0155 A493 21606 211643011 211643011 100408 400010 FVIIA2FFENM0 VIIN0013 27852 21606 01P019 S36041 S36041 104633 10697540 V001497 X143 51782 99052180 V001497 VISFSM3X10A2 VIFSM3-10 070700261 00072036 25320310 07001184 700001030 FIV-TFFM3-10 3663072143883
