4618101001_1
In stock 8243 Pièces
€4.25 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 30 200
Lot price VAT included €4.25 €8.45 €10.20 €16.00

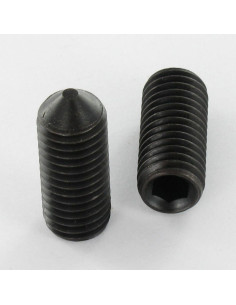

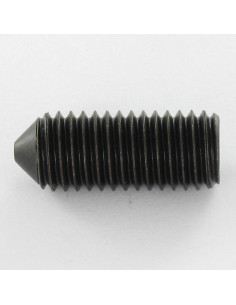

DIN 914 - Machine Screw Socket Head Hexagon Recess Hexagon Socket 5 M10X10 Cone Point Steel
Packaging
  • 1 unit
  • 10 units
  • 30 units
  • 200 units

See all available dimensions in this range Dimensions shown in millimeters (mm)

Diameter
M10
Length
10
Thread
Metal
Drive Type
Socket Cap
Size Drive Type
Hexagon Socket 5
Pitch
Standard pitch 150
Material
Steel
COLOR
Grey Steel / Black
Norm
DIN 914
Product Family
Screw Set Screw
Sub product family
Set Screw HEXA. With Hole
Tip
Cone Point
Diameter in mm
9.968 - 9.752
Unit weight
2.7 GR
8243 Items
3663072190573
Machine Screw Socket Head Hexagon Recess Hexagon Socket 5 M10X10 Cone Point Steel
Diameter = M10, Length = 10, Sub Product Family = Set Screw HEXA. With Hole, Material = Steel, Pitch = Standard pitch 150, Drive Type = Socket Cap, Norm = DIN 914, Product Family = Screw Set Screw, Size Drive Type = Hexagon Socket 5


dimensional guide (mm)
Diameter M2 M2.5 M3 M4 M5 ML6 M8 M10 M12 M14 M16 M18 M20 M22 M24 M30
Across flats 0.9 1.3 1.5 2 2.5 3 4 5 6 6 8 10 10 12 12 14

Other Reference : 3473576865965 451VI9110 FVISDIV015 00272811 OBVPT1010 VHCPU1010 v09-012 3663072190573
