1 x Machine Screw Pan Head Slotted M3X20 Steel micro screw
1 x Machine Screw Pan Head Slotted M3X20 Steel micro screw
1 x Machine Screw Pan Head Slotted M3X20 Steel...
1 x Machine Screw Pan Head Slotted M3X20 Steel...

1 x Machine Screw Pan Head Slotted M3X20 Steel micro screw

3102302001_1
In stock 1700 Pièces
£3.04 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100
Lot price VAT included £3.04 £6.12 £27.77

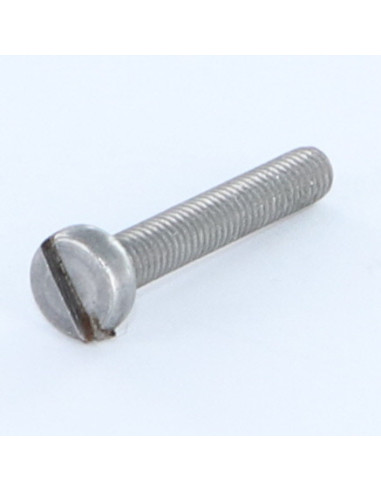

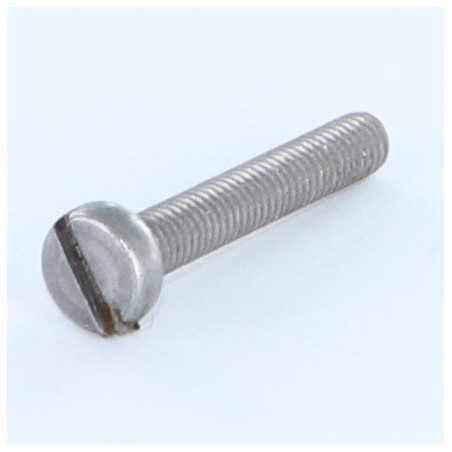

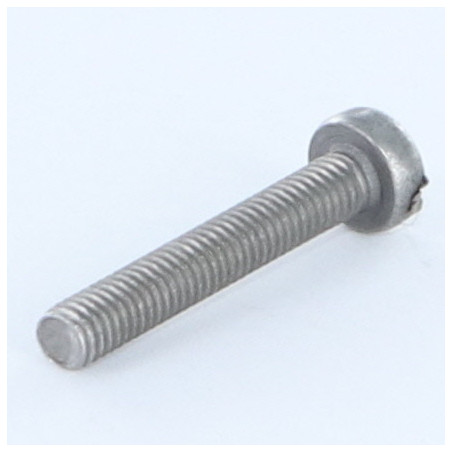

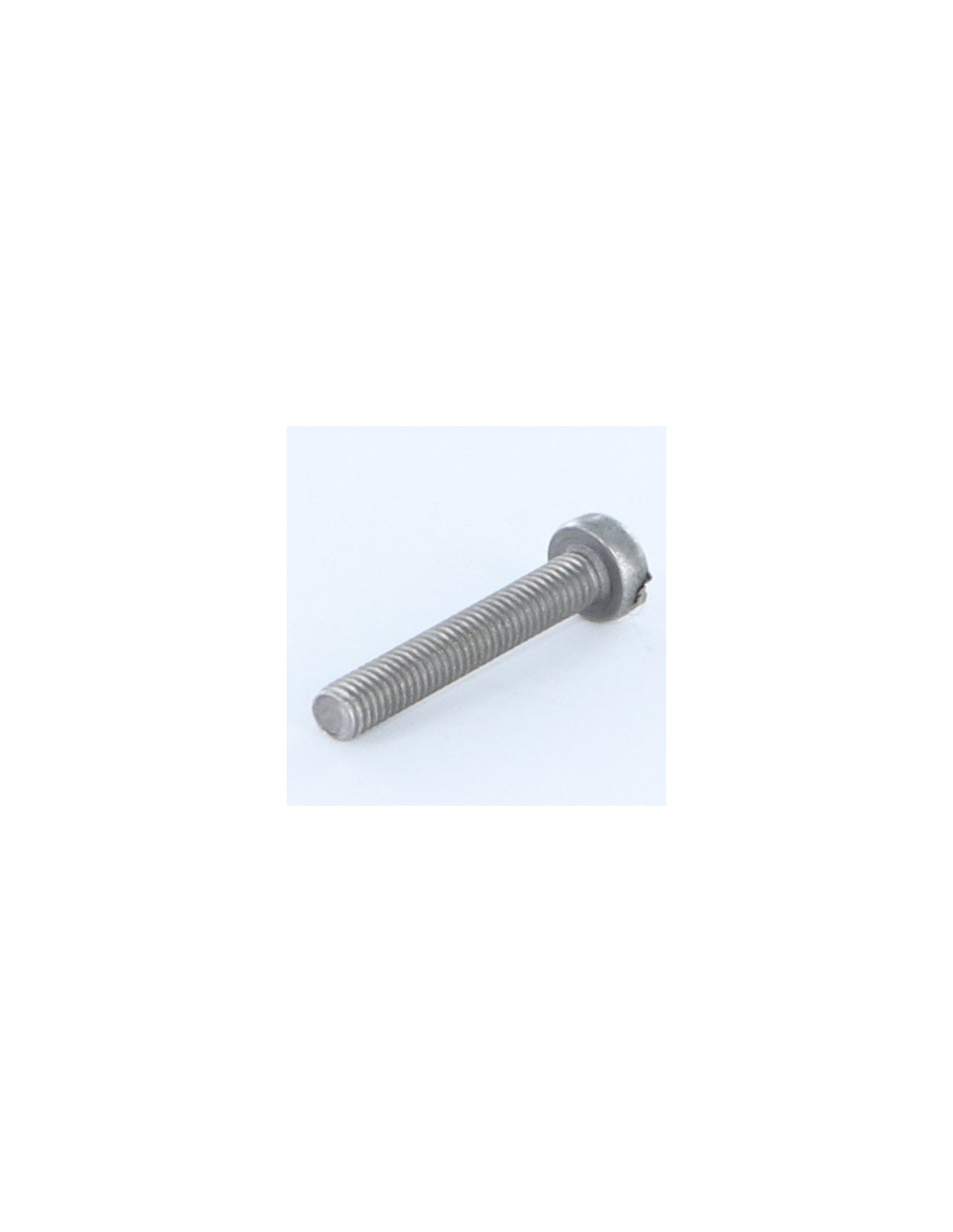

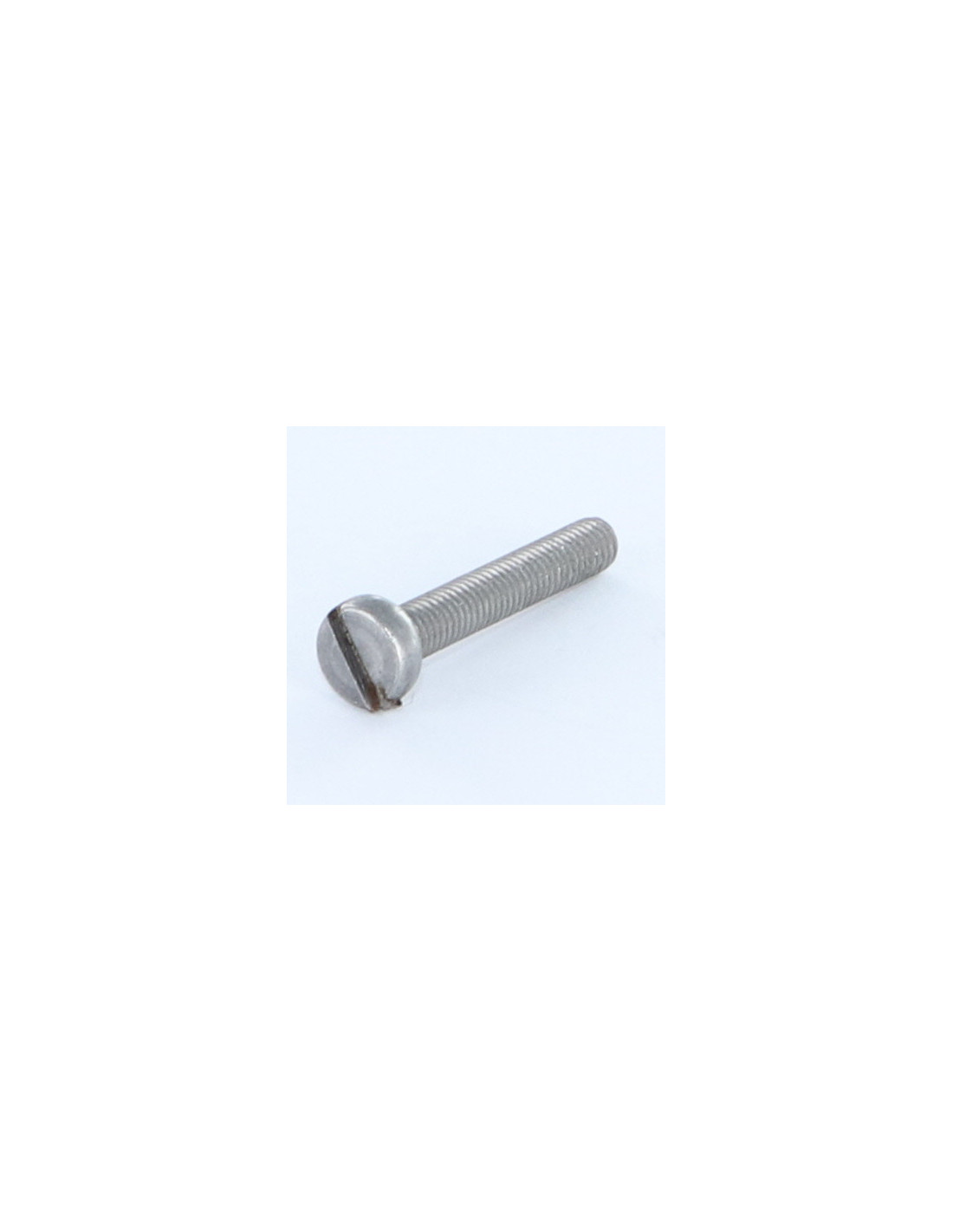

DIN 84 - Machine Screw Pan Head Slotted M3X20 Steel micro screw
Packaging
  • 1 unit
  • 10 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
20
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 50
Material
Steel
COLOR
Grey Steel / Black
Norm
DIN 84
Product Family
Machine Screw / MICROVIS
Sub product family
Cylindrical Head
Diameter in mm
2.974 - 2.835
Unit weight
1 GR
1700 Items
3663072063211
Machine Screw Pan Head Slotted M3X20 Steel micro screw
Diameter = M3, Length = 20, Sub Product Family = Cylindrical Head, Material = Steel, Pitch = Standard pitch 50, Drive Type = Slotted, Norm = DIN 84, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Diameter 2.5 3 4 5 6 8
Head diameter 4.5 5.5 7 8.5 10 13
Head Tickness 1.6 2 2.6 3.3 3.9 5
Slot width 0.6 0.8 1.2 1.2 1.6 2

Other Reference : 3617500009449 3663072063211
