1 x Machine Screw Pan Head Slotted M2.5X30...

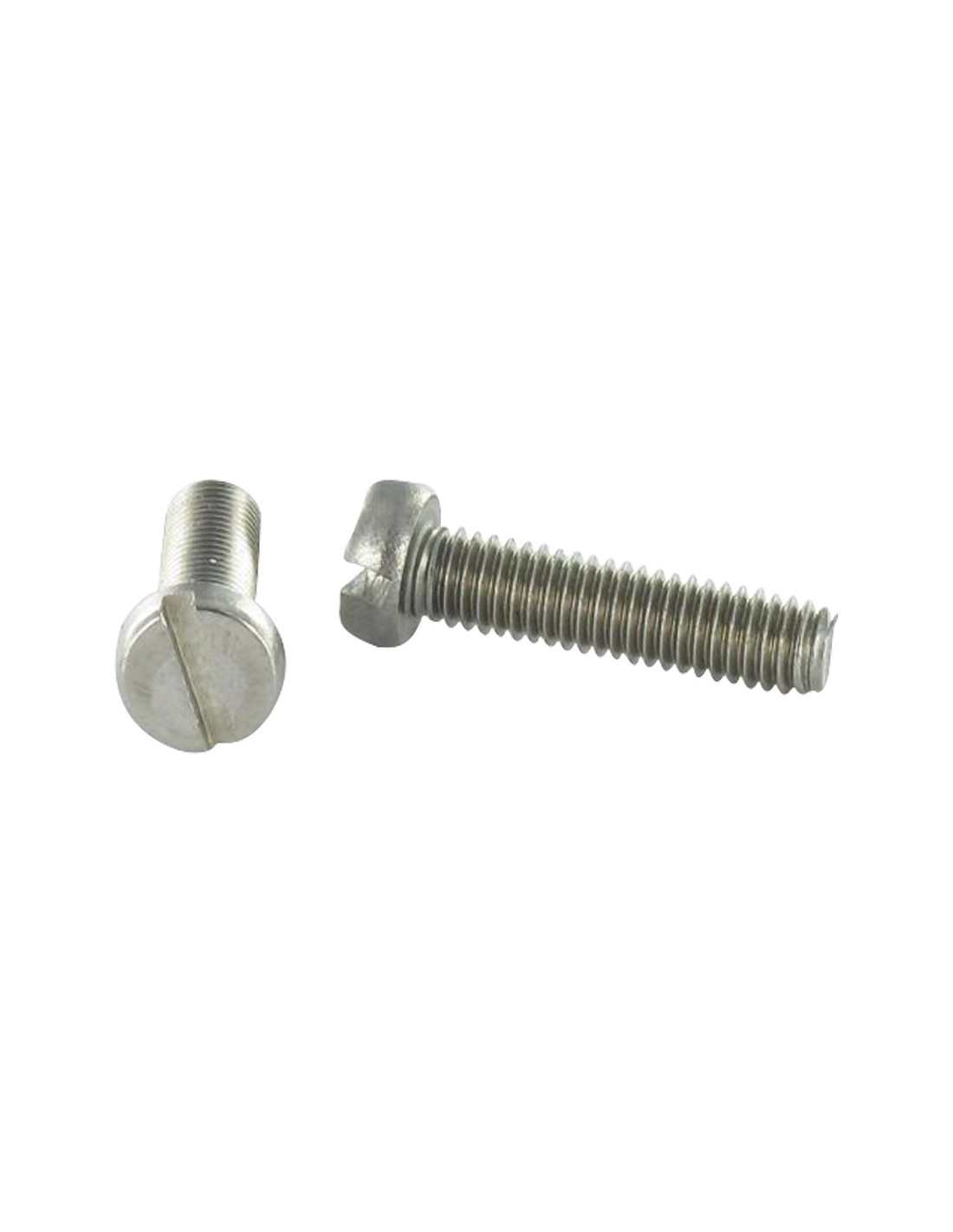

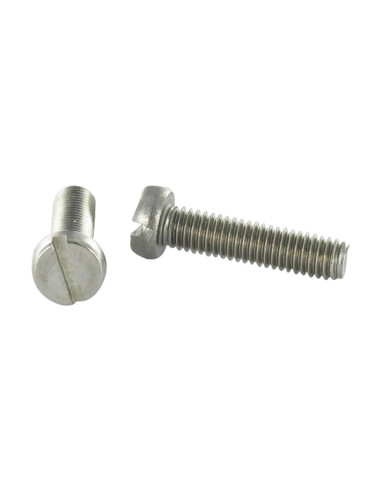

1 x Machine Screw Pan Head Slotted M2.5X30 Stainless Steel A4 micro screw

8802253018_1
Available within 10 working days
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 100 200 500
Lot price VAT included €3.50 €8.45 €9.20 €21.30
DIN 84 ISO 1207 - Machine Screw Pan Head Slotted M2.5X30 Stainless Steel A4 micro screw
Packaging
  • 1 unit
  • 100 units
  • 200 units
  • 500 Units

Dimensions shown in millimeters (mm)

Diameter
M2.5
Length
30
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 45
Material
Stainless Steel A4
COLOR
Grey
Norm
DIN 84 ISO 1207
Product Family
Machine Screw / MICROVIS
Sub product family
Cylindrical Head
Diameter in mm
1.948 - 2013
Unit weight
1 GR
3663072214682
Machine Screw Pan Head Slotted M2.5X30 Stainless Steel A4 micro screw
Diameter = M2.5, Length = 30, Sub Product Family = Cylindrical Head, Material = Stainless Steel A4, Pitch = Standard pitch 45, Drive Type = Slotted, Norm = DIN 84 ISO 1207, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Head diameter 1.6 2 2.5 3 4 5 6 8 10
Head Tickness 1 1.3 1.6 2 2.6 3.3 3.9 5 6
Slot width 0.4 0.5 0.6 0.8 1.2 1.2 1.6 2 2.5

Other Reference : 642102,5X30 3663072214682
