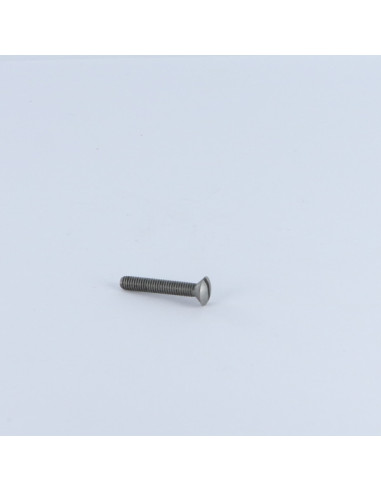

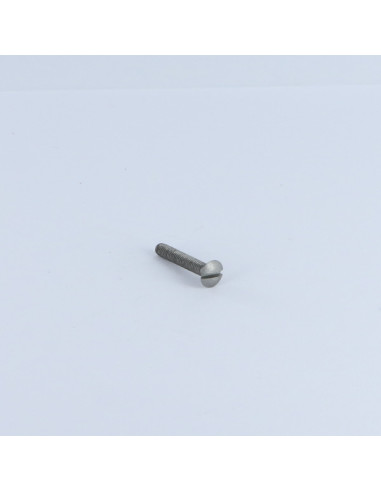

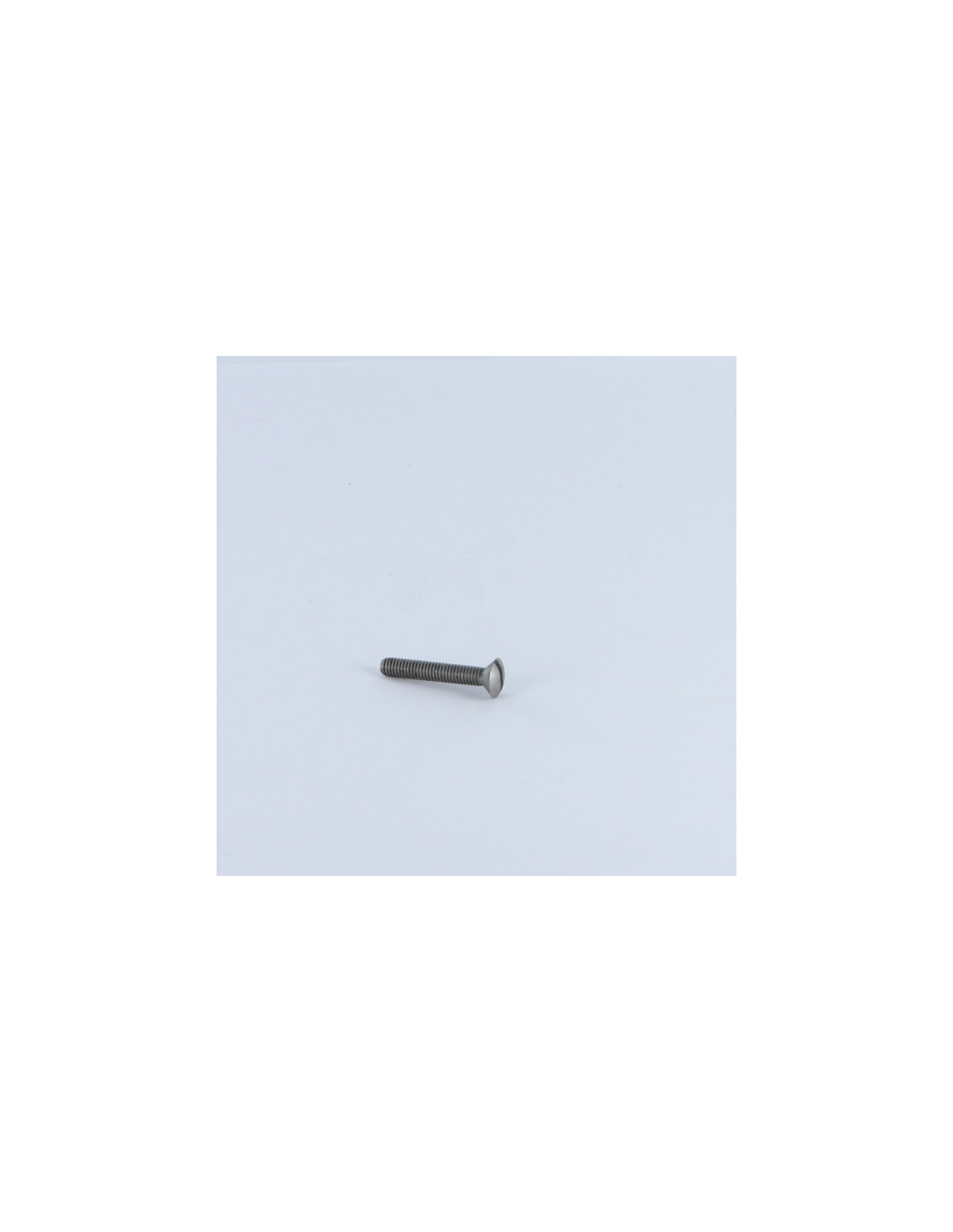

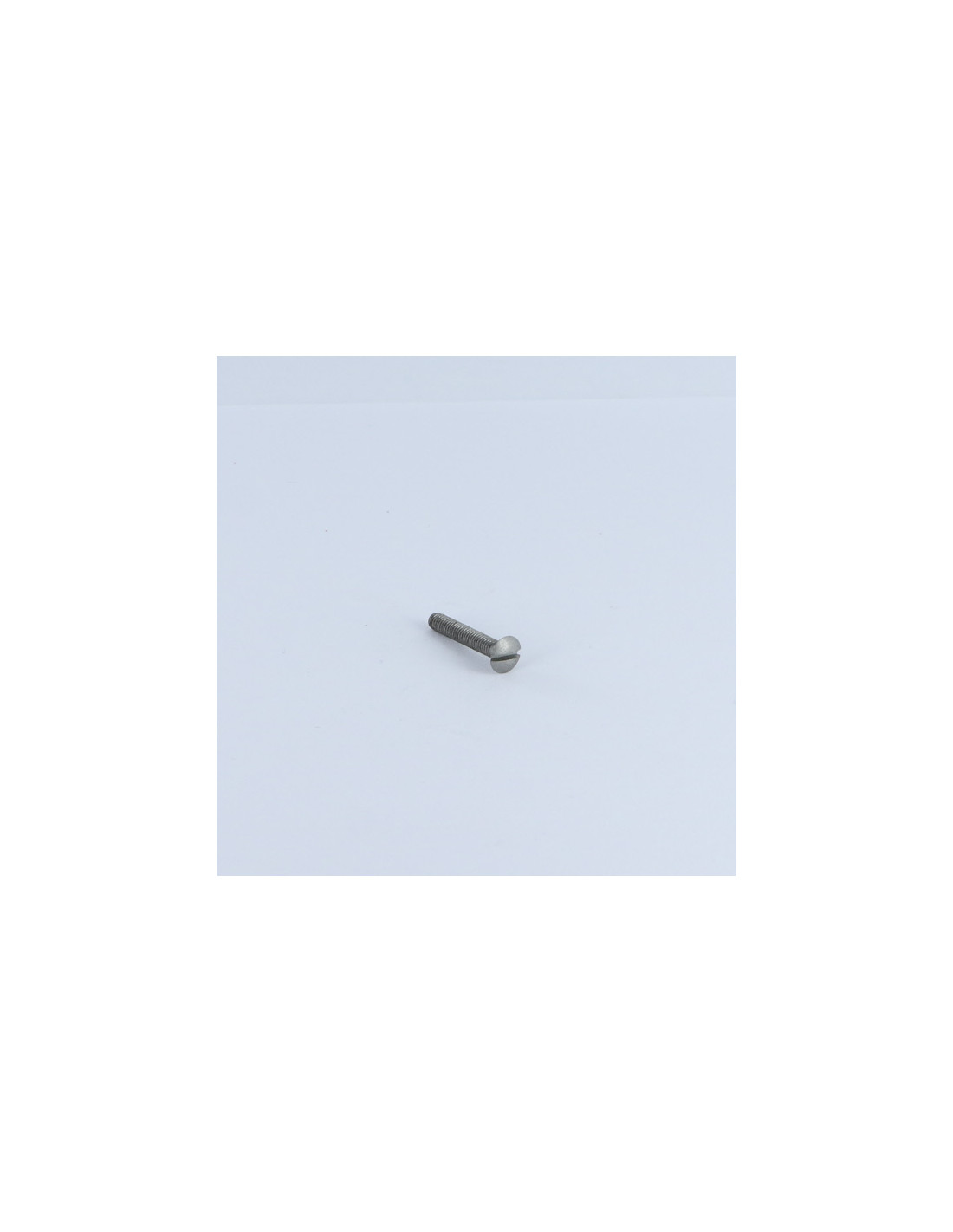

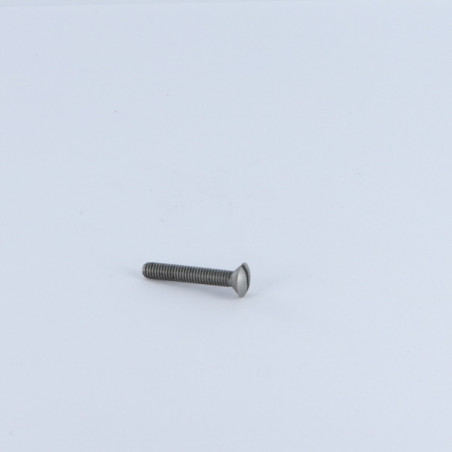

1 x Machine Screw Pan Countersunk Head Slotted M3X16 Steel micro screw
1 x Machine Screw Pan Countersunk Head Slotted M3X16 Steel micro screw
1 x Machine Screw Pan Countersunk Head Slotted...
1 x Machine Screw Pan Countersunk Head Slotted...

1 x Machine Screw Pan Countersunk Head Slotted M3X16 Steel micro screw

3103301601_1
In stock 4739 Pièces
€3.50 Incl VAT
Decreasing prices by quantity
Number of pieces 1 10 100
Lot price VAT included €3.50 €7.05 €32.00
DIN 964 - Machine Screw Pan Countersunk Head Slotted M3X16 Steel micro screw
Packaging
  • 1 unit
  • 10 units
  • 100 units

Dimensions shown in millimeters (mm)

Diameter
M3
Length
16
Thread
Metal
Drive Type
Slotted
Pitch
Standard pitch 50
Material
Steel
COLOR
Grey Steel / Black
Norm
DIN 964
Product Family
Machine Screw / MICROVIS
Sub product family
Pan Countersunk Head
Diameter in mm
2.974 - 2.835
Unit weight
1 GR
4739 Items
3663072074910
Machine Screw Pan Countersunk Head Slotted M3X16 Steel micro screw
Diameter = M3, Length = 16, Sub Product Family = Pan Countersunk Head, Material = Steel, Pitch = Standard pitch 50, Drive Type = Slotted, Norm = DIN 964, Product Family = Machine Screw / MICROVIS


dimensional guide (mm)
Diameter 3 4 5 6
Head diameter 5.6 7.5 9.2 11
Head Tickness 1.65,2.2,2.5,3
Slot width 0.8 1 1.2 1.6

Other Reference : 3617500188403 3663072074910
